Please Note: A $700 shipping fee is required and will be automatically added to your cart at checkout.
Epson SureColor G9070 DTF Bundle – Complete 64" DTF Printing Workflow
Build a complete wide-format DTF production workflow with the Epson SureColor G9070 64" DTFilm Printer and DTF Station Miro 64 Powder Shaker and Dryer. This bundle combines Epson’s production-class DTFilm printing technology with a 64-inch powdering and curing system designed for high-volume DTF production.

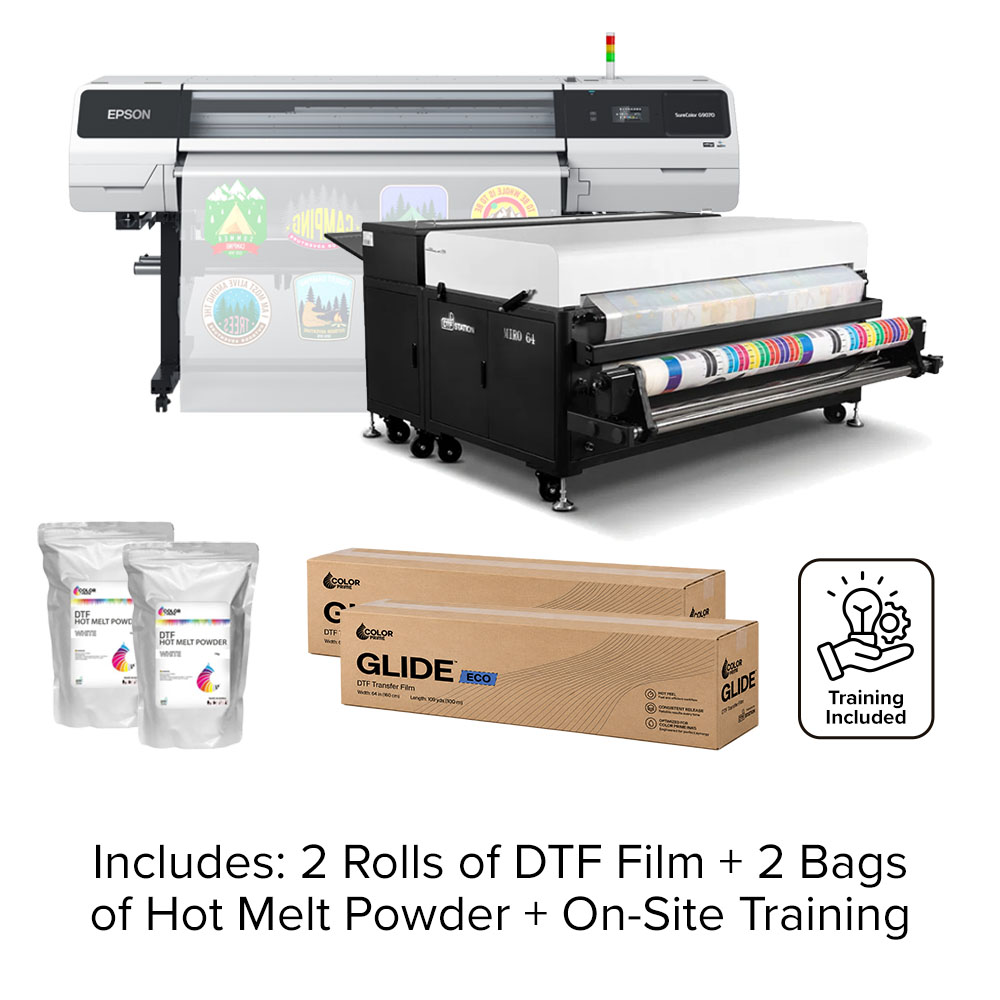

The bundle includes the Epson SureColor G9070 64" DTFilm Printer, DTF Station Miro 64 Industrial DTF Powder Shaker and Dryer, two 1kg bags of Color Prime DTF Hot Melt Powder, and two rolls of Color Prime DTF Film Glide Eco 63" x 109yd.
With up to 64" of printing width and the Miro 64 finishing platform, this system provides a complete print, powder and curing workflow for high-volume apparel decorators, contract printers and production environments looking to scale DTF output.
What's Included with the Bundle?
(Ink packs sold separately and required for printer setup.)
Epson SureColor G9070 64" DTFilm Printer
The Epson SureColor G9070 is a 64" production-class DTFilm printer designed for high-volume DTF printing. With Epson UltraChrome DF ink technology, PrecisionCore Micro TFP printheads and a maximum print speed of up to 350 ft²/hr in DTF Normal Mode, the G9070 is built to support demanding production environments.
The G9070 supports media up to 64" wide and features twin-roll capability for parallel production. CMYK-only and white-only single-layer printing can reach speeds of up to 650 ft²/hr, helping production shops increase throughput for larger DTF transfer runs.
Epson SureColor G9070 60 Second Review
Epson SureColor G9070 Key Features
- 64" Wide-Format DTF Printing - Supports wide-format DTF production for larger transfers and higher-volume workloads.
- Production-Class Speed - DTF Normal Mode delivers speeds of up to 350 ft²/hr with color and white.
- Single-Layer Production - CMYK-only and white-only printing can reach up to 650 ft²/hr.
- Twin-Roll Capability - Supports parallel production for improved media utilization and workflow flexibility.
- UltraChrome DF Ink - Epson’s DTFilm ink technology provides vibrant color and detailed DTF transfers.
- PrecisionCore Micro TFP Printheads - Advanced printhead technology with Nozzle Verification Technology supports consistent output.
- Automated Maintenance - Automated maintenance features help support consistent production and reduce routine upkeep.
- Remote Production Monitoring - Epson Cloud Solution PORT provides production information and remote monitoring capabilities.
G9070 Print Speeds
- DTF Normal Mode: Up to 350 ft²/hr with color and white
- CMYK Only: Up to 650 ft²/hr
- White Only: Up to 650 ft²/hr
Note: Print speeds are based on the print engine in bi-directional mode. Total throughput may vary based on RIP, file size, resolution and network performance.
G9070 Size and Dimensions
- Width: 116 inches (2,949 mm)
- Depth: 33 inches (844 mm)
- Height: 63 inches (1,605 mm)
- Weight: 815 lb (370 kg)
Epson SureColor G9070 vs. G6070 DTFilm Printer Comparison
| Feature | Epson SureColor G6070 | Epson SureColor G9070 |
|---|
| Maximum Media Width | Up to 35.4 inches | Up to 64 inches with twin-roll support |
| Production Level | Mid-volume DTF production | High-volume, production-class DTF |
Print Speeds
(Color + White) | Speed Mode: Up to 85 ft²/hr
Production Mode: Up to 55 ft²/hr
Quality Mode: Up to 45 ft²/hr | DTF Normal Mode: Up to 350 ft²/hr |
Single-Layer Speeds
(Color or White Only) | Speed Mode: Up to 165 ft²/hr
Production Mode: Up to 120 ft²/hr
Quality Mode: Up to 85 ft²/hr | CMYK Only: Up to 650 ft²/hr
White Only: Up to 650 ft²/hr |
| Media Handling | Single roll, roll-to-roll operation | Twin-roll capability for parallel production |
| Ink Technology | Epson UltraChrome DF ink set | Epson UltraChrome DF ink set |
| Printhead Technology | PrecisionCore Micro TFP with Nozzle Verification Technology | PrecisionCore Micro TFP with Nozzle Verification Technology |
| Maintenance | Automated maintenance system | Automated maintenance system |
| Best For | Growing DTF shops and moderate production volumes | High-volume DTF shops and contract printers |
Miro 64 Industrial DTF Powder Shaker & Dryer
The DTF Station Miro 64 is an industrial wide-format DTF powder shaker and curing system designed to support production speeds of up to 35 m²/h, or approximately 377 ft²/h. Its 64-inch platform is designed to pair with wide-format DTF printers such as the Epson SureColor G9070.
The Miro 64 supports either one 64-inch roll or two 24-inch rolls, providing flexibility for different production requirements. Five-zone heating with bottom heat provides controlled curing, while integrated fume management helps manage the finishing environment.
DTF Station Miro 64 Shaker & Dryer Walkthrough Video
Miro 64 Features & Benefits
- Wide-Format Production: Supports production speeds up to 35 m²/h, or approximately 377 ft²/h.
- 64-Inch Finishing Platform: Designed for wide-format DTF production with film widths up to 64 inches.
- Flexible Media Handling: Supports one 64-inch roll or two 24-inch rolls.
- Five-Zone Heating: Five-zone heating with bottom heat provides controlled curing across the production workflow.
- Integrated Fume Management: Built-in fume management helps manage fumes generated during the curing process.
- Industrial Production: Purpose-built for wide-format DTF production environments.
- Practical Installation: Two-section construction helps simplify shipping, site entry and installation.
- Single-Phase Power: Operates on 220 V single-phase power with a rated power requirement of 5.5 kW.
- Operator Controls: Interface controls provide adjustments for temperature, paddle speed, powder drop and fume extraction.
Miro 64 DTF Powder Shaker & Dryer Specifications
| Product Type | DTF Powder Shaker & Dryer |
|---|
| Maximum Film Width | 64" / 160 cm |
|---|
| Production Speed | Up to 35 m²/h / 377 ft²/h |
|---|
| Media Modes | 1 × 64" roll or 2 × 24" rolls |
|---|
| Heating System | 5-zone heating + bottom heating |
|---|
| Power Requirements | 5.5 kW, AC 220 V, Single Phase |
|---|
| Powder Volume | To be confirmed |
|---|
| Machine Dimensions | 1900 × 1400 × 983 mm
74.80" × 55.12" × 38.70" |
|---|
| Packaging Dimensions | 2100 × 1700 × 1220 mm
82.7" × 66.9" × 48.0" |
|---|
| Machine Weight | 620 kg / 1,366.86 lb |
|---|
| Packaging Weight | 820 kg / 1,807.79 lb |
|---|
| Fume Management | Integrated fume management |
|---|
| Compatible Printers | Epson G9070/G9000, Mimaki TxF300-1600 and other compatible 64" DTF printers up to 35 m²/h |
|---|
| Suitable Users | Industrial |
|---|
| Warranty Terms | 16 months from date shown on CE label |
|---|
Color Prime DTF Hot Melt Powder
This bundle includes two 1kg bags of Color Prime DTF Hot Melt Powder for use in the DTF transfer production process. The powder is applied over printed DTF film before curing and helps the finished transfer adhere to the garment during heat pressing.
- Solid White After Baking
- Even Particle Distribution
- Fine-Quality Finish
- Versatile Fabric Compatibility
Color Prime DTF Film Glide Eco
The bundle includes two rolls of Color Prime DTF Film Glide Eco measuring 63" x 109yd. This wide-format DTF film is designed to support the high-volume production workflow of the Epson SureColor G9070 and Miro 64 system.
Complete Wide-Format DTF Production
The Epson SureColor G9070 and Miro 64 combination brings printing, powder application and curing together in one wide-format DTF production workflow. With 64-inch printing and finishing capacity, Color Prime DTF media and powder included, this bundle is designed for businesses ready to scale DTF production.
