EIZO ColorEdge CG2400SV 24.1" WUXGA HDR LCD Color Management Monitor with SDI Connectivity, Built-In Self-Calibration
Professional Color Accuracy for Broadcast, Video Production & Creative Workflows
The EIZO ColorEdge CG2400SV is a professional 24.1-inch color management monitor designed for broadcast professionals, video editors, colorists, photographers, and creative professionals who require accurate color reproduction and reliable monitoring performance. Featuring a WUXGA 1920 × 1200 resolution IPS wide gamut panel, built-in self-calibration sensor, HDR support, and professional SDI connectivity, the CG2400SV delivers consistent and precise image quality for demanding production environments.
With support for 3G-SDI Level A and HD-SDI signals, the CG2400SV integrates seamlessly into professional broadcast and video workflows. Its wide color gamut reproduces 99% DCI-P3, more than 99% Adobe RGB, and 100% coverage of Rec.709, EBU, SMPTE-C, and sRGB color spaces for accurate viewing across cinema, broadcast, photography, and print applications.
The integrated calibration sensor automatically maintains color accuracy over time, while EIZO’s ColorNavigator 7 software provides advanced calibration control, quality management, and workflow customization. With HDR gamma support, a 16-bit 3D LUT, 10-bit simultaneous display, and advanced monitoring tools, the CG2400SV provides professionals with confidence from production through final delivery.
Key Features
- 24.1-inch IPS wide gamut LCD panel
- WUXGA 1920 × 1200 resolution with 16:10 aspect ratio
- Professional SDI input and output connectivity
- Supports 3G-SDI Level A and HD-SDI signals
- Built-in self-calibration sensor
- 10-bit simultaneous display with over 1.07 billion colors
- 16-bit LUT with 278 trillion color tones
- 99% DCI-P3 and over 99% Adobe RGB coverage
- HDR support with HLG and PQ gamma curves
- ColorNavigator 7 calibration software
- ColorNavigator Network quality control support
- Pixel Inspection and Sync Signal functions
- Digital Uniformity Equalizer (DUE) technology
- AI-assisted temperature correction for stable color
- Fanless operation for silent performance
- Magnetic light-shielding hood included
- Ergonomic stand with height, tilt, swivel, and pivot adjustment
- 5-year manufacturer’s warranty
- Zero bright pixel guarantee for six months
Accurate Color Reproduction for Professional Workflows
The ColorEdge CG2400SV is engineered for professionals who need dependable color accuracy throughout every stage of production. Its wide color gamut covers 99% of DCI-P3, more than 99% Adobe RGB, and 100% of Rec.709, EBU, SMPTE-C, and sRGB color spaces.
A 16-bit look-up table processes over 278 trillion color tones, allowing the monitor to display more than 1.07 billion colors simultaneously with smoother gradients and reduced color banding. This level of precision helps ensure accurate decisions when editing, grading, retouching, or preparing content for final delivery.
Built-In Calibration for Long-Term Color Consistency
The integrated calibration sensor allows the CG2400SV to automatically maintain accurate color performance without requiring an external calibration device. Calibration schedules can be customized through ColorNavigator 7, helping professionals maintain consistent results throughout the life of the monitor.
The sensor swings into position during calibration and retracts afterward, allowing users to continue working while minimizing desk space requirements.
Professional HDR Monitoring for Broadcast & Video Production
The ColorEdge CG2400SV supports HDR workflows with both Hybrid Log-Gamma (HLG) and Perceptual Quantization (PQ) gamma curves, providing accurate monitoring for broadcast, cinema, streaming, and post-production environments.
With a high contrast ratio of 1800:1, the monitor reproduces deep blacks and detailed shadow areas that are essential for evaluating HDR content. The built-in retardation film helps maintain consistent tonal depth even when viewing the display from different angles.
Professional SDI Connectivity for Broadcast Workflows
The CG2400SV features professional SDI input and output terminals designed for broadcast and video production environments. Supporting 3G-SDI Level A and HD-SDI signals, the monitor receives uncompressed video signals to maintain image quality without introducing compression artifacts.
SDI connectivity allows the CG2400SV to integrate seamlessly with professional cameras, live production systems, and studio environments while maintaining accurate color and image reproduction throughout the workflow.
Advanced Monitoring Tools for Accurate Results
The CG2400SV includes professional monitoring tools designed to help creators verify technical accuracy and maintain consistent production standards.
Features include:
- Sync Signal automatically adjusts brightness, gamma, and color gamut settings based on input signal metadata.
- Pixel Inspection displays source input data and displayed pixel information to verify technical accuracy.
- Markers allow users to define areas for framing and content placement.
- PQ Option enables HDR content simulation at different brightness levels.
- Luminance Warning identifies areas affected by clipping or emulation.
- BT.709 Out-of-Gamut Warning identifies colors outside the BT.709 broadcast color space.
Stable Image Quality Through Advanced EIZO Technologies
Every ColorEdge CG2400SV monitor is factory adjusted to provide accurate gamma performance and smooth color gradations. Each RGB tone is measured and optimized using EIZO’s advanced calibration process to deliver consistent image quality straight out of the box.
EIZO’s Digital Uniformity Equalizer (DUE) technology corrects brightness and chromaticity variations across the screen, ensuring uniform color reproduction from edge to edge.
An AI-assisted temperature correction system continuously monitors internal and ambient temperature changes to maintain accurate color, brightness, and gradation performance.
Silent Operation & Professional Ergonomic Design
The CG2400SV features a fanless design that provides quiet operation while maintaining reliable performance. Its compact professional design includes rounded edges, a built-in carrying handle, and a versatile stand designed for comfortable long-term use.

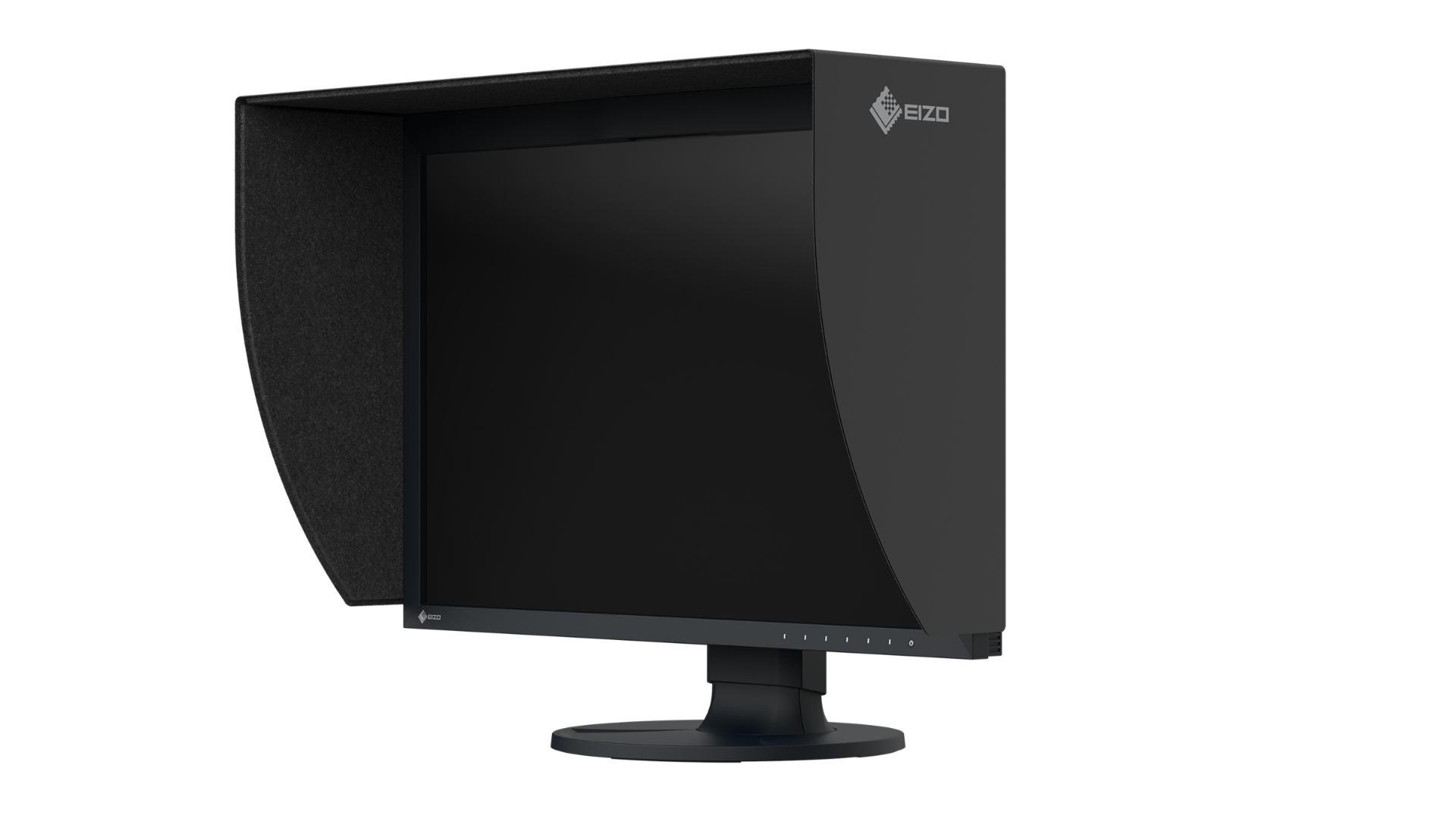

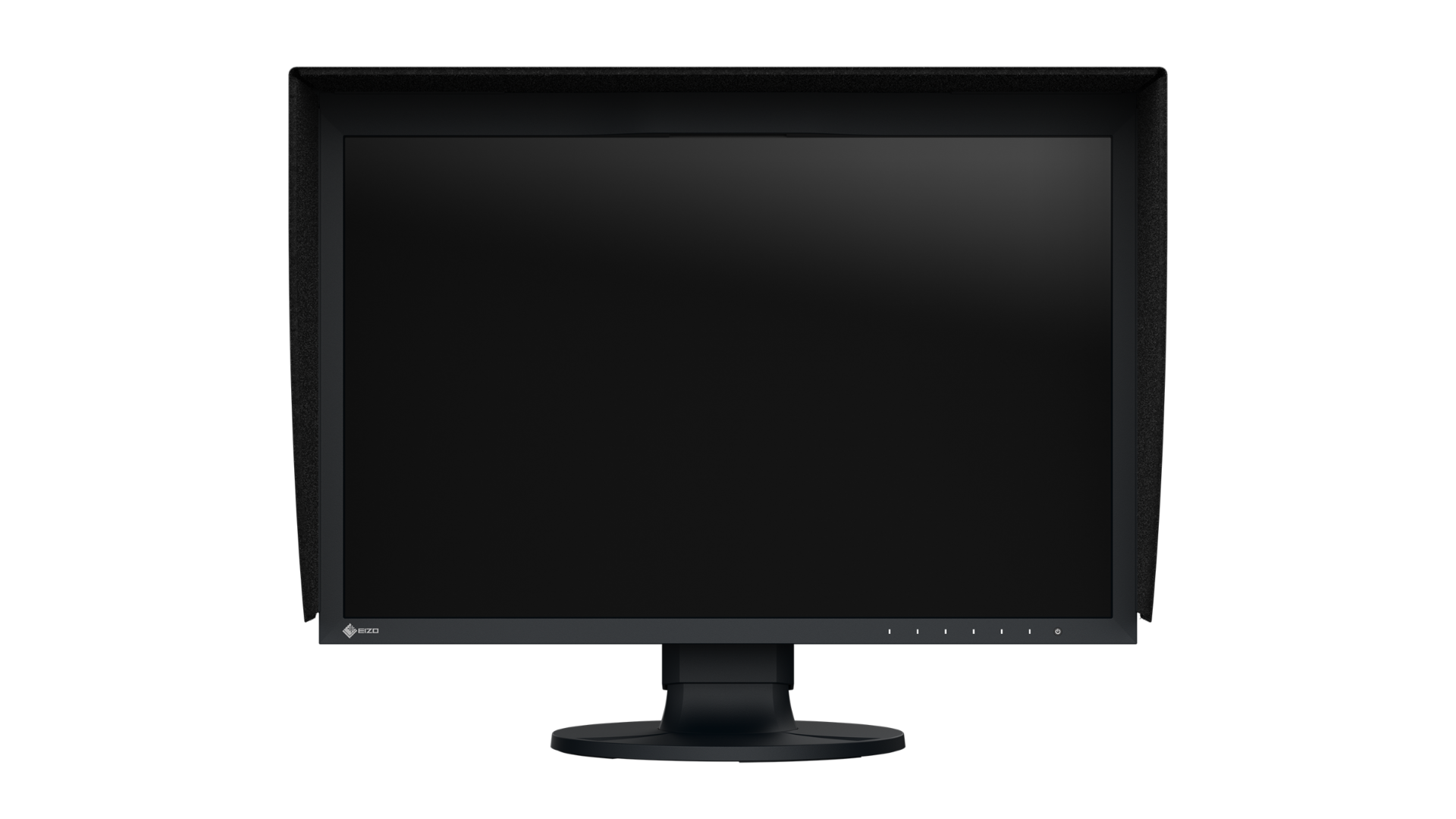

The included magnetic light-shielding hood reduces glare from ambient lighting, allowing users to focus on accurate color evaluation. The ergonomic stand provides height adjustment, tilt, swivel, and pivot functionality for flexible positioning.
Ideal Applications
The EIZO ColorEdge CG2400SV is ideal for:
- Broadcast production
- Live video production
- Video editing and post production
- Color grading
- HDR content creation
- Photography
- Image editing and retouching
- Design and illustration
- Fine art printing
- Textile and fashion design
What's Included
- EIZO ColorEdge CG2400SV Monitor (Black Case)
- Light-shielding hood
- HDMI to HDMI signal cable
- USB-C to USB-C signal cable
- USB Type-A to Type-B cable
- Power cord
- Calibration report
- Quick guide
Technical Specifications
| General |
| Item no. | CG2400SV |
| Case Color | Black |
| Areas of Application | Photography, video and graphics, video editing, post production and color grading |
| Product Line | ColorEdge |
| Specific System Requirements | None, compatible with most computers and operating systems including macOS and Windows |
| EAN | 4995047070078 |
| Screen |
| Screen Size | 24.1 inches (61.1 cm) |
| Format | 16:10 |
| Viewable Image Size (W × H) | 518.4 × 324 mm |
| Panel Type | IPS Wide Gamut LCD |
| Native Resolution | 1920 × 1200 (WUXGA) |
| Supported Resolutions | 1920 × 1200, 1200p (@60Hz), 1200p (@50Hz), 1080p (@60Hz), 1080i (@60Hz), 1080p (@50Hz), 1080i (@50Hz), 1080p (@30/25/24Hz), 720p (@60Hz), 720p (@50Hz), 576p (@50Hz), 576i (@50Hz), 480p (@60Hz), 480i (@60Hz) |
| Pixel Pitch | 0.27 × 0.27 mm |
| Pixel Density | 94 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Maximum Brightness | 400 cd/m² |
| Recommended Brightness | 120 cd/m² |
| Contrast Ratio | 1800:1 |
| Response Time | 11 ms (Gray-to-Gray) |
| Simultaneous Colors | 1.07 billion colors (SDI, 24-bit), 1.07 billion colors (HDMI, 10-bit), 1.07 billion colors (DisplayPort, 10-bit) |
| Look-Up Table | 16-bit LUT, 278 trillion color tones |
| Color Gamut | Adobe RGB (>97%), DCI-P3 (99%), Rec.709 (100%), EBU (100%), SMPTE-C (100%), sRGB (100%) |
| Supported Color Spaces | DCI-P3, BT.2020, BT.709, sRGB |
| Color Temperature Presets | DCI, D65, D50, Native, User, 4000K to 10000K |
| YUV Transfer Matrix | BT.2020, BT.709, BT.601, Auto |
| HDR Gamma | PQ, HLG |
| EOTF Presets | HLG, PQ, EBU (2.35), sRGB, Gamma 1.6 to 2.7 |
| Backlight | Wide Gamut LED |
| Features & Operation |
| Preset Color Modes | BT.2020, BT.709, HLG BT.2100, PQ BT.2100, DCI-P3, PQ DCI-P3, sRGB, Sync Signal, additional memory spaces through calibration |
| KVM Switch | Included |
| Calibration | Hardware calibration of brightness and luminance characteristics |
| Integrated Calibration Sensor | Built-in sensor for self-calibration |
| Scheduled Self Calibration | Included |
| Temperature Color Drift Correction | Included |
| Brightness Drift Correction | Included |
| Flicker-Free Operation | Included |
| True Black | Included |
| 3D LUT Film Emulation | 10-bit Log film emulation |
| Safe Area Marker | Included |
| Adjustment Options | Signal information, Color Mode, Brightness, Contrast, Color temperature/Whitepoint, Gamma, HLG system gamma, Color tone, Color saturation, Scaling, Color matrix YUV/RGB, Input range, Menu rotation, Black level, XYZ format, Image size/format, Markers, Skip signal input, Skip color mode, Custom key, Power indicator, Monitor reset, OSD language, Signal input, Keylock, DUE priority |
| Connections |
| Signal Inputs | BNC (3G/HD-SDI), DisplayPort (HDCP 2.3), HDMI (FRL Deep Color, HDCP 2.3) |
| Signal Outputs | BNC (3G/HD-SDI, through-out active) |
| USB Specification | USB 5Gbps (USB 3) |
| USB Upstream Ports | 2 × USB Type-B |
| USB Downstream Ports | 4 × Type-A (2 × USB 5Gbps, 2 × USB 2.0) |
| Audio Input | SDI, DisplayPort, HDMI |
| Audio Output / Headphone Output | 3.5mm stereo jack |
| Electrical Data |
| Frequency | SDI, DisplayPort: 26-76 kHz / 23-61 Hz; HDMI: 15-76 kHz / 23-61 Hz |
| Power Consumption (Typical) | 18 W |
| Maximum Power Consumption | 64 W at maximum brightness and operation of all signal and USB ports as well as full charging power |
| Maximum Power Consumption in Stand-by Mode | 0.5 W |
| Power Consumption with Power Switch Off | 0 W |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Dimensions & Weight |
| Dimensions (Including Stand) (W × H × D) | 554.4 × 408.1-563.1 × 245 mm |
| Weight (Including Stand) | 8.5 kg |
| Dimensions (Without Stand) (W × H × D) | 554.4 × 374.1 × 70.2 mm |
| Weight (Without Stand) | 5.5 kg |
| Stand Rotation | 344° |
| Tilt Adjustment | 5° forward / 35° backward |
| Pivot Function | Clockwise portrait/landscape rotation |
| Height Adjustment Range | 155 mm |
| VESA Mount Compatibility | 100 × 100 mm |
| Certification & Standards |
| Certification | CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3(B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC |
| Software & Accessories |
| Included Software | ColorNavigator, ColorNavigator Network |
| Included Accessories | HDMI-HDMI signal cable, USB Type-A to Type-B cable, power cord, calibration report, manual available via download, quick guide |
| Optional Accessories | EX5 external calibration sensor for ColorEdge monitors with ColorNavigator 7, PM200-K DisplayPort cable, PP100-K DisplayPort cable, PP200-K DisplayPort cable |
| Warranty |
| Warranty Period | 5 years for unit and LCD module up to 30,000 operating hours, whichever comes first |
| Included Warranty | For 5 years or 10,000 operating hours, whichever comes first, brightness of at least 120 cd/m² at a color temperature of 5000K to 6500K is guaranteed. Zero pixel defect guarantee with no fully illuminated sub-pixels (ISO9241-307) for six months from date of purchase |
