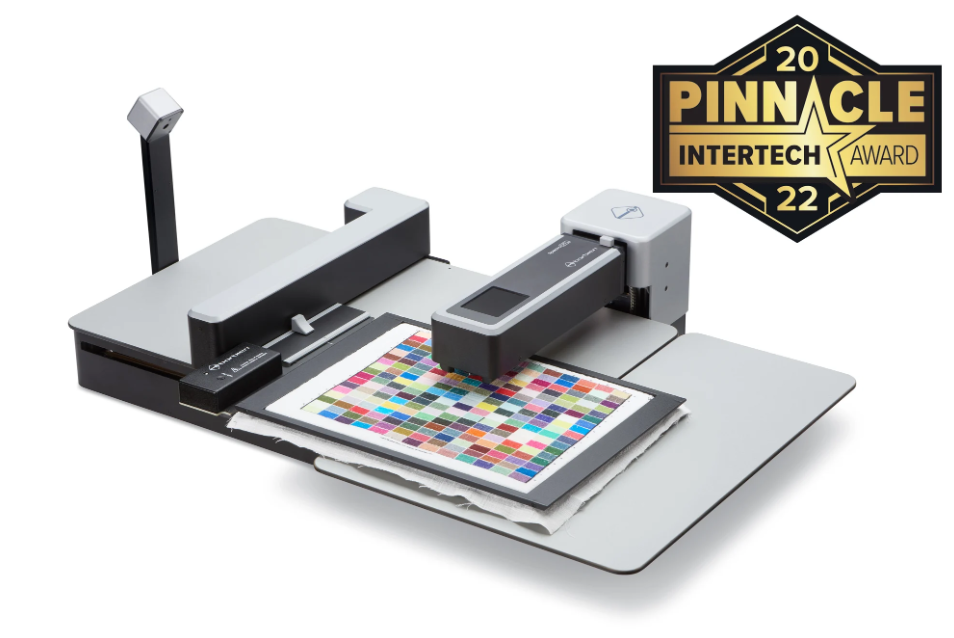

Barbieri Spectro LFP qb Textile Edition Spectrophotometer

The Spectro LFP qb Textile Edition is the worldwide unique solution for automatic color measuring in digital dye-sublimation and direct-to-garment printing. It is based on the Spectro LFP qb and has dedicated software and accessories who makes it possible to measure fully automatically and with highest precision and repeatability any kind of textiles and fabrics.

The special holder fixes the textile firmly, the camera and according software detects the center of each patch to be measured and the measurements will be done fully automatically – even if the chart is distorted!

The measurement head can be detached for manual spot measurements and results sent  to the computer. Two devices in one and automatic and spot measurements done with the same device which leads to a maximum accuracy.

Standard equipment:

• C5A10 Spectro LFP qb Spectral Unit
• C5A20 Spectro LFP qb Platform (with table extension)
• C5A30 Spectro LFP qb Sensing Unit
• C5H40 Standard reflection sample holder
• C5H50 Standard transmission sample holder
• C5H70 Spot Measurement Guide
• C5H80 Electrostatic textile sample holder for LFP qb
• C5H82 Sticky Mat for LFP qb
• C5S07 Image activation Spectro LFP qb
• Power adapter
• USB cable Type C
• Dust cover
• Operating manual
• Measuring software: Barbieri Gateway for Microsoft Windows , Mac OS (free download)

The worldwide unique solution for automatic color measuring in digital textile printing

The Spectro LFP qb Textile edition offers fully automated reflection and transmission measurements for materials up to 20 mm with its variable 2-6-8 mm measurement aperture including textiles. The automated target recognition technology allows for the measurement of distorted textiles.

Applications

• Creation of ICC-profiles for color management (International Color Consortium)
• Linearization and calibration of Digital Output devices
• Color accuracy and stability control

Main Features

• Fully automated reflection and transmission color chart measurements
• Variable measurement aperture (2mm – 6 mm – 8 mm)
• Measure reflective materials up to 20 mm
• Built-in Barbieri qb technology including M0-M1-M2-M3 measurement conditions (ISO 13655)
• Removable measurement head for wireless spot color measurements
• Sensing unit for autopositioning of color charts and detection of distorted charts with integrated automatic target recognition
• Air blowing system to prevent textile fibers from contaminating the optics
• Electrostatic textile sample holder

Markets and Applications

• Digital Textile printing including garments and fashion
• Digital Signage printing
• Industrial and Décor printing

Materials

• Cotton
• Silk
• Polyester
• Viscose
• Wool
• Linen
• Mixed fabrics
• Various digitally printed materials

Additional Info

• Supported by most RIP-software
• Includes free measurement software Barbieri Gateway for Mac and PC
• Calibration and Certification Service recommended every 18 months
