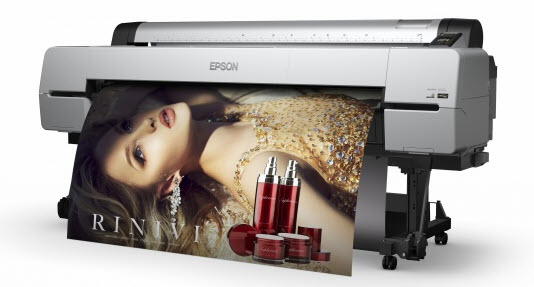

Epson SureColor P20000 64" Wide-Format Printer Regularly $11,495, now only $10,495 after $1,000 Epson Instant Rebate through 06/30/2023!
Additional installation charges will apply. Please call for details at 800-771-9665.
Wide Format printers are not shipped via standard UPS services; consequently if your location does not have a delivery dock or is a residence; an additional $50 Lift Gate charge will be applied to your order. A special truck with a lift gate is required to unload the printer to your curb.
The Art of Performance
Epson's latest imaging technologies have produced a no-compromise print line for true, high-production, of virtually any photographic imaging application. The superior print quality and production improvements of the SureColor P20000 Printer allow it to produces sellable prints faster than ever.
The new SC-P20000 Printer focuses on users with high production needs. The printer has an entirely new engine that's designed to print aqueous photos at high speeds. A new 9-color UltraChrome Pro Ink set for the SureColor P20000 has 4 levels of gray inks, including a new Dark Gray, this allows maintaining of neutrality and transitions at higher production speeds.
The SureColor P20000 Printer Replaces the Epson Stylus Pro 11880.
Ink Cartridges
- 9-color: LM, C, GY, Y, M, LGY, LC, PK or MK, DGY
- 4 Gray Levels - Light Gray, Gray, Dark Gray, Photo Black
- Improved resin encapsulation technology for gloss uniformity
- Black density improvement 1.5x denser than previous generation
- New yellow pigment technology for improved print permanence
Print Head
- PrecisionCore microTFP
- Automatic Realtime Black Ink Type Switching
- 8000 total nozzles (800/colorx10 channels)
- 2400x1200 dpi printing
- New Nozzle Verification Technology verifies and cleans nozzles automatically
Advanced Media Handling
- Realtime Media Adjustment & Feedback System
- Media Inductive Roller System
- Loads Cut-sheets automatically
- Unique Roll Media Skew Reduction System
- Automatic slack take-up and back tension control
- Built-in Automatic Rotary Media Cutter
- Optional take up reel (sold separately)
Warranty & Support
- Standard 1-Year Epson Preferred Limited Warranty
- Free technical support M-F
- Optional 1- or 2-Year Epson Preferred Plus Premium Service
Base Printing Technology
- Advanced PrecisionCore MicroTFP Print Head
- 10-channel, piezo inkjet print head
Ink Type
- Epson UltraChrome PRO pigment inks, 10-ink, 9-color
- Ink Configuration: C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
Printer Nozzle Configuration
Color and Monochrome; 800 nozzlesx10 channels
Enhanced Variable Droplet Technology as small as 3.5 picoliters
Print Resolutions
2400x1200 dpi; 1200x1200 dpi; 1200x600 dpi;
600x600 dpi; 600x300 dpi
Available resolutions vary by media type
Dimensions
Dimensions and weights include printer and stand
SureColor P20000 - 377 lbs (171 kg)
Operating Systems Supported
Apple® OS X®
10.11x, 10.10x, 10.9x, 10.8x and 10.7x
Microsoft® Windows®
10, 8.1, 7 (32-bit, 64-bit)
Printer Interfaces & Language
- USB 2.0 (1 port)
- 1000Base-T Ethernet (1 port)
Printer Language & Drivers
- Epson Professional Photographic Drivers standard; optional internal Adobe® Postscript® 3™ print server
Acoustic Noise Level
Sound Pressure Level: Less than 51.1 dB(A)
Sound Power Level: approx. 65.3 dB(A)
Limited Warranty and Service
Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureColor P-Series Extended service plans available for purchase.
Epson Intelligent Ink Cartridge
|
Initial cartridge fill volume
|
110 mlx10 total colors (used for initial fill at setup)
|
|
Cartridge fill volume
|
700 ml eachx10 colors total
|
Ink cartridge shelf life
(recommended)
|
2 years from printed production
date or 6 months after open
|
Print Permanance
|
Color
|
Up to 200 years
|
|
Black-and-White
|
Up to 400 years
|
Visit Wilhelm Imaging Research for the latest print permanance data.
www.wilhelm-research.com
Roll Media Handling
|
Single top loading Roll
|
64" wide
|
|
2" or 3" core diameter
|
User-adjustable Roll media adapters
|
|
Roll cutting
|
High-speed internal rotary cutter; Automatic or manual
|
|
Minimum auto cut length
|
11.0" plus top and bottom margin (11.24" minimum)
|
|
Top / bottom margins (mm)
|
Normal: setting varies based on media selection
Optional fixed: 3/3, 15/15, 35/15, 45/15
|
|
Left and right margins
|
3mm each side; 0.24" total, or 0" at BorderFree
® sizes
|
|
Roll paper remaining
|
Printable barcode tracking system
|
|
Optional Take-up reel
|
Auto forward and backward; light based media sensor
|
Sheet Media Handling
|
Single sheet, top loading
|
Up to 64" wide
|
|
Sheet loading
|
Top-loading if less than .5mm thick
|
|
Media thickness
|
0.8mm to 1.5mm
|
|
Top / bottom margins
|
3mm / 15mm (0.12"/0.59")
|
|
Top / bottom margins with centering on
|
15mm / 15mm
|
|
Left and right margins
|
3mm each side; 6mm or 0.24" total
|
Printer Speeds
16"x20" prints from 1:47 to 3:17
Production is 2:09
20"x30" prints from 2:55 to 5:33
Production is 3:40
40"x60" prints from 8:33 to 16:30
Production is 10:52
Printable Area
|
Minimum paper width
|
13"
|
|
Maximum paper width
|
64"
|
|
Minimum cut-sheet size
|
8.5"x11"
|
|
Minimum recommended cut-sheet
|
13"x19"
|
|
Maximum printable cut-sheet length
|
80"
|
|
Maximum printable Roll length*
|
590.55"
|
|
Line accuracy
|
+/- 0.2% of specified length (+/- .26mm minimum)
|
*Allowed by printer driver for MAC and PC. Application version of application and Operating System version may limit maximum length
BorderFree® Printing
Left and right borderless "bleed" printing for the following Roll media widths:
|
SureColor P20000
|
10", 11.8", 13", 16", 17", 20", 23", 24", 28.86", 29", 33.11", 36", 40.55", 44", 50", 54", 60"
|
Electrical Requirements
|
Printer
|
|
|
Voltage
|
AC 110-240 V
|
|
Frequency
|
50-60 Hz
|
|
Current
|
5A
|
Power consumption
|
|
|
Printer
|
|
|
Printing
|
Approx. 95 W
|
|
Sleep
|
Approx. 2.8 W (1000 BaseT Ethernet in Standby)
|
|
Power Off
|
Less than 0.5W
|
Fully ENERGY STAR Complaint
Environmental Characteristics
Temperature Operating
Operating Recommended
Storage
|
50° to 95°F (10° to 35°C)
65° to 75°F (18° to 24°C)
-4° to 104°F (-20° to 40°C)
|
Relative Humidity
Operating
|
20 to 80% (no condensation)
|
|
Operating Recommended
|
40 to 60% (no condensation)
|
|
Recommended Storage
|
5 to 85% (no condensation)
|
Epson UltraChrome PRO Ink
|
Ink Cartridge
|
(700 ml)
|
|
Photo Black
|
T800100
|
|
Cyan
|
T800200
|
|
Vivid Magenta
|
T800300
|
|
Yellow
|
T800400
|
|
Light Cyan
|
T800500
|
|
Vivid Light Magenta
|
T800600
|
|
Dark Gray
|
T800700
|
|
Matte Black
|
T800800
|
|
Gray
|
T800900
|
|
Light Gray
|
T800000
|
Product and Accessory Part Numbers
|
SureColor P20000 Standard Edition
|
SCP20000SE
|
|
Maintenance Tank
|
T619300
|
|
Replacement Printer Cutter Blade
|
C13S210040
|
|
Additional Roll Media Adapters (pair)
|
C12C932231
|
|
Auto Take-up Reel Option
|
C12C932201
|
|
Adobe® Postscript® 3™ Hardware Module
|
C12C891131
|
|
Additional One-year Epson Preferred
SM Plus Service
|
EPP1020KB1
|
|
Additional Two-year Epson Preferred Plus Service
|
EPP1020KB2
|
What's in the Box
- SureColor P20000 Printer
- Printer Stand with Catch Basket
- Spindle-free Roll Media Adaptors
- Set of ten 110 ml initial ink cartridges
- Internal Print Server 320GB
- Ink Maintenance Tanks (installed)
- AC Power Cable
- User Guide Kit (Documentation and Warranty)
- Sample Roll - Epson Doubleweight Matte Paper for print head alignments
- Software is provided via download
|
Base Printing Technology
|
Advanced PrecisionCore MicroTFP Print Head
10-channel, piezo inkjet print head
|
|
Ink Type
|
Epson UltraChrome PRO pigment inks, 10-ink, 9-color
Ink Configuration: C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK
Printer is designed for use with Epson cartridges only,
not third-party cartridges or ink.
|
|
Printer Nozzle Configuration
|
Color and Monochrome; 800 nozzles x 10 channels
Enhanced Variable Droplet Technology as small as 3.5 picoliters
|
|
Print Resolutions
|
2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi;
600 x 600 dpi; 600 x 300 dpi
Available resolutions vary by media type
|
|
Dimensions (LxWxH)
|
95in x 39in x 46in
|
|
Printer Weight
|
377 lbs / 171kg
|
|
Operating Systems Supported
|
Apple OS X 10.11x, 10.10x, 10.9x, 10.8x and 10.7x
Microsoft Windows 10, 8.1, 7 (32-bit, 64-bit)
|
|
Printer Interfaces & Language
|
USB 2.0 (1 port)
1000Base-T Ethernet (1 port)
|
|
Printer Language & Drivers
|
Epson Professional Photographic Drivers standard; optional
internal Adobe Postscript 3 print server
|
|
Acoustic Noise Level
|
Sound Pressure Level: Less than 51.1 dB(A)
Sound Power Level: approx. 65.3 dB(A)
|
|
Limited Warranty and Service
|
Standard one-year on-site next business day service with
toll-free phone support Monday thru Friday.
Optional Epson SureColor P-Series Extended service plans.
available for purchase.
|
|
Epson Intelligent Ink Cartridge
|
|
|
Initial cartridge fill volume
|
110 ml x 10 total colors (used for initial fill at setup)
|
|
Cartridge fill volume
|
700 ml each x 10 colors total
|
|
Ink cartridge shelf life (recommended)
|
2 years from printed production date or 6 months after open
|
|
Print Permanence
|
|
|
Color
|
Up to 200 years
|
|
Black-and-White
|
Up to 400 years
|
|
Roll Media Handling
|
|
|
Single top loading roll
|
64" wide
|
|
2" or 3" core diameter
|
User adjustable media adapters
|
|
Roll cutting
|
High-speed internal rotary cutter; Automatic or manual
|
|
Minimum auto cut length
|
11.0" plus top and bottom margin (11.24" minimum)
|
|
Top/ bottom margins (mm)
|
Normal: setting varies based on media selection
Optional fixed: 3/3, 15/15, 35/15, 45/15
|
|
Left and right margins
|
3mm each side; 0.24" total, or 0" at BorderFree sizes
|
|
Roll paper remaining
|
Printable barcode tracking system
|
|
Optional Take-up reel
|
Auto forward and backward; light based media sensor
|
|
Sheet Media Handling
|
|
|
Single sheet, top loading
|
Up to 64" wide
|
|
Sheet loading
|
Top-loading if less than 0.5mm thick
|
|
Media Thickness
|
0.8mm to 1.5mm
|
|
Top/bottom margins
|
3mm/15mm (0.12"/0.59")
|
|
Top/bottom margins with centering on
|
15mm/15mm
|
|
Left and right margins
|
3mm each side; 6mm or 0.24"
|
|
Printer Speeds
|
16" x 20" prints from 1:47 to 3:17 Production is 2:09
20" x 30" prints from 2:55 to 5:33 Production is 3:40
40" x 60" prints from 8:33 to 16:30 Production is 10:52
|
|
Printable Area
|
|
|
Minimum paper width
|
13"
|
|
Maximum paper width
|
64"
|
|
Minimum cut-sheet size
|
8.5" x 11"
|
|
Minimum recommended cut-sheet
|
13" x 19"
|
|
Maximum printable cut-sheet length
|
80"
|
|
Maximum printable roll length
|
590.55"
|
|
Line accuracy
|
+/-0.2% of specified length (+/- 0.26mm minimum
|
|
BorderFree Printing
|
Left and right borderless "bleed" printing for the following roll widths
10", 11.8", 13", 16", 17", 20", 23", 24", 28.86", 29", 33.11", 36", 40.55",
44", 50", 54", 60"
|
|
Electrical Requirements
|
|
|
Printer
|
|
|
Voltage
|
AC 110-240V
|
|
Frequency
|
50-60 Hz
|
|
Current
|
5A
|
|
Power Consumption
|
|
|
Printer
|
|
|
Printing
|
Approx. 95W
|
|
Sleep
|
Approx. 2.8W (100 BaseT Ethernet in Standby)
|
|
Power Off
|
Less than 0.5W
|
|
Fully ENERGY STAR Complaint
|
|
|
Environmental Characteristics
|
|
|
Temperature Operating
|
50 to 95F (10 to 35C)
|
Operating Recommended
Storage
|
65 to 75F (18 to 24C)
-4 to 104F (-20 to 40C)
|
Relative Humidity
Operating
|
20 to 80% (no condensation)
|
|
Operating Recommended
|
40 to 60% (no condensation)
|
|
Recommended Storage
|
5 to 85% (no condensation)
|
|
|
|
What's in the Box?
- SureColor P20000 Printer
- Printer Stand with Catch Basket
- Spindle-free Roll Media Adapters
- Set of ten 110 ml initial ink cartridges
- Internal Print Server 320GB
- Ink Maintenance Tanks (installed)
- AC power cable
- User Guide Kit (Documentation and Warranty)
- Sample Roll- Epson Doubleweight Matte Paper for print head alignments
- Software is provided via download
|
|
|
 |
|
 |
