Roland PTF-100 Powder to Film Applicator System

The PTF-COMBO-100 Powder-To-Film system, also known as a Powder Shaker, uniformly coats DTF films with adhesive powder, improving DTF printing performance and operator safety. Instead of hand-coating DTF films in open plastic containers that expose shop personnel to adhesive dust and require operator time and attention to obtain reliable results, the PTF-100 system provides uniform coverage without dusting and spillage, reducing waste and freeing staff to optimize production time.

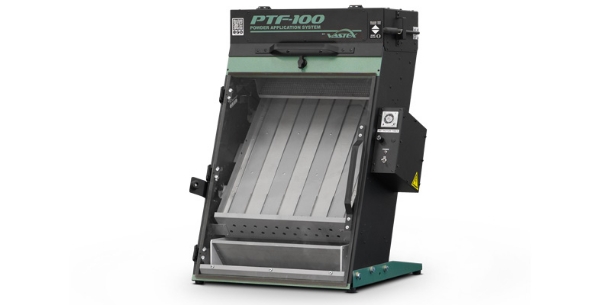

Built for DTF printing, the tabletop unit consists of a steel case on a stand, with a clear polycarbonate door set at an angle. It comes with two identical cartridges, each of which can hold approximately 3 lbs (1.4 kg) of adhesive powder. It has a rear-mounted exhaust designed to collect adhesive dust particles and create a "negative pressure" condition within the cabinet. The film tray is suspended on special rubber hangers that isolate it from the intense vibration applied to remove excess powder from the film.

To operate, a filled cartridge is inserted at the top of the unit, and an empty cartridge at the bottom. An operator positions the wet DTF printed film on the application tray, print side up. Once the polycarbonate door is closed tightly, the operator adjusts the amount of powder released by the duration and number of times the release handle is activated.

The top cartridge releases adhesive powder which rains down on the film, ensuring complete and even coverage. After the film is coated to the satisfaction of the operator, the actuator is depressed to start a timed vibration cycle to release any excess powder from the film. When empty, the upper cartridge can be switched quickly and cleanly with the lower cartridge containing all excess powder, reducing exposure while eliminating waste and allowing continuous production until refilling is needed.

Made in the USA, the PTF-COMBO-100 can accommodate film sizes up to 16.5 x 22 in. (42 x 56 cm).

Key Features:

• Uniform Coating: Ensures even application of adhesive powder, enhancing print quality and consistency.
• Operator Safety: The enclosed design minimizes exposure to adhesive dust, creating a safer working environment.
• Efficient Operation: Comes with two interchangeable cartridges, each holding approximately 3 lbs (1.4 kg) of adhesive powder, allowing for quick and clean refills.
• Versatile Capacity: Accommodates film sizes up to 16.5 x 22 inches (42 x 56 cm), suitable for various printing needs.
• Compact Design: The system has a footprint of less than 8 square feet, making it space-efficient for various workspaces.
