Note: This Product is 120V/60Hz. It's also available in 240V.

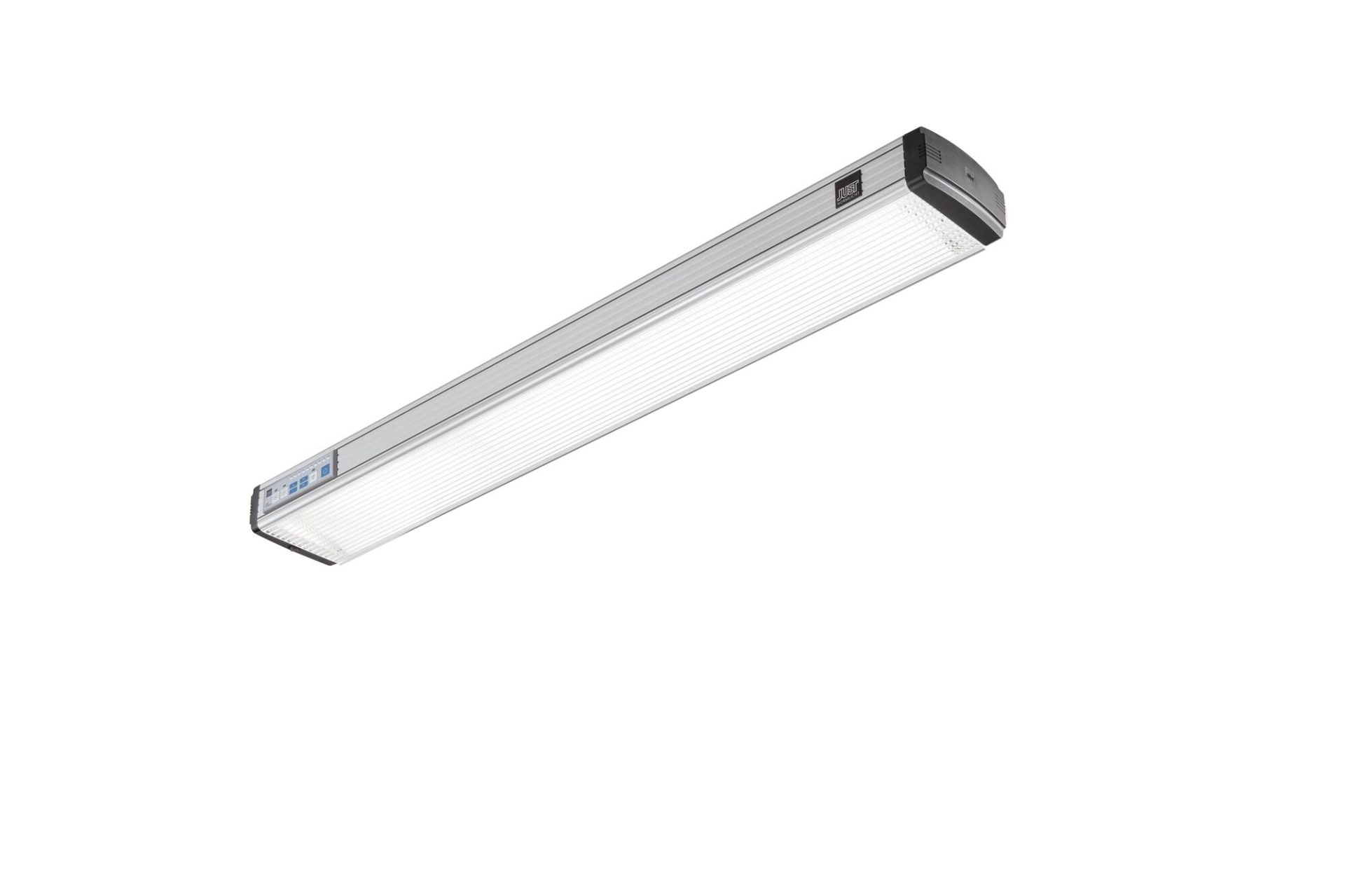

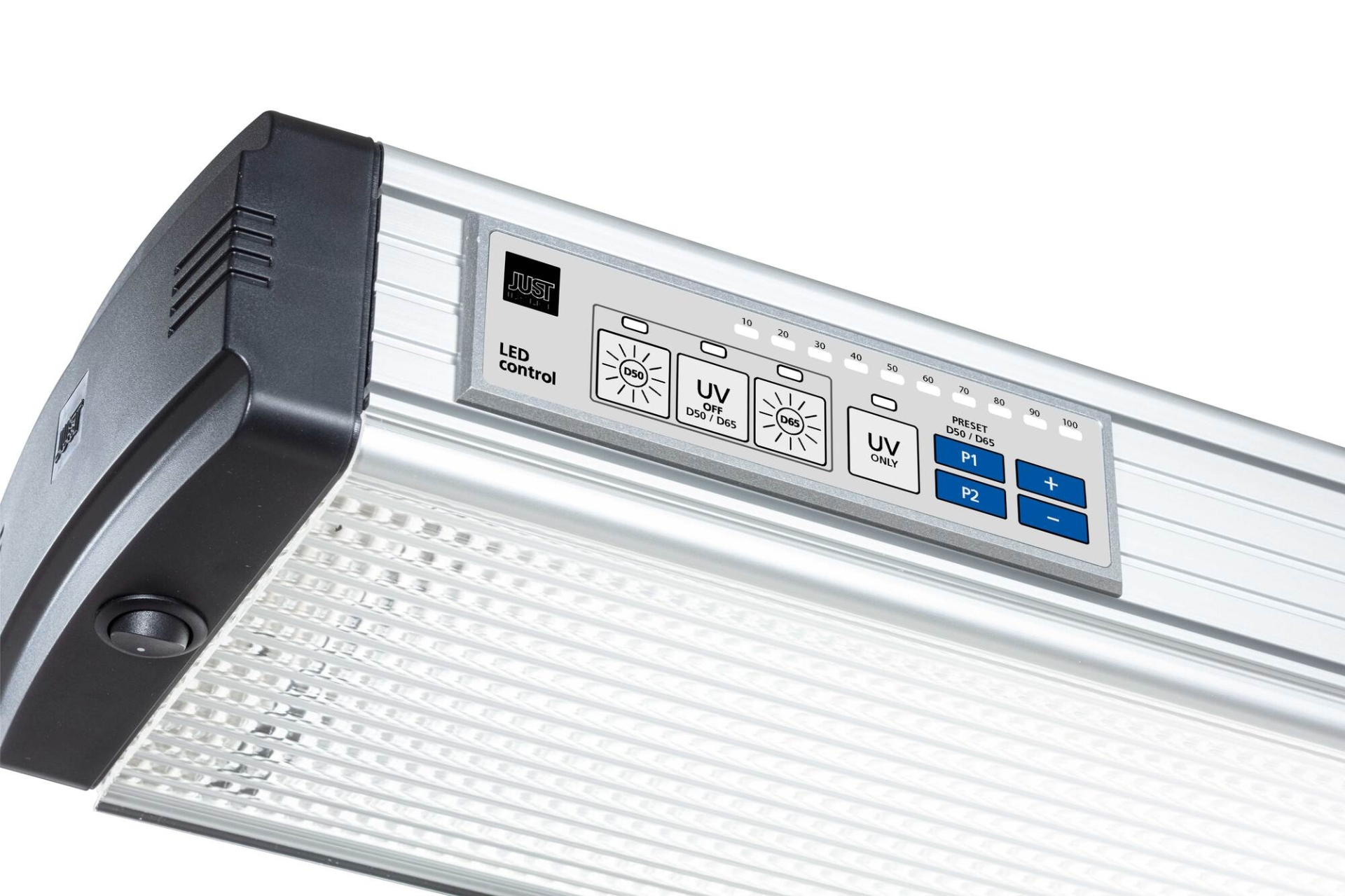

The JUST Normlicht DLS moduLight 1-1200 LED Color Matching Luminaire delivers professional LED-based illumination for accurate color evaluation of medium and large-format samples. Featuring JUST's patented multi-colored LED technology, the moduLight 1-1200 provides standardized D50, D65, and UV-A illumination with exceptional spectral quality that exceeds the requirements of ISO 3664:2009 and ISO 3668.
Designed for professional color-critical environments, the DLS moduLight 1-1200 combines high-intensity LED illumination with specialized Fresnel-type prismatic lenses to create extremely uniform, glare-free lighting with minimal reflections. The suspended ceiling-mounted design provides a consistent viewing environment for evaluating printed materials, textiles, coatings, packaging, and other flat samples.
Unlike traditional fluorescent color matching systems, the moduLight 1-1200 eliminates operating hour meters, warning indicators, and costly lamp replacements. The advanced LED system provides stable light output throughout its lifespan, allowing professionals to match colors accurately for years without maintenance concerns.
Key Features
- Professional LED color matching luminaire designed for medium and large-format samples
- Fogra certified to ISO 3664:2009
- Patented JUST LED illumination technology (US Patent No. 8,592,748 B2)
- Switchable D50 and D65 illuminants according to ISO 3664 and ISO 3668
- UV-A illumination for detecting optical brighteners and fluorescent materials
- UV content can be enabled or disabled for current and previous ISO standards
- Continuous dimming without color shifts
- USB interface for PC connection

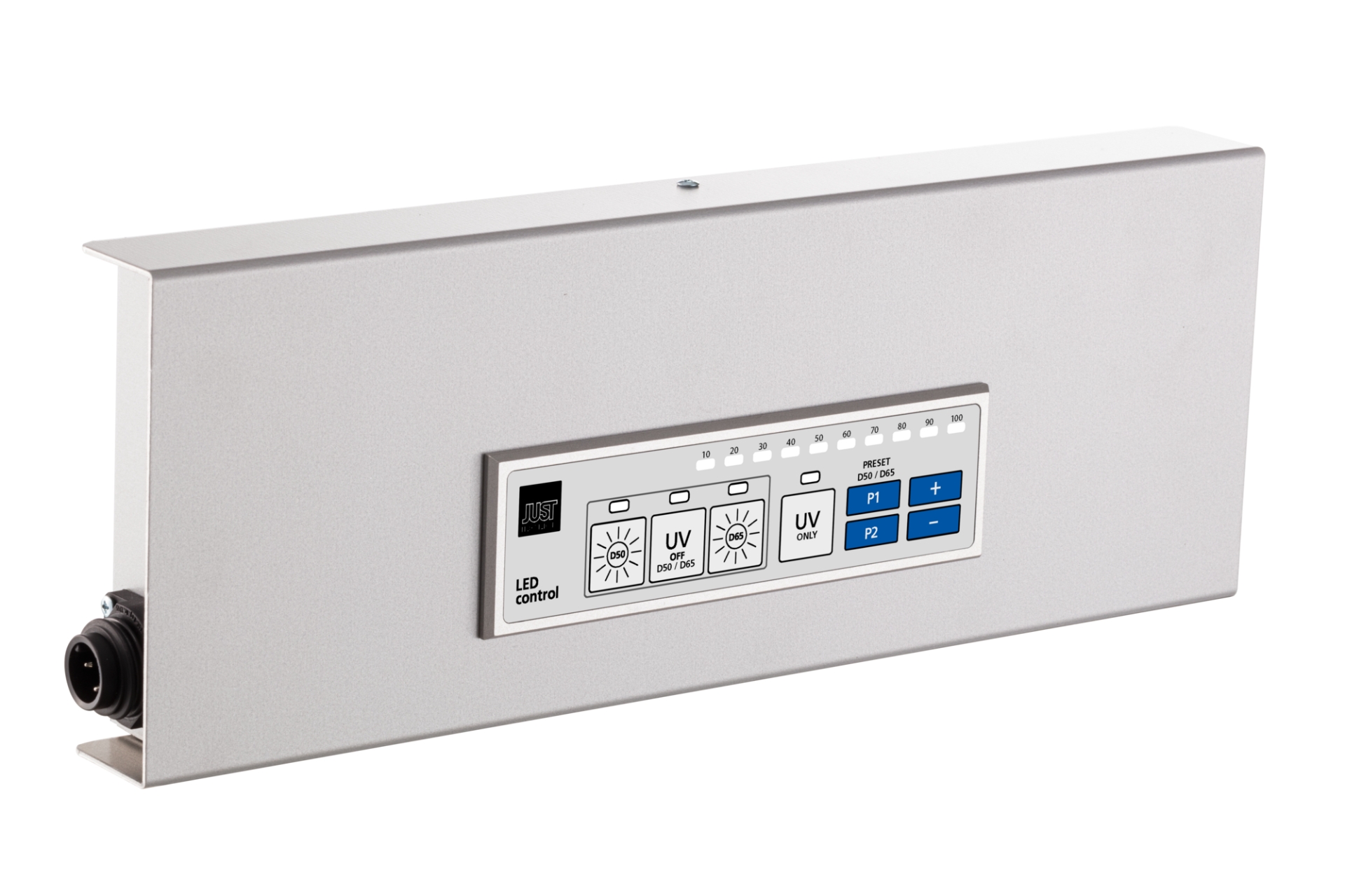

- LED-CONTROL provides easy operation and supports simultaneous control of multiple luminaires
- No preheating time after powering on
- LED lifespan exceeding 50,000 hours depending on illuminant
- Annual relamping is not required
- Stable light output throughout the entire LED lifespan
- Fresnel-type prismatic lens provides highly homogeneous, glare-free illumination
- 2000 lux illuminance according to ISO standards
- Color Rendering Index CRI (Ra) ≥95
- Includes ceiling suspension wire
Advanced LED Color Matching Technology
The DLS moduLight 1-1200 uses a combination of multiple colored LEDs to generate a more complete and harmonious light spectrum than conventional fluorescent lamps. This advanced LED technology provides exceptional spectral performance, accurate color reproduction, and reliable illumination consistency throughout the operating life of the system.
The specially engineered Fresnel-type prismatic lens system optimizes illumination uniformity while minimizing reflections, allowing professionals to accurately evaluate color from a fixed viewing position.

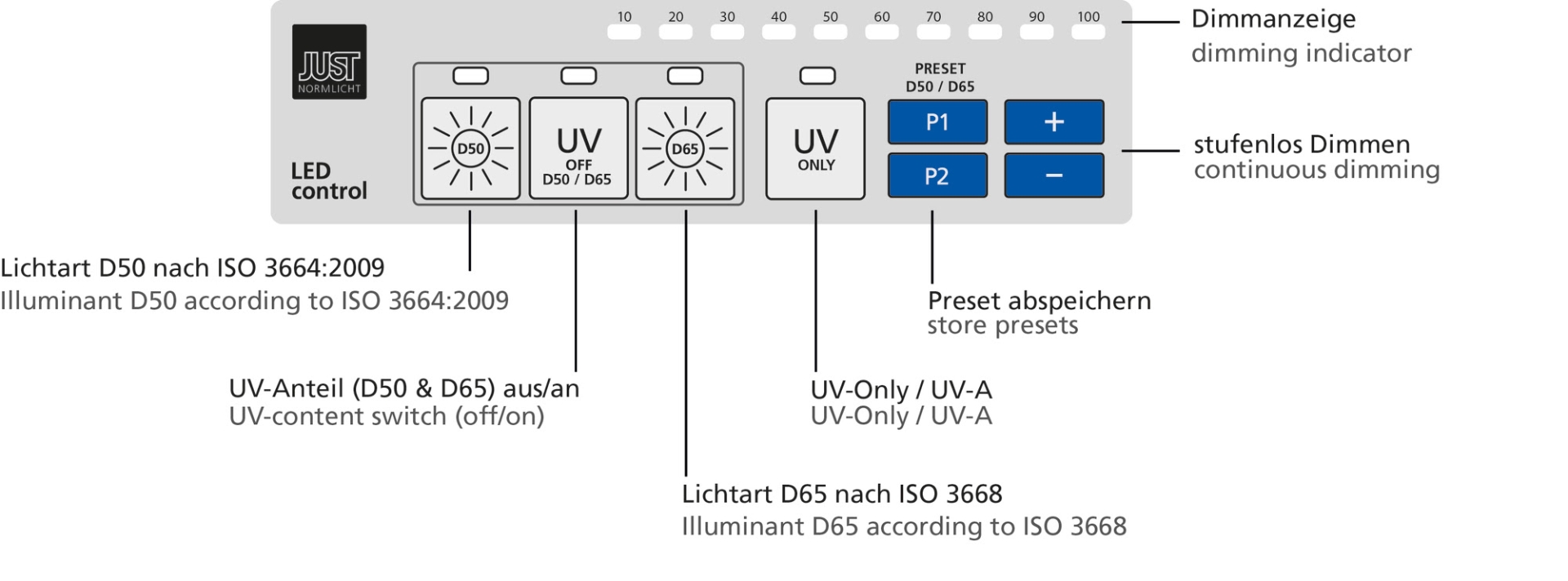

Flexible Illuminant Control
The JUST Normlicht DLS moduLight 1-1200 supports standardized D50 daylight, D65 daylight, and UV-A illumination modes for comprehensive color evaluation. UV-ONLY mode assists in identifying optical brighteners and fluorescent materials that may impact final product appearance.
Dimmable illuminants, USB connectivity, and optional LED Remote Control functionality allow the moduLight 1-1200 to integrate into professional color evaluation environments with flexible lighting control.
Applications
- Medium and large-format color evaluation
- Commercial printing and prepress
- Packaging and label inspection
- Textile and fabric evaluation
- Coating and surface finish inspection
- Photography and reproduction workflows
- Detection of metamerism and optical brighteners
- Color-critical product development
Technical Data
| Category | Specification |
|---|
| Model | DLS moduLight 1-1200 LED Color Matching Luminaire |
| Illuminants | CIE D50 (5000K), CIE D65 (6500K), UV-ONLY (UV-A) |
| Illumination Area | 100 x 40 cm (39.375 x 15.75 inches) |
| External Dimensions | 133.5 x 9 x 16 cm (52.5 x 3.5 x 6.25 inches) |
| Product Weight | 7 kg (15 lbs) |
| Shipping Weight | 15 kg (33 lbs) |
| Illuminance | 2000 lux |
| Color Rendering | CRI (Ra) ≥95 |
| Metamerism Index | Visible range ≤0.8 (MIvis), UV range ≤0.6 (MIuv) |
| LED Lifetime | Approximately 50,000 hours (D50), 30,000 hours (D65) |
| Maximum Power | 120 W |
| Typical Electrical Power | D50 (100%) 105.6 W, D65 (100%) 122.4 W |
| Operating Voltage | 120V, 60Hz |
| UV-ONLY Wavelength | 365 nm |
| UV-ONLY Radiant Power | 6 W |
| Housing | Anodized aluminum |
| Lens System | Special prismatic lens, UV-transmissive |
| Protection Class | IP52 |
Why Choose the JUST Normlicht DLS moduLight 1-1200 LED?
The JUST Normlicht DLS moduLight 1-1200 delivers professional color matching performance with expanded illumination coverage for medium and large-format applications. Its advanced LED technology provides standardized viewing conditions, exceptional spectral accuracy, and reliable long-term operation without the maintenance requirements of fluorescent systems.
With D50, D65, and UV-A illumination options, professionals can evaluate color accuracy, metamerism, optical brighteners, and fluorescence with confidence. The combination of high-intensity LEDs and Fresnel lens technology provides consistent, glare-free illumination for demanding color workflows.
Built for commercial printing, packaging, textile, and industrial applications, the DLS moduLight 1-1200 offers the precision, flexibility, and reliability required for professional color evaluation.
