Note: This Product is 120V/60Hz. It's also available in 240V.

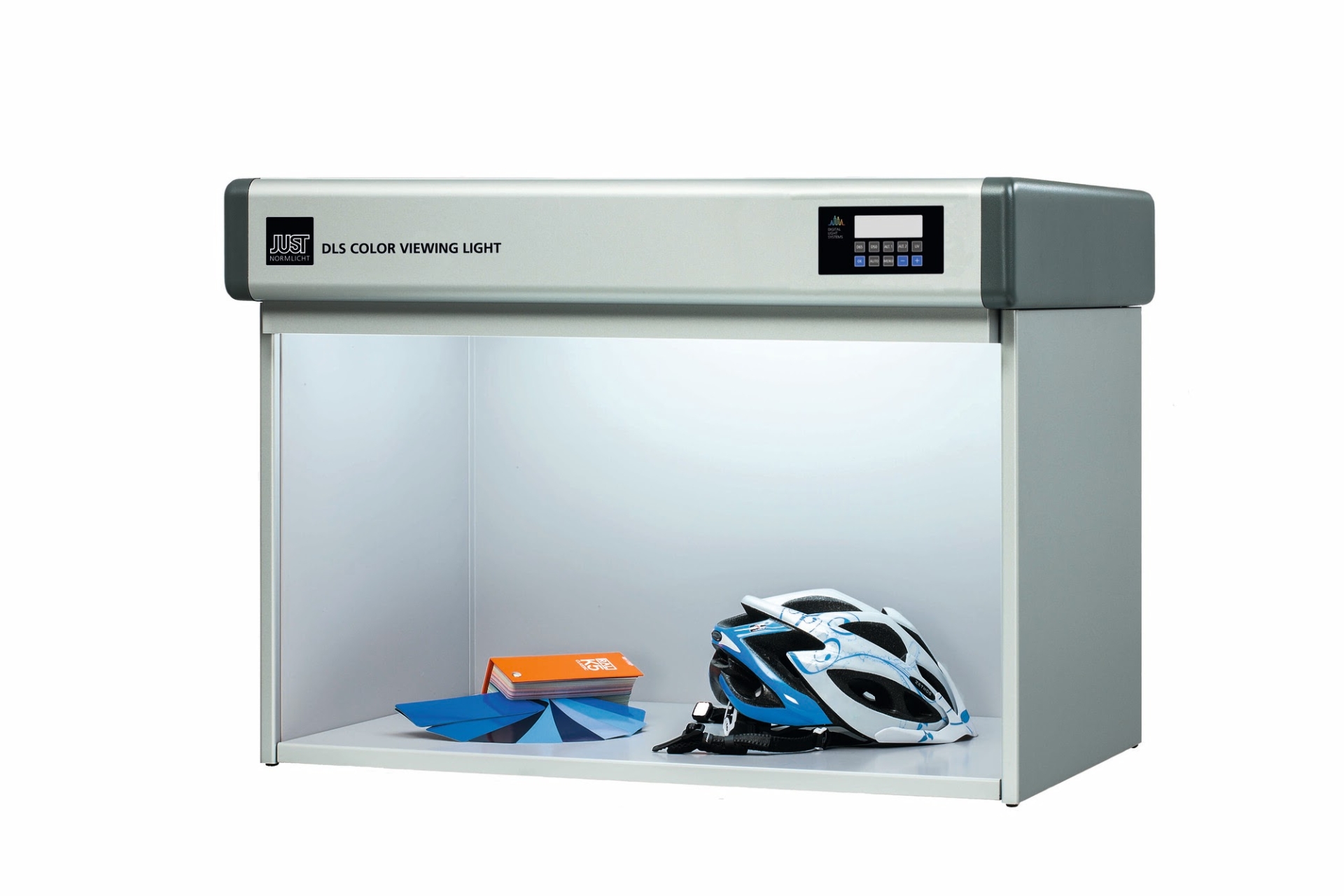

The JUST Normlicht DLS Color Viewing Light N7 v8 S is a professional LED-based color viewing booth designed for precise visual evaluation in print production, packaging, textiles, coatings, photography, and industrial quality control. Featuring the latest DLS v8 control system, it provides easier LED-based assessment with customizable illuminant configurations, allowing users to add two additional light sources from B1, B2, or B3 according to specific evaluation requirements.
With a 25.2 x 14.2 in. illuminated viewing area, the DLS Color Viewing Light N7 v8 S delivers highly uniform, shadow-free, and glare-free illumination for accurate evaluation of flat samples and three-dimensional materials. The Munsell N7 interior finish provides a neutral viewing environment for consistent color assessment.
Key Features
- Advanced LED-based viewing system with DLS v8 control technology
- Standard D50, D65, and UV-A illuminants with two customizable additional light sources
- Select additional illuminants from CIE 15:2018 B1 (2733K), B2 (2998K), or B3 (4103K)
- Expected LED service life up to 50,000 hours
- Maintenance-free LED system with no lamp replacement required
- D50 and D65 continuous dimming capability
- UV content can be switched on or off for flexible evaluation
- Mixed-light function for advanced color assessment workflows
- Programmable illuminant sequences for customized viewing conditions
- Memory function for stored proofing presets
- USB interface for PC connection and control
- CAD-based prismatic diffuser provides shadow-free and glare-free illumination
- High uniformity and optimized spectral characteristics across the viewing area
- Neutral Munsell N7 interior finish for professional color evaluation
Professional Color Evaluation Performance
The JUST Normlicht DLS Color Viewing Light N7 v8 S delivers advanced LED-based color evaluation performance for professional environments requiring accurate and repeatable viewing conditions. Its optimized control system simplifies assessment workflows while maintaining precise spectral characteristics, low metamerism values, and excellent illumination uniformity.
D50 and D65 daylight illuminants comply with international viewing standards, while UV-A illumination enables detection of optical brighteners and fluorescence effects. Additional selectable illuminants allow users to evaluate materials under application-specific lighting conditions.
Optimized for Quality Control & Proofing Applications
Designed for demanding color-critical workflows, the DLS Color Viewing Light N7 v8 S supports accurate comparison of printed proofs, textiles, coatings, packaging materials, plastics, and manufactured components. Programmable light sequences and stored presets help maintain consistent evaluation standards across production environments.
Uniform, Glare-Free LED Illumination
A CAD-based prismatic diffuser system provides highly uniform illumination while minimizing shadows and glare. The optimized LED technology delivers stable spectral output throughout the viewing area, ensuring reliable color evaluation for both flat samples and three-dimensional objects.
Applications
- Commercial printing and proofing
- Packaging and label evaluation
- Textile and fabric inspection
- Coatings and paint evaluation
- Plastic and industrial material assessment
- Photography and fine art reproduction
- 2D flat sample evaluation
- 3D sample evaluation of different materials
- Industrial color matching
- Metamerism detection workflows
Illuminant Characteristics
- CIE D50 (5000K daylight simulation, ISO 23603, CIE S 012, ISO 3664)
- CIE D65 (6500K daylight simulation, ISO 23603, CIE S 012, ISO 3668)
- UV-A (UV-Only) for fluorescence detection
- Two additional selectable illuminants from B1, B2, or B3
- B1 (2733K), B2 (2998K), B3 (4103K) based on CIE 15:2018
- UV content switchable on/off for assessment according to older ISO 3664 requirements
- Low metamerism index in visible range ≤ 0.8
- Low metamerism index in UV range ≤ 0.6
The JUST Normlicht DLS Color Viewing Light N7 v8 S delivers next-generation LED-based color evaluation with customizable illuminant options, advanced control features, and exceptional viewing consistency. With D50, D65, UV-A, and selectable B-series illuminants, it provides the flexibility needed for professional color communication, proofing, and quality control workflows.
Designed for demanding print, packaging, textile, and industrial applications, the DLS Color Viewing Light N7 v8 S combines precise LED technology, programmable light sequences, USB connectivity, and maintenance-free operation to ensure reliable color assessment and improved production accuracy.
