Note: This Product is available in 120V/60Hz and 240V configurations.
The JUST Normlicht DLS Color Viewing Light N7 v8 L is a professional LED-based large-format color viewing booth designed for precise visual evaluation in print production, packaging, textiles, coatings, photography, and industrial quality control environments. Featuring the advanced DLS v8 control system, it provides easy and intuitive operation with customizable illuminant configurations, allowing two additional light sources from B1, B2, or B3 to be selected according to customer requirements.

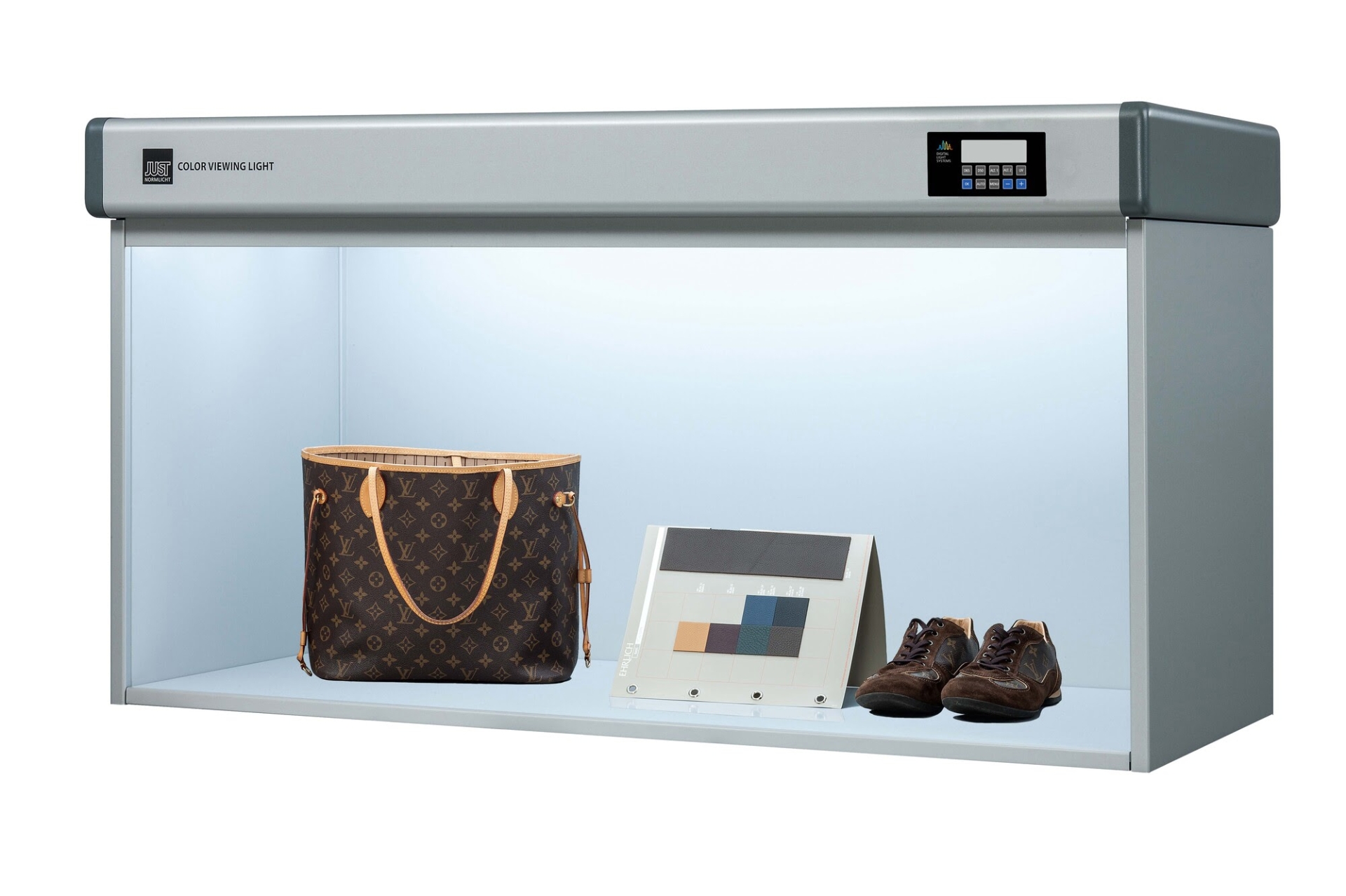

With a 49.2 x 21.3 in. (125 x 54 cm) illuminated viewing area, the DLS Color Viewing Light N7 v8 L provides highly uniform, shadow-free, and glare-free LED illumination for accurate evaluation of large flat samples and three-dimensional materials. The neutral Munsell N5 or N7 interior coating creates a controlled viewing environment for consistent professional color assessment.
Key Features
- Advanced LED-based large-format viewing system with DLS v8 control technology
- Standard D50, D65, and UV-A illuminants with two customizable additional light sources
- Select additional illuminants from CIE B1, B2, or B3 according to customer requirements
- ALT1 and ALT2 illuminants pre-programmed according to customer specifications
- Mixed-light mode allows multiple illuminants to be selected simultaneously

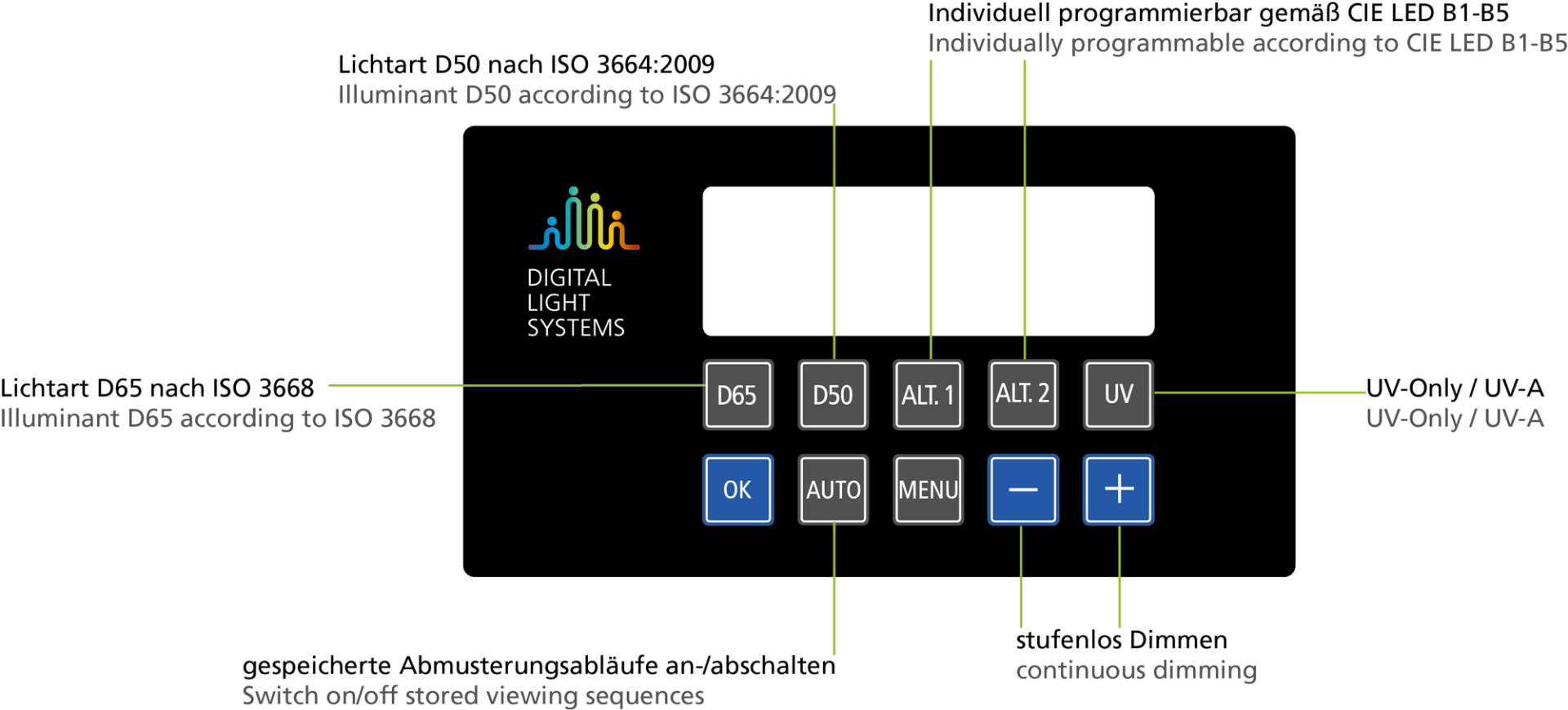

- Easy and intuitive LED control system
- Expected LED lifetime exceeding 50,000 hours
- Maintenance-free LED technology with no tube replacement required
- D50 and D65 illuminants with continuous dimming capability
- UV content can be switched on or off for flexible evaluation workflows
- Programmable illuminant sequences for customized viewing conditions
- Memory function for stored proofing settings
- USB interface for PC connection and control
- CAD-based prismatic diffuser provides shadow-free and glare-free illumination
- Optimized spectral characteristics and unmatched light distribution
- Neutral Munsell N5 or N7 interior coating for accurate color evaluation
Professional Color Evaluation Performance
The JUST Normlicht DLS Color Viewing Light N7 v8 L delivers advanced LED-based color evaluation performance for demanding professional environments. Its optimized control system simplifies color assessment while maintaining precise spectral characteristics, excellent uniformity, and low metamerism values.
D50 and D65 daylight illuminants comply with international viewing standards, while UV-A illumination allows users to identify optical brighteners and fluorescence effects. Additional selectable B-series illuminants provide greater flexibility for evaluating materials under application-specific lighting conditions.
Optimized for Quality Control & Proofing Applications
Designed for professional color-critical workflows, the DLS Color Viewing Light N7 v8 L supports accurate comparison of printed proofs, packaging materials, textiles, coatings, plastics, and manufactured components. Programmable light sequences, stored presets, and customizable illuminant options help maintain consistent evaluation standards across production environments.
The large-format viewing area supports both 2D flat samples and 3D objects made from different materials. Multiple illuminant options provide excellent metamerism detection and improved color communication throughout the production process.
Uniform, Glare-Free LED Illumination
A CAD-based prismatic diffuser system provides highly uniform illumination while minimizing shadows and glare across the entire viewing area. The advanced LED technology delivers stable spectral output, accurate color reproduction, and reliable viewing conditions for professional color evaluation.
The DLS Color Viewing Light N7 v8 L combines precise illumination control with a large-format design, making it ideal for evaluating oversized prints, fabrics, coatings, packaging components, and industrial materials.
Applications
- Commercial printing and proofing
- Packaging and label evaluation
- Textile and fabric inspection
- Coatings and paint evaluation
- Plastic and industrial material assessment
- Photography and fine art reproduction
- 2D flat sample evaluation
- 3D sample evaluation of different materials
- Industrial color matching
- Metamerism detection workflows
- Quality control inspection
Illuminant Characteristics
- CIE D50 (5000K daylight simulation, ISO 23603, CIE S 012, ISO 3664)
- CIE D65 (6500K average daylight from northern sky simulation, ISO 23603, CIE S 012, ISO 3668)
- UV-A (UV-Only) for fluorescence detection
- Two additional selectable illuminants from CIE B1-B5 according to customer requirements
- B-series illuminants ranging from 2733K to 6598K
- UV content switchable on/off for evaluation according to older ISO 3664 requirements
- D50 and D65 continuous dimming
- Mixed-light function for simultaneous illuminant selection
- Low metamerism index in visible range ≤ 0.8
- Low metamerism index in UV range ≤ 0.6
Technical Data
| Category | Specification |
|---|
| Model | DLS Color Viewing Light N7 v8 L |
| Illuminants | CIE D50 (5000K), CIE D65 (6500K), UV-A, two selectable additional illuminants from B1-B5 |
| Additional Illuminants | CIE B1-B5 (2733K - 6598K, Ra = 80) |
| Color Rendering Index (Ra) | > 95 |
| Visible Metamerism Index | ≤ 0.8 |
| UV Metamerism Index | ≤ 0.6 |
| Chromaticity Error | < 0.002 |
| D50 Chromaticity Coordinates (10°) | x = 0.3478 / y = 0.3595 (≤ 0.002) |
| D65 Chromaticity Coordinates (10°) | x = 0.3138 / y = 0.3309 (≤ 0.002) |
| Dominant UV Wavelength | 365 nm |
| UV Radiant Power | 6 W |
| Maximum Electric Power | 183 W |
| Electrical Operating Power | 170 W |
| Operating Voltage | 120 V |
| Frequency | 60 Hz |
| Maximum Continuous Current | 0.8 A / 1.7 A (continuous operation) |
| Operating Mode | S1 Continuous Operation |
| Expected Lifetime | > 50,000 hours (continuous operation) |
| Connection Cable | Power cable, angle plug type 303 to IEC socket type 601 / NEMA 5-15P Male |
| Illumination Area (W x D) | 125 x 54 cm (49.2" x 21.3") |
| Outside Dimensions (W x H x D) | 131 x 94 x 60 cm (51.6" x 37.0" x 23.6") |
| Product Weight | 31 kg (68.3 lbs) |
| Housing | Aluminum |
| Interior Coating | Munsell N5 or N7 neutral gray |
| Lens | Special prismatic UV-transmissive lens |
| Protection Class | IP52 |
| Risk Assessment (DIN EN 62471) | D50+UV / D65+UV: RG0, UV-ONLY: RG1 |
| Ambient Temperature | 0°C to 40°C (32°F to 104°F) |
Why Choose the JUST Normlicht DLS Color Viewing Light N7 v8 L?
The JUST Normlicht DLS Color Viewing Light N7 v8 L provides next-generation LED-based color evaluation with advanced illuminant customization, intuitive controls, and exceptional viewing consistency. With D50, D65, UV-A, and selectable B-series illuminants, it delivers the flexibility required for professional proofing, color communication, and quality control applications.
Designed for demanding print production, packaging, textile, coating, and industrial environments, the DLS Color Viewing Light N7 v8 L combines precise LED illumination, programmable light sequences, mixed-light functionality, USB connectivity, and maintenance-free operation to ensure accurate and repeatable color assessment.
With its large-format viewing area, low metamerism values, uniform glare-free illumination, and customizable ALT1 and ALT2 illuminant settings, the DLS Color Viewing Light N7 v8 L helps professionals maintain consistent color standards throughout the entire production workflow.
