Note: This Product is 120V/60Hz. It's also available in 240V.

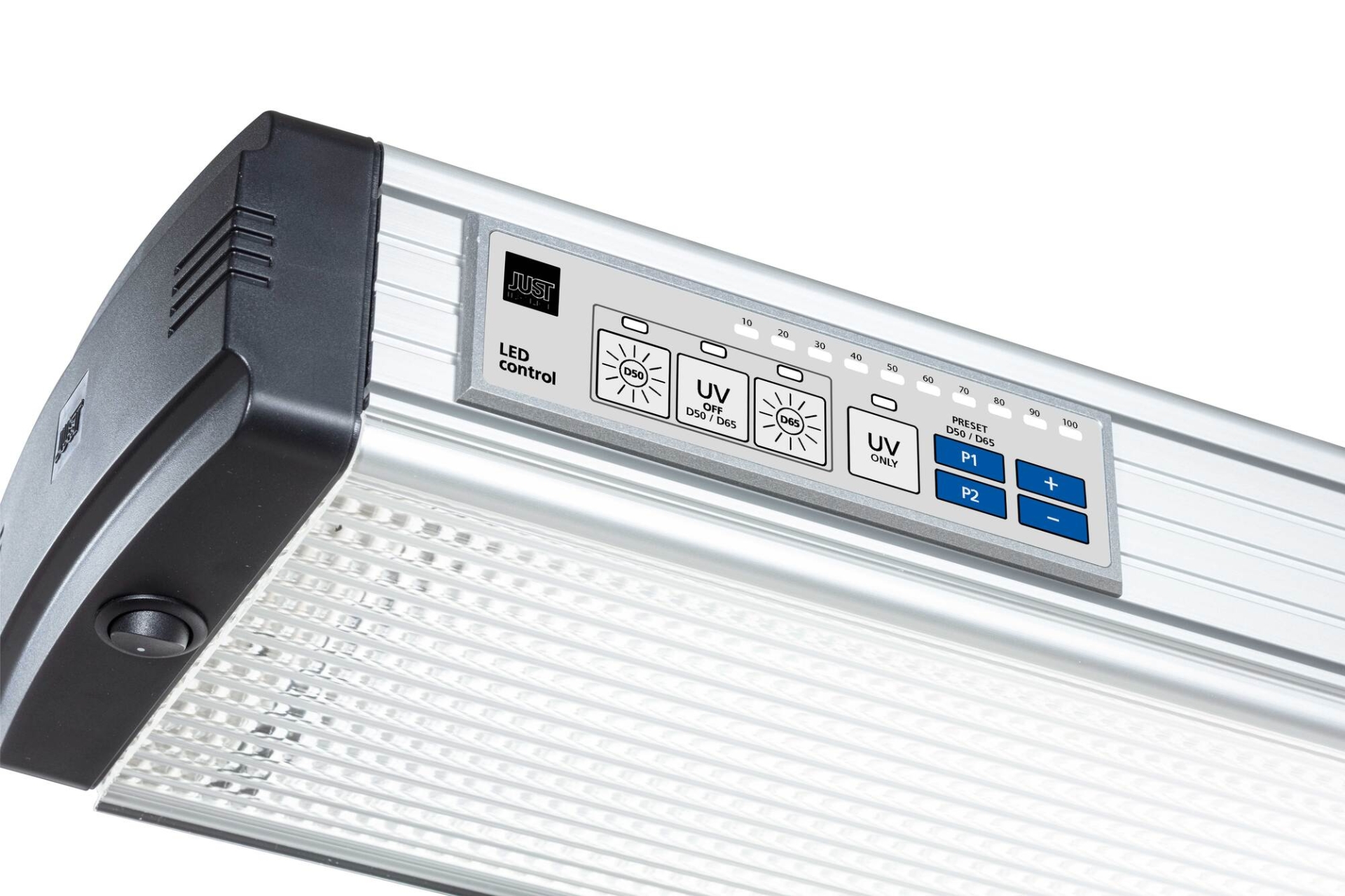

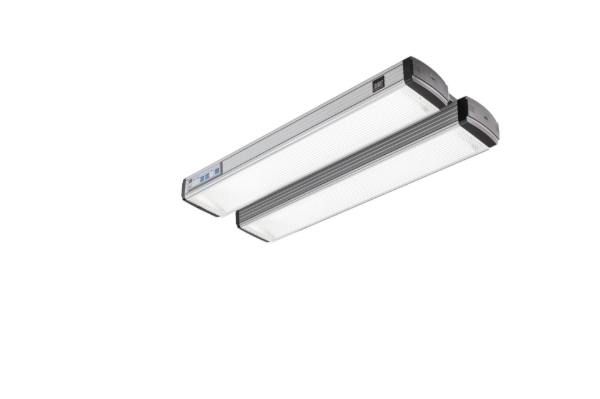

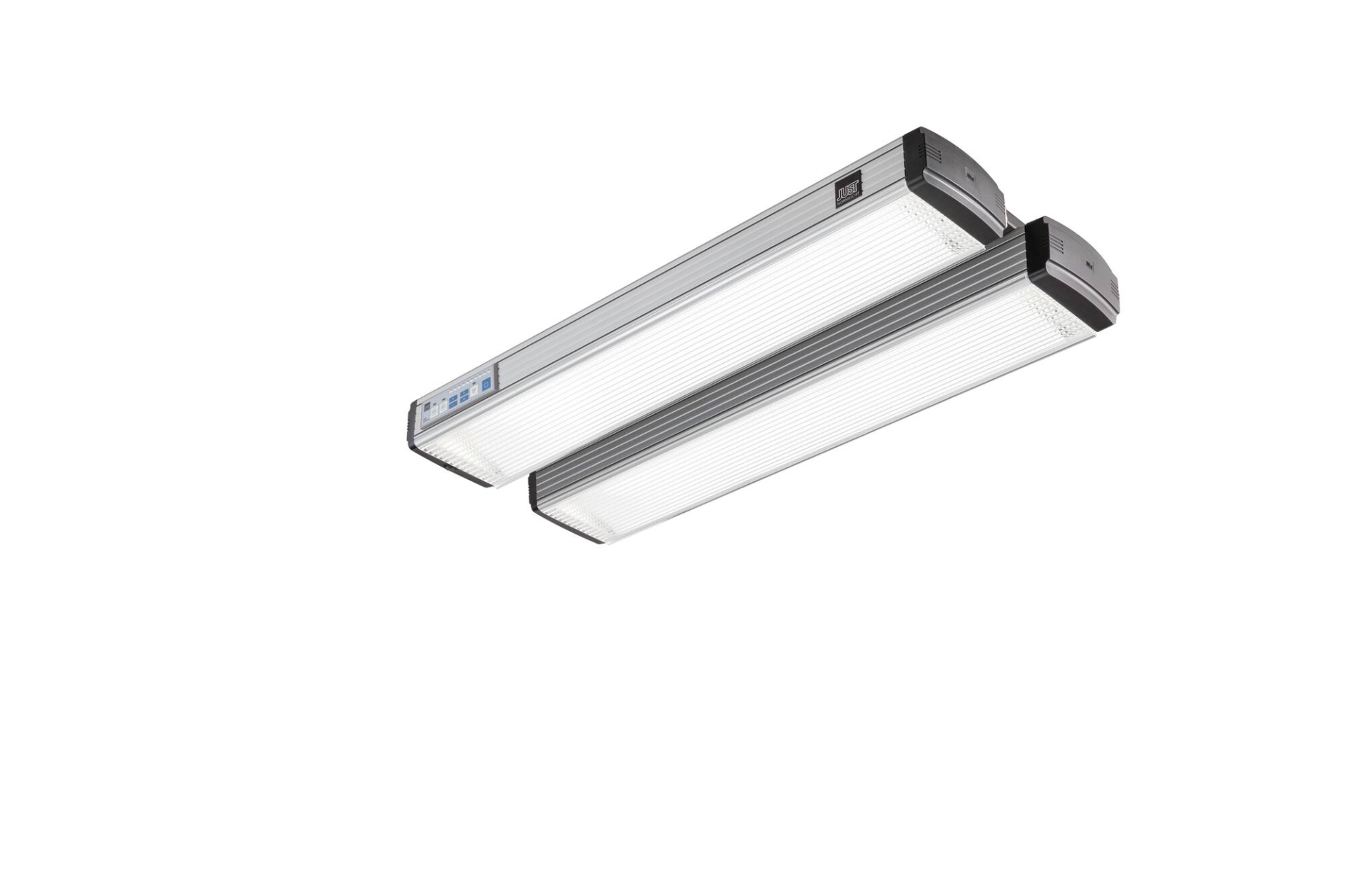

The JUST Normlicht DLS moduLight 2-800 LED Color Matching Luminaire provides professional LED illumination for large-format color evaluation applications. Featuring two LED modules and JUST's patented multi-colored LED technology, the moduLight 2-800 delivers standardized D50, D65, and UV-A viewing conditions with exceptional spectral quality that exceeds the requirements of ISO 3664:2009 and ISO 3668.
Designed for larger viewing formats, the moduLight 2-800 creates an expanded illumination area while maintaining the precise color accuracy, uniformity, and low reflection behavior required for professional color matching. The suspended ceiling-mounted design combined with advanced Fresnel-type prismatic lenses provides consistent, glare-free illumination for printed materials, textiles, coatings, packaging, and other flat samples.
Unlike conventional fluorescent lighting systems, the DLS moduLight 2-800 eliminates annual relamping, warm-up periods, and inconsistent light output caused by aging lamps. The advanced LED system provides stable illumination throughout its lifespan, allowing professionals to evaluate and match colors confidently for years.
Key Features
- Dual-module LED color matching luminaire designed for medium and large format samples
- Fogra certified to ISO 3664:2009
- Patented JUST LED illumination technology (US Patent No. 8,592,748 B2)
- Switchable D50 and D65 illuminants according to ISO 3664 and ISO 3668
- UV-A illumination for detecting optical brighteners and fluorescent materials
- UV content can be enabled or disabled for current and previous ISO standards
- Continuous dimming without color shifts
- USB interface for PC connection

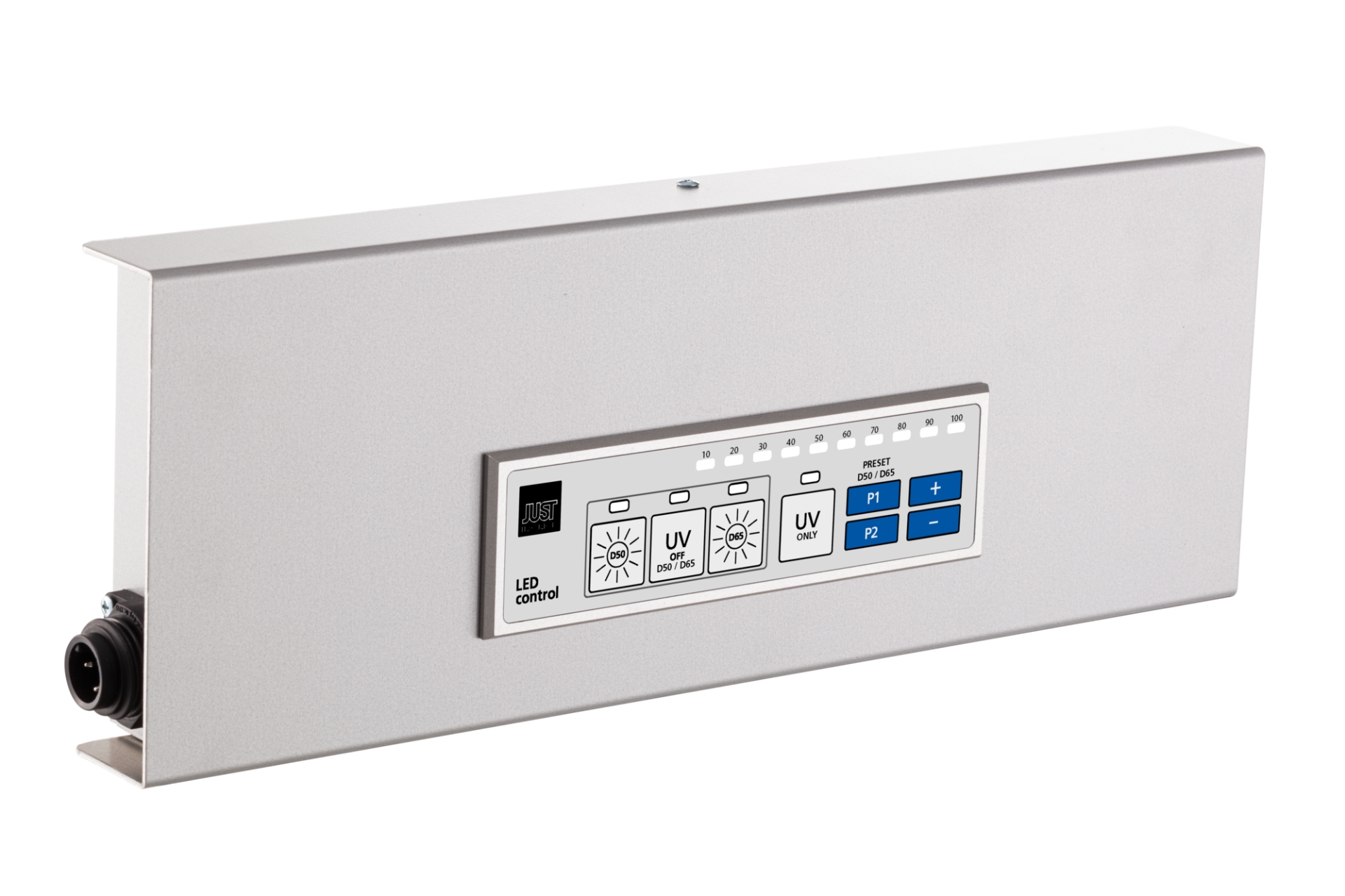

- LED-CONTROL system supports easy operation and simultaneous control of multiple luminaires
- No warm-up time after powering on
- LED lifespan exceeding 50,000 hours depending on illuminant
- No annual lamp replacement required
- Stable light output throughout the entire LED lifespan
- Fresnel-type prismatic lens provides extremely homogeneous, glare-free illumination
- 2000 lux illuminance according to ISO standards
- Color Rendering Index CRI (Ra) ≥95
- Includes ceiling suspension wire
Advanced LED Color Matching Technology
The DLS moduLight 2-800 combines multiple colored LEDs to produce a complete and harmonious light spectrum that exceeds conventional fluorescent lighting technology. This advanced LED system delivers accurate color reproduction, low metamerism, and stable illumination performance throughout the entire operating life of the luminaire.
The integrated Fresnel-type prismatic lens technology optimizes light distribution while reducing reflections, allowing professionals to evaluate large and flat samples with exceptional accuracy from a fixed viewing position.

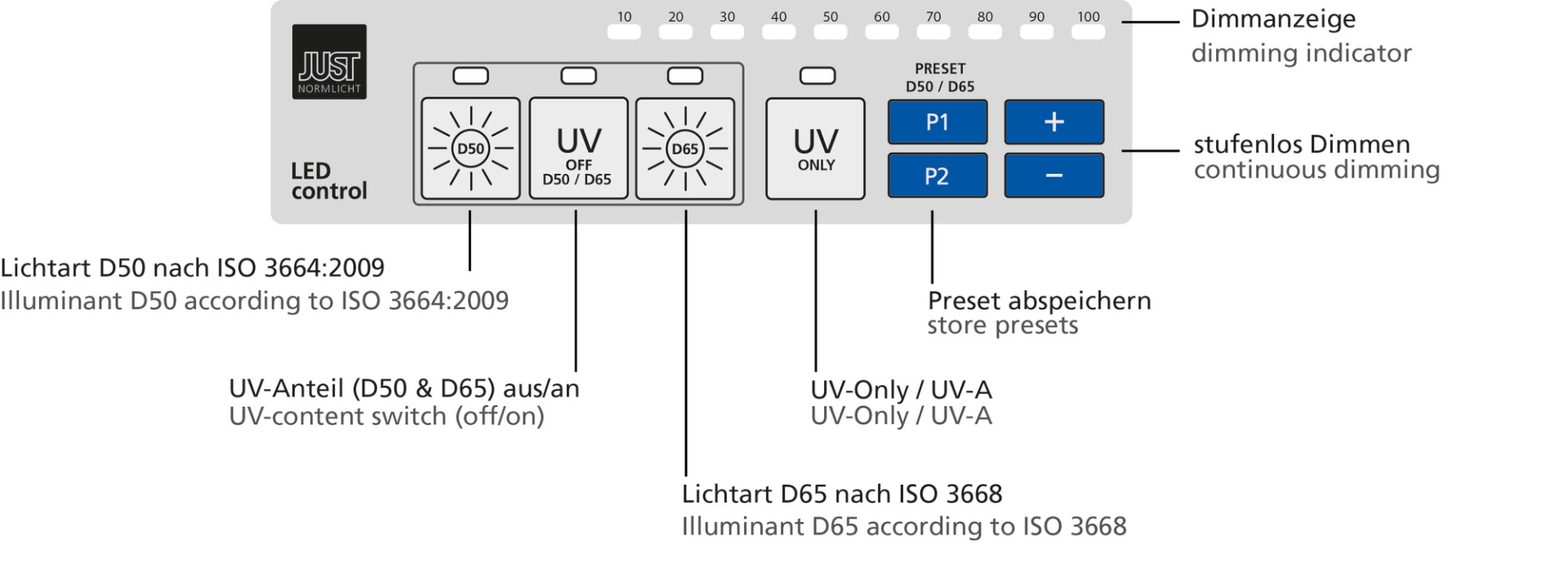

Flexible Illuminant Control
The DLS moduLight 2-800 supports standardized D50 daylight, D65 daylight, and UV-A illumination modes for complete color evaluation. UV-ONLY mode provides additional visibility for optical brighteners and fluorescent effects that may influence final product appearance.
With dimmable illuminants, USB connectivity, and optional LED Remote Control functionality, multiple luminaires can be configured for advanced professional viewing environments.
Applications
- Large-format color evaluation
- Commercial printing and prepress
- Packaging and label inspection
- Textile and fabric evaluation
- Coating and surface finish inspection
- Photography and reproduction workflows
- Detection of metamerism and optical brighteners
- Color-critical product development
Technical Data
| Category | Specification |
|---|
| Model | JUST Normlicht DLS moduLight 2-800 LED Color Matching Luminaire |
| Illuminants | CIE D50 (5000K), CIE D65 (6500K), UV-ONLY (UV-A) |
| Illumination Area | 70 x 80 cm (27.5 x 31.5 inches) |
| External Dimensions | 94 x 11.5 x 39 cm (37 x 4.5 x 15.375 inches) |
| Product Weight | 12 kg (26.5 lbs) |
| Shipping Weight | 26 kg (57 lbs) |
| Illuminance | 2000 lux |
| Color Rendering | CRI (Ra) ≥95 |
| Metamerism Index | Visible range ≤0.8 (MIvis), UV range ≤0.6 (MIuv) |
| LED Lifetime | Approximately 50,000 hours (D50), 30,000 hours (D65) |
| Maximum Power | 216 W |
| Typical Electrical Power | D50 (100%) 140 W, D65 (100%) 163.2 W |
| Operating Voltage | 120V, 60Hz |
| Housing | Anodized aluminum |
| Lens System | Special prismatic lens, UV-transmissive |
| Protection Class | IP52 |
Why Choose the JUST Normlicht DLS moduLight 2-800 LED?
The JUST Normlicht DLS moduLight 2-800 provides professional color evaluation environments with expanded illumination coverage, advanced LED technology, and standardized viewing conditions. Its dual-module design makes it ideal for larger samples and applications requiring consistent, high-quality illumination.
By eliminating fluorescent lamp replacement and maintaining stable spectral performance for thousands of hours, the moduLight 2-800 reduces maintenance requirements while improving color consistency. D50, D65, and UV-A illumination allow professionals to evaluate color accuracy, metamerism, and optical brighteners with confidence.
Built for demanding commercial printing, packaging, textile, and industrial color workflows, the DLS moduLight 2-800 delivers the accuracy, flexibility, and reliability required for professional color matching.
