Note: This Product is 120V/60Hz. It's also available in 240v.

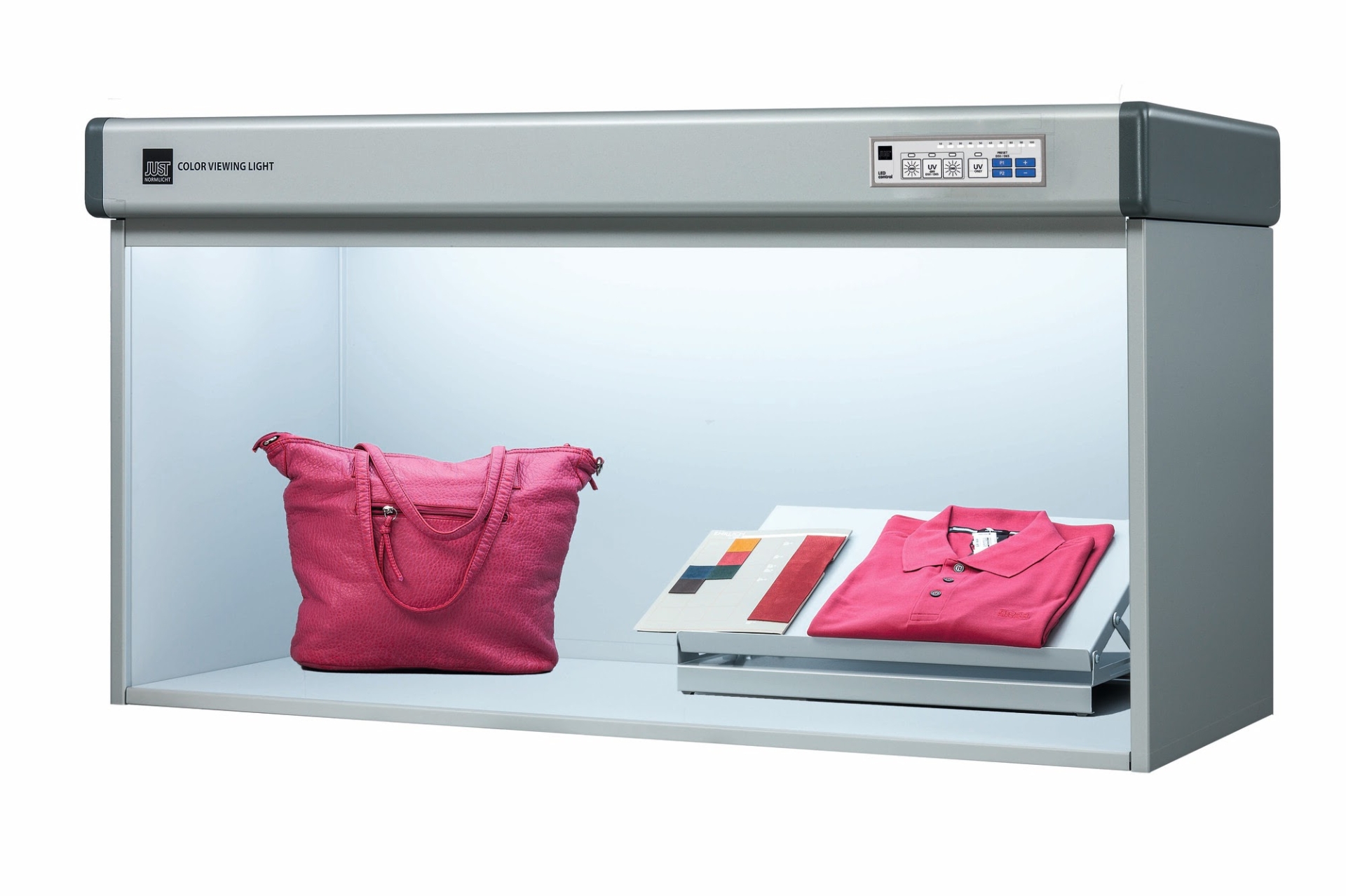

The JUST Normlicht DLS Color Viewing Light v7 L is a professional LED-based large-format viewing system designed for precise visual color evaluation in print production, packaging, textiles, photography, and industrial quality control. Built for high-demand production environments, it delivers stable, repeatable viewing conditions using switchable D50, D65, and UV-A illumination. Designed specifically for oversized proofs, press sheets, packaging boards, and wide-format production materials.
With a 49.2 x 21.3 in. (125 x 54 cm) illuminated viewing area, the DLS Color Viewing Light v7 L provides homogeneous, glare-free lighting optimized for large flat samples and production-scale color evaluation workflows. Its wide-format design supports consistent inspection of full-size print outputs and packaging layouts.
Key Features
- Innovative LED-based viewing system for professional production use
- JUST LED technology for superior color stability and long lifetime
- Expected service life up to 50,000 hours
- Instant-on operation with stepless dimming without color shift
- Switchable D50 (5000K) and D65 (6500K) illuminants
- UV-A mode for optical brightener and fluorescence detection
- UV component on/off switching for flexible evaluation
- Two programmable memory presets
- USB interface for PC-controlled dimming and soft proofing workflows
- Shadow-free, glare-free prismatic diffuser system
- High uniformity illumination across full wide-format viewing area
- Maintenance-free LED system with no lamp replacement required
- Asymmetrical light design optimized for fixed production viewing position
Professional Color Evaluation Performance
The DLS Color Viewing Light v7 L is engineered for industrial color matching and high-volume production quality control workflows. It delivers highly uniform spectral output with excellent metamerism control, making it ideal for evaluating large printed proofs, packaging materials, textiles, coatings, and oversized visual samples.
D50 and D65 illuminants exceed ISO viewing standards, while UV-A capability enables accurate detection of optical brighteners and fluorescence effects. Digital dimming ensures precise luminance matching for controlled production environments.
Optimized for Soft Proofing & Quality Control
With USB connectivity and stepless dimming, the v7 L supports advanced soft proofing workflows by allowing precise matching between display calibration and physical proof illumination. The system ensures consistent visual evaluation across production environments, improving accuracy and reducing color errors.
Uniform, Glare-Free Illumination
A CAD-based prismatic diffuser system delivers highly uniform illumination with minimal glare and reflection. The wide-format asymmetrical design supports a fixed viewing position, making it ideal for consistent inspection of large flat materials such as press sheets, packaging layouts, and wide-format prints.
Applications
- Large-format commercial printing and proofing
- Packaging and label production
- Wide-format textile and fabric evaluation
- Coatings and paint inspection
- Photography and fine art reproduction
- Industrial color matching
- Plastic and material samples
- Quality control inspection
- Soft proofing environments
- Metamerism detection workflows
Illuminant Characteristics
- CIE D50 (5000K daylight simulation)
- CIE D65 (6500K daylight simulation)
- UV-A (365 nm) for fluorescence detection
- UV content switchable on/off
- Excellent spectral stability and uniformity
- Low metamerism for accurate visual comparison
Technical Data
| Category | Specification |
|---|
| Model | DLS Color Viewing Light v7 L |
| Illuminants | CIE D50 (5000 K), CIE D65 (6500 K), UV-A (365 nm) |
| Color Rendering Index (Ra) | ≥ 95 |
| Visible Metamerism Index | ≤ 0.8 |
| UV Metamerism Index | ≤ 0.6 |
| Chromaticity Error | < 0.002 |
| D50 Chromaticity Coordinates (10°) | x = 0.3478 / y = 0.3595 (≤ 0.002) |
| D65 Chromaticity Coordinates (10°) | x = 0.3138 / y = 0.3309 (≤ 0.002) |
| Dominant UV Wavelength | 365 nm |
| UV Radiant Power | 6 W |
| Maximum Electric Power | 45 W |
| Electrical Operating Power | 40 W |
| Operating Voltage | 120 V |
| Tension Frequency | 60 Hz |
| Maximum Continuous Current | 0.2 A / 0.4 A (continuous operation) |
| Operating Mode | S1 Continuous Operation |
| Expected Lifetime | > 50,000 hours (continuous operation) |
| Connection Cable | Power cable, angle plug type 303 to IEC socket type 601 / NEMA 5-15P Male |
| Illumination Area (W x D) | 125 x 54 cm (49.2" x 21.3") |
| Outside Dimensions (W x H x D) | 132 x 97 x 60 cm (52" x 38" x 24") |
| Product Weight | 65 lbs |
| Housing | Aluminum |
| Lens | Special prismatic UV-transmissive lens |
| Protection Class | IP52 |
| Risk Assessment (DIN EN 62471) | D50+UV / D65+UV: RG0, UV-ONLY: RG1 |
| Ambient Temperature | 0°C to 40°C (32°F to 104°F) |
| Environmental Impact | CO2 savings over 17 tons compared to conventional fluorescent lamps |
Why Choose the JUST Normlicht DLS Color Viewing Light v7 L?
The DLS Color Viewing Light v7 L delivers high-performance, wide-format LED viewing engineered for production-scale color evaluation. With ISO-compliant D50 and D65 illumination, UV-A capability, and precise digital control, it ensures consistent and reliable color assessment for demanding professional workflows. Its maintenance-free LED system and long lifetime make it a dependable solution for industrial color communication and quality control.
