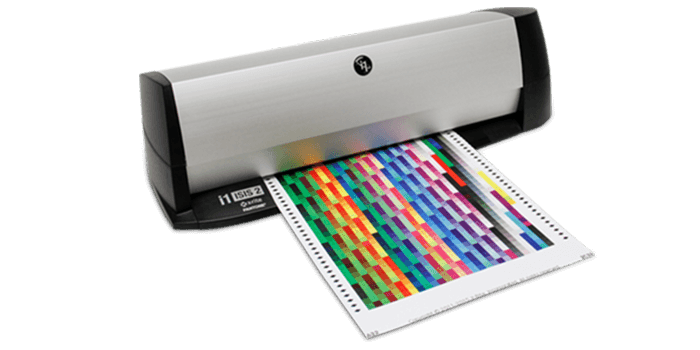

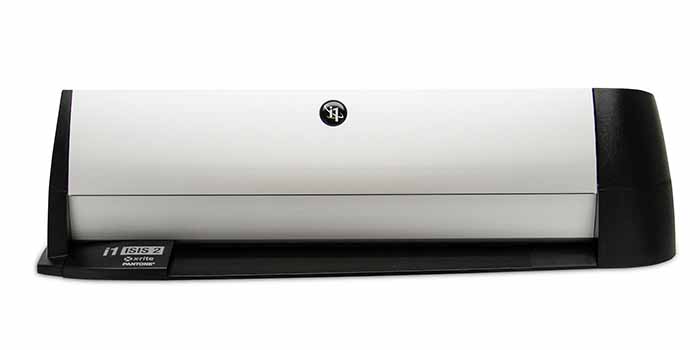

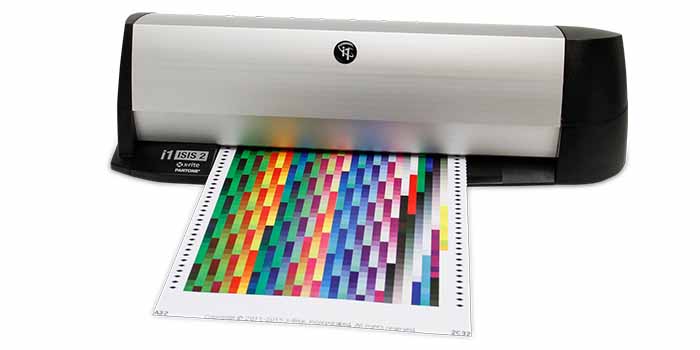

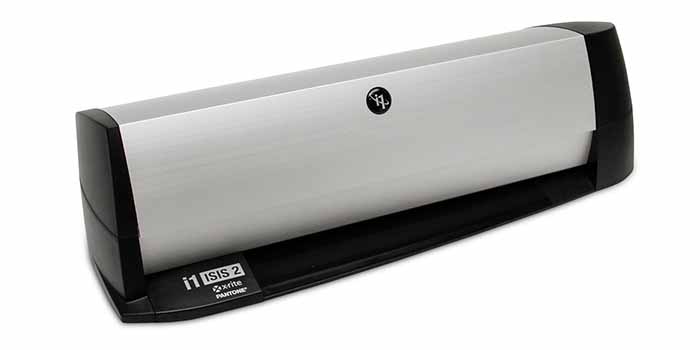

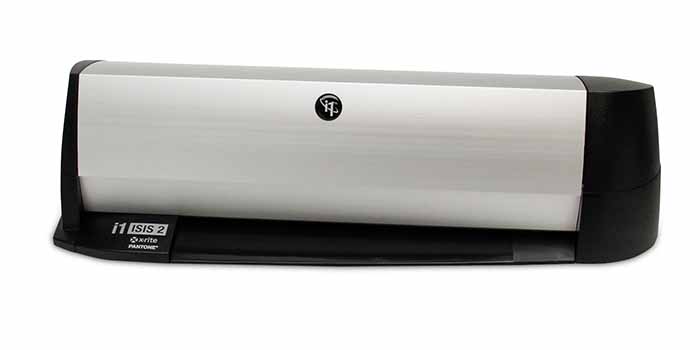

The i1iSis 2 A4/Letter automated chart reader is the ideal instrument to speed up and automate printer profile creation, now supporting M1 measurement standards.
In high production environments such as photo processing, large format, fine art and high-speed digital printing, frequent measurement of color test charts to keep color management profiles up to date is a must. With the i1iSis 2, this task no longer need be labor-intensive. Simply print the A4 test chart, read it into the i1iSis 2 in to process 1,500 patches in just 8 minutes, and check results. It’s that easy.
The i1iSis 2 is compliant with the latest ISO standards for M-Series measurement illumination conditions, including:
The i1iSis 2 improves the speed and accuracy of profiling and calibration and helps operators address color drift before it is visible to the human eye. You can even average more than one target and quickly analyze a high volume of charts. Need a larger chart size? Learn about the i1iSis 2 XL A3 chart reader. With the i1iSis 2, spend less time profiling and more time ensuring happy customers!
Short Term Repeatability - White:0.1 DE*94 (D50, 2°)
Inter-Instrument Agreement:Average 0.4 DE*94 (deviation from X-Rite manufacturing standard at a temperature of 23°C on 12 BCRA tiles (D50, 2°))
Measurement Conditions:M0, M1 & M2
Minimal Media Thickness:Typical 0.16mm, Range: 0.08 to 0.45mm
Photometric Range:10 nm; Sampling interval 3.5 nm (100 bands)
Spectral Analyzer:i1® technology (holographic diffraction grating with diode array)
Spectral Range:380 - 730 nm
Spectral Reporting:10 nm
Aperture:Effective measurement aperture during scanning is depending on the patch size
Dimensions (length, width, height):Width 42 cm, depth 16 cm, height 12 cm (16.5 x 6.3 x 4.7 inches)
Weight:3.2 kg (112.9 oz)
Experience Level:Intermediate to Advanced
Software Development Kit:Available for OEM customers
- Width: 6 to 23 cm (2.4 to 9 in.)
- Length: 17 cm to 66 cm (6.7 to 26 in.)
Calibration:Automatic on Internal Calibration Reference
Optical Brigtener Compensation (OBC):Optical Brightener Compensation (OBC) with i1Profiler software
Warranty:Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
What's Included?:i1iSis 2 spectrophotometer; main power cable, USB cable
Connectivity:Powered USB port
