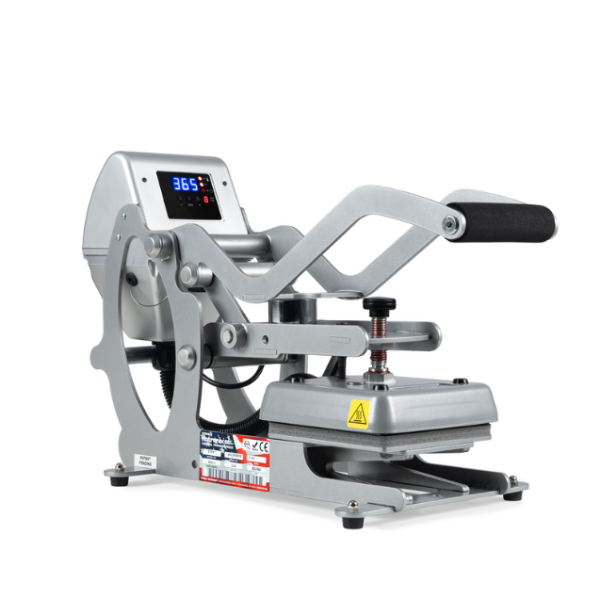

Hotronix Enhanced Threadable LowRider Heat Press 6" x 6"
Precision Heat Pressing for Specialty Garment Applications
The Hotronix Enhanced Threadable LowRider Heat Press is a specialty heat press designed for precise, consistent heat application to collar labels, patches, sleeves, left chest logos, and other hard-to-reach garment placements.
Featuring a 6" x 6" (15 x 15 cm) platen, threadable lower platen design, adjustable pressure, and interchangeable platen options, the Threadable LowRider provides the versatility needed for specialty apparel decorating applications.
LowRider Threadable Intro Video
Designed for Labels, Patches, Sleeves, & Specialty Placements
The threadable lower platen allows garments to slide over the platen, helping isolate seams, buttons, zippers, and other obstructions from the application area. This design helps improve print placement accuracy while delivering more consistent heat transfer results.
Access the lower platen from underneath the heat press for faster and easier platen changes. With four interchangeable platen options, the Hotronix Threadable LowRider provides the flexibility to apply labels, patches, sleeves, left chest logos, and specialty placements.
The threadable design allows seams, buttons, and zippers to fall away from the pressing surface, helping reduce pressure inconsistencies and improving application accuracy. The compact, portable design also makes the LowRider a practical solution for shop or mobile heat printing environments.
Precise Heat Transfer Application
When application time is complete, the heat press automatically opens, allowing you to confidently multitask while helping avoid over-application and ruined garments. A center pressure adjustment, coupled with a floating heat platen, ensures a no-pinch application result regardless of garment thickness.
The patented Magnetic Auto Open feature automatically releases the press when the application cycle is complete, helping prevent over-application. The patented Magnetic Assist Lock Down makes it easier to close and lock the press while reducing operator fatigue.
Digital time, temperature, and pressure controls provide easy-to-read settings for repeatable heat transfer applications. The Twin Timer™ allows users to preset individual time settings for two-step applications or pre-heating and application.
Key Features
- 6" x 6" (15 x 15 cm) heat press platen
- Threadable lower platen design for specialty garment placement
- Garments slide over the lower platen to isolate seams, buttons, and zippers from the pressing surface
- Ideal for collar labels, patches, sleeves, left chest logos, and specialty applications
- Four interchangeable platen options
- Lower platen access from underneath for faster platen changes
- Patented Magnetic Auto Open feature
- Automatically opens when application time is complete
- Patented Magnetic Assist Lock Down reduces operator effort and fatigue
- Digital time, temperature, and pressure controls
- Twin Timer™ for two-step applications or pre-heating and application
- Center pressure adjustment for consistent application
- Floating heat platen provides a no-pinch application
- 3/4" thick non-stick coated upper platen
- 3/8" silicone pad
- Platinum RTD heat sensor
- Wide opening for easy garment layout
- Cast-in tubular heating
- Heating elements positioned every 2" to help eliminate cold spots
- Generates maximum pressure with less effort
- Adjustable pressure
- Space-saving clamshell design
- Compact, portable design for shop or mobile production environments
- Powder-coated finish
- Made in the USA
- SGS certified to UL standards
- CE/RoHS approved
Hotronix Enhanced Threadable LowRider Specifications
| Platen Size | 6" x 6" (15 x 15 cm) |
| Temperature Range | 205° - 420°F |
| Temperature Display | °F or °C |
| Electrical | 120 V, 3 A, 360 W |
| Electrical Requirement | Must have designated circuit breaker |
| Actual Dimensions | 20" x 10" x 14" (51 x 25 x 36 cm) |
| Actual Weight | 28 lbs (13 kg) |
| Shipping Dimensions | 26" x 15" x 21" (66 x 38 x 53 cm) |
| Shipping Weight | 41 lbs (19 kg) |
| Country of Manufacture | USA |
Universal Features
- Made in the USA
- Cast-in tubular heating
- Powder-coated finish
- Certified by SGS to UL standards
- CE/RoHS approved
Included Platens
- 6” × 6” Standard – ideal for everyday applications
- 4” × 4” – perfect for small sleeves & youth prints
- 4” Round Platen – designed for label and curved placements
- 4” × 5” Landscape – supports horizontal graphics
Warranty
| Heating Element | Lifetime warranty |
| Framework | 5 years |
| Circuit Board | 2 years |
| Parts and Labor | 1 year |
Why Choose the Hotronix Enhanced Threadable LowRider?
For apparel decorators handling specialty placements, the Hotronix Enhanced Threadable LowRider Heat Press combines compact 6" x 6" heat application with the flexibility of a threadable platen and interchangeable platen options. Its specialty-focused design makes it an effective solution for applying heat transfers, labels, patches, and logos to areas of garments where seams, zippers, buttons, and varying garment thicknesses can make standard heat pressing more difficult.
