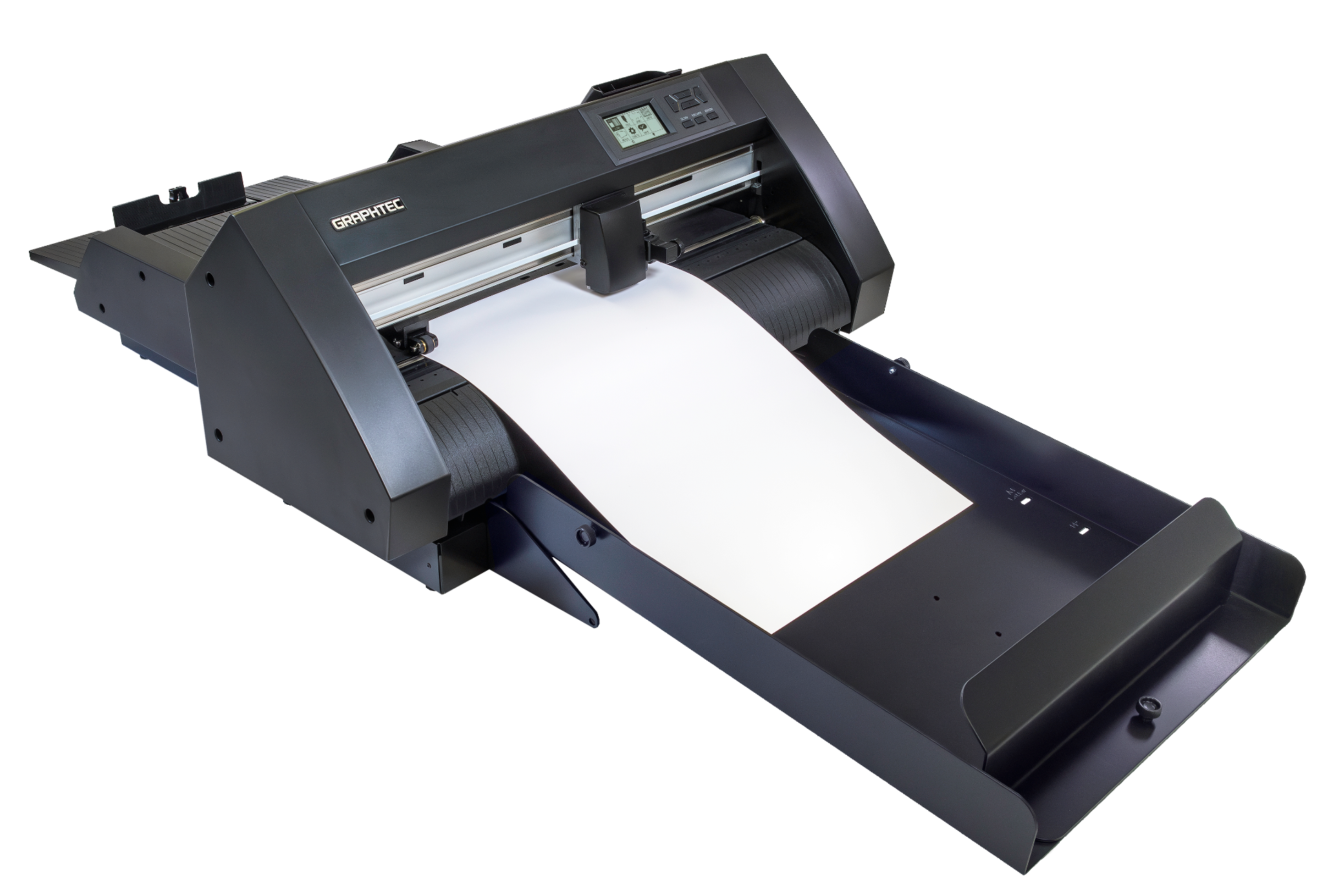

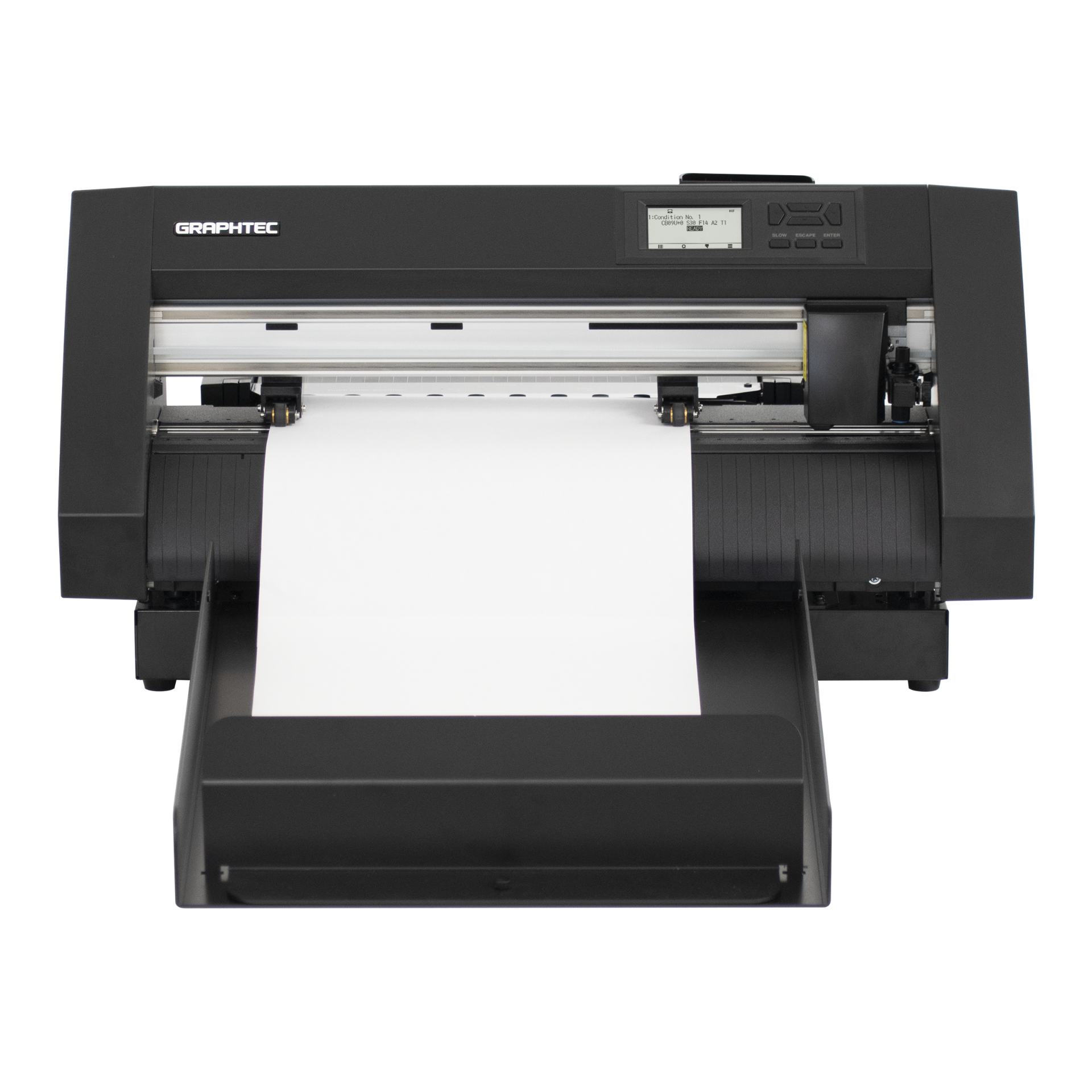

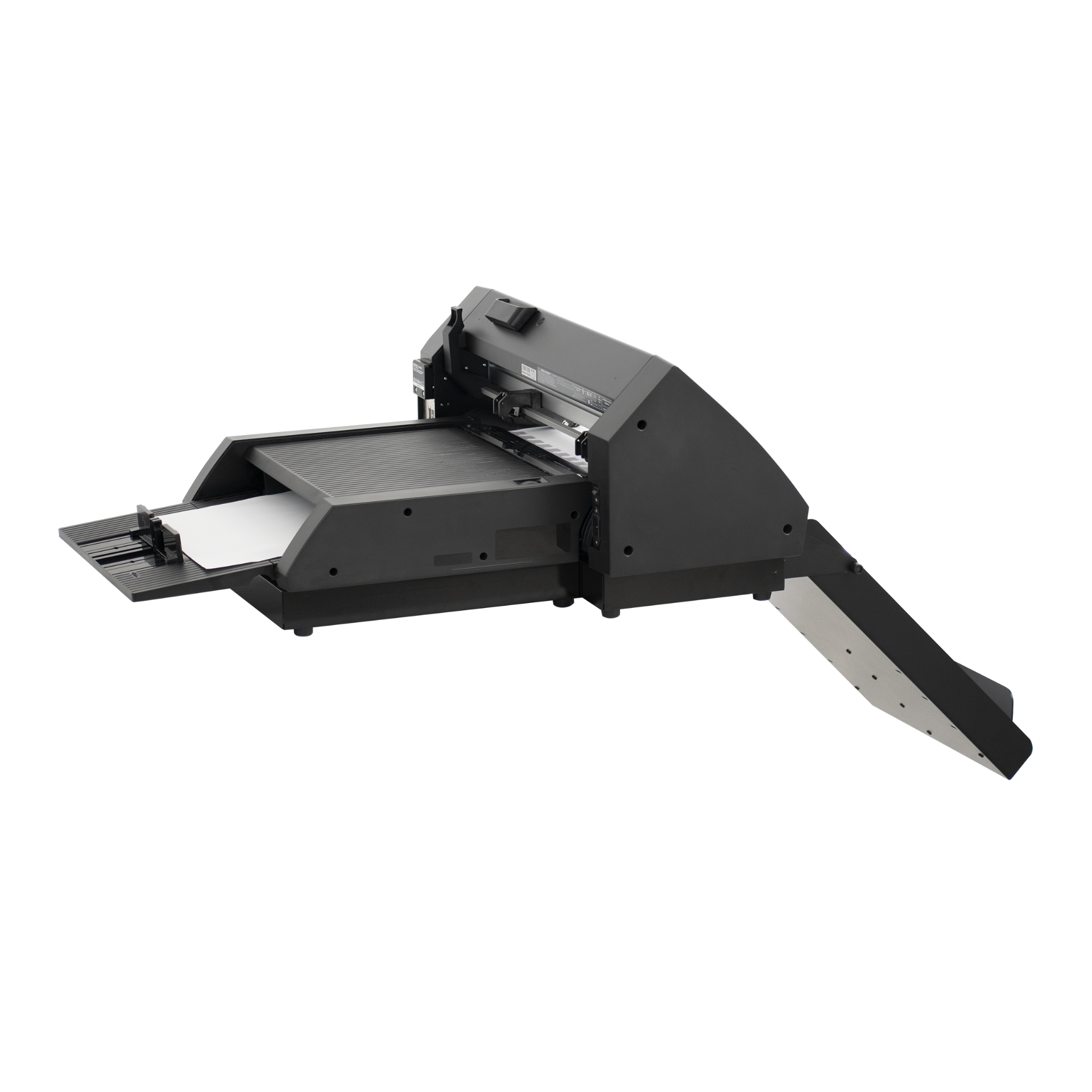

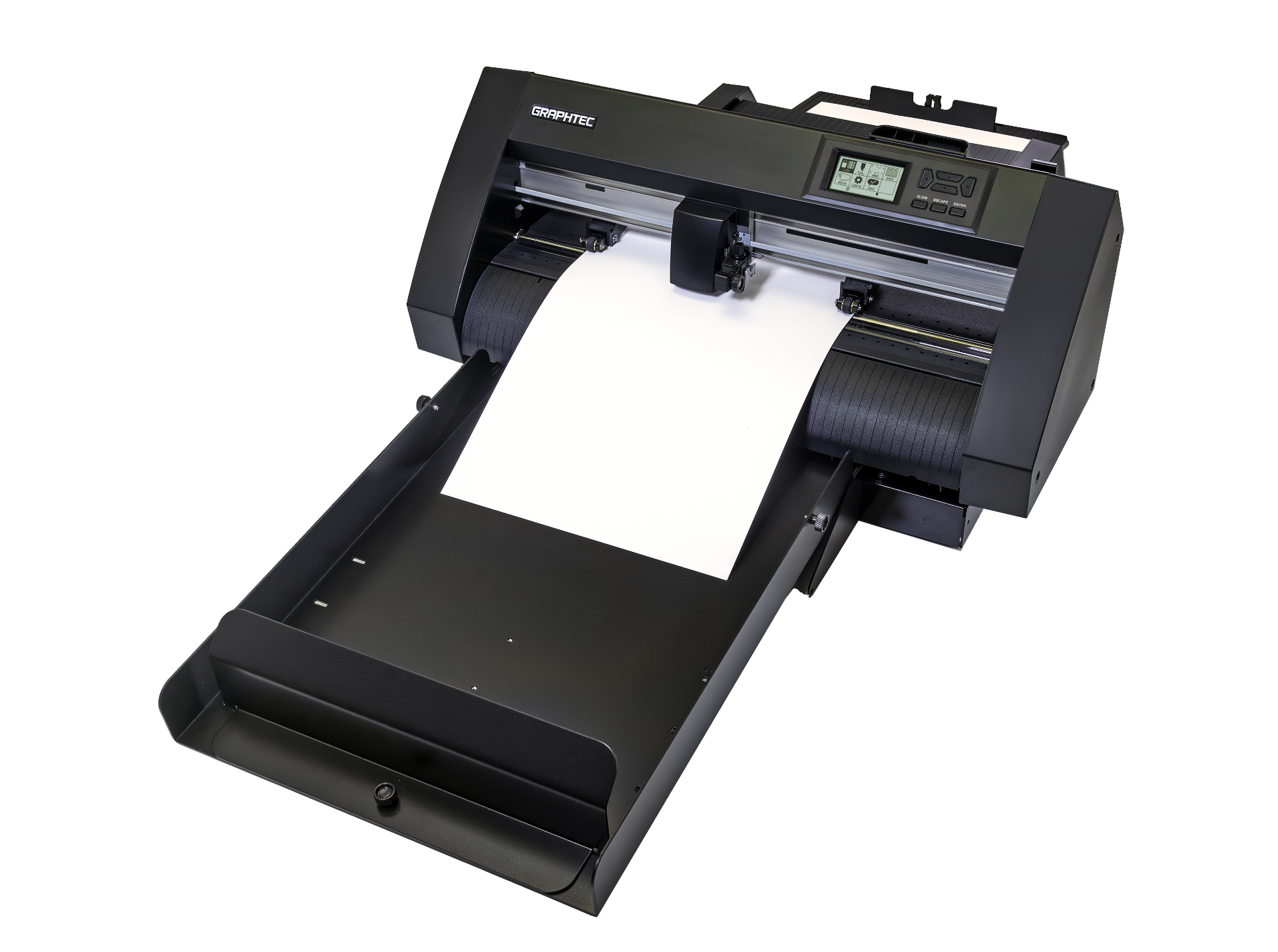

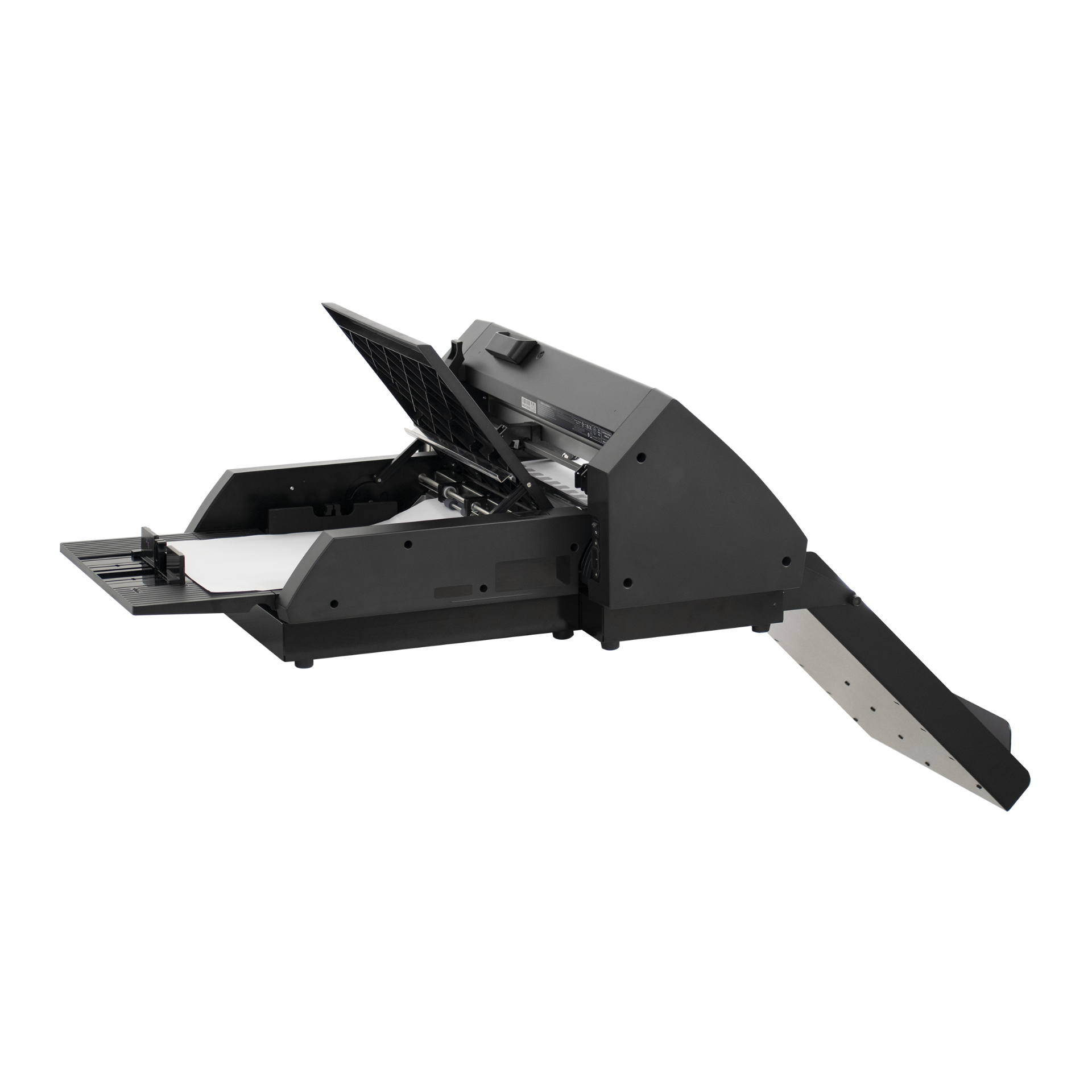

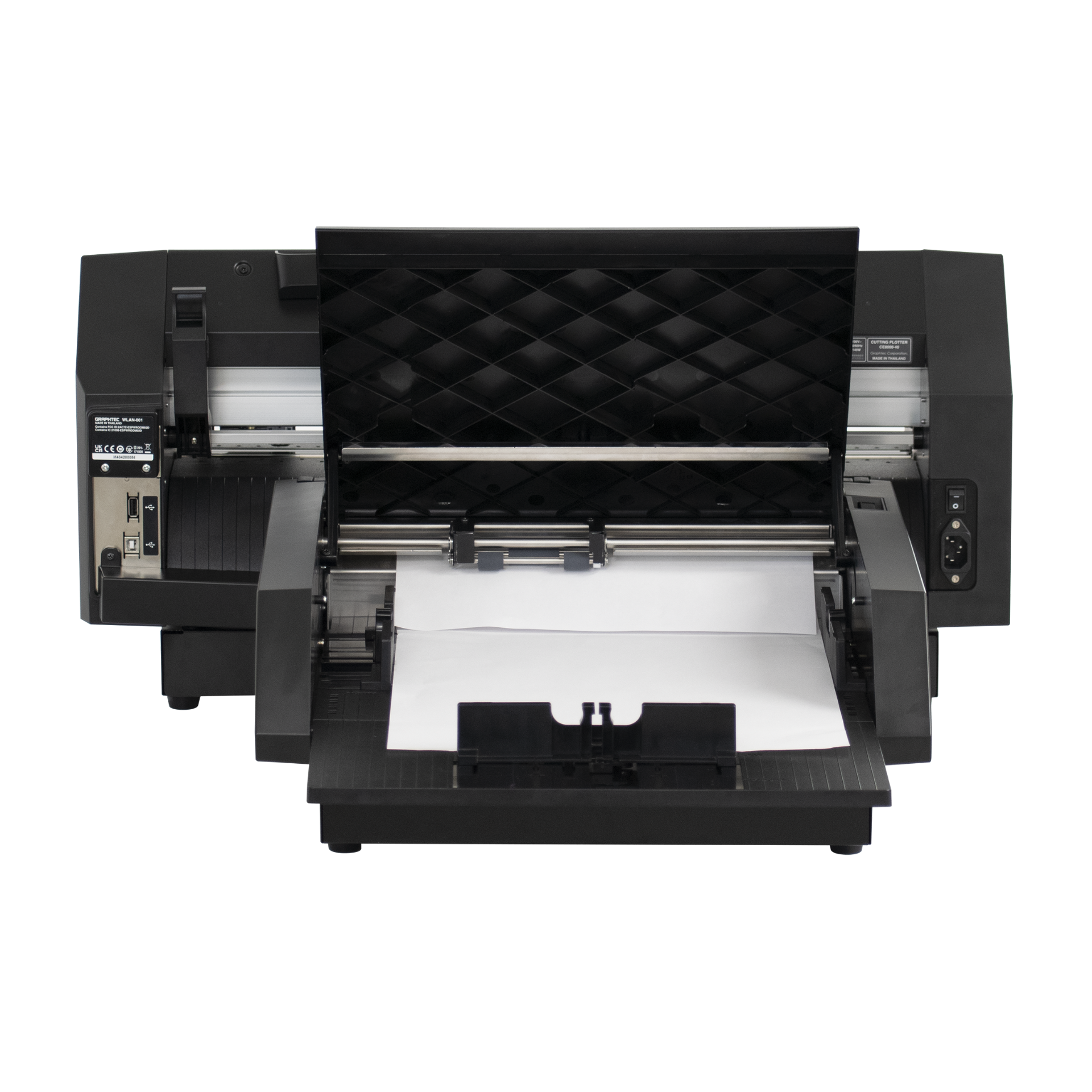

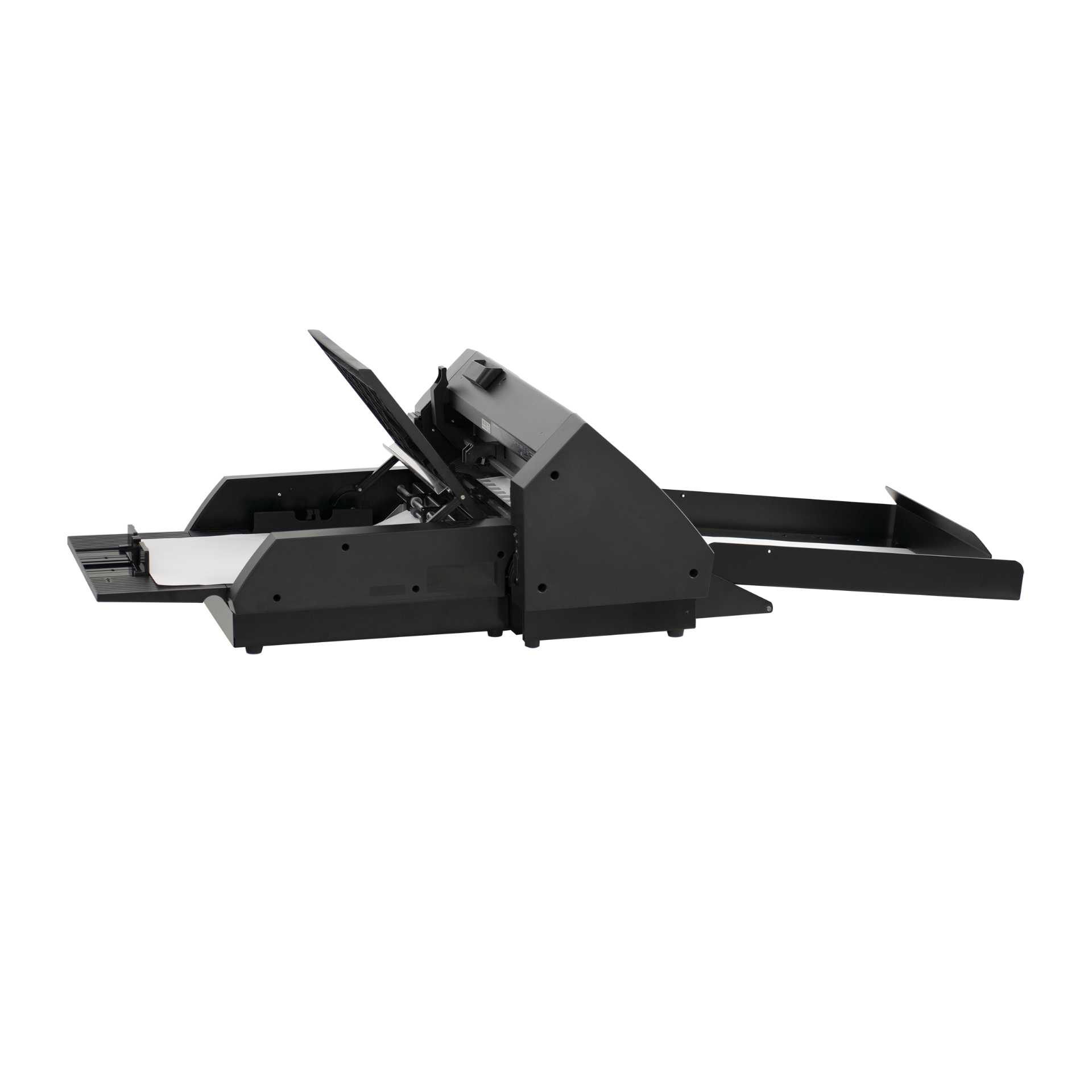

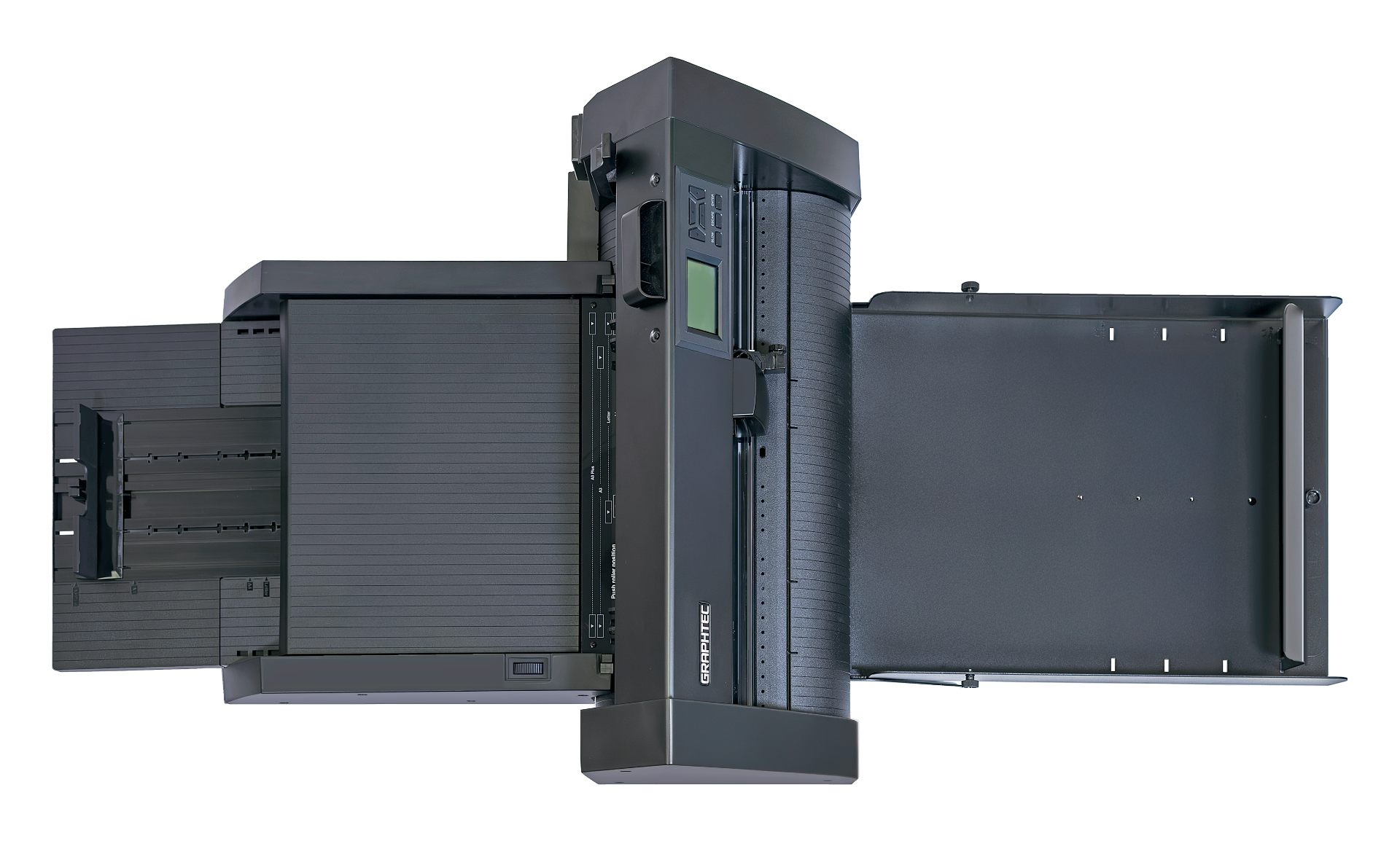

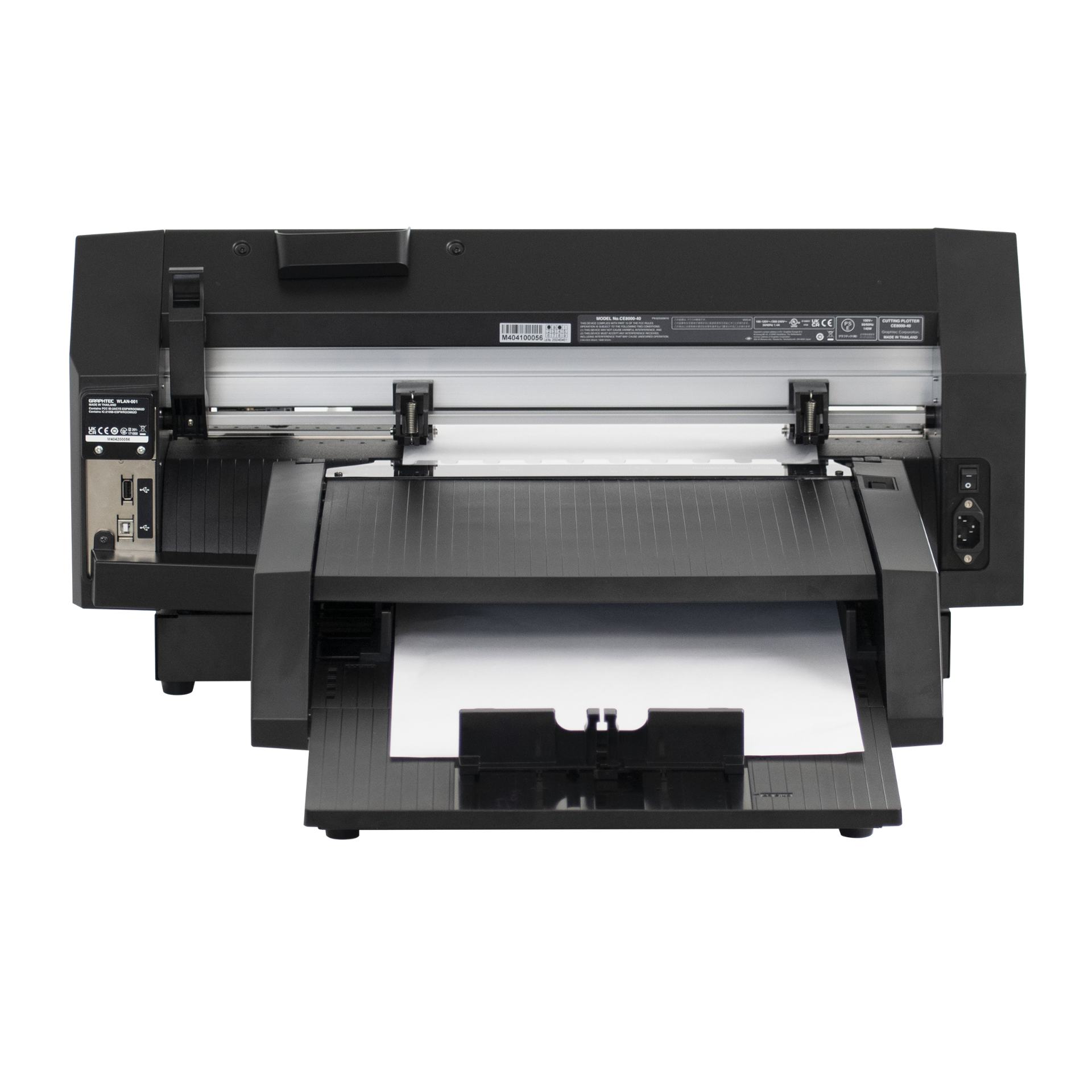

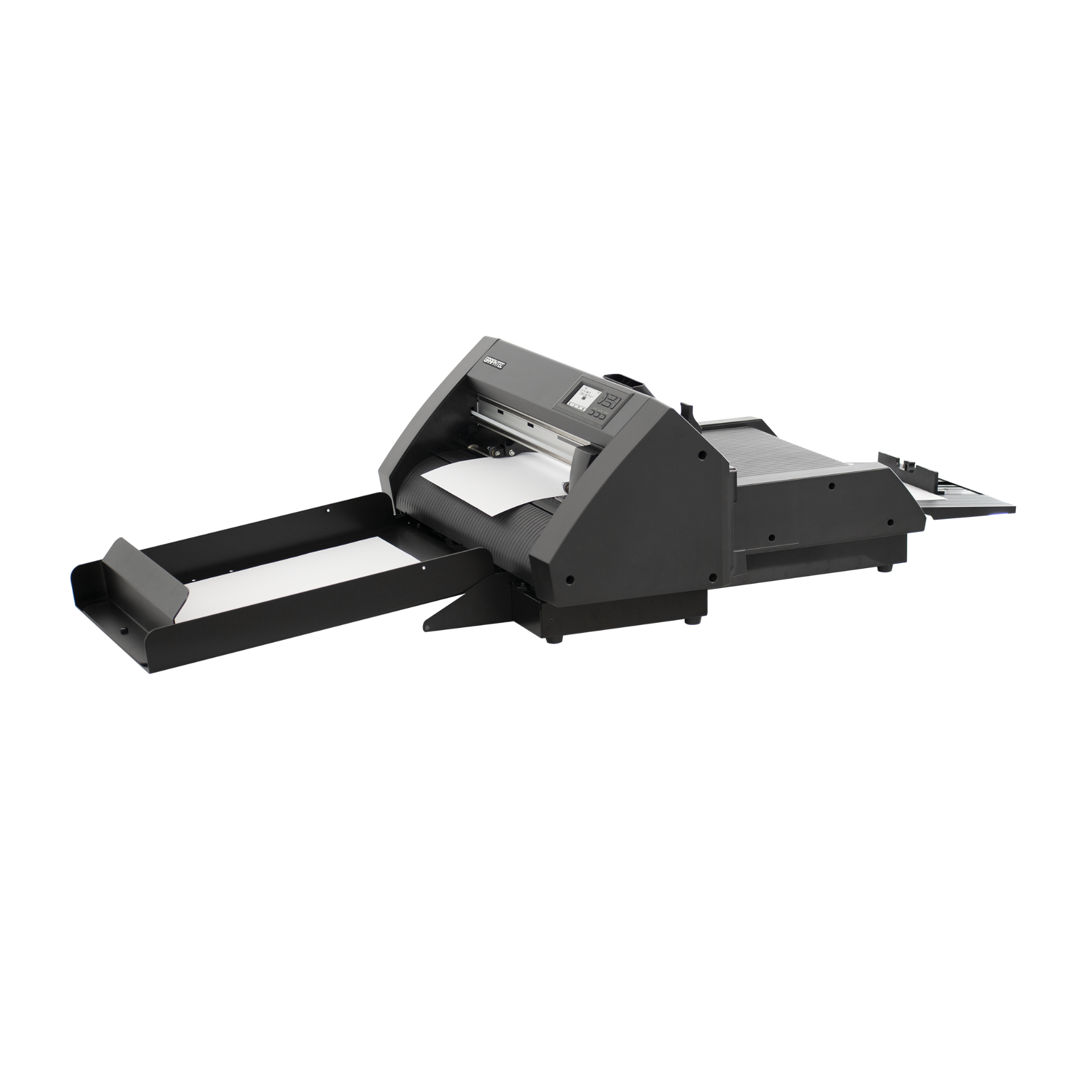

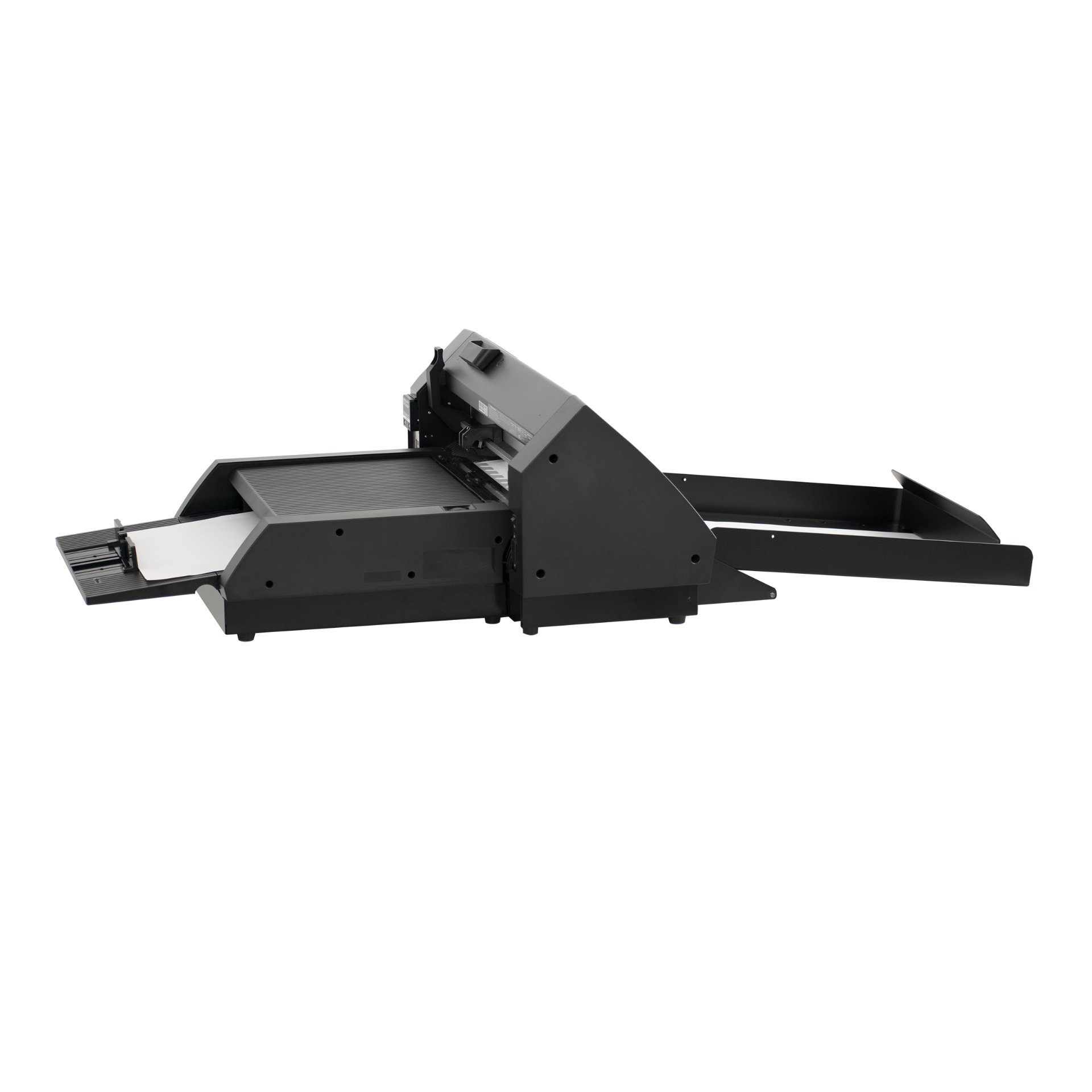

GRAPHTEC CE8000-ASF 15" Wide E-Class Automatic Sheet Feed Cutter Unit

The Graphtec CE8000-ASF is a highly efficient automatic sheet feeding system designed to streamline high-volume cutting operations. Paired with the Graphtec CE8000-40 cutter, the CE8000-ASF automatically feeds printed sheets for contour and perforation cutting, making it ideal for producing labels, stickers, decals, business cards, apparel transfers, POS displays, retail packaging, and other custom cut media.

CE8000-ASF Intro Video

Cut Labels Quickly and Efficiently

The CE8000-ASF combines automatic sheet feeding with the precision cutting capabilities of the CE8000-40 to create a streamlined production workflow. Simply print sheets on a small-format printer, load them into the feeder, and let the system automatically feed each sheet for contour and perforation cutting.

• 15" wide automatic sheet feed system designed for high-volume cutting applications
• 150-sheet capacity, depending on media thickness
• Handles sheets from 8.5 x 11" to 13 x 19"
• Accommodates paper, vinyl, synthetic media, and cardstock up to 16pt
• Automatic feeding with an average feed time of approximately 4 seconds between sheets
• Sheets can be added without interrupting the cutting process
• Advanced feeding mechanism minimizes skewing and helps maintain straight sheet feeding
• 2-year warranty on the cutter and 1-year warranty on the feeder

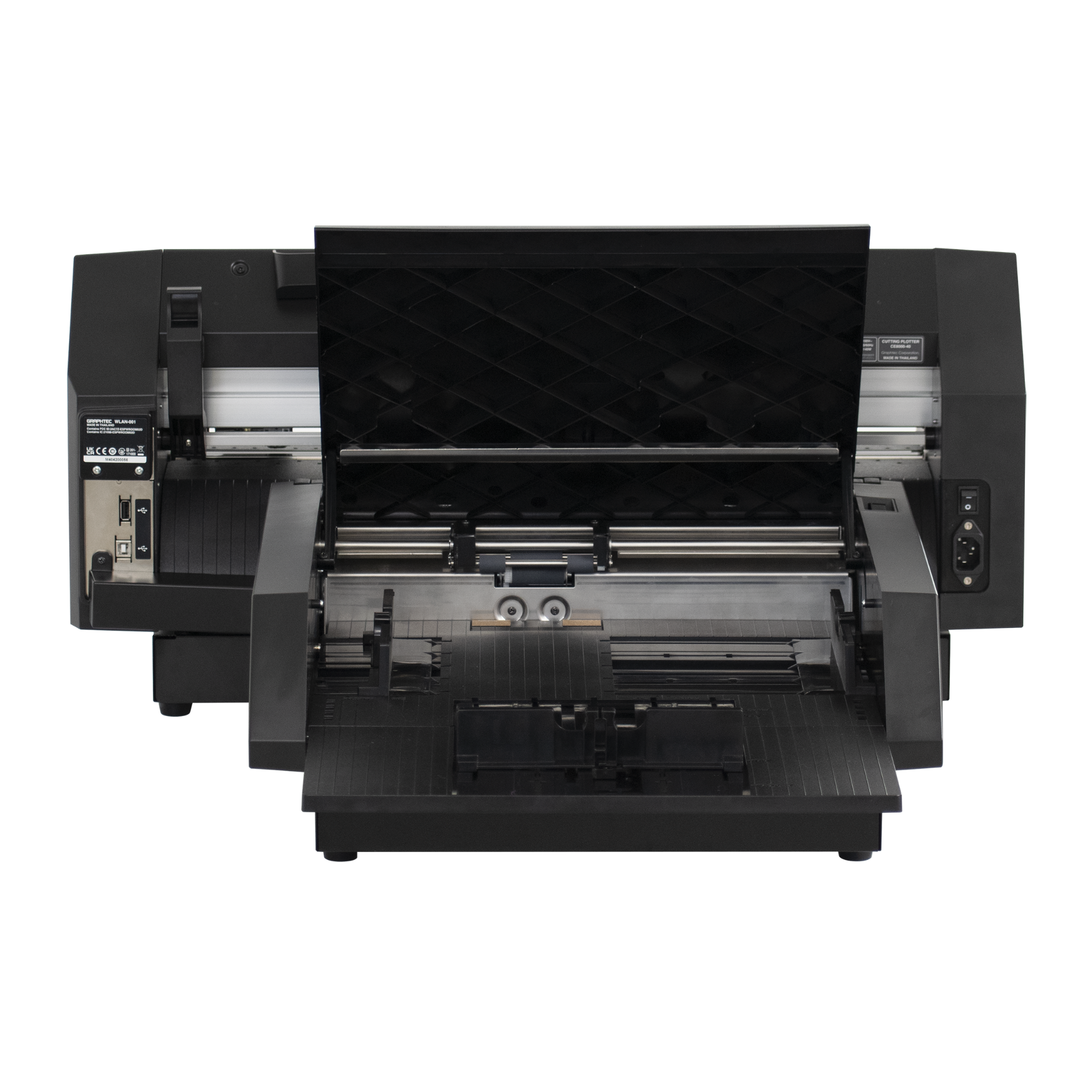

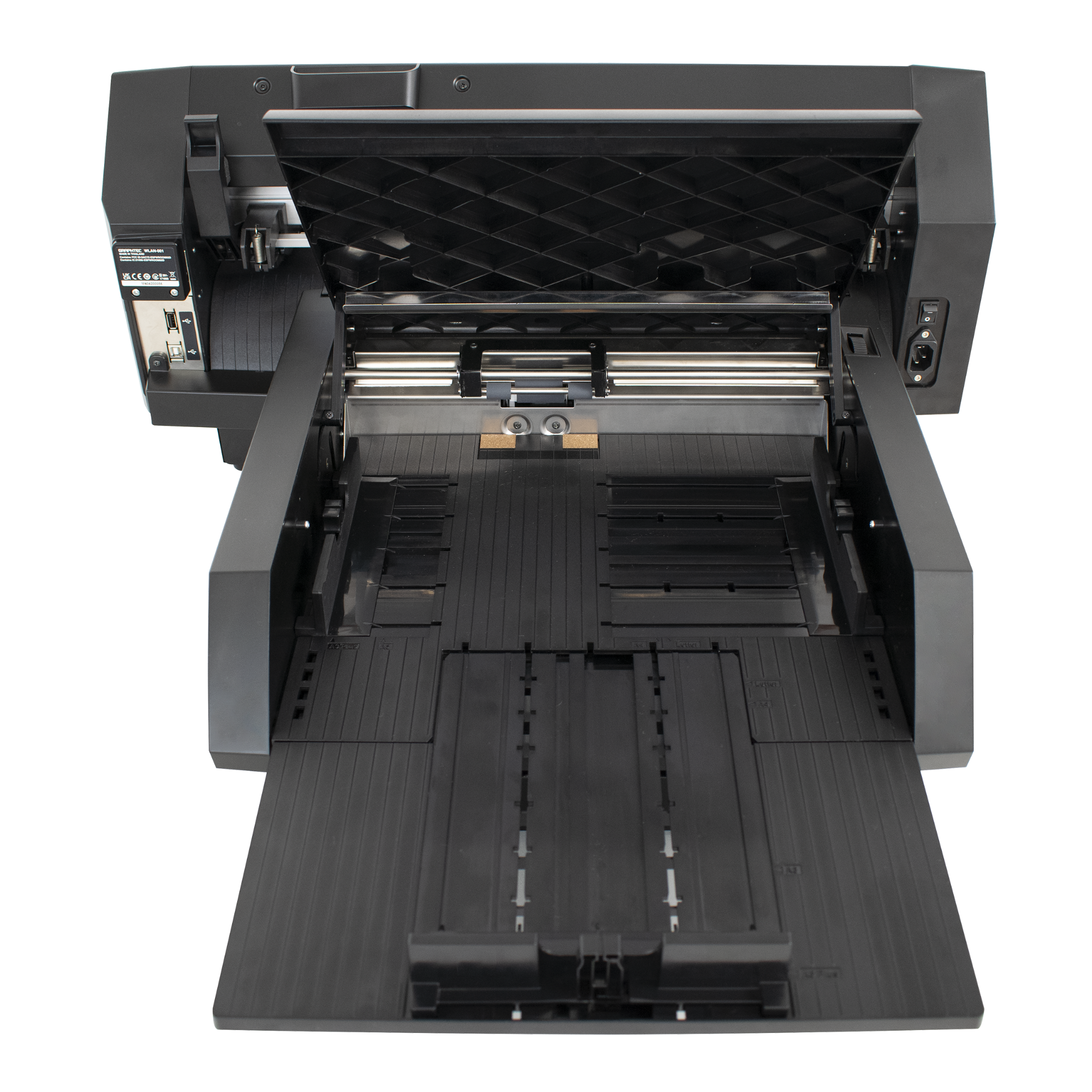

High-Capacity Automatic Sheet Feeding

The automatic feeder can hold up to 150 sheets, depending on media thickness, and feeds sheets at an average interval of approximately 4 seconds. Additional sheets can be loaded without stopping the cutting process, helping maintain continuous production for high-volume jobs.

The CE8000-ASF also supports unattended operation, allowing operators to load media and let the system continue feeding and cutting with minimal supervision.

Reliable Sheet Feeding

Graphtec's re-engineered feeding mechanism is designed to minimize skewing and maintain a straight feed across a variety of media types. The CE8000-ASF accommodates paper, vinyl, synthetic media, and cardstock up to 16pt in sizes ranging from 8.5 x 11" to 13 x 19".

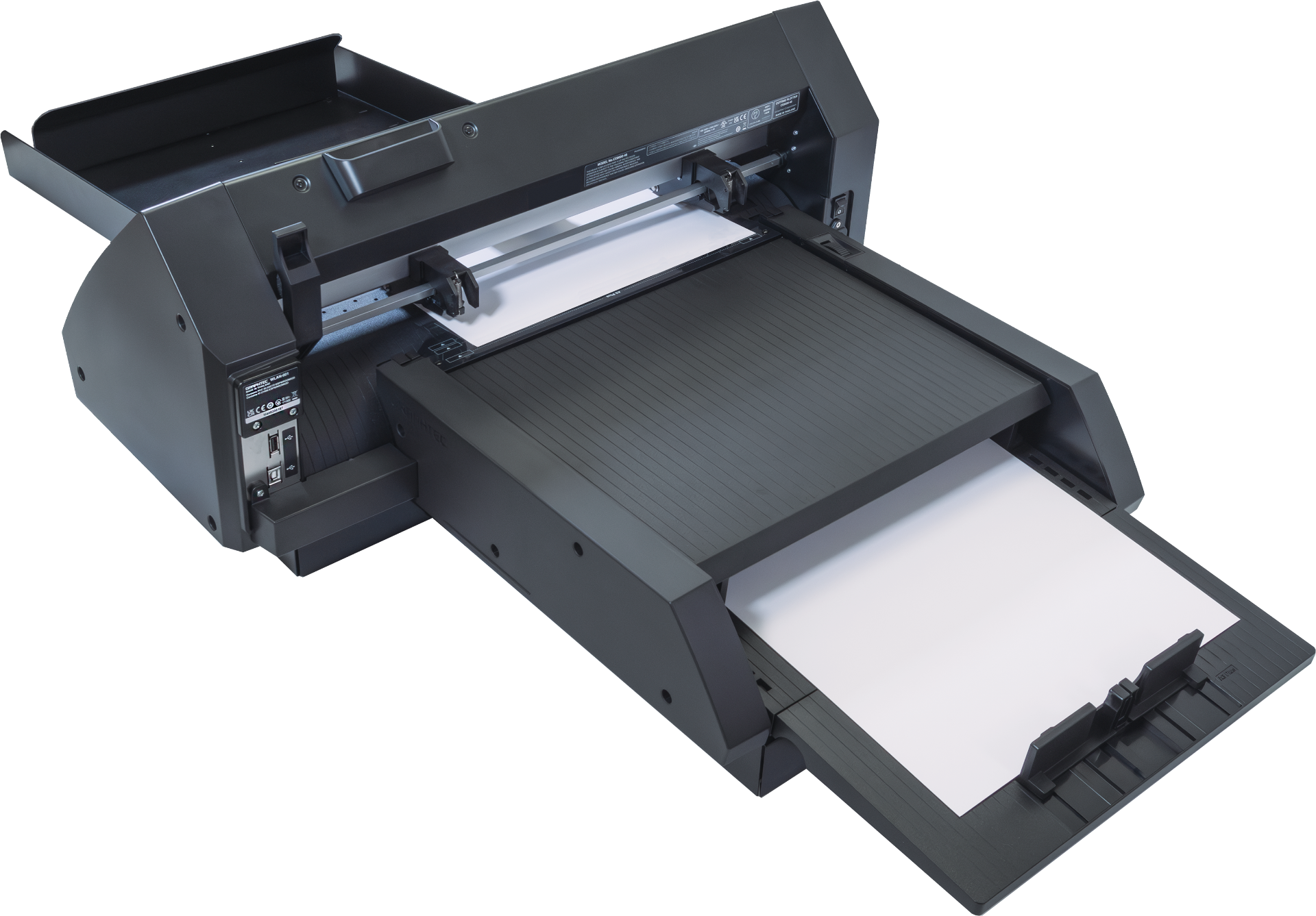

Automatic Print, Feed & Cut Workflow

The CE8000-ASF creates a streamlined workflow from printing through finished cutting. Print sheets using a small-format printer, load the media into the automatic feeder, and the system automatically feeds each sheet into the CE8000-40 for precise contour and perforation cutting.

• 1. Print: Print sheets using your small-format printer.
• 2. Feed: Sheets are automatically fed into the CE8000-40.
• 3. Cut: Produce contour and perforation cuts for labels, cards, stickers, decals, and custom media.

Registration Mark Sensing

The CE8000-ASF can read up to four registration marks on the first sheet it feeds, then continue processing subsequent sheets while reading an optional one or two registration marks for precise alignment and cutting accuracy.

Variable Data & Serialization

Graphtec Studio 2 software supports variable data and serialization processing, allowing users to produce high-volume customized labels and other printed materials with unique information for each piece.

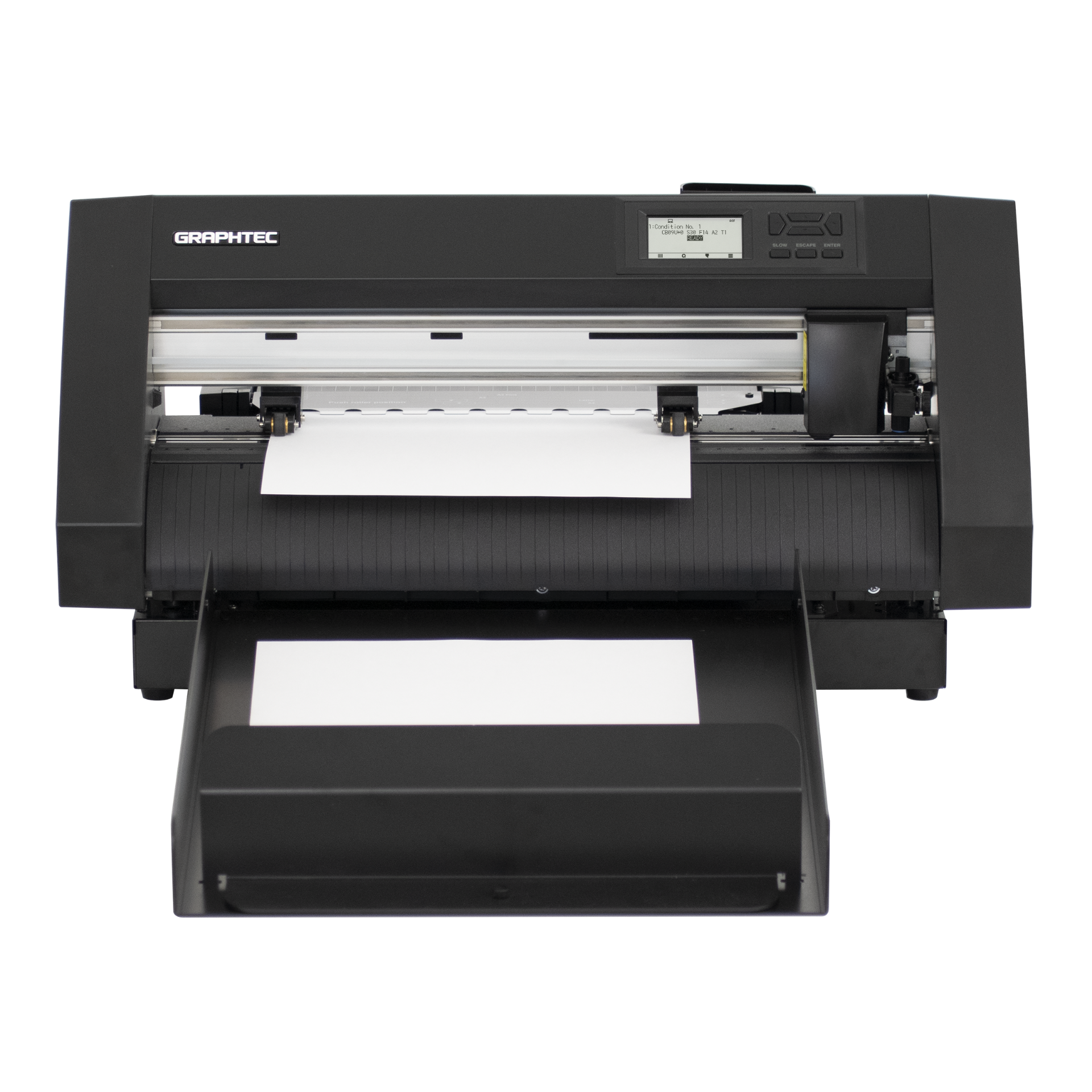

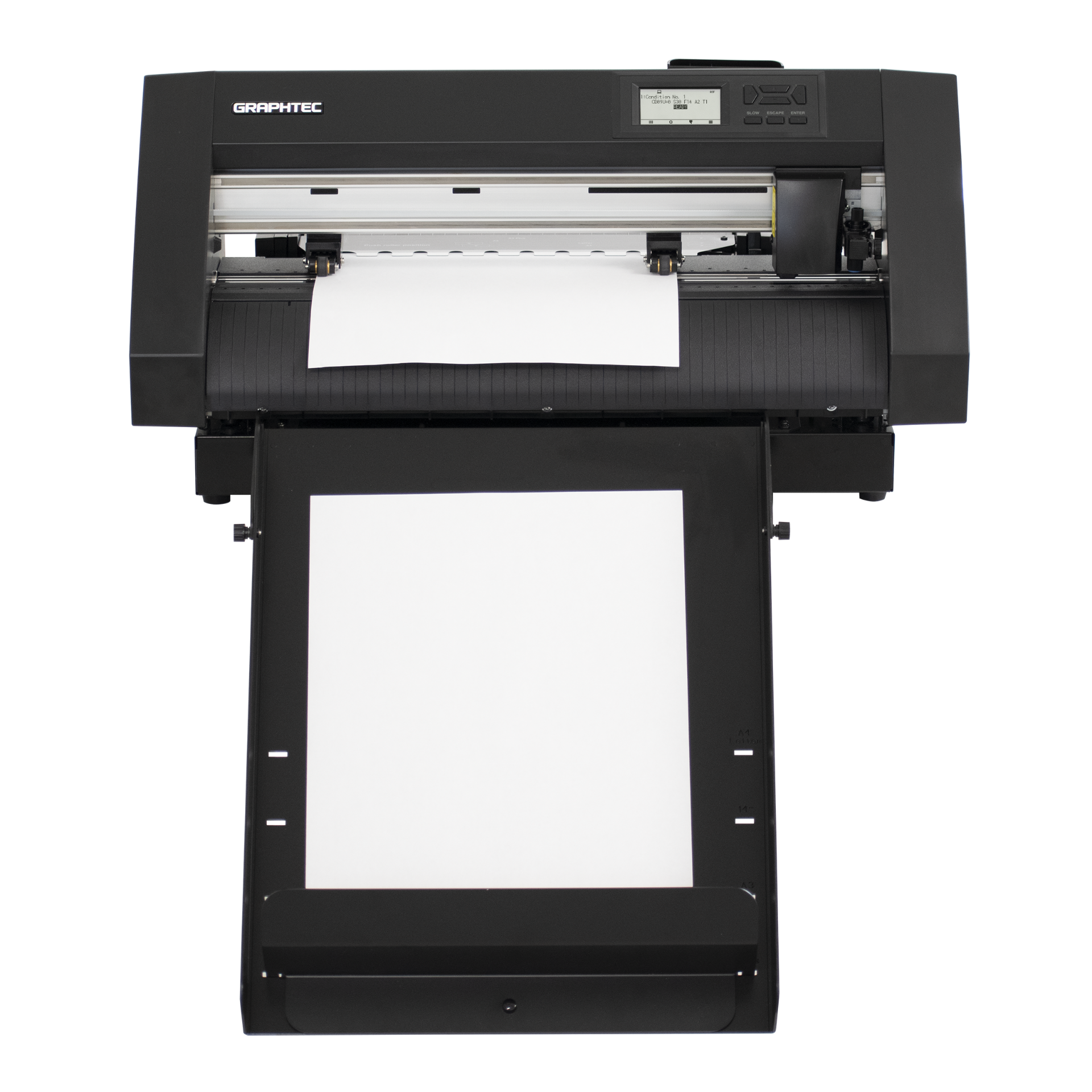

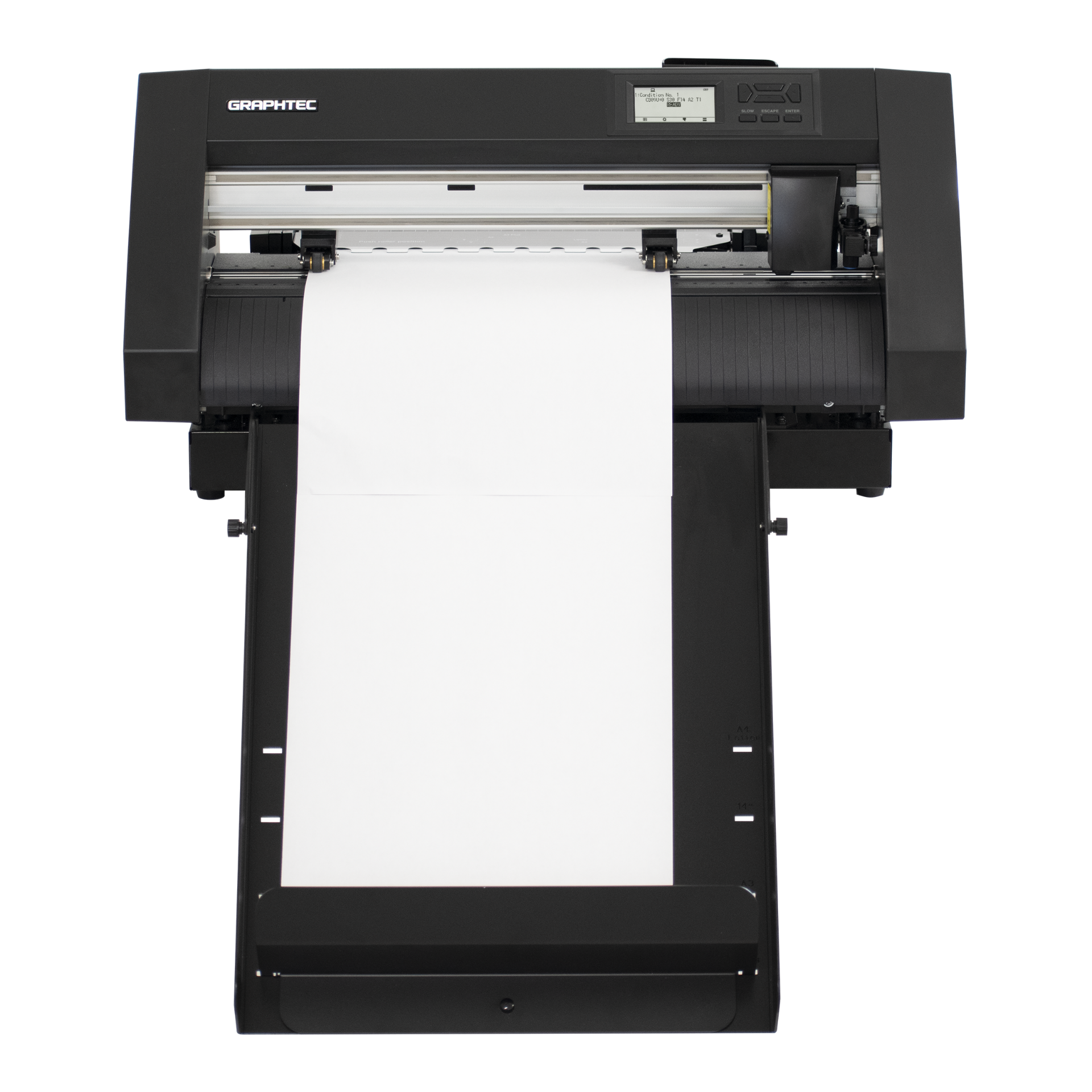

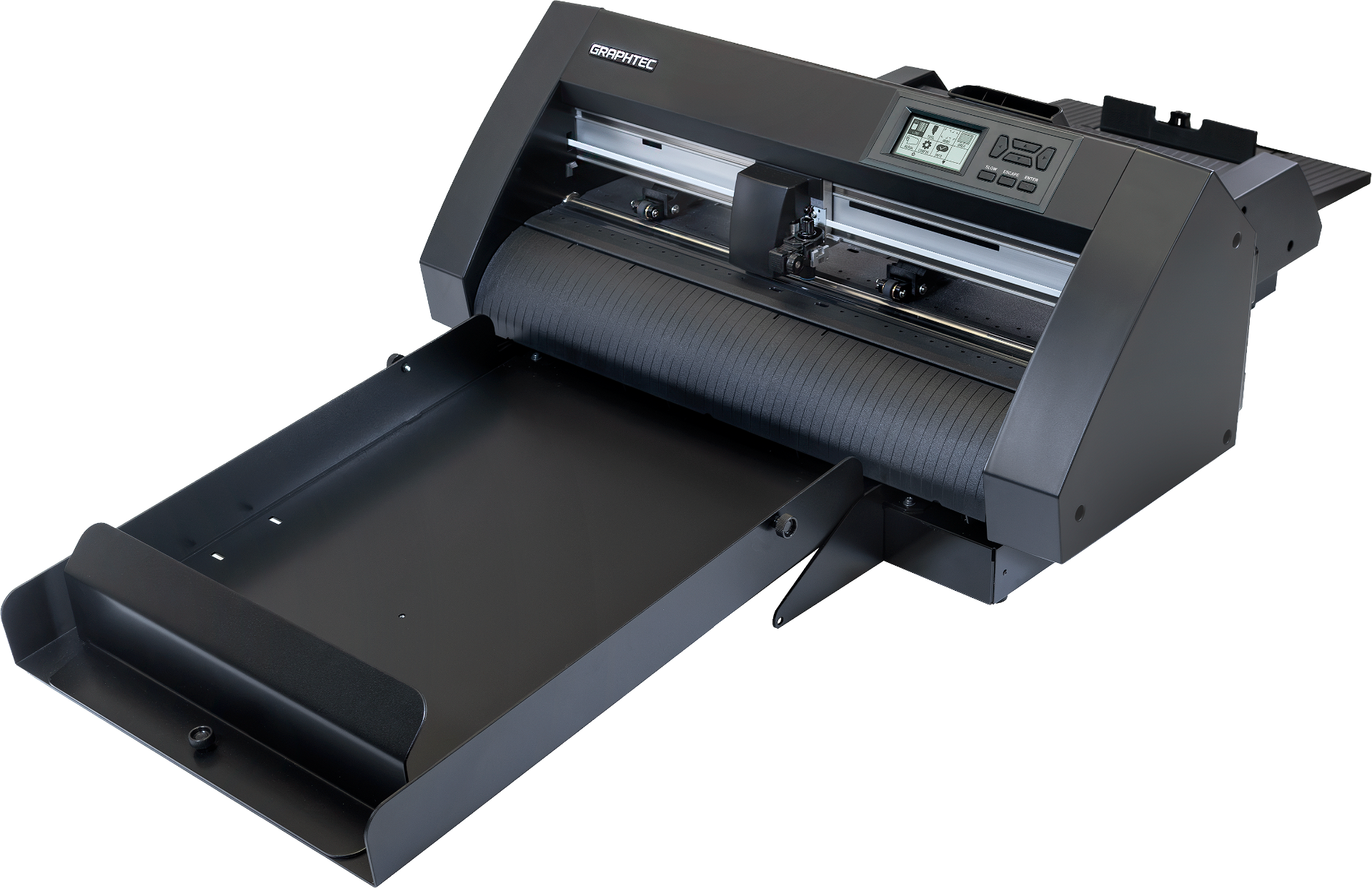

Adjustable Output Tray

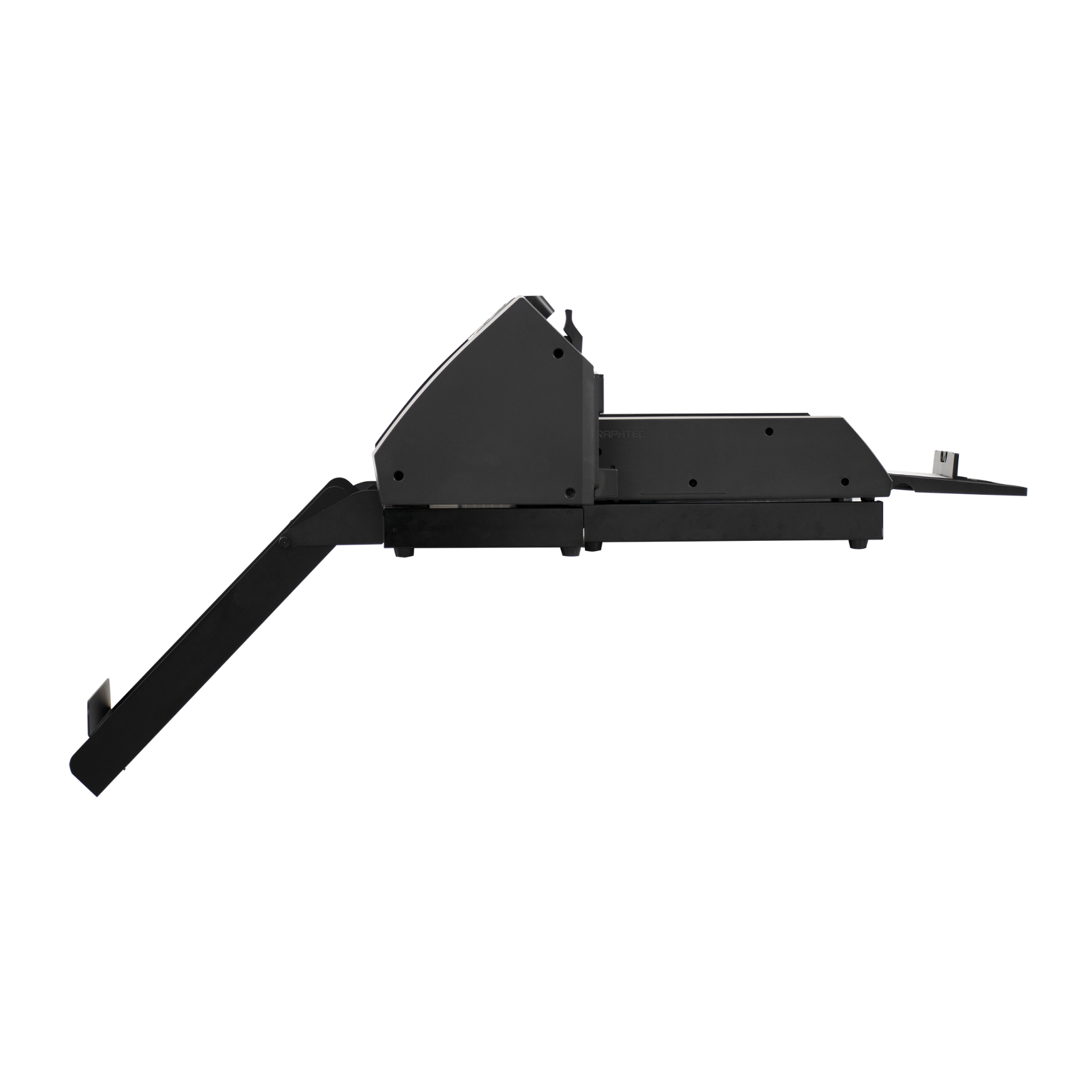

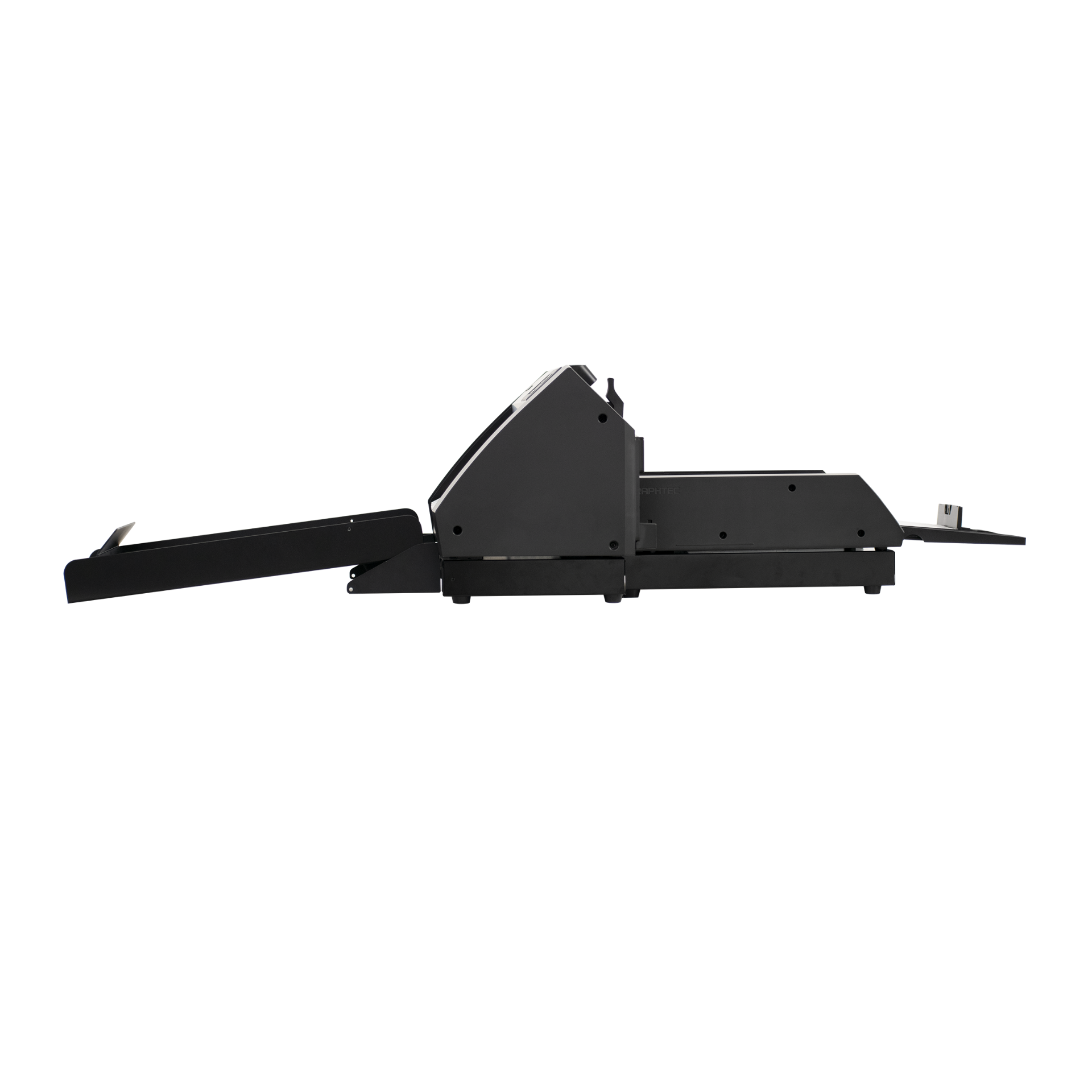

The CE8000-ASF features an adjustable output tray that can be positioned at a 45-degree angle or flat to accommodate different materials and provide flexible output handling.

Touch Screen and Mechanical Keys

The CE8000-40 features a new touch panel and mechanical keys for intuitive operation. The updated menu structure uses icons to simplify navigation, while Blind Touch Operation allows operators to interact with the cutter while keeping their eyes on the media as it feeds.

• New intuitive menu structure
• Integrated firmware updates
• Firmware updates through wireless LAN or USB
• Firmware updates using a USB thumb drive

New Blade Holder & Tool Compartment

The improved blade holder makes changing tools and adjusting blade position easier with a stopper that slides forward and back. A new tool compartment features a magnetic base, allowing it to be repositioned or removed when needed.

Network & USB Offline Operation

The CE8000 provides multiple connection options, including a standard Ethernet port and optional wireless LAN for flexible installation. A secondary USB port allows jobs to be uploaded directly from a thumb drive and cut without a computer.

DataLink Barcode System

The DataLink Barcode System helps streamline production when processing numerous jobs. Barcodes can be generated as part of the design and used to identify cutting data, access the appropriate file, adjust cutting settings, and initiate the cutting process automatically.

DataLink can work with RIP software and printers as well as Cutting Master 5 and Graphtec Studio 2, helping reduce manual job handling and production errors.

E-mail Notifications

The CE8000 can send completion and error notifications by e-mail, providing convenient status updates during production.

ARMS 9.0 Advanced Registration Mark Sensing

The CE8000 features Graphtec's new and improved ARMS 9.0 Advanced Registration Mark Sensing System for print-and-cut applications. Faster registration mark reading helps increase productivity, while the DataLink Barcode System supports hands-free job identification and processing.

Contour & Die Cutting

Separate tool positions for contour and die cutting help extend blade and cutting-strip life when producing decals, labels, cards, and other graphics that need to be cut and popped out from sheet media.

Software

The CE8000 includes the Cutting Master 5 plug-in for Adobe Illustrator and CorelDRAW Graphic Suite, as well as Graphtec Studio 2 software for designing and cutting graphics. Software supports both PC and Mac workflows.

Applications

• Business cards
• Labels and decals
• Stickers
• Thermal transfer for apparel
• POS displays and danglers
• Custom-designed retail packaging
• Decorative gift boxes

Materials & Substrates

• Paper
• Card stock
• Adhesive vinyl
• Synthetic vinyl
• PET film
• Mylar film
• Lexan film
• Holographic paper

Graphtec CE8000-ASF Highlights

Automatic Sheet Feeding: Automatically feeds printed sheets into the CE8000-40 for continuous cutting.

150-Sheet Capacity: Holds up to 150 sheets depending on media thickness, with the ability to add more without interrupting production.

Versatile Media Handling: Processes paper, vinyl, synthetic media, and cardstock up to 16pt in sizes from 8.5 x 11" to 13 x 19".

Precision Feeding: Advanced feeding mechanism minimizes skewing and maintains straight sheet feeding.

ARMS 9.0: Advanced registration mark sensing provides accurate print-and-cut alignment.

High-Volume Production: Average feed time of approximately 4 seconds between sheets supports efficient continuous production.
