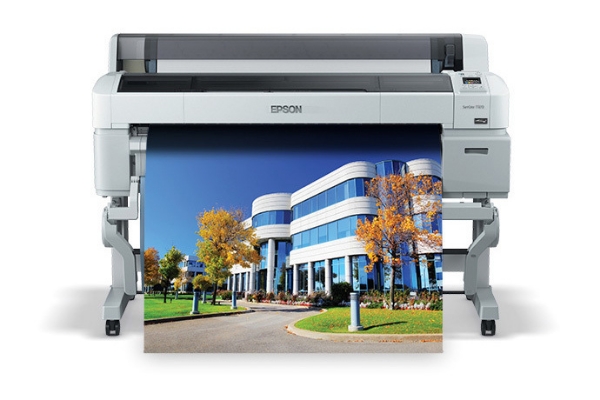

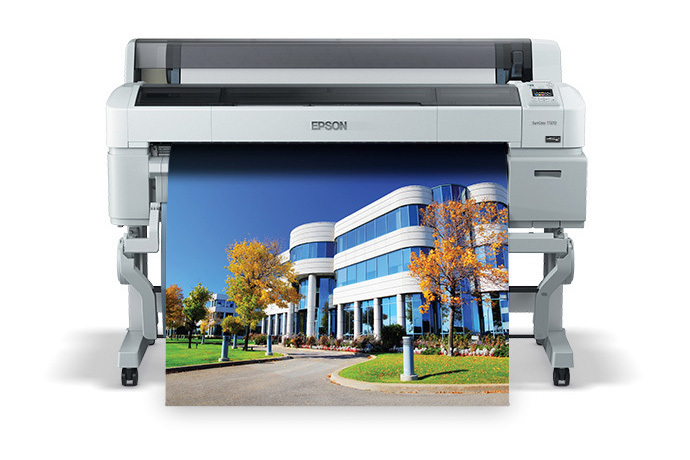

Epson SureColor T7270 44" Single Roll Edition Printer (DISCONTINUED)

Sorry - this product is no longer available

DISCONTINUED & REPLACED BY T7770DR

Be the first to review this product

Manufacturer: EPSON

SKU: SCT7270SR

ADD A LIFTGATE *

$4,795.00

DISCONTINUED & REPLACED BY T7770DR

Wide Format printers are not shipped via UPS; consequently, if your location does not have a delivery dock or is a residence; an additional $50 Lift Gate charge will be applied to your order. A special truck with a lift gate is required to unload the printer to your curb.

Precision. Performance. Brilliance.

The SureColor T7270 Printer is a single-Roll 44" wide technical printer. Designed using the latest in performance imagining including EPSON PrecisionCore TFP print head, EPSON REALOID image processing hardware, and EPSON UltraChrome XD pigment ink technology. The all-new SureColor T-Series could be the way you'll print your next big idea.

What's In The Box?

SureColor T-Series Printer
Printer Stand with Stacking Print Basket
Spindle-free Roll Media Adaptors
Set of five 110ml ink cartridges
Ink Maintenance Tank (installed)
AC Power Cable
User Guide Kit (Documentation and Software)

Note: Printing media is not included

T7270 Printer Features:

Extreme plotting accuracy with resolutions up to 2880x1440dpi
Capable of producing a presentation color D-size plot in 25 seconds
Breakthrough pigment ink technology for durable photo quality plots
High-Capacity ink cartridges up to 700ml in volume for lower cost prints
Space-saving design with easy access front loading paper and ink
Produce posters and plots up to 44" in width

Designed to meet your business needs now - and in the future - the new SureColor T-Series printers deliver presentation quality Print, Copy, Scan and Share features at best-in-class speeds saving you time and money.

Fastest Print Speeds in its class at only 25 seconds for a presentation quality D-size plot, print speeds up to 780 ft per hour, and color scan speeds up to 6-inches per second
Modular design options, including Multifunction copy and scan, Adobe® PostScript® 3, and a Internal Printer server to be added in the future as your needs grow
Revolutionary EPSON PrecisionCore TFP® print head
Professional media handling from plain paper up to 1.5 mm thick posterboard

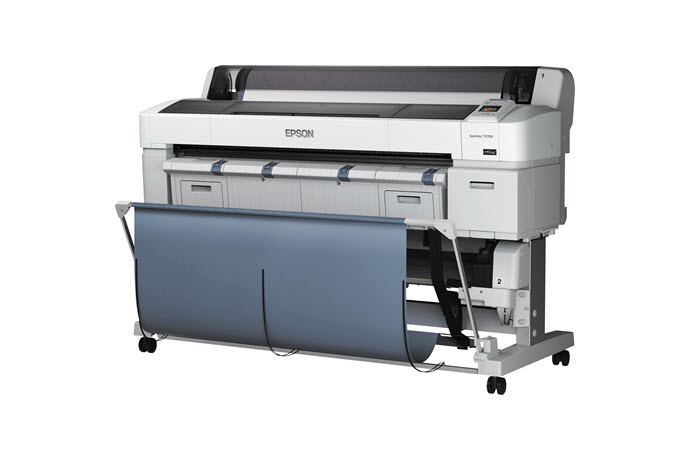

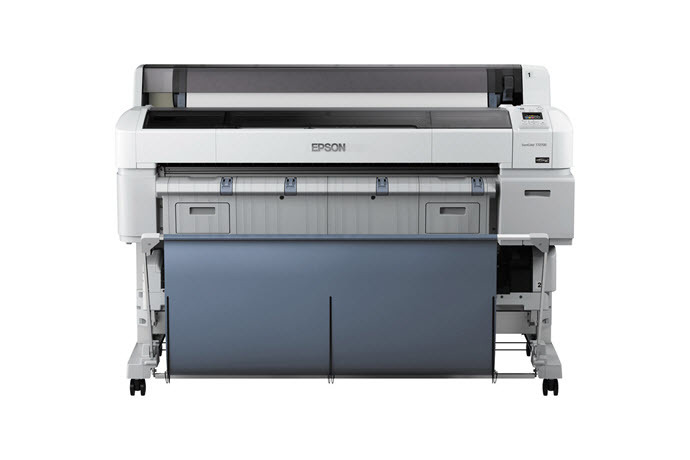

Horizontal Catch Basket for neatly stacked printed output of different sizes and paper types
High-Capacity ink system for low printing costs
Free one-year of coverage under the Epson Preferred Protection Plan

TFP Printhead

Maximum resolution of 2880x1440 dpi for incredibly sharp text and fine detail
Precise ink drop control with variable-sized droplets as small as 3.5 picoliters for outstanding clarity and sharpness
Utilizes Micro-Electro-Mechanical Systems (MEMS) Technology for unparalleled Dot Placement accuracy and high speeds
Developed for use with Epson UltraChrome XD inks for high reliability with very little downtime for maintenance

Print Copy and Scan

Fastest-in-class Copy and Scan Speeds:
- Color D-size copy in less than 40 seconds
- Color Scan speeds up to 6-inches per second
Epson REALOID Image processing hardware optimizes image quality for crisp line documents and photographic posters
Scan and Share images across a network, by email, and even to a remote SureColor T-Series multifunction system
Intuitive controls for easy copies, enlargements, and scanned images

Optional Expansion Models

High performance Adobe PostScript 3 Hardware engine supports Hot-Folder batch printing and easily integrates into the most complex workflows, including support for secure PDF printing
Boost workgroup productivity with the internal 320 GB print server which can be managed remotely, and allows for print jobs to be saved and reprinted
The expansion modules can be added at any time, allowing the printer to grow with your business needs

Epson XD Inks

Specially formulated pigmented inks for brilliant output with rich blacks and vibrant colors even on inexpensive plain paper
Durable inks with extreme water, smudge, fade, and ozone resistance; excellent for archival and short-term outdoor use
Multiple size ink cartridges - up to 700 ml capacity - for low printing costs
The SureColor T-Series printers are designed to be used exclusively with these specially-formulated inks, and not with other brands of cartridges or inks

Video of Plugin for Instant Straight from MS Office, click here.

T-Series Buyer's Guide

Printer Driver

Features of the SureColor T7270

The SureColor Epson T7270 offers a range of value-added features that help lower total cost of ownership and increase productivity, including

Three Printer Widths

The Epson t7270 features maximum print widths of 24, 36, and 44-inches, with minimal floor space requirements to fit virtually anywhere

Optional Multifunction MFP

An optional upgrade for 36- and 44-inch single- and dual-roll T-Series models, the PC-free MFP Scanner leverages Epson's REALOID image processing engine to produce crisp color D-size copies in under 40 seconds, and best-in-class color scan speeds up to 6.0 inches per second maximizing productivity; available for $4,500*

Epson UltraChrome XD Ink

Epson pigmented ink delivers brilliant color and crisp lines on virtually any paper type, as well as truly archival and extremely smudge and water-resistant output; the SureColor T-Series printers are designed to be used exclusively with these specially-formulated inks, and not with other brands of cartridges or inks

Varied Ink Capacities

To maximize efficiency and keep printing costs low, each of the five ink colors Cyan, Magenta, Yellow, Photo Black, and Matte Black are available in 110 ml, 350 ml and high-capacity 700 ml cartridge sizes, which can be used interchangeably to accommodate a range of printing needs; all cartridges are front-loading for easy access

Epson PrecisionCore TFP Print Head

Offers high-performance and consistency for accurate plotting with high-precision line detail and minimum line widths as thin as 0.018 mm, along with variable size ink droplet technology for remarkable photographic print quality

Current and Future-Ready Print Language

Epson Precision XD printer language sets a new standard for high-performance, high-resolution printing, compatible with todays latest applications and workflow software

Optional Internal Print Server

An internal 320GB print server boosts workgroup productivity by quickly transferring print jobs to free-up workstations; adds print queue management, as well as print job save and reprint functionality; available for $399.95*

Optional True Adobe Postscript 3 Hardware Engine

Fastest in-class postscript engine enables direct and hot-folder batch printing and support for secure PDF printing; includes the optional internal print server hardware; available for $1,199.95*

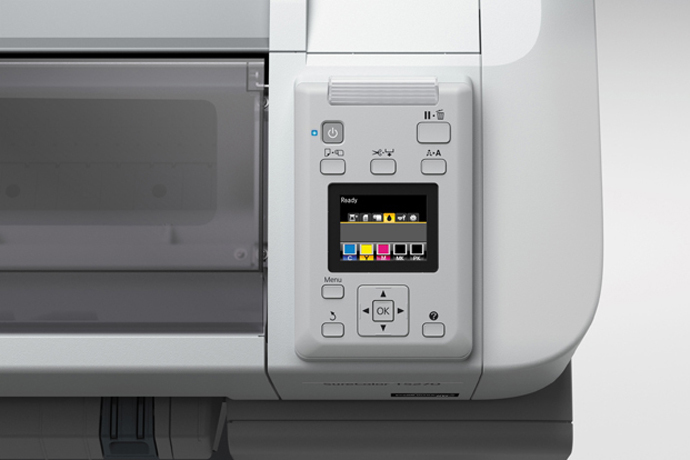

Control Panel

Full color LCD panel with simple button layout provides quick access to printer features and controls, as well as an intuitive help system for most frequent tasks

Professional Media Handling

Supports virtually any media type in roll or cut-sheet, from plain bond paper to 1.5 mm thick posterboard, for use with a wide variety of print applications

Technical Specifications:

Base Printing Technology	PrecisionCore TFP Print Head 10-channel, drop-on-demand, inkjet print head 5-cartridge (Cyan, Magenta, Yellow, Photo Black, Matte Black) Epson UltraChrome HD ink Professional-level pigment-based ink technology
Nozzle Configuration	Color and Monochrome 180 nozzles each ink Enhanced Variable Droplet technology as small as 3.5 picoliters
Resolution	2880 x 1440 dpi;1440 x 1440 dpi; 1440 x 720 dpi; 720 x 720 dpi; 720 x 360 dpi
Dimensions	64"(W) x 30"(H) x 45"(D) Printer weight: 203 lb
Print Engine Speeds
Print Mode
Speed - 720 x 360 dpi	780 ft^2/hr
Quality - 720 x 720 dpi	330 ft^2/hr
Max Quality - 1440 x 720 dpi	120 ft^2/hr
Typical Color CAD Plot Speeds
Print Mode
Speed - 720 x 360 dpi	C-Size Plot (17"x22") - 15 secs, D-Size Plot (22"x34") - 25 secs
Quality - 1440 x 720 dpi	C-Size Plot (17"x22") - 30 secs, D-Size Plot (22"x34") - 52 secs
Max Quality - 1440 x 1440 dpi	C-Size Plot (17"x22") - 1:38, D-Size Plot (22"x34") - 2:50
Multifunction scanning module
Scan Resolution	200, 300, 360, 400, and 600 dpi
Scan Speen	up to 6" per second (24-bit color)
Scan file format	JPEG or PDF (Optional PostScript module not required)
Maximum Scan Area	36" x 96" sheet up to 1.3mm thick
Copy Scan Modes	Text/Line Drawing, Tracing Paper, Recycled Paper, Blueprint and Posterboard
Maximum copies	up to 99 copies
Reduction/Enlargements	Auto, or 25-400% in 1% increments
Operating Systems Supported
Macintosh	Mavericks 10.9, Mountain Lion 10.8, Lion 10.7 (Intel based)
Windows	Windows 8, Windows 7, Windows Server 2012, Windows Server 2008 R2
Printer Interfaces and Language	One Hi-Speed USB 2.0 port One Gigabut Ethernet port (10/100/1000 Base-T) Epson Precision XD and HPGL/2 & HP-RTL Optional Adobe Postscript 3 module supports PS, EPS, PDF, JPEG, TIFF and CALS-G4 file formats
Acoustic Noise Level	Approximately 50 dB(A) according to ISO 7779
Limited Warranty and Service	Standard one-year on-site next business day service with toll free phone support Monday thru Friday. Optional Epson SureColor T-Series Extended service plans available for purchase.
Epson Intelligent Ink Cartridge
Cartridge fill volume	110 ml, 350 ml, or 700 ml each x 5 colors total
Ink cartridge shelf life (recommended)	2 years from printed production date or 6 months after open
	The printer is designed exclusively for use with Epson cartridges for greater reliability
Media Handling
Media input	Single roll up to 44" wide
Cut-Sheet size	up to 44" wide (auto-loading)
Media core compatibility	User-adjustable roll media adapters accept either 2" or 3" cored media
Maximum roll diameter	Up to 5.9"
Media weight	12lb bond up to 1.5mm posterboard
Minimum sheet size	8.27" x 11"
Built-in media cutter	Rotary cutting, automatic and manual
Printable Area
Maximum paper width	44-inch
Left and right margins	0 to 3 mm each (0.24" total)
Maximum printable length	limited by application, OS, and driver/RIP used
Minimum paper width	Roll: 10-inch Sheet: 8.27-inch
BorderFree Printing
Left and right borderless "bleed" printing	10", 11.8", 13", 16", 17, 20.3", 23", 24", 29", 33", 36", 41", 44"
Electrical Requirements
Printer	AC 100-240 V
Frequency	50-60 Hz
Current	Less than 1A
Power consumption
Printer
Operating	64W
Sleep	Less than 3W
Power Off	Less than 0.5W
Fully ENERGY STAR Complaint
Environmental Characteristics
Temperature Operating Storage	50 to 95F (10 to 35C) -4 to 104F (-20 to 40C)
Relative Humidity Operating	20 to 80% (no condensation) 5 to 85% (no condensation)
