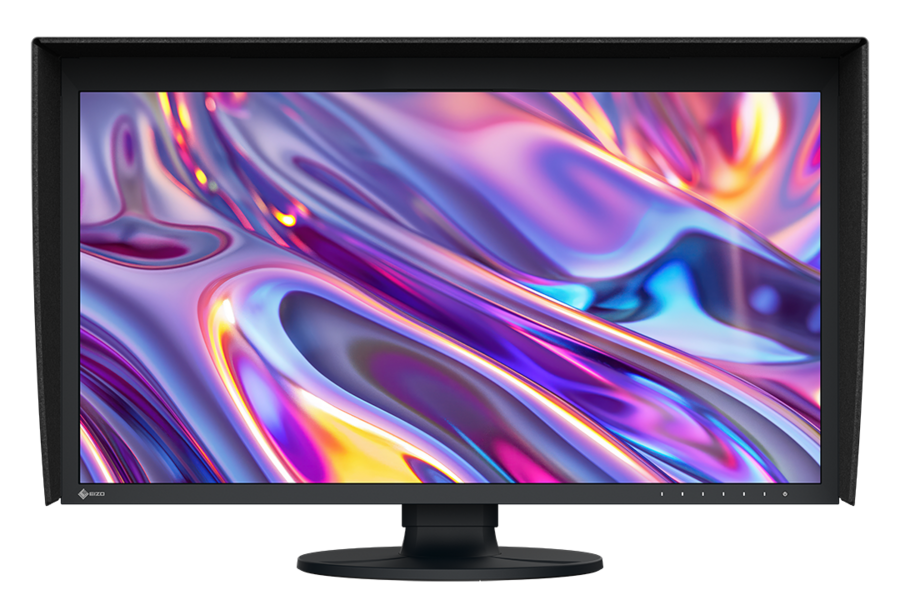

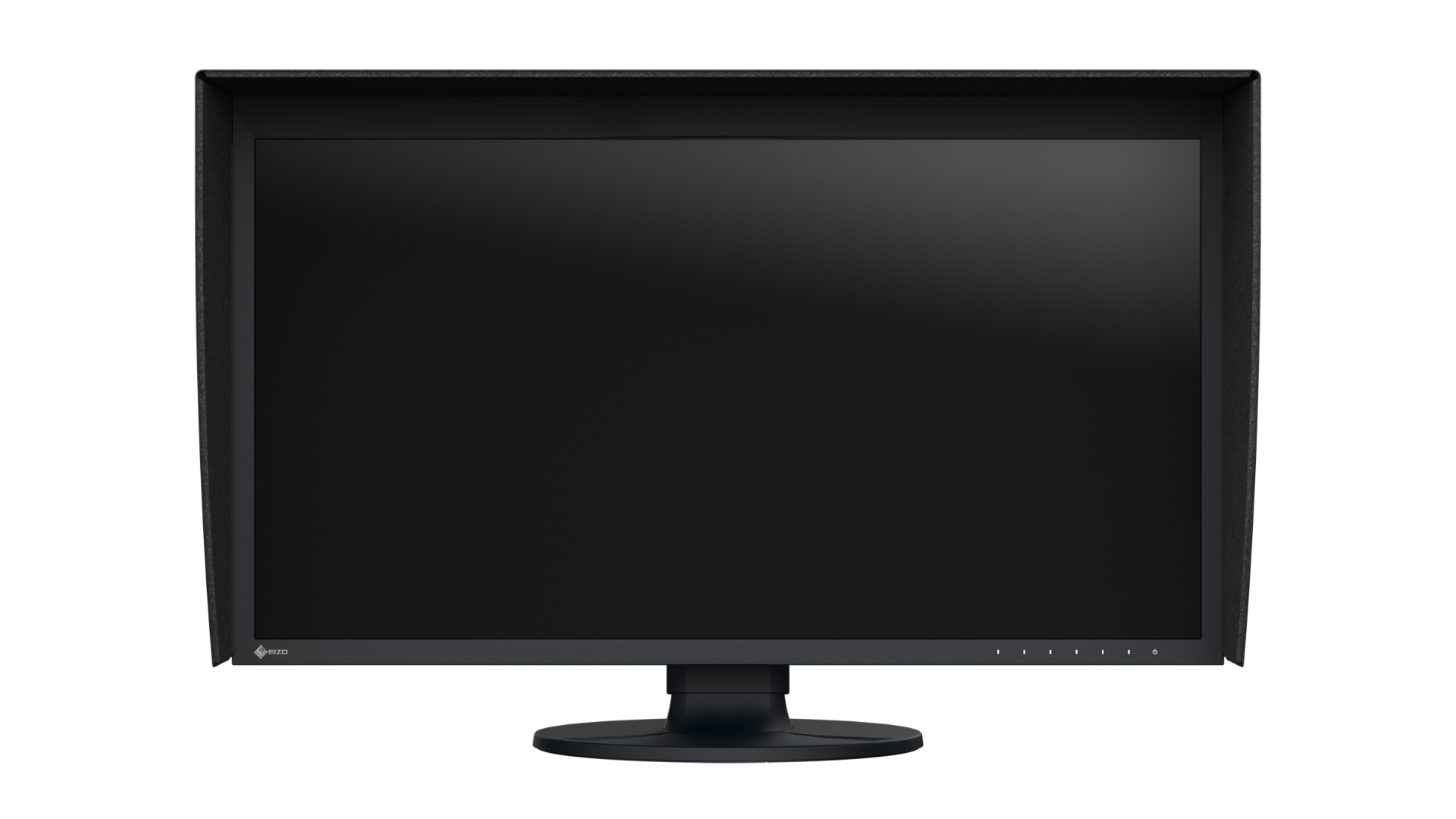

EIZO ColorEdge CG3100X 30.5" DCI 4K HDR LCD Color Management Monitor with Built-In Calibration
Professional DCI 4K HDR Color Accuracy for Photography, Video Editing & Post Production
The EIZO ColorEdge CG3100X is a professional 30.5-inch IPS color management monitor designed for photographers, filmmakers, colorists, designers, VFX artists, and print professionals who require uncompromising color accuracy. Featuring native DCI 4K (4096 × 2160) resolution, 500 cd/m² brightness, HDR support, a built-in calibration sensor, and an exceptionally wide color gamut, the CG3100X delivers precise, reliable color from capture through final production.
Supporting 99% DCI-P3, 97% Adobe RGB, BT.2020, Rec.709, and multiple HDR workflows, this monitor is ideal for demanding color-critical applications including HDR editing, cinema production, broadcast, photography, CGI, compositing, and fine art printing.
Integrated USB Type-C connectivity with 94W Power Delivery, built-in LAN, USB hub functionality, and EIZO's ColorNavigator software streamline creative workflows while maintaining consistent color accuracy throughout every project.
Key Features
- 30.5-inch IPS Wide Gamut LCD panel
- Native DCI 4K (4096 × 2160) resolution
- HDR support with PQ and HLG gamma curves
- 500 cd/m² maximum brightness
- 1800:1 contrast ratio
- Built-in self-calibration sensor
- Hardware calibration with ColorNavigator 7 software
- 24-bit 3D LUT with 10-bit simultaneous display
- Covers 99% DCI-P3 and 97% Adobe RGB
- USB Type-C with 94W Power Delivery
- Built-in LAN (RJ-45) port
- Integrated USB hub
- DisplayPort, HDMI, and USB-C connectivity
- Quiet internal cooling fan

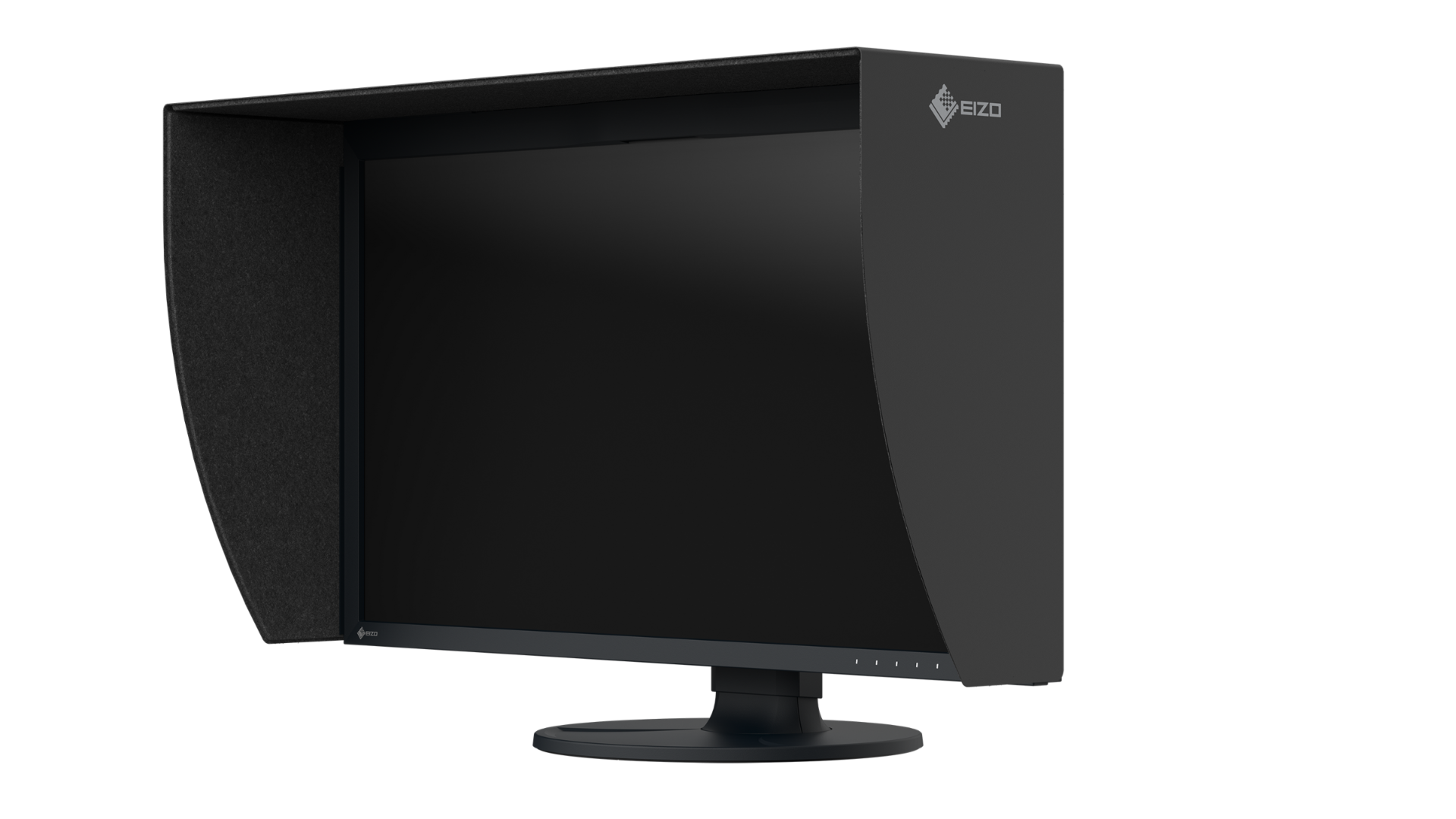

- Included magnetic light-shielding hood
- 5-year manufacturer's warranty
- Zero Bright Pixel Policy (6 months)
Professional Color Accuracy Without Compromise
Designed specifically for color-critical work, the CG3100X reproduces over 1.07 billion colors simultaneously using a 24-bit 3D Look-Up Table (LUT). This provides exceptionally smooth gradients, minimizes color banding, and ensures precise transitions throughout the tonal range.
Its expansive color gamut includes:
- 99% DCI-P3
- Over 97% Adobe RGB
- 100% Rec.709
- 100% sRGB
- BT.2020 support
- ISO Coated V2 support for print workflows
Factory calibration and included verification reports ensure every monitor delivers outstanding accuracy immediately upon installation.
Stunning HDR Performance
The ColorEdge CG3100X is engineered for today's HDR production environments.
Support for both:
- Hybrid Log-Gamma (HLG)
- Perceptual Quantization (PQ)
Allows professionals working in broadcast, cinema, streaming, and post-production to accurately preview HDR content throughout the editing process. With 500 cd/m² brightness and an impressive 1800:1 contrast ratio, shadow detail, highlights, and subtle tonal transitions remain visible with exceptional realism. Using ColorNavigator 7, users can even load custom camera log profiles for on-set monitoring and post-production workflows.
Built-In Calibration for Consistent Color
Unlike standard monitors, the CG3100X includes an integrated calibration sensor that automatically maintains accurate color over time.
Benefits include:
- Automatic scheduled calibration
- No external calibration device required
- Continue working during calibration
- Long-term color consistency
- Hardware calibration for maximum accuracy
The monitor works seamlessly with EIZO ColorNavigator 7, allowing users to calibrate brightness, white point, gamma, color gamut, and HDR settings with professional precision. Studios can also centrally manage multiple ColorEdge displays using ColorNavigator Network, simplifying calibration across teams and shared production environments.
Designed for HDR Video Editing & Color Grading
The CG3100X includes professional tools specifically designed for video editors and post-production professionals.
Features include:
- Pixel Inspection
- Safe Area Markers
- 4K Zoom
- Sync Signal Detection
- BT.709 Out-of-Gamut Warning
- BT.709 Clipping Simulation
- Luminance Warning
- PQ Brightness Simulation
- Nearest Neighbor Image Scaling
- RGB and CMYK color space emulation
These advanced tools help ensure projects meet technical delivery standards while minimizing costly revisions.
USB-C Connectivity That Simplifies Your Workspace
A single USB Type-C cable can simultaneously provide:
- Video signal
- USB hub access
- Ethernet connection
- Up to 94W laptop charging
Additional connections include:
- DisplayPort
- HDMI
- USB downstream ports
- USB upstream ports
- LAN (RJ-45)
- Headphone output
This streamlined connectivity reduces cable clutter while improving productivity in professional creative workspaces.
Stable Image Quality You Can Trust
The ColorEdge CG3100X is engineered for dependable long-term performance.
EIZO technologies include:
- Digital Uniformity Equalizer (DUE)
- AI-assisted temperature correction
- Automatic brightness stabilization
- Factory gamma adjustment
- Stable color in approximately 3 minutes after power-on
These technologies ensure accurate brightness and color uniformity across the entire display, regardless of ambient temperature changes.
Comfortable Professional Design
The CG3100X combines premium performance with thoughtful ergonomics.
Features include:
- Lightweight magnetic light-shielding hood
- Quiet internal cooling fan (20 dB)
- Low-reflection display

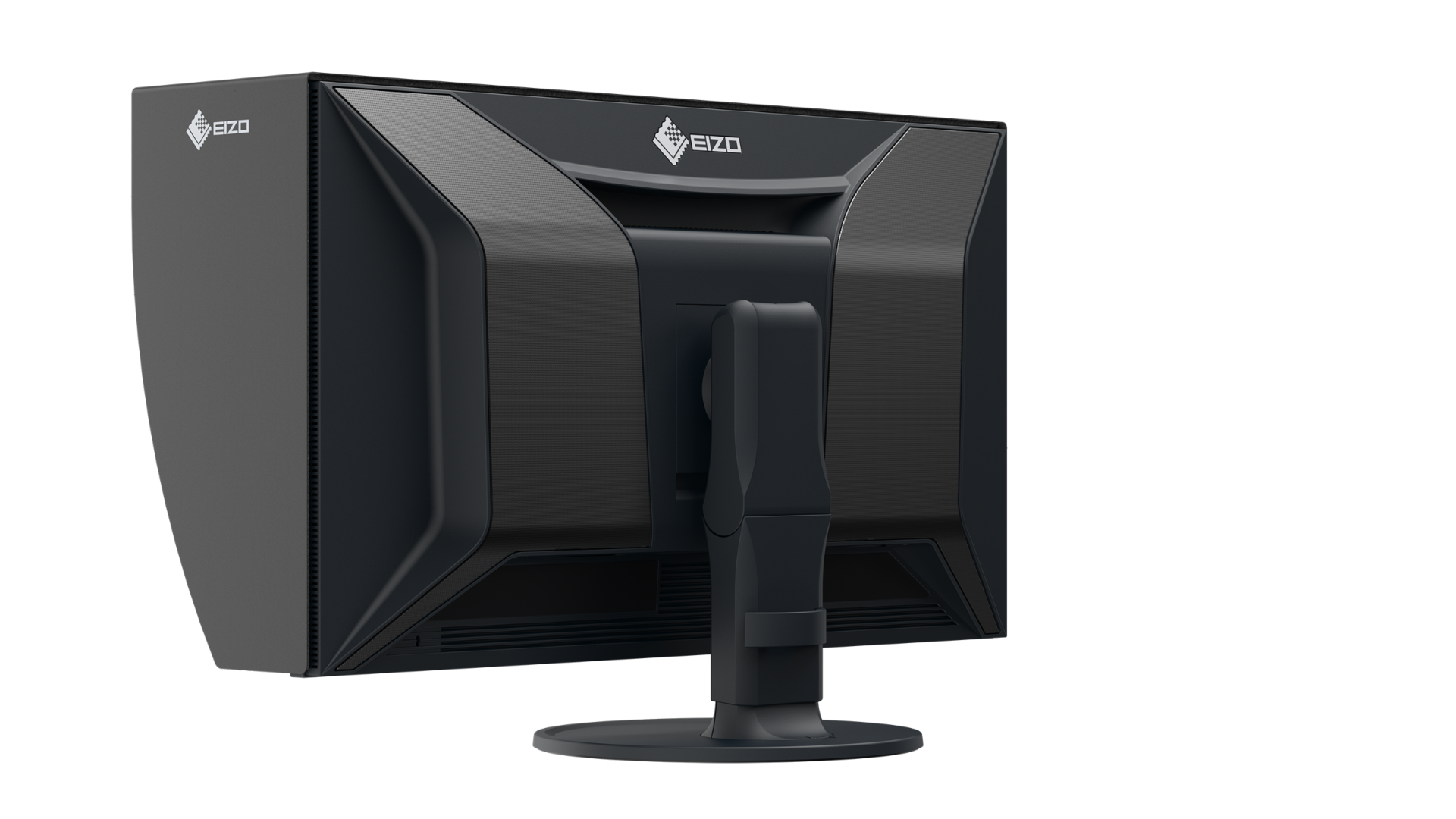

- Sleek rear ventilation design
- Integrated power supply
The result is a clean, distraction-free workspace ideal for long editing sessions.
Ideal Applications
The EIZO ColorEdge CG3100X is ideal for:
- Professional photography
- Photo retouching
- Video editing
- HDR production
- Color grading
- CGI & 3D rendering
- VFX & compositing
- Broadcast production
- Graphic design
- Print production
- Fine art printing
- Fashion & textile design
What's Included
- EIZO ColorEdge CG3100X Monitor
- Magnetic Light-Shielding Hood
- Ultra High-Speed HDMI Cable
- Power Cable
- USB-C Cable
- Quick Start Guide
- Factory Calibration Report
Technical Specifications
| General |
| Item no. | CG3100X |
| Case Color | Black |
| Areas of application | Photography, image editing & retouching, video editing, post production & color grading, design, creation & illustration, printing & fine art printing, textile & fashion industry |
| Product Line | ColorEdge |
| Specific System Requirements | None, compatible with most computers & operating systems including macOS & windows |
| EAN | 4995047068495 |
| Screen |
| Screen Size | 30.5 inches (77.5 cm) |
| Panel Type | IPS Wide Gamut LCD |
| Native Resolution | 4096 × 2160 (DCI 4K) |
| Format | 17:9 |
| Pixel Density | 152 ppi |
| Pixel Pitch | 0.167 × 0.167 mm |
| Viewing Angle | 178° horizontal / 178° vertical |
| Maximum Brightness | 500 cd/m² |
| Recommended Brightness | 120 cd/m² |
| Contrast Ratio | 1800:1 |
| Response Time | 15 ms (Gray-to-Gray) |
| Simultaneous Colors | 1.07 billion colors (10-bit) |
| Look-Up Table | 24-bit 3D LUT (over 278 trillion color tones) |
| Color Gamut | 99% DCI-P3, over 97% Adobe RGB |
| Supported Color Spaces | Adobe RGB, DCI-P3, BT.2020, BT.709, sRGB, ISO Coated V2, EBU, SMPTE-C |
| Color Temperature Presets | DCI, D65, D50, Native, User, 4000K to 10000K |
| HDR Support | PQ (ST2084) and HLG |
| Features & Operation |
| Calibration | Built-in self-calibration sensor |
| Calibration Software | ColorNavigator 7 and ColorNavigator Network |
| Hardware Calibration | Supported for brightness, white point, gamma, color gamut, and HDR settings |
| Digital Uniformity Equalizer (DUE) | Included |
| HDR Gamma Curves | PQ and HLG |
| ColorNavigator Network | Centralized calibration management for multiple ColorEdge displays |
| Video Functions | Pixel Inspection, Safe Area Markers, 4K Zoom, Sync Signal Detection |
| HDR Monitoring Functions | BT.709 Out-of-Gamut Warning, BT.709 Clipping Simulation, Luminance Warning, PQ Brightness Simulation |
| Image Scaling | Nearest Neighbor Image Scaling |
| Color Space Emulation | RGB and CMYK color space emulation |
| Cooling Fan | Quiet internal cooling fan (20 dB) |
| Warm-Up Time | Approximately 3 minutes |
| Light Protection Cover | Included magnetic light-shielding hood |
| Connections |
| Signal Inputs | USB-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (FRL Deep Color, HDCP 2.3) |
| USB Specification | USB 5Gbps (USB 3) |
| USB Upstream Ports | 1 × USB-C (DisplayPort Alt Mode, 94W maximum), 1 × USB Type-B |
| USB Downstream Ports | 4 × USB Type-A (2 × USB 5Gbps (USB 3), 2 × USB 2.0) |
| Network Connection | RJ-45 Ethernet |
| LAN Standard | IEEE 802.3ab (1000BASE-T) |
| Audio Input | USB-C, DisplayPort, HDMI |
| Audio Output / Headphone Output | 3.5mm stereo jack |
| Electrical Data |
| Frequency | USB Type-C, DisplayPort: 25-137 kHz, 23-61 Hz. HDMI: 15-136 kHz, 23-61 Hz |
| Power Consumption (Typical) | 86 W |
| Maximum Power Consumption | 270 W (at maximum brightness with all signal inputs and USB ports in use) |
| Maximum Power Consumption in Standby Mode | 0.5 W |
| Power Consumption with Power Switch Off | 0 W |
| Energy Efficiency Class | G |
| Energy Consumption per 1000 Hours | 52 kWh |
| Power Supply | AC 100-240V, 50/60Hz |
| Maximum USB-C Power Delivery | 94 W |
| Dimensions & Weight |
| Dimensions with Stand (W × H × D) | 721 × 428.1-583.1 × 290 mm |
| Weight with Stand | 12.3 kg |
| Dimensions Without Stand (W × H × D) | 721 × 413.9 × 87.2 mm |
| Weight Without Stand | 8.9 kg |
| Stand Rotation | 344° |
| Tilt Adjustment | 5° forward / 35° backward |
| Height Adjustment Range | 155 mm |
| VESA Mount Compatibility | 100 × 100 mm |
| Certification & Standards |
| Certifications | CE, UKCA, CB, TÜV/GS, TÜV Ergonomics (including ISO 9241-307), FograCert Softproofing System (Class A), RCM, cTÜVus, FCC-B, CAN ICES-3(B), TÜV/S, PSE, VCCI-A, RoHS, WEEE |
| Software & Accessories |
| Included Software | ColorNavigator, ColorNavigator Network |
| Included Accessories | Signal cable HDMI-HDMI, USB signal cable (USB-C to USB-C), USB cable (Type-A to Type-B), power cord, calibration report, manual available for download, quick guide |
| Optional Accessories | EX5 external calibration sensor for ColorEdge monitors with ColorNavigator 7, CP200 USB-C to DisplayPort cable, PP200-K DisplayPort cable |
| Light Protection Cover | Included |
| Warranty |
| Warranty Period | 5 years for unit and LCD module up to 30,000 operating hours, whichever comes first |
| Included Warranty Guarantee | For 5 years or 10,000 operating hours, whichever comes first, brightness of at least 120 cd/m² at a color temperature of 5000K to 6500K is guaranteed |
| Zero Bright Pixel Guarantee | No fully illuminated sub-pixels (sub-pixels ISO 9241-307) for six months from date of purchase |
