Please Note: A $600 shipping fee is required and will be automatically added to your cart at checkout.

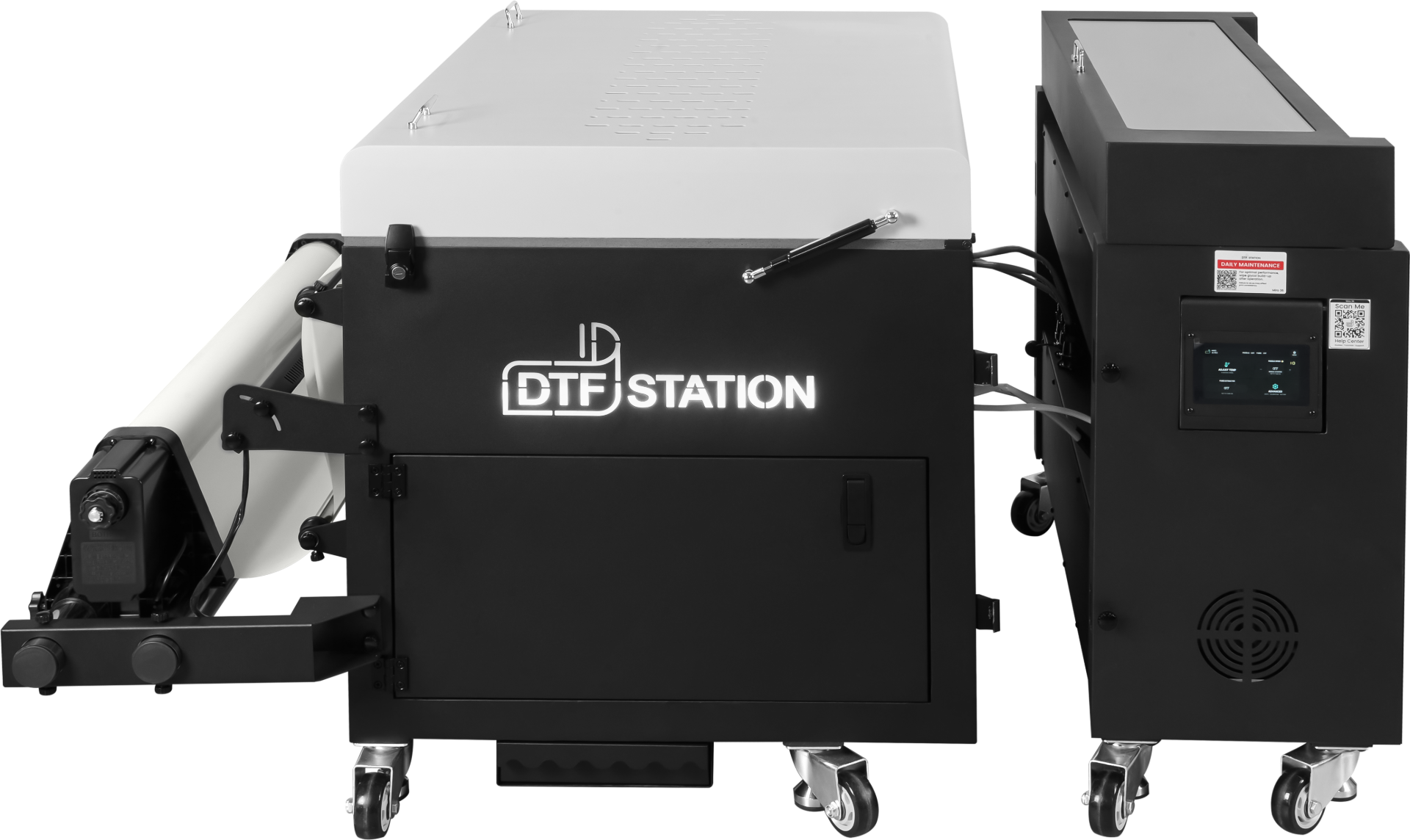

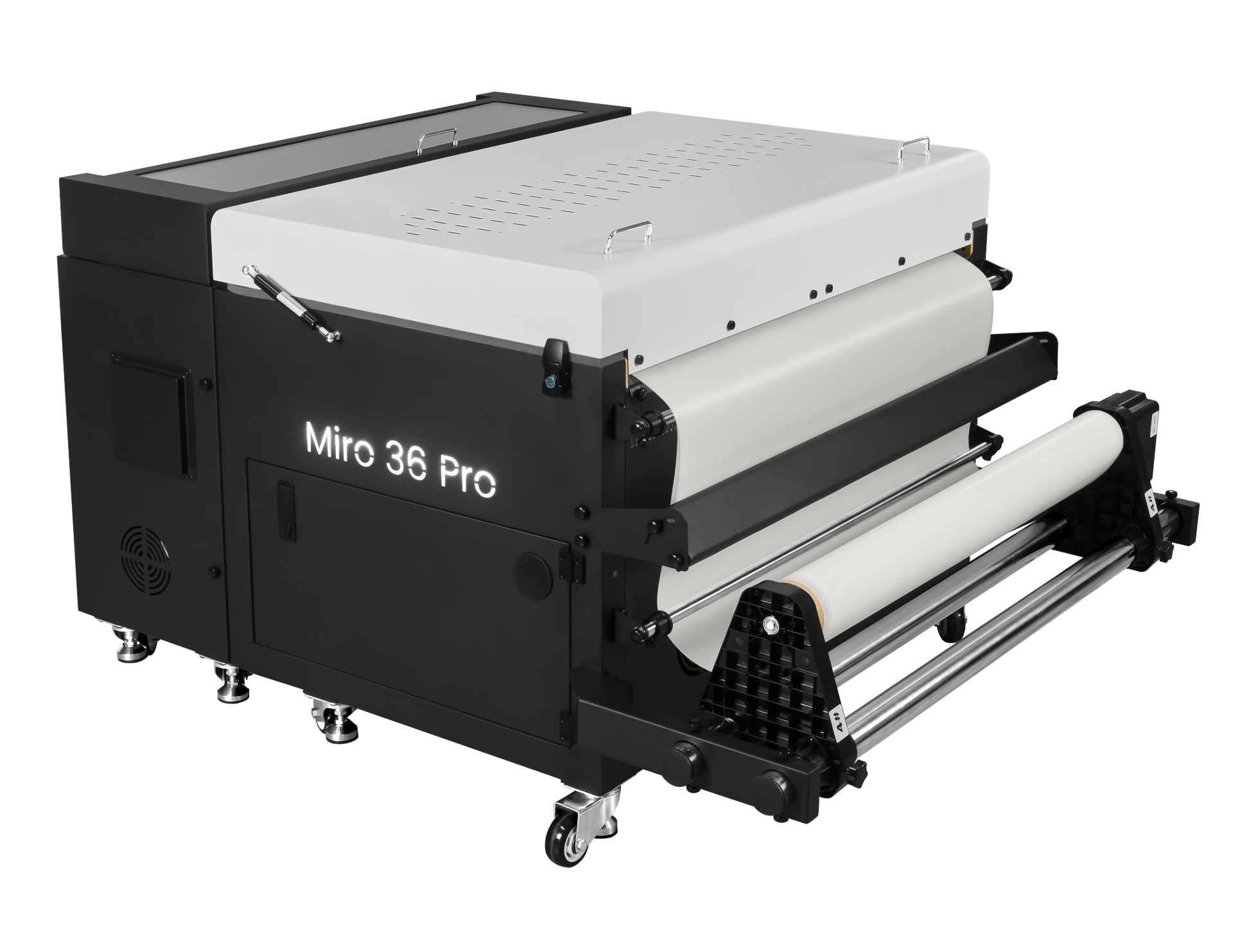

Consistent DTF curing at production speed. The DTF Station Miro 36 Pro DTF Powder Shaker & Dryer Bundle with Supplies combines a 36-inch DTF powder shaker and dryer with Color Prime DTF Hot Melt Powder and Color Prime Quick Glide DTF Film. With curing capacity up to 22 m²/h, four independent temperature sensing and control points, expanded heating coverage and integrated fume management, the Miro 36 Pro is built for growing direct-to-film (DTF) production environments that need greater finishing capacity and process control.
The included Color Prime supplies complement the Miro 36 Pro finishing system with DTF hot melt powder for adhesive transfer production and Quick Glide DTF Film engineered for instant-peel transfers. This combination provides a streamlined solution for compatible 36-inch roll-to-roll DTF workflows.
More Output From Your 36" DTF Production Line
A faster DTF printer can only increase finished output when the powder application and curing process can keep up. The Miro 36 Pro provides finishing capacity up to 22 m²/h while giving operators greater control over the curing process.
Four independent temperature sensing and control points work with front preheating, bottom heating and added upper heating to expand heat coverage across the film path. This multi-zone heating system helps support consistent curing as production speeds increase.
Color Prime DTF Hot Melt Powder
Color Prime DTF Hot Melt Powder is a key component of the direct-to-film transfer process. Applied over the printed DTF film before curing, the adhesive powder helps the finished transfer adhere during heat pressing.
The included powder is formulated for DTF transfer printing on a variety of materials, including 100% cotton, polyester, nylon and more. After baking, the powder forms a solid white adhesive layer designed to support vibrant transfer colors.
Color Prime DTF Powder Features
- Solid White After Baking: Cures to a solid white layer designed to help produce more vibrant transfer colors.
- Even Particle Distribution: Regular particles help provide consistent coverage and adherence.
- Fine-Quality Finish: Finely coated powder is designed to support smooth coverage and help minimize pinholes.
- Versatile Fabric Compatibility: Suitable for DTF transfers onto cotton, polyester, nylon and more.
Color Prime Quick Glide DTF Film
Color Prime DTF Film Quick Glide is designed for direct-to-film printing with an instant-peel process. Unlike some hot peel films that require additional waiting or rubbing after transfer, Quick Glide can be peeled immediately after transferring when used according to the recommended process.
The film features a high ink loading layer designed to accommodate additional layers of color or white for vibrant output and crisp prints. Its matte side also makes it easy to distinguish the printable surface.
Quick Glide DTF Film Features
- Instant Peel: Peel immediately after transferring without additional waiting or rubbing.
- High Ink Loading Layer: Supports additional layers of color or white for vibrant colors and crisp prints.
- Matte Side: Makes it easy to identify the printable side of the film.
- 35.43" Wide Roll: Sized for larger-format DTF production workflows.
- DTF Station Prestige Profiles: Specific printing profiles are customized for DTF Station Prestige printers.
- Color Prime Compatibility: Designed for use with Color Prime DTF Ink and Powder.
How to Use Color Prime Quick Glide DTF Film
- Print: Print the mirrored image onto the matte side of the film using CMYK and white ink.
- Apply Powder: Apply hot melt powder evenly over the printed image and remove excess powder.
- Cure: Cure the hot melt powder using the recommended temperature settings.
- Heat Press: Transfer the image using medium pressure with the recommended temperature and time.
- Peel: Peel the film immediately after transferring, removing it gently.
- Finish: Heat press again at 137°C (280°F) for 5 seconds with medium pressure to enhance softer hand feel.
4-Zone Temperature Control
The Miro 36 Pro uses four independent temperature sensing and control points to give operators greater control throughout the curing process. Front preheating, bottom heating and added upper heating provide expanded heat coverage across the film path.
Integrated Fume & Oil Management
Built-in fume extraction helps manage fumes generated during the DTF powder curing process. The Miro 36 Pro also provides an external extraction connection and an oil discharge system for easier day-to-day equipment management.
Easy Installation and Operator-Friendly Controls
The Miro 36 Pro features a detachable design that allows the machine to fit through a standard doorway. Its plug-and-play design requires no rewiring and supports 110 V or 220 V power configurations.
A tailored LED touchscreen and PLC control system provide an intuitive operator interface for setup and adjustments. Advanced sensors, safety-compliant wiring and a center-alignment ruler further support daily operation.
Built for Growing DTF Production
The Miro 36 Pro provides additional DTF finishing capacity while keeping production within a 36-inch platform. With a maximum film width of 36 inches (90 cm) and curing capacity up to 22 m²/h, it is designed for compatible roll-to-roll DTF workflows where production speed and consistent curing are important.
Compatible DTF Printers
- DTF Station Prestige X6 at 720 × 1200 DPI (Normal Strong A) or above
- Epson SureColor G6070 36-inch DTF printer
- Mimaki TxF300-75 with media up to 31.9 inches (810 mm)
- Mimaki TxF150-75 with media up to 31.9 inches (810 mm)
- Other compatible roll-to-roll DTF printers using film up to 36 inches, subject to workflow and installation compatibility
Miro 36 Pro Features & Benefits
- Increase DTF Production Output: Finishing capacity up to 22 m²/h keeps compatible 36-inch DTF workflows moving.
- Control the Cure: Four independent temperature sensing and control points provide greater control over curing.
- Expanded Heating Coverage: Front preheating, bottom heating and upper heating support the curing process.
- Integrated Fume Management: Built-in fume extraction and external extraction compatibility help manage fumes.
- Oil Discharge System: Integrated oil management supports routine machine operation.
- Easy Installation: Detachable construction is designed for standard doorway access.
- Plug-and-Play: Designed for installation without rewiring.
- 110 V or 220 V: Flexible power configurations support different production environments.
- LED Touchscreen: Intuitive controls simplify daily operation and adjustments.
- 36-Inch Platform: Increase finishing capacity without moving to a wider DTF finishing system.

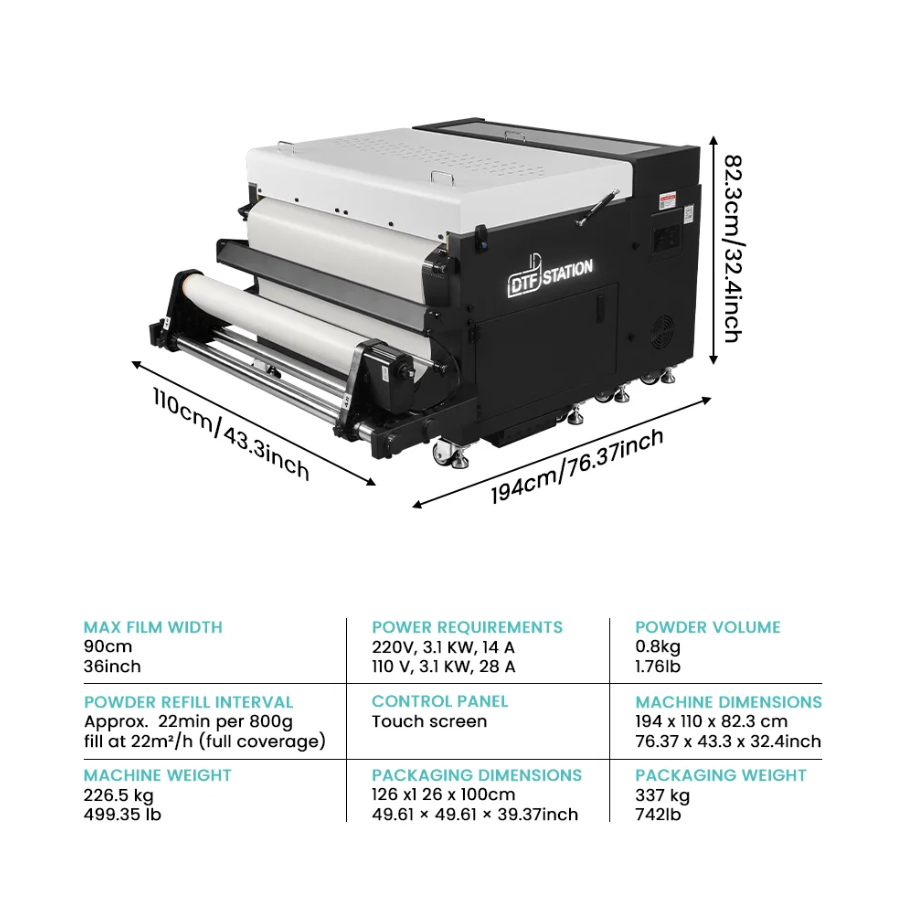

Miro 36 Pro DTF Powder Shaker & Dryer Specifications
| Product Type | DTF Powder Shaker & Dryer |
|---|
| Maximum Film Width | 36" / 90 cm |
|---|
| Maximum Curing Speed | Up to 22 m²/h* |
|---|
| Temperature Control | 4 independent temperature sensing and control points |
|---|
| Heating System | Front preheating + bottom heating + upper heating |
|---|
| Maximum Powder Capacity | 1.76 lb / 0.8 kg |
|---|
| Powder Collection Drawer | Yes |
|---|
| Fume Management | Built-in fume extraction + external extraction connection |
|---|
| Control System | User-friendly interface + PLC control |
|---|
| Rated Power | 3.1 kW |
|---|
| Power Supply | 110 V / 220 V |
|---|
| Rated Current | 28 A @ 110 V / 14 A @ 220 V |
|---|
| Machine Dimensions (D × W × H) | 76.37" × 43.31" × 32.40"
194 × 110 × 82.3 cm |
|---|
| Net Weight | 499.4 lb / 226.5 kg |
|---|
| Packaged Dimensions (D × W × H) | 49.61" × 49.61" × 39.37"
126 × 126 × 100 cm |
|---|
| Gross Weight | 742 lb / 337 kg |
|---|
*Maximum curing speed is dependent on media, powder, printer output, temperature settings and production workflow.

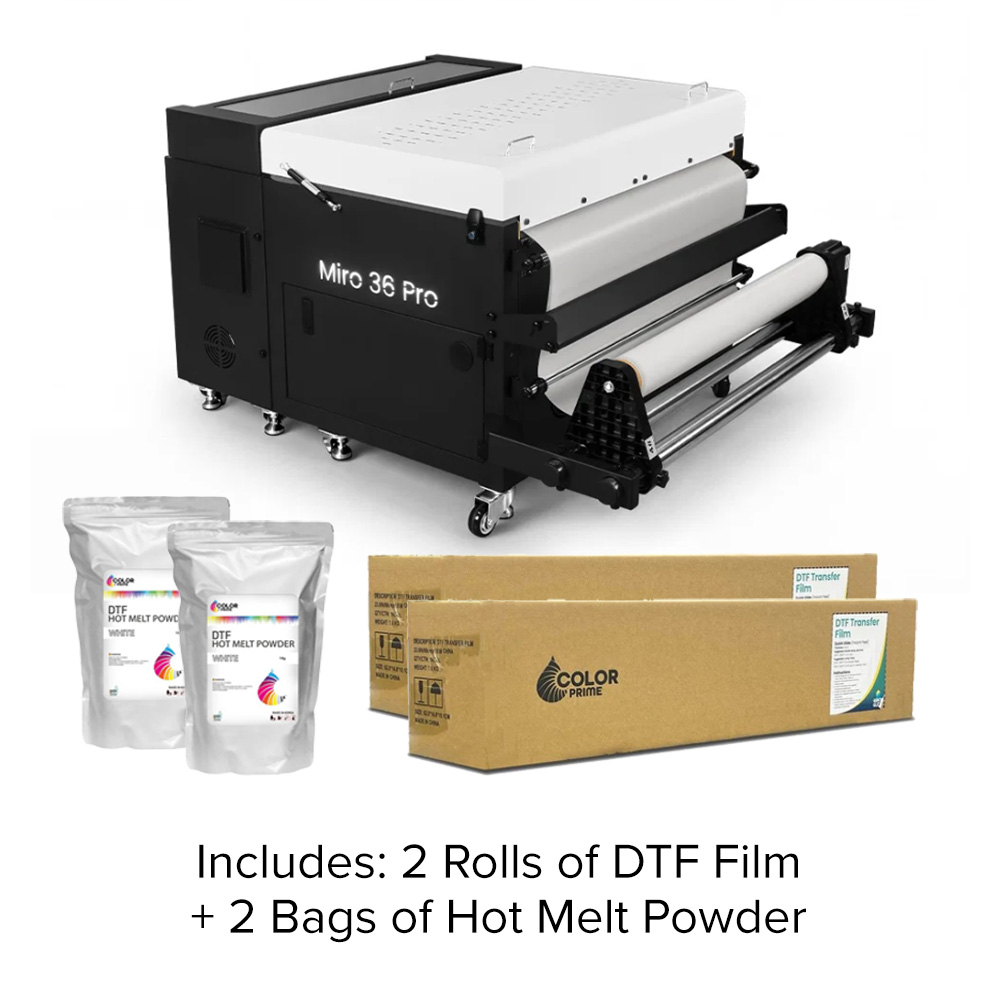

What's Included in This Bundle?
| SKU | Included Product | Qty. | Purpose |
|---|
| DTFS-MIRO36-PRO | Miro 36 Pro DTF Powder Shaker and Dryer | 1 | 36" DTF powder application and curing |
| DTFS-CP-P-1KG | Color Prime DTF Hot Melt Powder, 2.2 lb (1 kg) | 2 | Hot melt adhesive powder for DTF transfers |
| DTFS-CP-QG-V3-35-43-R | Color Prime DTF Film Quick Glide, 35.43" × 327' | 2 | Instant-peel DTF transfer film |
