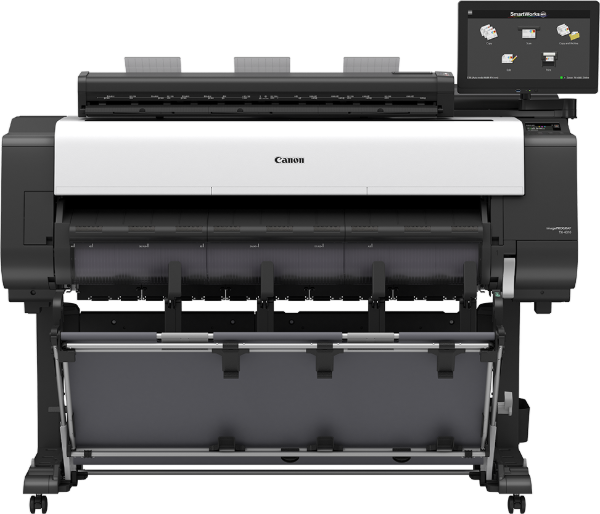

Canon imagePROGRAF TX-4310 MFP Z36 44" Large Format Printer with Stacker

44" Large Format Technical Documents Printer with 36" Z36 Scanner — Up to 3.3 D-Size Prints per Minute — LUCIA TD Pigment Ink

The Canon imagePROGRAF TX-4310 MFP Z36 combines a 44" large format technical document printer with a 36" Z36 scanner for high-volume printing, scanning, and copying. With print speeds up to 3.3 D-size prints per minute, a 5-color LUCIA TD pigment ink system with newly formulated Matte Black ink, and intuitive scanning and editing capabilities, the TX-4310 MFP Z36 is engineered for productivity in demanding technical document environments.

The TX-4310 MFP Z36 features built-in color calibration, automatic paper detection, semi-translucent covers, an intuitive touchscreen interface, hot-swap ink tanks, and user-installable printheads and maintenance cartridges. The compact 36" Z36 scanner delivers high-volume scanning at speeds up to 13 ips in black and white and 6 ips in color, with a 15.6" touchscreen controller and SmartWorks software for intuitive editing and workflow management.

Canon imagePROGRAF TX Series - Product Showcase Video

Key Features

• 36" Z36 Scanner: High-volume scanning with speeds up to 13 ips in black and white and 6 ips in color.
• 15.6" Touchscreen Controller: Provides intuitive control of scanning, copying, editing, and workflow functions.
• SmartWorks Software: Provides intuitive scanning and editing capabilities for high-volume technical document workflows.
• 3.3 D-Size Prints Per Minute: Produce 24" x 36" technical documents at fast production speeds.
• 5-Color LUCIA TD Pigment Ink: Newly formulated Matte Black ink helps deliver deep blacks and crisp line reproduction.
• Improved Line Clarity: Image processing improvements and LUCIA TD ink help enhance text and line quality.
• Built-In Color Calibration: Helps maintain consistent output over time and across multiple TX Series devices.
• Automatic Paper Detection: Automatically detects media type, length, and width.
• Security Features: Designed to help protect against unauthorized printing, device access, network intrusions, and data tampering.
• Hot-Swap Ink Tanks: Replace ink tanks while helping maintain continuous productivity.
• User-Installable Printheads and Maintenance Cartridges: Help simplify routine maintenance and minimize downtime.
• TX Stacker: Helps organize and collect finished technical documents.
• ENERGY STAR Certified and EPEAT Gold: Includes EPS-free packaging and increased recycled material in the chassis.

Ideal For

• Architecture, Engineering, and Construction (AEC)
• CAD and technical document production
• Engineering and manufacturing
• Construction companies and contractors
• Copy shops and reprographic departments
• Corporate technical document departments
• High-volume scanning, copying, and archiving

Workflow Software Included

The TX-4310 MFP Z36 includes a free suite of workflow and creative software designed to simplify technical document production and management, including Direct Print Plus, PosterArtist, Free Layout Plus, Device Management Console, Accounting Manager, Media Configuration Tool, and Quick Utility Toolbox. The Z36 scanner also includes SmartWorks software for high-volume scanning and intuitive editing capabilities.

Optional Multifunction Roll Unit

Need a two-roll solution? Add the optional Multifunction Roll System RU-44. It can be used to add a second roll of media, allowing users to switch between popular media types, or it can be configured as a take-up reel for continuous printing.

Engineered for Productivity

The TX-4310 MFP Z36 is designed to bring printing, scanning, and copying together in one streamlined large format solution. The 36" Z36 scanner provides high-volume scanning without requiring a separate scanner footprint, while the 15.6" touchscreen controller provides an intuitive interface for managing scan and copy workflows.

The printer combines fast 3.3 D-size print speeds with LUCIA TD pigment ink, improved line clarity, automatic media detection, and built-in color calibration. Hot-swap ink tanks and user-installable printheads and maintenance cartridges are designed to help keep the system productive while minimizing downtime.

The Z36 scanner features dual LED scanning technology and SmartWorks software with intuitive editing capabilities, making it well suited for scanning, copying, archiving, and managing oversized technical documents.

Printer Size & Dimensions

With Stacker Opened: 62.7" W x 46.8" D x 46.0" H; 273.4 lbs.

With Stacker Closed: 62.7" W x 44.2" D x 46.0" H; 273.4 lbs.

Printer Package Size & Dimensions

Printer Main Unit with Stand and Pallet: 70.9" W x 35.5" D x 44.8" H; 381.4 lbs.

Stacker: 57.6" W x 35.7" D x 11.5" H; 64 lbs.

Scanner Package: 50" W x 17" D x 19.5" H; 75 lbs. Approx.

What’s In The Printer Box

• Main Unit
• TX Stacker
• Stand
• (1) Printhead
• Starter Ink Tank Set
• (1) Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• USB Port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

What’s In The Scanner Box

• Z36 Scanner with Power Cord
• USB 3.0 Cable (2 m)
• 15.6" System Controller
• 3:1 Trident Power Cord
• Power Supply
• Mount for Printer and System Controller
• (2) Paper Edge Guides
• (3) Document Return Guides
• Calibration Target
• Assembly and Start Up Guide
• 3:1 Trident Power Cord

Canon imagePROGRAF TM Series & TX Series: More Than Just The Fine Line

Product Disclaimer

Recycled paper, chlorine-free paper, and office paper with 100% post-consumer recycled content meeting EN 12281 can be used.

All speed measured on Plain Paper in Fast Q5 mode.

SingleSensor Technology Assembly means that multiple sensors are contained in one assembly device.

Canon security features are designed to help protect against unauthorized printing, device access, network intrusions, and data tampering. Security features may impact functionality or performance and should be tested in the customer's environment.

The 700 ml ink tank is only available for service authorized partners.

Plain Paper, Fast Q5 mode.

Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.

PostScript applications such as Adobe Illustrator or QuarkXPress require a PostScript-compatible RIP package.

1 Line accuracy repeatability is guaranteed after a user performs the necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper, Coated Paper, CAD Translucent Matte Film, and CAD Tracing Paper) only.

2 Theoretical value based on data resolution.

3 The maximum printable length varies depending on the application, OS, and RIP used.

4 Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.

5 The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times will depend on the host system performance. Quoted top speeds may be limited by the effective bandwidth of USB 2 and are not guaranteed for all media types.

6 The quoted scan accuracy may vary depending on the operating environment and the thickness of the media.

7 Expected availability Q4 2026.

The imagePROGRAF TX Series MFP Z36 systems contain multiple components, some of which are manufactured by third parties. To the extent that such third-party offerings come with limited warranties, such limited warranties are hereby passed to the purchaser, and Canon shall have no obligation or any liability with respect to such third-party offerings.

3.3 ANSI D prints/minute is measured after the first print in Fast Q5 mode with plain paper. Speed varies depending on the number of copies, paper size, paper type, and orientation.
