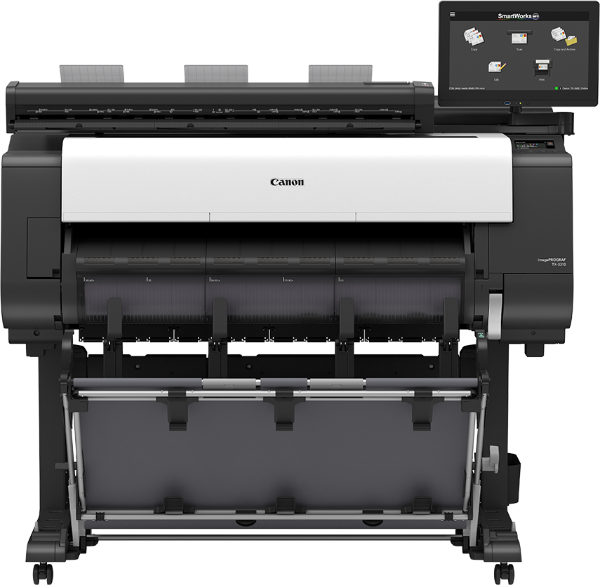

Canon imagePROGRAF TX-3310 MFP Z36 36" Large Format Printer with Stacker

Regularly $13,499, now only $12,719 after Canon’s $780 Instant Rebate through 10/31/2026!

36" Large Format Technical Documents Printer - Up to 3.3 D-Size Prints per Minute - Z36 Scanner - LUCIA TD Pigment Ink

The Canon imagePROGRAF TX-3310 MFP Z36 is a 36" large format multifunction printer engineered for productive technical document printing, scanning, and editing workflows. With print speeds up to 3.3 D-size prints per minute, a 5-color LUCIA TD pigment ink system with newly formulated Matte Black ink, built-in color calibration, and automatic paper detection, the TX-3310 MFP delivers crisp, defined output with sharp line clarity. The integrated 36" Z36 scanner adds high-volume scanning with speeds up to 13 ips in black and white and 6 ips in color, while its 15.6" touchscreen controller and intuitive SmartWorks software provide powerful scanning and editing capabilities. A TX Stacker provides convenient handling of completed technical documents, helping streamline high-volume print workflows.

Canon imagePROGRAF TX Series - Product Showcase Video

Key Features

• 36" Z36 Scanner: The compact Z36 scanner delivers high-volume scanning speeds of up to 13 ips in black and white and 6 ips in color. Dual LED scanning technology, a 15.6" touchscreen controller, and intuitive SmartWorks software provide efficient scanning and editing capabilities.
• LUCIA TD Ink System: The newly formulated Matte Black ink is designed to deliver outstanding black reproduction for a wide range of markets and applications. Pigment ink across all colors helps produce prints that are resistant to fading and easy to handle in outdoor environments.
• Improved Line Clarity: Image processing improvements and LUCIA TD pigment ink help enhance AEC documents and posters with improved text and line quality for crisp, defined output.
• Color Calibration: Built-in color calibration helps maintain consistent output over time and across multiple imagePROGRAF TX Series devices.
• Fast Production: Print up to 3.3 D-size (24" x 36") prints per minute for efficient technical document, CAD, and poster production.
• Security Features: Security features help protect against unauthorized printing, device access, network intrusions, and data tampering.
• Ease of Use: Semi-translucent covers make it easy to check supplies, while the intuitive user interface, hot-swap ink tanks, and user-installable printheads and maintenance cartridges help minimize downtime.
• Automatic Media Detection: The printer automatically feeds the leading edge and detects the media type, length, and width, with information displayed on the control panel.
• TX Stacker: The included TX Stacker provides convenient stacking of finished technical documents for organized, high-volume printing workflows.

Ideal For

• Architecture, Engineering & Construction (AEC) firms
• CAD drawings and technical document production
• Construction and engineering offices
• Technical document scanning, copying, and printing workflows
• Businesses needing integrated large format scanning and printing
• Workgroups with high-volume technical document requirements

Technical Information

• Printer Type: 36" Large Format Technical Documents Printer
• Ink System: 5-color LUCIA TD pigment ink
• Ink Colors: Matte Black, Black, Cyan, Magenta, Yellow
• Print Speed: Up to 3.3 D-size (24" x 36") prints per minute
• Color Calibration: Built-in printer color calibration
• Media Detection: Automatic detection of media type, length, and width
• Output: TX Stacker
• Scanner: 36" Z36 large format scanner
• Black & White Scan Speed: Up to 13 ips
• Color Scan Speed: Up to 6 ips
• Scanning Technology: Dual LED high-quality scanning
• System Controller: 15.6" touchscreen controller
• Scanner Software: SmartWorks with intuitive scanning and editing capabilities
• Certifications: EPEAT Gold 1.0 registered and ENERGY STAR certified

Z36 Scanner & SmartWorks

The integrated 36" Z36 scanner is designed for high-volume scanning and intuitive document editing without requiring a separate scanning system. With scanning speeds up to 13 ips in black and white and 6 ips in color, dual LED high-quality scanning, and a 15.6" touchscreen controller, the Z36 provides an efficient workflow for technical documents, drawings, and plans. SmartWorks software adds intuitive scanning and editing capabilities for managing large format documents.

• Maximum Scan Width: 36"
• Black & White Scan Speed: Up to 13 ips
• Color Scan Speed: Up to 6 ips
• Scanning Technology: Dual LED high-quality scanning
• System Controller: 15.6" touchscreen controller
• Software: SmartWorks with intuitive scanning and editing capabilities

Workflow Software Included

• Direct Print Plus: Workflow software designed to simplify large format printing.
• PosterArtist: Create professional posters and signage with an easy-to-use online design tool.
• Free Layout Plus: Arrange multiple pages and images efficiently for large format output.
• SmartWorks: Scan, edit, and manage large format documents using the Z36 scanner workflow software.

Media Handling

Load the media roll onto the spindle and slide it into the device. The printer automatically feeds the leading edge and detects the media type, length, and width, with the information displayed on the control panel. The included TX Stacker provides convenient handling of completed prints for efficient technical document production.

Optional Multifunction Roll Unit

For applications requiring a two-roll workflow, the optional multifunction roll unit can be used to add a second roll of media for quickly switching between popular media types or as a take-up reel for continuous printing.

Environmental & Sustainability Features

The Canon imagePROGRAF TX Series is ENERGY STAR certified and EPEAT Gold 1.0 registered. The series has eliminated EPS packaging and increased the amount of recycled material used in the chassis. These design considerations help reduce environmental impact while supporting efficient large format document production.

Printer Size & Dimensions

• With Stacker Opened: 54.7" W x 46.8" D x 46" H; 253.5 lbs.
• With Stacker Closed: 54.7" W x 44.2" D x 46" H; 253.5 lbs.

Printer Package Size & Dimensions

• Printer Package: 62.9" W x 35.5" D x 44.2" H; 352.7 lbs.
• Stacker Package: 49.2" W x 35.7" D x 11.5" H; 57.3 lbs.

Z36 Scanner Package Size & Dimensions

• Scanner Package Dimensions: 50" W x 17" D x 19.5" H
• Scanner Package Weight: 75 lbs. approximately

What’s In The Printer Box

• Includes Main Unit
• TX Stacker
• Stand
• (1) Printhead
• Starter Ink Tank Set
• (1) Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• USB port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

What’s In The Scanner Box

• Z36 Scanner with Power Cord
• USB 3.0 Cable (2 m)
• 15.6" System Controller
• 3:1 Trident Power Cord
• Power Supply
• Mount for Printer and System Controller
• (2) Paper Edge Guides
• (3) Document Return Guides
• Calibration target
• Assembly and Start Up Guide

Canon imagePROGRAF TM Series & TX Series: More Than Just The Fine Line

Product Disclaimer

Recycled paper, chlorine-free paper, and office paper with 100% post-consumer recycled content that meets the paper runnability performance requirements of EN 12281 can be used with this product.

The imagePROGRAF TX MFP Z36 system contains multiple components, some of which are manufactured by third parties. To the extent that such third-party offerings come with limited warranties, such limited warranties are hereby passed to the purchaser, and Canon shall have no obligation.

All speed measured on Plain Paper in Fast Q5 mode.

• SingleSensor Technology Assembly means that multiple sensors are contained in one assembly device.
• Canon products offer certain security features, yet many variables can impact the security of your devices and data. Canon does not warrant that use of its features will prevent security issues. Nothing herein should be construed as legal or regulatory advice concerning applicable laws; customers must have their own qualified counsel determine the feasibility of a solution as it relates to regulatory and statutory compliance. Some security features may impact functionality/performance; you may want to test these settings in your environment.
• The 700ml ink tank is only available for service authorized partners.
• Plain Paper, Fast (Q5) mode.
• Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
• For imagePROGRAF Printer Driver. For printing from PostScript applications such as Adobe Illustrator or QuarkXpress, please use a PostScript compatible RIP package.

1 3.3 ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.
