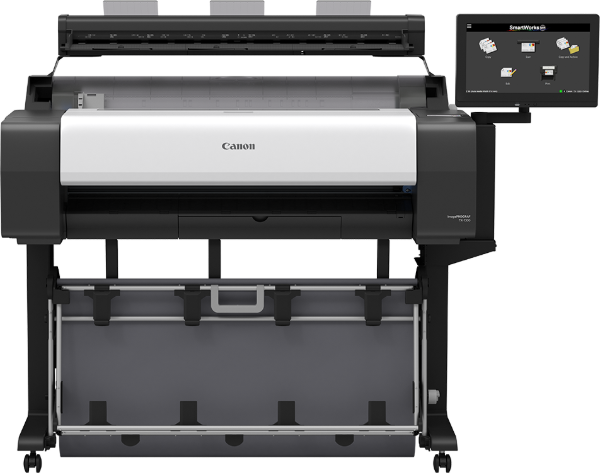

Canon imagePROGRAF TX-1300 MFP Z36 36" Large Format Printer with Flat Stacking Basket

Regularly $11,999, now only $11,799 after Canon’s $200 Instant Rebate through 10/31/2026!

36" Large Format Technical Documents Printer — Up to 3.2 D-Size Prints per Minute — Z36 Scanner — LUCIA TD Pigment Ink

The Canon imagePROGRAF TX-1300 MFP Z36 is a 36" large format multifunction printer designed to deliver enhanced productivity for technical document workflows. With print speeds up to 3.2 D-size prints per minute, 5-color LUCIA TD pigment ink, and newly formulated Matte Black ink, the TX-1300 MFP produces crisp, defined technical documents with excellent black reproduction and line clarity. The integrated 36" Z36 scanner provides high-volume scanning with speeds up to 13 ips in black and white and 6 ips in color, while the 15.6" touchscreen controller and SmartWorks software provide intuitive scanning and editing capabilities in a compact footprint.

Canon imagePROGRAF TM Series - Product Showcase Video

Key Features

• 36" Z36 Scanner: High-volume scanning speeds of up to 13 ips in black and white and 6 ips in color make the Z36 scanner well suited for technical document workflows. Dual LED scanning technology, a 15.6" touchscreen controller, and intuitive SmartWorks software provide efficient scanning and editing capabilities.
• LUCIA TD Ink System: The newly formulated Matte Black ink is designed to deliver outstanding black reproduction for a wide range of markets and applications. Pigment ink across all colors helps produce prints that are resistant to fading and easy to handle in outdoor environments.
• Improved Line Clarity: Image processing improvements and LUCIA TD pigment ink help enhance AEC documents and posters with a large color gamut and improved text and line quality for crisp, defined output.
• Color Calibration: Built-in color calibration helps maintain consistent output over time and across multiple imagePROGRAF TX Series devices.
• Fast Production: Print up to 3.2 D-size (24" x 36") prints per minute for efficient technical document and CAD production.
• Security Features: Security features help protect against unauthorized printing, device access, network intrusions, and data tampering.
• Ease of Use: Full front access to ink, media, and cartridges makes routine operation convenient, while the 4.3" tilt touchscreen provides easy access to printer settings and workflow controls.
• Automatic Media Detection: After the media roll is manually fed, the printer automatically detects the media type and width and estimates the amount of media remaining, with information displayed on the touchscreen.
• Compact MFP Design: The TX-1300 MFP combines a 36" technical document printer and high-volume Z36 scanner in a space-saving configuration designed for efficient print, scan, and editing workflows.

Ideal For

• Architecture, Engineering & Construction (AEC) firms
• CAD drawings and technical document production
• Construction and engineering offices
• Technical document scanning, copying, and printing workflows
• Businesses needing integrated large format scanning and printing
• Workgroups with limited floor space

Technical Information

• Printer Type: 36" Large Format Technical Documents Printer
• Ink System: 5-color LUCIA TD pigment ink
• Ink Colors: Matte Black, Black, Cyan, Magenta, Yellow
• Print Speed: Up to 3.2 D-size (24" x 36") prints per minute
• Touchscreen: 4.3" tilt touchscreen
• Media Handling: Automatic detection of media type, width, and estimated roll amount
• Output: Flat stacking basket
• Connectivity: High-Speed USB port and built-in Gigabit Ethernet
• Mobile Printing: Apple AirPrint® and Mopria® Print Service
• Certifications: EPEAT 1.0 Gold registered and ENERGY STAR certified

Z36 Scanner & SmartWorks

The 36" Z36 scanner provides high-volume scanning performance in a compact design. With scanning speeds up to 13 ips in black and white and 6 ips in color, the Z36 is designed for efficient technical document scanning. Dual LED scanning technology delivers high-quality scans, while the 15.6" touchscreen controller and SmartWorks software provide intuitive tools for scanning, editing, and managing documents.

• Scanner Width: 36"
• Black & White Scan Speed: Up to 13 ips
• Color Scan Speed: Up to 6 ips
• Scanning Technology: Dual LED high-quality scanning
• System Controller: 15.6" touchscreen controller
• Software: SmartWorks with intuitive scanning and editing capabilities
• Scanner Dimensions: 42" W x 10" D x 7" H
• Scanner Weight: 17.3 lbs. approximately

Workflow Software Included

• Direct Print Plus: Workflow software designed to simplify large format printing.
• PosterArtist: Create professional posters and signage with an easy-to-use online design tool.
• Free Layout Plus: Arrange multiple pages and images efficiently for large format output.
• SmartWorks: Scan, edit, and manage large format documents using the intuitive Z36 scanner workflow software.

What’s In The Printer Box

• Printer
• Stand with Flat Stacking Basket
• Starter Ink Tanks: BK/C/M/Y (90ml), MBK (130ml)
• 1 Printhead
• 1 Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• Safety and Environmental Information
• iWR Service Terms Leaflet
• USB Port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

What’s In The Scanner Box

• Z36 Scanner with Power Cord
• USB 3.0 Cable (2 meter)
• 15.6" System Controller
• 3:1 Trident Power Cord
• Power Supply
• Mount for Printer and System Controller
• 2 Paper Edge Guides
• Document Return Guides
• Calibration Target
• Assembly and Startup Guide

TX-1300 MFP Z36 Printer Size & Dimensions

• Basket Open: 50.6" W x 34.8" D x 41.7" H
• Basket Closed: 50.6" W x 30.7" D x 41.7" H
• Printer Weight: 149.9 lbs.

Printer Package Size & Dimensions

• Package Dimensions: 57.6" W x 44.2" D x 31.5" H
• Package Weight: 255.7 lbs.

Z36 Scanner Size & Dimensions

• Scanner Dimensions: 42" W x 10" D x 7" H
• Scanner Weight: 17.3 lbs. approximately

So Many Ways to Print

Print from your favorite mobile devices using Apple AirPrint® and Mopria® Print Service.

Engineered for Productivity

Boost workplace efficiency with the Canon imagePROGRAF TX-1300 MFP Z36 36" large format multifunction printer. Fast print speeds up to 3.2 D-size prints per minute, 5-color LUCIA TD pigment ink, reformulated Matte Black ink, automatic paper detection, and built-in color calibration help deliver precise technical documents with excellent line clarity. The integrated 36" Z36 scanner adds high-volume scanning speeds up to 13 ips in black and white and 6 ips in color, while the 15.6" touchscreen controller and SmartWorks software provide intuitive scanning and editing capabilities. With a compact flat-top design, 4.3" tilt touchscreen, and full-frontal operation, the TX-1300 MFP Z36 combines printing and scanning productivity while helping conserve valuable workspace.
