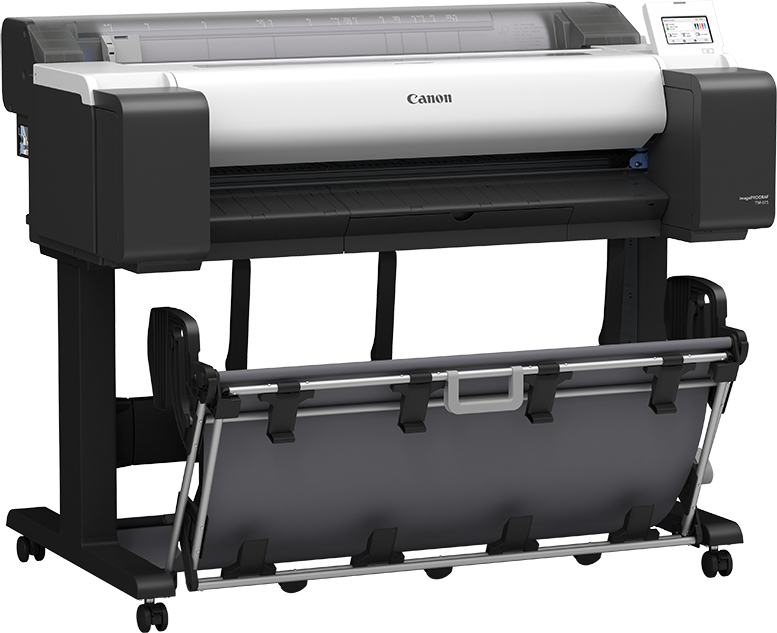

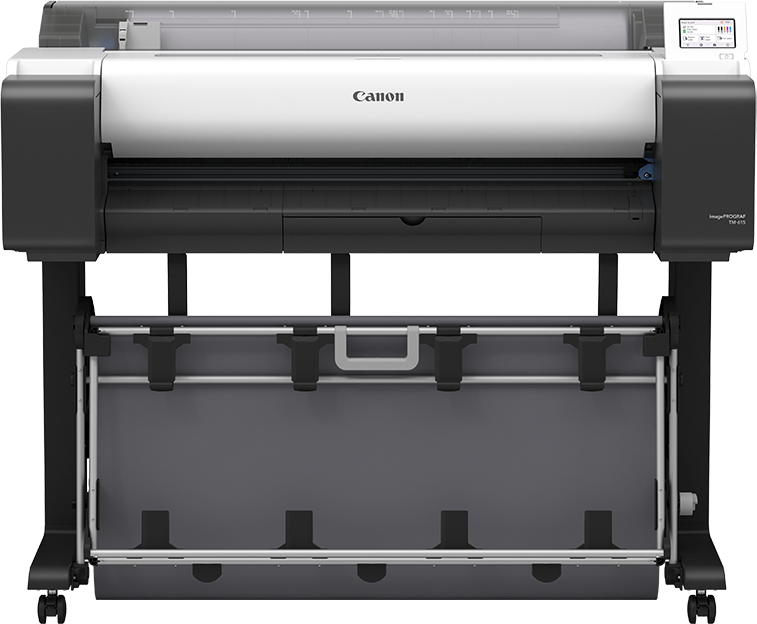

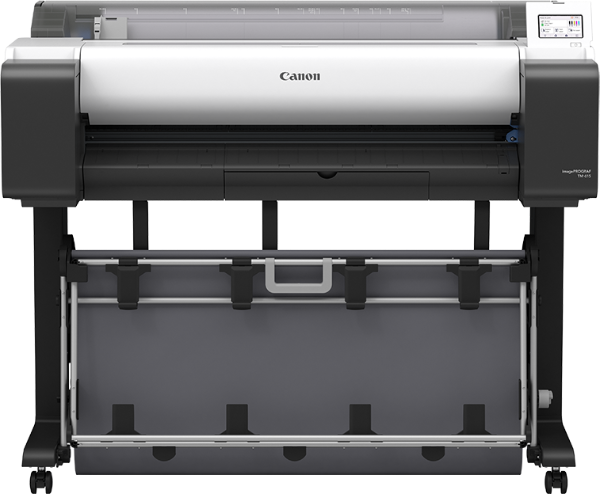

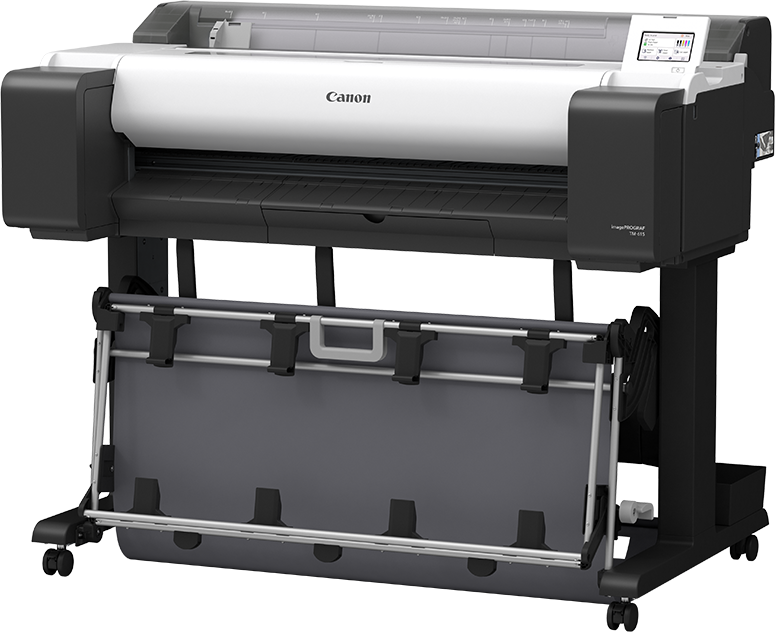

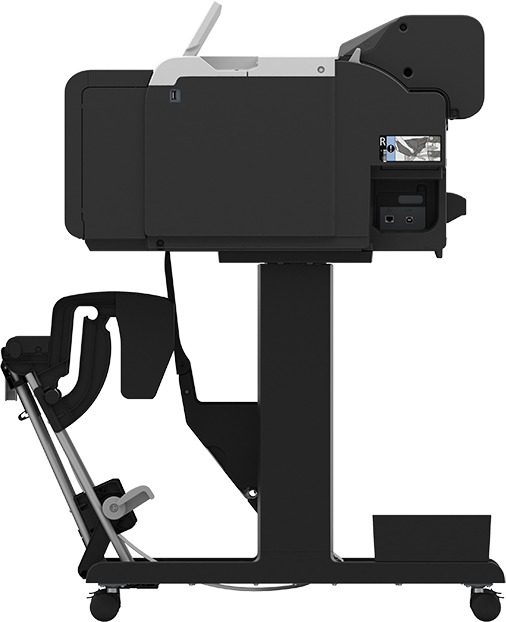

Canon imagePROGRAF TM-615 36" Large Format Printer with Flat Stacking Basket

36" Technical Document Printer — Up to 3.2 D-Size Prints per Minute — LUCIA TD Pigment Ink — Compact Design

The Canon imagePROGRAF TM-615 is a 36" large format technical documents printer designed to deliver enhanced productivity in compact spaces. With print speeds up to 3.2 D-size prints per minute, 5-color LUCIA TD pigment ink, and newly formulated Matte Black ink, the TM-615 produces crisp, defined technical documents with excellent black reproduction and line clarity. Its compact flat-top design, 4.3" tilt touchscreen, automatic paper detection, built-in color calibration, and full-frontal operation help streamline everyday printing workflows.

Canon imagePROGRAF TM Series - Product Showcase Video

Key Features

• LUCIA TD Ink System: The newly formulated Matte Black ink is designed to deliver outstanding black reproduction for a wide range of markets and applications. Pigment ink across all colors helps produce prints that are resistant to fading and easy to handle in outdoor environments.
• Improved Line Clarity: Image processing improvements and LUCIA TD pigment ink help enhance AEC documents and posters with a large color gamut and improved text and line quality for crisp, defined output.
• Color Calibration: Built-in color calibration helps maintain consistent output over time and across multiple imagePROGRAF TM Series devices.
• Fast Production: Print up to 3.2 D-size (24" x 36") prints per minute for efficient technical document production and CAD workflows.
• Security Features: Enhanced security features help protect against unauthorized printing, device access, network intrusions, and data tampering.
• Compact Design: The space-saving flat-top design is well suited for workgroups that need large format technical document printing without taking up unnecessary floor space.
• Ease of Use: Full front access to ink, media, and cartridges makes routine operation convenient, while the 4.3" tilt touchscreen provides easy access to printer settings and workflow controls.
• Automatic Media Detection: After the media roll is loaded, the printer automatically detects the media type and width and estimates the amount of media remaining, with information displayed on the touchscreen.
• Stacking Basket: The included flat stacking basket provides convenient output handling and can hold up to 20 D-size sheets.

Ideal For

• Architecture, Engineering & Construction (AEC) firms
• CAD drawings and technical document production
• Construction and engineering offices
• Technical drawings, plans, maps, and posters
• Businesses needing reliable large format technical printing
• Workgroups with limited floor space

Technical Information

• Printer Type: 36" Large Format Technical Documents Printer
• Ink System: 5-color LUCIA TD pigment ink
• Ink Colors: Matte Black, Black, Cyan, Magenta, Yellow
• Print Speed: Up to 3.2 D-size (24" x 36") prints per minute
• Touchscreen: 4.3" tilt touchscreen
• Media Handling: Automatic detection of media type, width, and estimated roll amount
• Output: Flat stacking basket with capacity for up to 20 D-size sheets
• Connectivity: High-Speed USB port and built-in Gigabit Ethernet
• Mobile Printing: Apple AirPrint® and Mopria® Print Service
• Certifications: EPEAT 1.0 Gold registered and ENERGY STAR certified

Workflow Software Included

• Direct Print Plus: Workflow software designed to simplify large format printing.
• PosterArtist: Create professional posters and signage with an easy-to-use online design tool.
• Free Layout Plus: Arrange multiple pages and images efficiently for large format output.

In The Box

• Main Unit
• Flat Stacking Basket
• 1 Print Head
• Starter Ink Tanks: BK/C/M/Y (90ml), MBK (130ml)
• 1 Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• One Year Printer Warranty Statement
• Print Head Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• USB Port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

TM-615 Printer Size & Dimensions (with stand and basket)

• Basket Open: 50.6" W x 34.8" D x 41.0" H
• Basket Closed: 50.6" W x 29.8" D x 41.0" H
• Weight: 143.3 lbs.

Package Size & Dimensions (with stand, basket and pallet)

• Package Dimensions: 57.6" W x 44.2" D x 30.3" H
• Package Weight: 246.9 lbs.

So Many Ways to Print

Print from your favorite mobile devices using Apple AirPrint® and Mopria® Print Service.

Designed for Productivity

Boost workplace efficiency with the compact Canon imagePROGRAF TM-615 36" technical document printer. Fast print speeds up to 3.2 D-size prints per minute, improved line clarity, 5-color LUCIA TD pigment ink with reformulated Matte Black ink, automatic paper detection, and built-in color calibration help produce precise technical documents efficiently. The ergonomic flat-top design features a 4.3" tilt touchscreen and full-frontal access to ink, media, and cartridges, making the TM-615 well suited for CAD, AEC, engineering, construction, and other technical document workflows where space and productivity matter.
