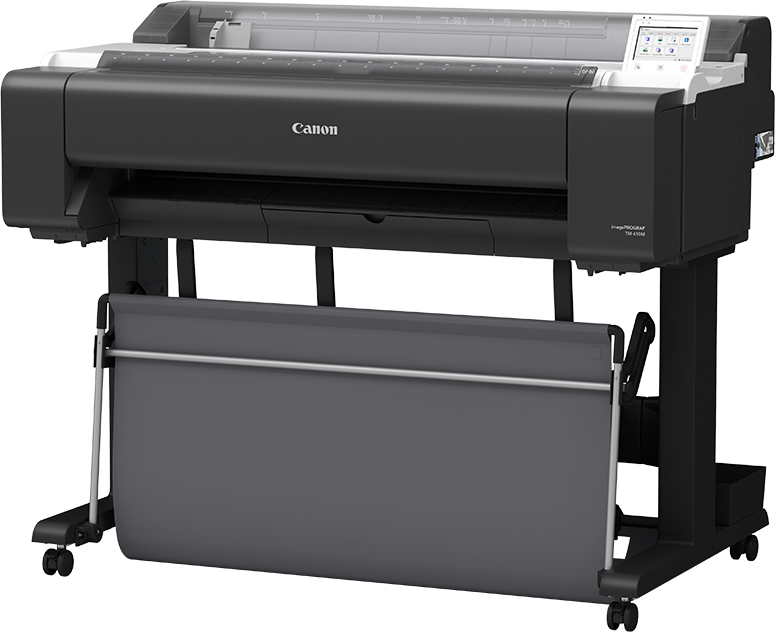

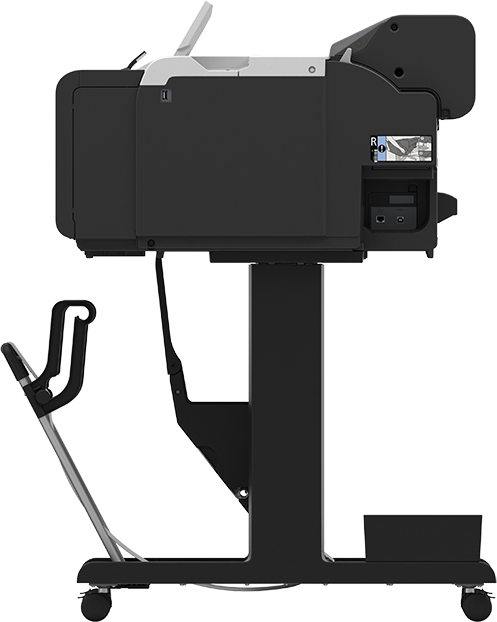

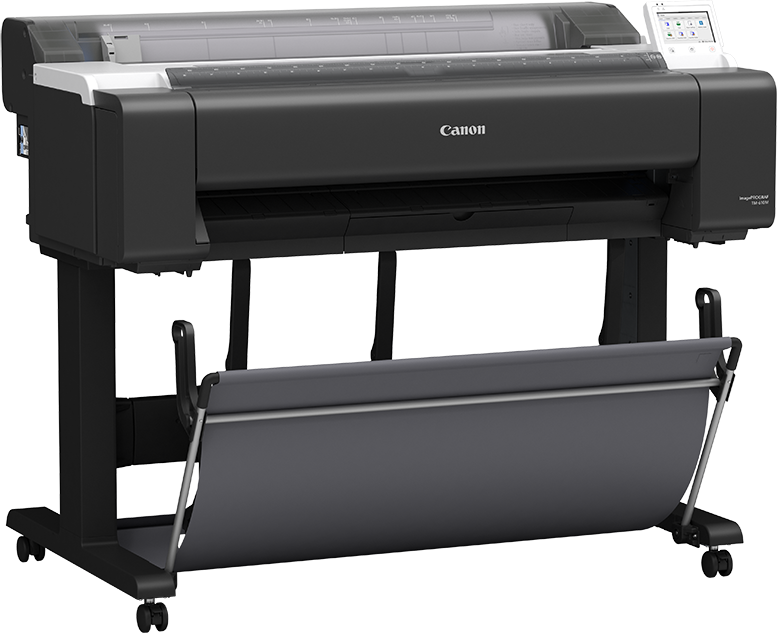

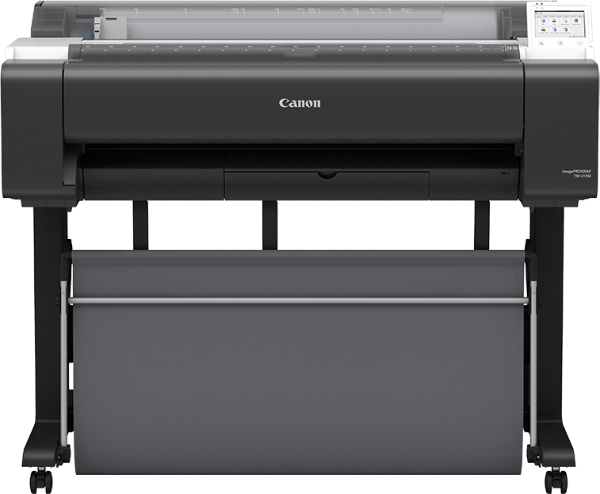

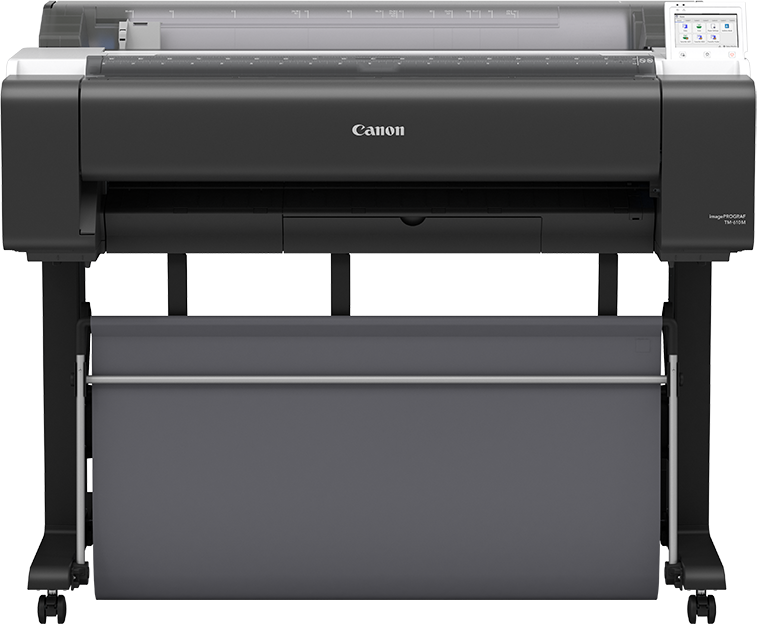

Canon imagePROGRAF TM-610M 36" Large Format Printer with Integrated Scanner and Stackable Basket

36" Technical Document Printer — Up to 3.2 D-Size Prints per Minute — Integrated Scanner — LUCIA TD Pigment Ink

The Canon imagePROGRAF TM-610M is a 36" large format technical documents printer designed to deliver enhanced productivity in compact spaces. With print speeds up to 3.2 D-size prints per minute, 5-color LUCIA TD pigment ink, and a newly formulated Matte Black ink, the TM-610M produces crisp, defined technical documents with excellent line clarity. Its integrated large format scanner, customizable 5" tilt touchscreen, automatic paper detection, and full-frontal operation help streamline workflows while making the printer easy to use.

Canon imagePROGRAF TM Series - Product Showcase Video

Key Features

• Integrated Scanner: Streamline workflows with the compact, integrated scanner. The flat-top design enables easy high-volume feeding at up to 10 ips monochrome and 5 ips color, while the customizable 5" tilt touchscreen UI can be configured to suit your workflow.
• LUCIA TD Ink System: The newly formulated Matte Black ink is designed to deliver outstanding black reproduction for a wide range of markets and applications. Pigment ink across all colors helps produce prints that are resistant to fading and easy to handle in outdoor environments.
• Improved Line Clarity: Image processing improvements and LUCIA TD pigment ink help enhance AEC documents and posters with a large color gamut and improved text and line quality for crisp, defined output.
• Color Calibration: Built-in color calibration helps maintain consistent output over time and across multiple imagePROGRAF TM Series devices.
• Fast Production: Print up to 3.2 D-size (24" x 36") prints per minute for efficient technical document production.
• Security Features: Enhanced security features help protect against unauthorized printing, device access, network intrusions, and data tampering.
• Ease of Use: Full front access to ink, media, and cartridges makes routine operation convenient, while the customizable 5" tilt touchscreen provides easy access to settings and workflow controls.
• Automatic Media Detection: The printer automatically detects the media type, length, and width after the media roll is loaded, with information displayed on the touchscreen.

Ideal For

• Architecture, Engineering & Construction (AEC) firms
• CAD drawings and technical document production
• Construction and engineering offices
• Technical document scanning and printing workflows
• Businesses needing integrated large format scanning and printing
• Workgroups with limited floor space

Technical Information

• Printer Type: 36" Large Format Technical Documents Printer
• Ink System: 5-color LUCIA TD pigment ink
• Ink Colors: Matte Black, Black, Cyan, Magenta, Yellow
• Print Speed: Up to 3.2 D-size (24" x 36") prints per minute
• Integrated Scanner: Built-in large format scanner with customizable workflow interface
• Scanner Speed: Up to 10 ips monochrome and 5 ips color
• Touchscreen: 5" tilt touchscreen with customizable user interface
• Media Handling: Automatic detection of media type, length, and width
• Output: Stackable basket
• Connectivity: High-Speed USB port and built-in Gigabit Ethernet
• Mobile Printing: Apple AirPrint® and Mopria® Print Service
• Certifications: EPEAT 1.0 Gold registered and ENERGY STAR certified

Workflow Software Included

• Direct Print Plus: Workflow software designed to simplify large format printing.
• PosterArtist: Create professional posters and signage with an easy-to-use online design tool.
• Free Layout Plus: Arrange multiple pages and images efficiently for large format output.

In The Box

• Main Unit
• Integrated Scanner
• Stackable Basket
• 1 Print Head
• Starter Ink Tanks: BK/C/M/Y (90ml), MBK (130ml)
• 1 Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• One Year Printer Warranty Statement
• Print Head Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• USB Port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

TM-610M Printer Size & Dimensions (with stand and basket)

• With Basket Opened: 50.6" W x 34.2" D x 41.0" H
• With Stand and Basket Closed: 50.6" W x 29.8" D x 41.0" H
• Weight: 165.3 lbs.

Package Size & Dimensions (with stand, basket and pallet)

• Package Dimensions: 57.6" W x 35.9" D x 30.3" H
• Package Weight: 253.5 lbs.

So Many Ways to Print

Print from your favorite mobile devices using Apple AirPrint® and Mopria® Print Service.

Designed for Productivity

Boost workplace efficiency with the compact Canon imagePROGRAF TM-610M 36" technical document printer. The integrated large format scanner streamlines scanning and printing workflows, while the customizable 5" tilt touchscreen user interface can be tailored to your business needs. Fast print speeds up to 3.2 ppm, improved line clarity, 5-color LUCIA TD pigment ink with reformulated Matte Black ink, automatic paper detection, and full-frontal operation make the TM-610M well suited for technical document production in space-conscious work environments.

Additional Canon imagePROGRAF TM Series Videos
