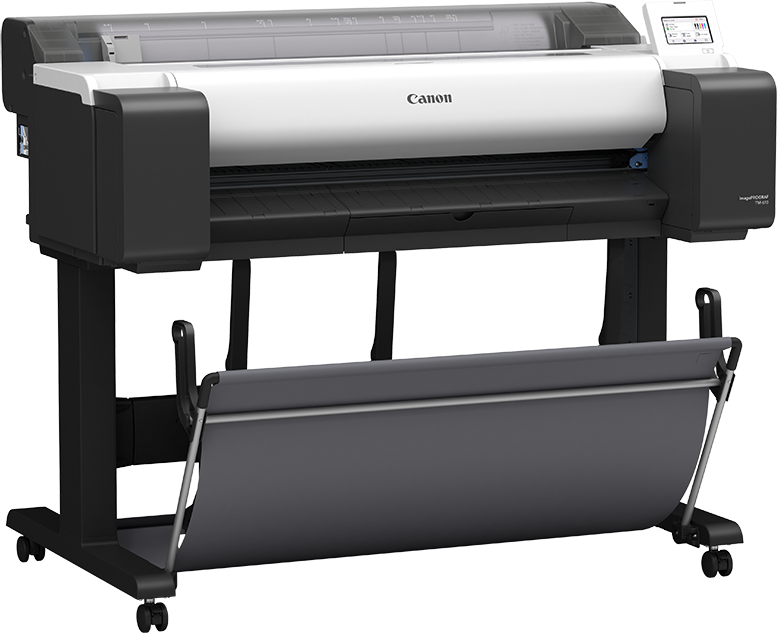

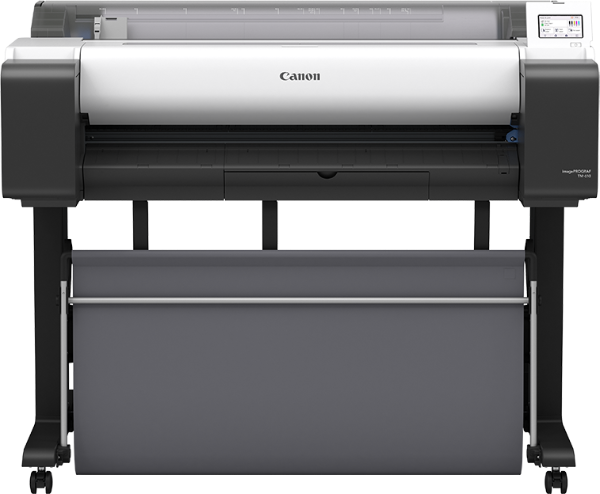

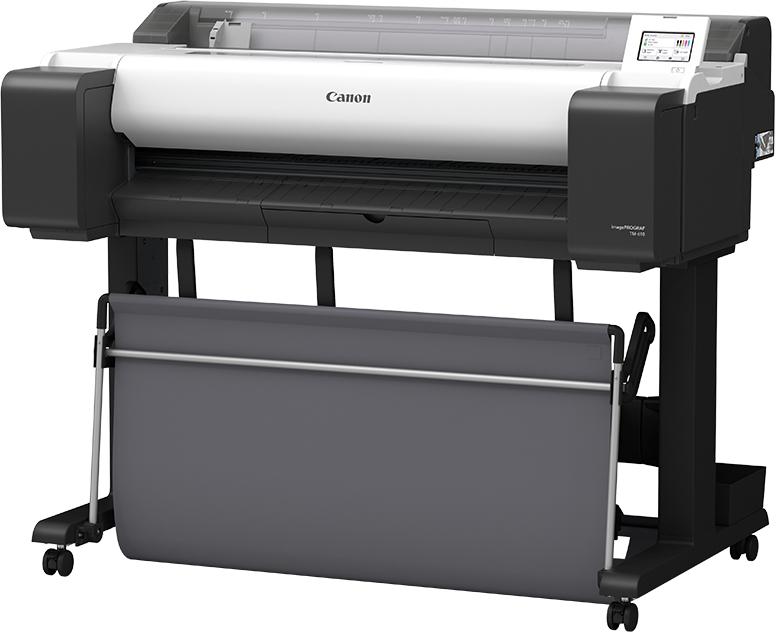

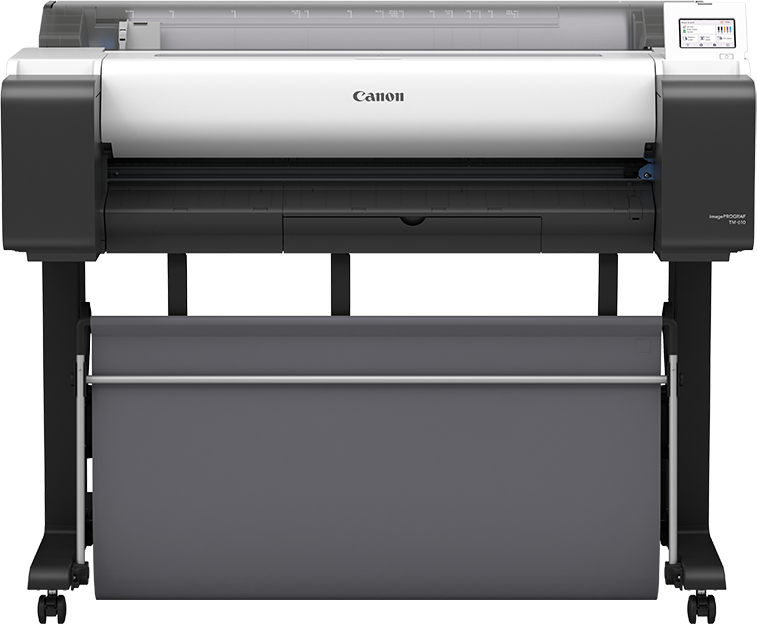

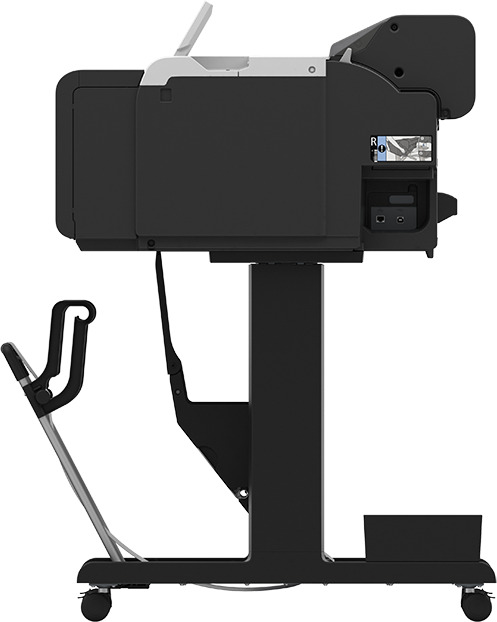

Canon imagePROGRAF TM-610 36" Large Format Printer with Stackable Basket

Regularly $4,999, now only $4,349 after Canon’s $650 Instant Rebate through 10/31/2026!

36" Technical Document Printer — Up to 3.2 D-Size Prints per Minute — LUCIA TD Pigment Ink — Compact Design

The Canon imagePROGRAF TM-610 is a compact 36" large format printer designed for technical documents, CAD drawings, AEC applications, engineering plans, construction documents, posters, and everyday business printing. Featuring Canon’s 5-color LUCIA TD pigment ink system with newly formulated Matte Black ink, the TM-610 produces deep blacks, crisp text, improved line clarity, and clear color reproduction. Print speeds reach up to 3.2 D-size prints per minute, helping improve productivity in busy technical printing environments. Built-in color calibration helps maintain consistent output over time, while automatic media detection identifies the media type, width, and estimated remaining roll amount.

The space-saving flat-top design provides full-frontal access to ink, media, and cartridges, while the 4.3" tilt touchscreen provides convenient control and monitoring. Enhanced security features help protect against unauthorized printing, device access, network intrusions, and data tampering. The TM-610 also includes free workflow software such as Direct Print Plus, PosterArtist, and Free Layout Plus to help streamline everyday large format printing tasks.

Canon imagePROGRAF TM Series - Product Showcase Video

Key Features

• 36" large format technical document printer for CAD, AEC, engineering, construction, and business applications
• Up to 3.2 D-size (24" x 36") prints per minute
• 5-color LUCIA TD pigment ink system with newly formulated Matte Black ink
• Deep black reproduction and improved line clarity for technical drawings, CAD documents, AEC documents, and posters
• Pigment ink system designed to produce durable, easy-to-handle prints
• Built-in color calibration helps maintain consistent color output over time and across TM Series devices
• Automatic media detection identifies media type, width, and estimated remaining roll amount
• 4.3" tilt touchscreen for convenient operation and monitoring
• Full-frontal access to ink, media, and cartridges for easy operation
• Security features help protect against unauthorized printing, device access, network intrusions, and data tampering
• Compact, space-saving flat-top design for offices and workspaces with limited space
• Stackable basket holds up to 20 D-size sheets for organized print output
• EPEAT Gold registered and ENERGY STAR certified
• Supports Apple AirPrint and Mopria Print Service for convenient mobile printing

Ideal For

• Architecture, Engineering, and Construction (AEC) firms
• CAD drawings and technical documents
• Engineering and construction plans
• Technical drawings and line drawings
• Posters and low-coverage color graphics
• Corporate offices and in-house print rooms
• Businesses requiring a compact 36" large format technical document printer

Technical Information

• Printer Type: 5-color 36" large format technical document printer
• Ink System: 5-color LUCIA TD pigment ink
• Ink Colors: Matte Black, Black, Cyan, Magenta, Yellow
• Maximum Print Speed: Up to 3.2 D-size prints per minute
• Print Size: Up to 36" wide
• Display: 4.3" tilt touchscreen
• Media Handling: Roll feed with automatic media type and width detection
• Roll Holder: 2" roll holder with 3" adapters included
• Output: Stackable basket with capacity for up to 20 D-size sheets
• Interfaces: Hi-Speed USB and Gigabit Ethernet
• Mobile Printing: Apple AirPrint and Mopria Print Service
• Workflow Software: Direct Print Plus, PosterArtist, and Free Layout Plus
• Color Management: Built-in color calibration
• Security: Features designed to help protect against unauthorized printing, device access, network intrusions, and data tampering
• Environmental Certifications: EPEAT Gold registered and ENERGY STAR certified

Workflow Software Included

• Direct Print Plus: Helps simplify large format printing workflows and streamline everyday production.
• PosterArtist: Create professional posters and signage using an easy-to-use design platform.
• Free Layout Plus: Helps arrange multiple pages and images efficiently on a single sheet or roll.

In The Box

• Canon imagePROGRAF TM-610 Main Unit
• Stackable Basket
• 1 Print Head
• Starter Ink Tanks BK/C/M/Y (90ml) and MBK (130ml)
• 1 Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• One Year Printer Warranty Statement
• Print Head Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• Hi-Speed USB Port
• Power Cable and Screw
• Gigabit Ethernet (Built-In)

TM-610 Printer Size & Dimensions (with stand and basket)

• Width: 50.6 inches
• Depth: 34.2 inches
• Height: 41.0 inches
• Weight: 138.9 lbs.

Package Size & Dimensions (with stand, basket and pallet)

• Width: 57.6 inches
• Depth: 35.9 inches
• Height: 30.3 inches
• Weight: 224.9 lbs.

So Many Ways to Print

Print from your favorite mobile devices using Apple AirPrint and Mopria Print Service. The TM-610 also features built-in Gigabit Ethernet and a Hi-Speed USB port for convenient wired connectivity in office and production environments.

Designed for Productivity

The Canon imagePROGRAF TM-610 combines fast 36" large format technical document printing with a compact, user-friendly design. With speeds up to 3.2 D-size prints per minute, improved line clarity, deep black reproduction, automatic media detection, built-in color calibration, and full-frontal access to ink and media, the TM-610 is designed to help businesses efficiently produce CAD drawings, AEC documents, technical plans, and posters. The 4.3" tilt touchscreen provides convenient control, while the included stackable basket helps organize finished D-size prints.
