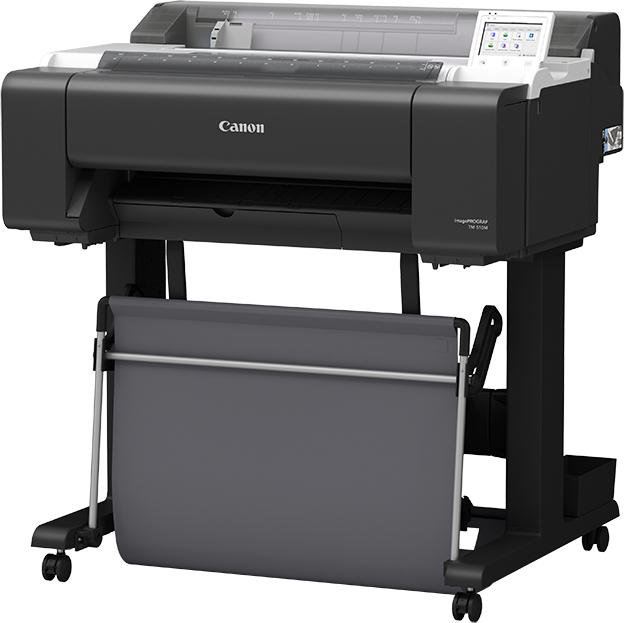

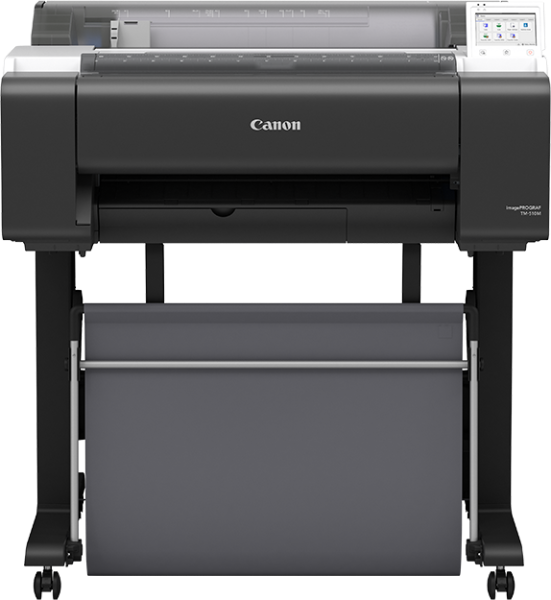

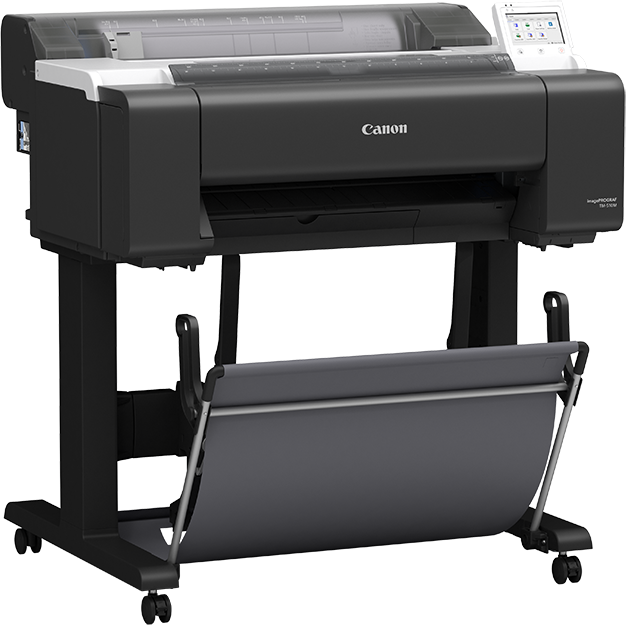

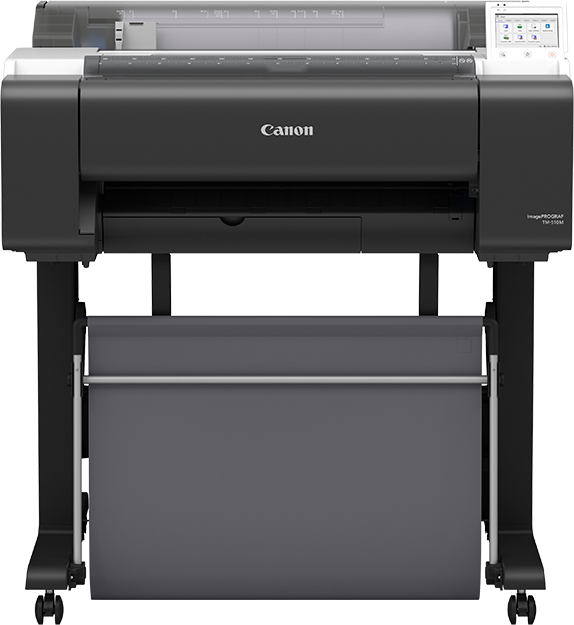

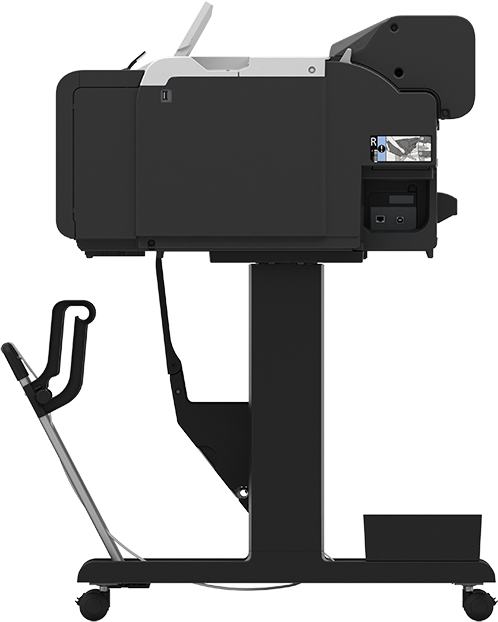

Canon imagePROGRAF TM-510M 24" Large Format Printer with Integrated Scanner and Stackable Basket

Regularly $4,999, now only $4,229 after Canon’s $770 Instant Rebate through 10/31/2026!

24" Technical Document Printer with Integrated Scanner — Up to 2.9 D-Size Prints per Minute — LUCIA TD Pigment Ink — Compact Design

The Canon imagePROGRAF TM-510M is a compact 24" large format technical document printer with an integrated scanner, designed for CAD drawings, AEC applications, engineering plans, construction documents, technical drawings, posters, and everyday business printing. Featuring Canon’s 5-color LUCIA TD pigment ink system with newly formulated Matte Black ink, the TM-510M delivers deep black reproduction, crisp text, precise lines, and clear color output. Print speeds reach up to 2.9 D-size prints per minute, helping improve productivity in busy technical printing environments.

The TM-510M features the first integrated large format scanner in the imagePROGRAF lineup, providing a compact solution for scanning, copying, and printing technical documents. Its space-saving flat-top design provides full-frontal access to ink, media, and cartridges, while the customizable 5" tilt touchscreen provides convenient control and workflow management. Automatic media detection identifies the media type, width, and estimated remaining roll amount, while built-in color calibration helps maintain consistent output over time and across multiple TM Series devices.

Canon imagePROGRAF TM Series - Product Showcase Video

Key Features

• 24" large format technical document printer with integrated scanner
• Up to 2.9 D-size (24" x 36") prints per minute
• 5-color LUCIA TD pigment ink system with newly formulated Matte Black ink
• Integrated scanner helps streamline scanning, copying, and technical document workflows
• Scanner speeds up to 10 ips monochrome and 5 ips color for high-volume feeding
• Customizable 5" tilt touchscreen user interface for convenient operation and workflow control
• Deep black reproduction and improved line clarity for technical drawings, CAD documents, and posters
• Pigment ink system designed to produce durable, easy-to-handle prints
• Built-in color calibration helps maintain consistent color output over time and across TM Series devices
• Automatic media detection identifies media type, width, and estimated remaining roll amount
• Full-frontal access to ink, media, and cartridges for convenient operation
• Enhanced security features help protect against unauthorized printing, device access, network intrusions, and data tampering
• Compact, space-saving flat-top design for offices and workspaces with limited space
• Stackable basket provides convenient finished-print collection and storage
• EPEAT Gold registered and ENERGY STAR certified
• Supports Apple AirPrint and Mopria Print Service for convenient mobile printing

Ideal For

• Architecture, Engineering, and Construction (AEC) firms
• CAD drawings and technical documents
• Engineering and construction plans
• Technical drawings and line drawings
• Document scanning, copying, and reproduction workflows
• Posters and low-coverage color graphics
• Corporate offices and in-house print rooms
• Businesses requiring a compact 24" large format printer and scanner

Technical Information

• Printer Type: 5-color 24" large format technical document printer with integrated scanner
• Ink System: 5-color LUCIA TD pigment ink
• Ink Colors: Matte Black, Black, Cyan, Magenta, Yellow
• Maximum Print Speed: Up to 2.9 D-size prints per minute
• Maximum Print Width: 24 inches
• Scanner: Integrated large format scanner
• Scanner Speed: Up to 10 ips monochrome and 5 ips color
• Display: 5" customizable tilt touchscreen
• Media Handling: Roll feed with automatic media type and width detection
• Roll Holder: 2" roll holder with 3" adapters
• Interfaces: Hi-Speed USB and built-in Gigabit Ethernet
• Mobile Printing: Apple AirPrint and Mopria Print Service
• Workflow Software: Direct Print Plus, PosterArtist, and Free Layout Plus
• Color Management: Built-in color calibration
• Security: Features designed to help protect against unauthorized printing, device access, network intrusions, and data tampering
• Environmental Certifications: EPEAT Gold registered and ENERGY STAR certified

Integrated Large Format Scanner

The Canon imagePROGRAF TM-510M features the first integrated large format scanner for imagePROGRAF, providing a compact solution for printing and scanning technical documents. The integrated scanner is built into the flat-top design to help streamline workflows while conserving valuable floor space. Scan at speeds up to 10 ips in monochrome and 5 ips in color, making the TM-510M well suited for high-volume document workflows. The customizable 5" tilt touchscreen allows users to configure the interface to match their workflow and provides convenient full-frontal operation.

LUCIA TD Pigment Ink System

The Canon imagePROGRAF TM-510M uses a 5-color LUCIA TD pigment ink system featuring Matte Black, Black, Cyan, Magenta, and Yellow. The newly formulated Matte Black ink is designed to produce deep, rich black reproduction, while pigment ink across all colors helps create crisp, durable prints that are easy to handle. The LUCIA TD ink system is well suited for technical documents, CAD drawings, AEC plans, engineering documents, and low-coverage posters.

Improved Line Clarity & Color Consistency

Image processing improvements combined with LUCIA TD pigment ink help produce crisp, defined text and lines for technical documents, CAD drawings, and AEC applications. The newly formulated Matte Black ink helps deliver deep black reproduction, while built-in color calibration helps maintain consistent color output over time and can help provide color consistency across multiple imagePROGRAF TM Series devices.

Automatic Media Detection

The TM-510M makes media handling simple with automatic detection of the media type and width. The printer can also estimate the amount of media remaining on the roll, with information displayed on the touchscreen. The flat-top design provides convenient access for loading media while maintaining the compact footprint of the printer.

Workflow Software Included

• Direct Print Plus: Helps simplify large format printing workflows and streamline everyday production.
• PosterArtist: Create professional posters and signage using an easy-to-use design platform.
• Free Layout Plus: Helps arrange multiple pages and images efficiently on a single sheet or roll.

Security Features

The Canon imagePROGRAF TM-510M includes enhanced security features designed to help protect against unauthorized printing, unauthorized device access, network intrusions, and data tampering. These features help support secure large format printing environments where technical documents and business information need additional protection.

In The Box

• Canon imagePROGRAF TM-510M Main Unit
• Stackable Basket
• 1 Print Head
• Starter Ink Tanks BK/C/M/Y (90ml) and MBK (130ml)
• 1 Maintenance Cartridge (Installed)
• 2" Roll Holder with 3" Adapters
• Installation Guide
• User Registration Card
• One Year Printer Warranty Statement
• Print Head Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• Hi-Speed USB Port
• Power Cable and Screw
• Built-In Gigabit Ethernet
• Integrated Scanner

TM-510M Printer Size & Dimensions

• Width: 38.5 inches
• Depth with Basket Opened: 34.2 inches
• Depth with Stand and Basket Closed: 29.8 inches
• Height: 41.0 inches
• Weight: 138.9 lbs.

Package Size & Dimensions

• Width: 45.4 inches
• Depth: 35.9 inches
• Height: 36.0 inches
• Weight: 229.3 lbs.

So Many Ways to Print

Print from your favorite mobile devices using Apple AirPrint and Mopria Print Service. The TM-510M also features built-in Gigabit Ethernet and a Hi-Speed USB port for convenient wired connectivity in office and production environments.

Designed for Productivity

The Canon imagePROGRAF TM-510M combines fast 24" large format technical document printing, integrated scanning, and a compact, user-friendly design. With print speeds up to 2.9 D-size prints per minute, scanner speeds up to 10 ips monochrome and 5 ips color, improved line clarity, deep black reproduction, automatic media detection, built-in color calibration, and full-frontal access to ink and media, the TM-510M is designed to help businesses efficiently produce and reproduce CAD drawings, AEC documents, technical plans, engineering drawings, and posters. The customizable 5" tilt touchscreen provides convenient control, while the included stackable basket helps collect finished prints.

Environmental Features

The Canon imagePROGRAF TM-510M is EPEAT Gold registered and ENERGY STAR certified. The TM Series has also eliminated EPS packaging and increased the use of recycled material in the chassis, supporting more environmentally conscious office and business printing environments.
