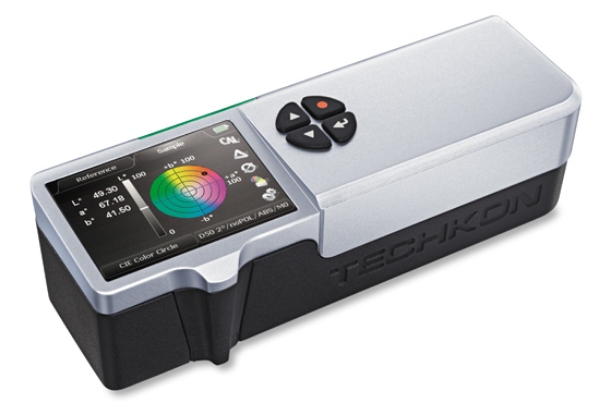

Techkon SpectroDens Advanced Spectro-Densitometer
THE FASTEST & EASIEST WAY TO CONTROL COLOR AND DENSITY IN THE PRESSROOM
Techkon’s SpectroDens delivers unbeatable measurement accuracy and repeatability over time. And it’s the most ergonomic device on the market. That’s why operators consistently prefer the SpectroDens to the cumbersome, slow, clamshell style devices they have used in the past.
SIX reasons YOU NEED the SpectroDens
- STANDARDS COMPLIANCY: The SpectroDens includes full support for ISO and G7® methodologies, and fulfills M0, M1, M2, M3 measuring conditions in accordance to ISO 13655.
- SPEED: The innovative measurement head allows a single spot measurement approximately every 1 second while the patented, side-aperture design lets you easily position the optics over the desired measurement location for even faster operation.
- ACCURACY: The high-resolution spectral engine enables spectral sampling in 10 nm intervals from 400 nm to 700 nm
- VERSATILITY: Seamlessly switch between spot measurements and color bar scanning up to 43-inches long, with the push of a button, and without the need for additional accessories.
- ERGONOMICS: As well as being comfortable and easy to use, no moving parts means the solid state spectral engine can deliver unbeatable measurement accuracy and repeatability over time
- 2018 INTERTECH AWARD WINNER: The judges liked its unique “combination of super-fast measurement speeds, heightened intelligence, and a built-in mode for color bar scanning” and concluded they “foresee SpectroDens4 becoming the spectrophotometer of choice in many pressrooms.”
SpectroDens Highlights
Quick Measurement of Process and Spot Colors
Control your process, spot, Pantone® or other critical brand colors by measuring solid ink density, % dot area, CIE Lab, deltaE, and more.
Track Densities Across Sheet
Shows density variation across press sheet and provides specific ink key adjustments right on instrument display.
Best Color Match
InkCheck™ feature helps press operators minimize color differences (deltaE’s) by providing specific density adjustments to achieve best possible color matches.

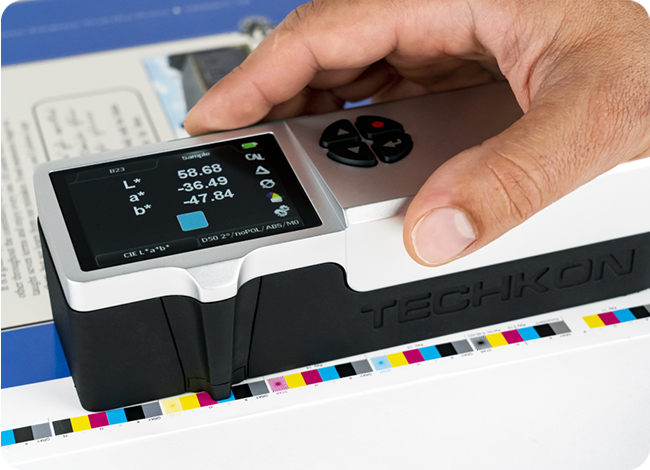

Spot and Scan Measurement in Same Device
Switch from spot measurements to color bar scanning with the touch of a button. Scan color bars up to 43-inches long in only 10 seconds (200 patch maximum); no guide required, 4 wheels keep straight alignment while scanning.

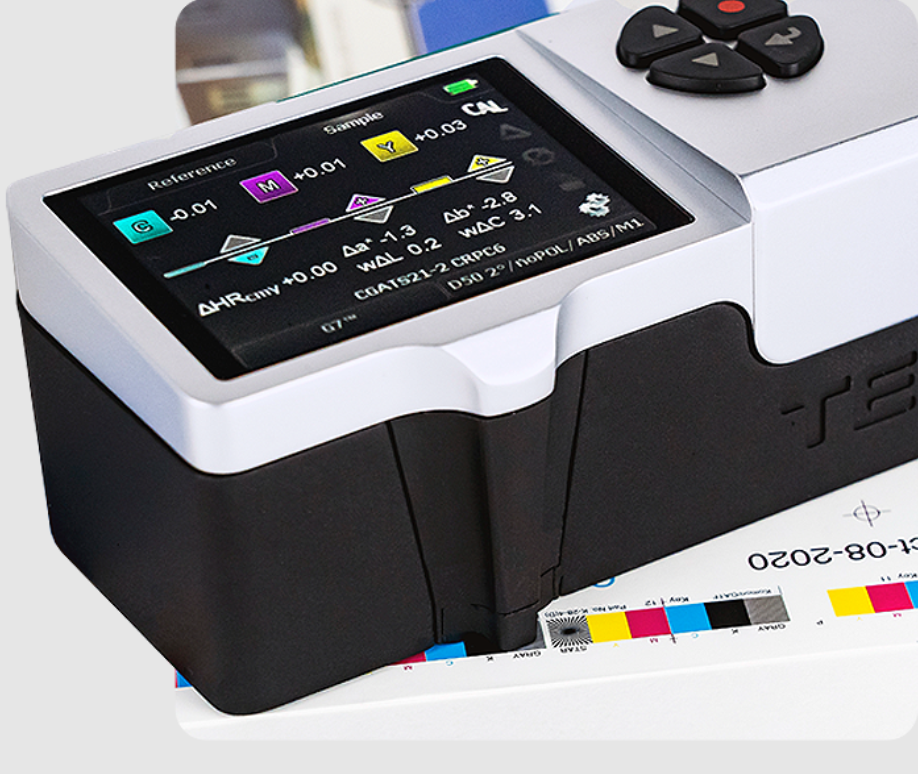

Achieve G7 Compliance
GrayGuide™ feature displays G7 pass/fail indication and specific C,M,Y density adjustments to obtain grayscale values according to G7 specification.
Scan Media Wedge for Quick Proof Verification
Scan control wedge in seconds to confirm proofs against 12647-7 and known datasets like GRACol, SWOP3, SWOP5, IFRA, UGRA/FOGRA, G7™, etc.
Desktop Software Included
Create, edit, and manage color libraries, import/export color data, generate pass/fail QC reports, and manage instrument, all with SpectroConnect.
Tailored to Meet Your Needs
The SpectroDens is available in 3 different models to best meet your color measurement needs (model comparison below).
High-Resolution & NIST Traceable
Spectral sampling in 10 nm intervals from 400 nm to 700 nm fully complies with ISO-13655 requirements.
Solid Aluminum Unibody Case
The unibody case is machined from a single block of aluminum to maximize durability and reliability in harsh production environments.
| Measurement Modes | Basic | Advanced | Premium |
|---|
| Automatic Density, Gray Balance Measurement | ✓ | ✓ | ✓ |
|---|
| Densities CMYK, Spot Color Density | ✓ | ✓ | ✓ |
|---|
| Dot Area, Gain & Contrast | ✓ | ✓ | ✓ |
|---|
| Ink Trapping | ✓ | ✓ | ✓ |
|---|
| Standard USB Interface/ WiFi Optional | ✓ | ✓ | ✓ |
|---|
| Scan Single or Multiple Row Color Bars (Print Curve Density) | | ✓ | ✓ |
|---|
| Printing Plate | ✓ | ✓ | ✓ |
|---|
| Slur and Doubling Value | ✓ | ✓ | ✓ |
|---|
| Expresso Mini (Density Trend) | ✓ | ✓ | ✓ |
|---|
| Supports M0-M3 Measuring Conditions | | ✓ | ✓ |
|---|
| CIELab, DEab, XYZ, CIE LChab | | ✓ | ✓ |
|---|
| CIE Color Circle | | ✓ | ✓ |
|---|
| Gracol G7™ - GrayGuide | | ✓ | ✓ |
|---|
| Remission Curve | | ✓ | ✓ |
|---|
| Ink Check (Color Guide) | | ✓ | ✓ |
|---|
| Scan pre-defined color bars; color and density (G7) | | ✓ | ✓ |
|---|
| On-board Memory stores up to 4,500 Colors | | ✓ | ✓ |
|---|
| dE CIELab, dEcmc, dE94, dE2000 – Displays visual color difference | | ✓ | ✓ |
|---|
| CIE LChab, xyY, Luv, LCHuv, DIN Lab99 | | | ✓ |
|---|
| ISO Check (Scan or Spot Measurements) | | | ✓ |
|---|
| Metamerism index | | | ✓ |
|---|
| Whiteness, Yellowness | | | ✓ |
|---|
| Pass-Fail Tolerance | | | ✓ |
|---|
| Averaging multiple measurements | | | ✓ |
|---|
| Media Wedge; Scan or Spot Measurements (ISO, Ugra/Fogra, Idealliance) | | | ✓ |
|---|
| Scan custom color bars | | | ✓ |
|---|
| Opacity | | | ✓ |
|---|
| Optical brightener measurement | | | ✓ |
|---|
FAQ's

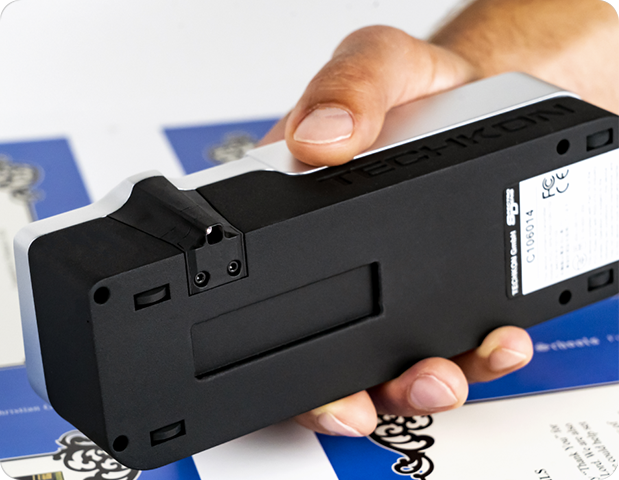

What size aperture is included with SpectroDens?
The SpectroDens comes with a 3mm aperture. A smaller 1.5mm aperture is available at an additional cost.
Is the SpectroDens a densitometer or a spectrophotometer?
Both. Measurement is spectral. The spectral data is converted into density or colorimetric information. The spectral measurement technology calculates not only density values for CMYK, but also exact data for the density of spot colors.
Are there different versions available?
Yes, there are three different performance packages: The Basic model with essential density functions, the Advanced version with extended density functions and colorimetry and the “all-options” flagship the Premium device.
Can the units be upgraded?
Yes, very easy via program upload with the USB connection to a PC.
Which TECHKON products are replaced by SpectroDens?
The former R410 and R410e devices are in functionality comparable to SpectroDens Basic. SpectroDens Advanced replaces the SD 620 and SpectroDens Premium the SP 820 and SP 830 products.
What is included in the package?
The measurement device, charging console with integrated white standard, device case, USB-cable, CD with software SpectroConnect, manual with ISO 9000 certificate.
Is PantoneLIVE Connectivity available with SpectroDens?
The “partner ecosystem” for PantoneLIVE includes several software solution providers for color quality control. Their products are licensed to access PantoneLIVE color libraries. Typically, measurement devices connect with the color QC software which in turn connects with PantoneLIVE. Examples of widely used print color quality applications that connect with PantoneLIVE are MeasureColor and HAVI ColorSentry. Both of these applications, among others, also connect with Techkon SpectroDENS. Any other software application can also be easily connected with Techkon devices. Read more.
