| Specifications |
|---|
| Maximum working width | 67’’ (1680 mm) |
| Maximum temperature | 428°F (220°C) |
| Diameter of drum | 10“ (250 mm) |
| Heating system | Infra-Red Quartz Element |
Heating time from room
temperature to 200°C | 30 min. |
| Digital display of temperature | Yes |
| Belt material | Nomex© reinforced by Kevlar for added durability |
| Speed exposure time 40 seconds | 71 yd / hr - 1.18 yd / min, 65 m / hr - 1.08 m / min |
| Speed exposure time 90 seconds | 18 yd / hr - 0.30 yd / min, 17 m / hr - 0.29 m / min |
| Reverse operation | Yes |

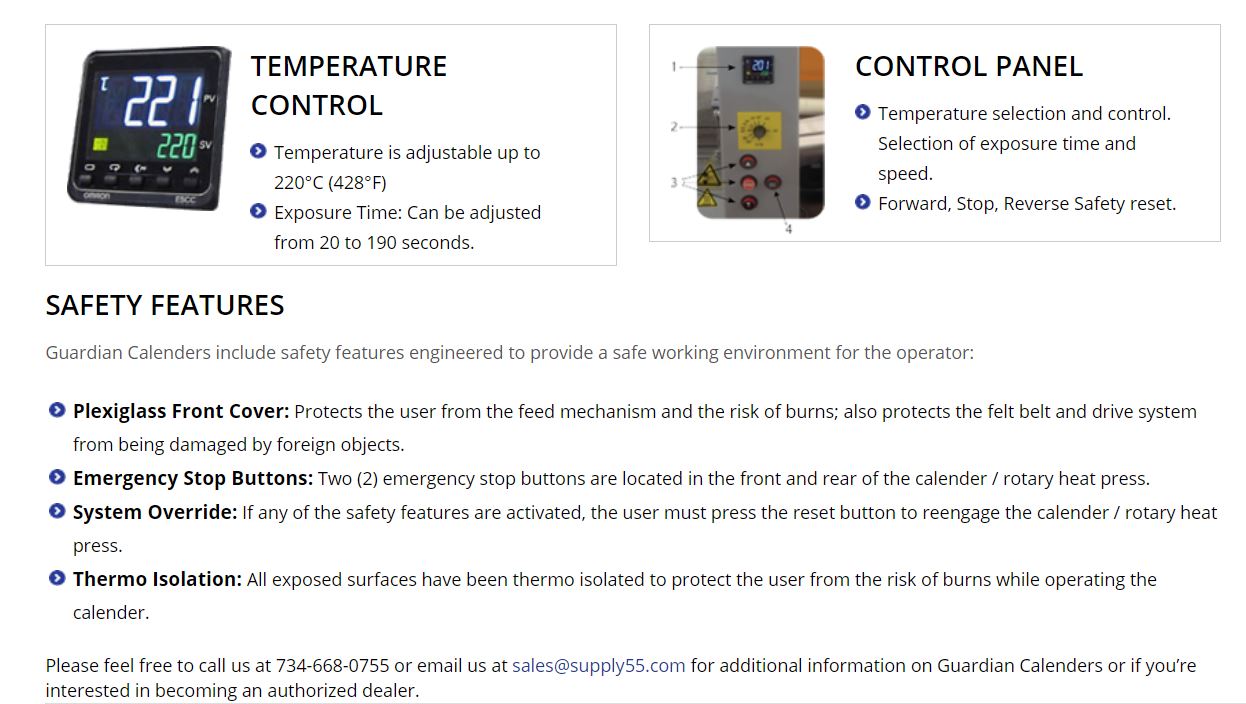

| User protection | Safety cover in front of the rollers with safety switches and reset button on the
control panel |
| Fume extraction | 2 extraction pipes diameter 2” (50mm) linked to both ends of the machine to vacuum
smoke and vapors produced during sublimation |
Number of self locking mandrels

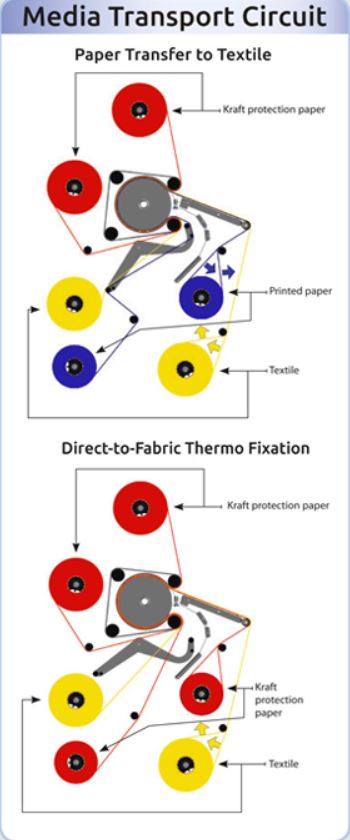

included | 6 universal mandrels, 3 feed, 3 take-up |
| Maximum material roll dimension | Upper position 10” (250 mm), Mid front position 10” (250 mm), Low front position
10” (250 mm) |
| Maximum roll weight | 66 Lbs. (30kg) |
| Power | 5500 W |
| Power adaptor | Plug L6-30P, Receptacle L6-30R |
| Voltage | 208V / 50Hz - 60Hz Single Phase Circuit, Stable Power Required at 214V Output to Calender |
| Amperes | Max. 28 Amperes |
| Dimensions of the machine | W 81” x D 38” x H 61” / W 208 x D 96 x H 155 cm |
| Weight of the machine | 1060 Lbs (480 kg) |
| Dimensions of the shipping crate | W 86” x D 37” x H 66” / W 218 x D 93 x H 170 cm |
| Shipping weight | 1322 Lbs (600 kg) |
| RoHS Compliant / CE Approved | Yes |
| Dye Sublimation Paper Transfer | Requires 100% polyester fabric for dye sublimation paper transfer applications |
| Direct Print to Natural Fiber Fabric | Requires Pigmented or Latex ink for direct printing to natural fiber fabric, after printing the fabric is fixed using the calender |
| Warranty | One year parts warranty
1) Heat elements are a consumable item
2) The belt and drum are not covered by warranty for operator related damage |
