Epson SureColor R5070 64" Roll-to-Roll Resin Signage Printer -This 64" roll-to-roll signage printer consistently provides professional quality vinyl, banner, vehicle wrap and other traditional signage prints at remarkable speeds.
Regularly $23,495, now only $16,495
after $7,000 Epson Instant Rebate through 05/31/2025!
Availability: Call for Availability
Epson SureColor R5070 64" Roll-to-Roll Resin Signage Printer
*PLEASE NOTE THAT THE R SERIES WARRANTY IS THE SELF-SERVICE PRINTHEAD WARRANTY
Tackle every print job with versatile resin ink.
As a high-volume print shop, you need powerful, versatile printing solutions that can tackle every job with unparalleled speed and efficiency. Now, with breakthrough resin ink, delivering astounding quality prints at true production speeds has never been more convenient.
Introducing the SureColor® R5070 - an all-new, high-performance signage printing solution, only from Epson®.
The first of its kind to feature multi-purpose resin ink, this 64" roll-to-roll signage printer consistently provides professional-quality wallpapers, fabrics, uncoated papers and traditional signage at remarkable speeds. Designed to keep up with fast-paced print shops, the R5070 offers immediate lamination, user-replaceable PrecisionCore® printheads and ultra low-cost inks for ease and savings unlike ever before.
FEATURES:
- Amazing image quality — vibrant 6-color resin inks, plus optimizer, produce astounding-quality prints
- Reliable color consistency — delivers consistently high image quality for repeat jobs, brand colors, wall tiling applications and more
- Immediate lamination — and high scratch resistance increase total productivity
- Low ink costs — just $0.155 per milliliter; features 1.5L bulk ink packs for enhanced efficiency and reduced total cost of ownership
- User-replaceable printheads — for convenient self-serviceability and minimal downtime
- Supports diverse range of applications — print fabrics, wallpapers, uncoated papers and more
- Print speed — state-of-the-art PrecisionCore user-replaceable printhead delivers high-quality images at true production speeds
- Enterprise software suite — track jobs, manage variable data and streamline workflow with Epson Edge Print
- Epson signage portfolio — tackle the full spectrum of print jobs with Epson S-Series and R-Series printers
Eco Features:
- Recyclable product
- Epson America, Inc. is a SmartWay® Transport Partner
- GREENGUARD Certified
- WEEE Compliant
- RoHS Compliant
- REACH Compliant

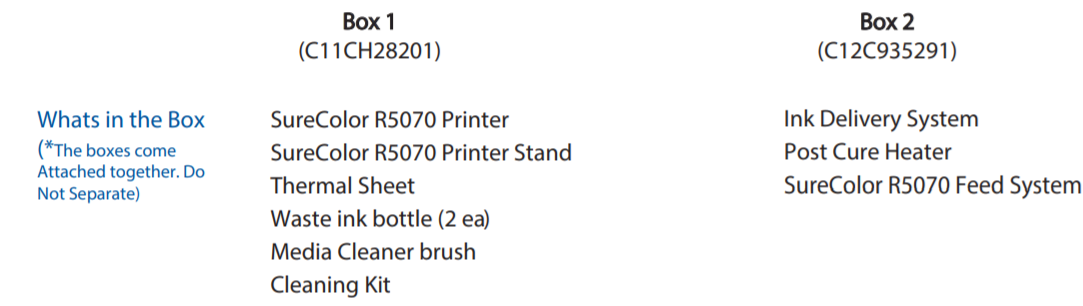

What's in the Box?:
Print
- Printing Technology: Advanced PrecisionCore TFP® 12-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology
- Ink Type: UltraChrome® RS with High-Density Black ink; 6-color+ Optimizer
- Production Edition Ink Configuration: C, M, Y, K, LC, LM, OP, ML
- Nozzle Configuration: Color and monochrome heads; 1,600 nozzles
- Droplet Technology: Variable Droplet Technology
- Maximum Resolution: 1200 x 2400 dpi
- Printer Language/Drivers: Epson ESC/P® raster
Epson Ink Supply System
- Ink Supply Tank Fill Volume: 1,500 mL (1 of each color); 6 colors total
- Ink Pack Shelf Life: 2 years from printed production date
- Printer is designed for use with Epson ink packs only, not third party ink systems*.
Roll Media Handling
- Single Roll-to-roll: 64" wide
- Media Core: 2" or 3" core diameter
- Maximum Roll Diameter: Up to 9.8"
- Maximum Roll Weight: Up to 100 lb
- Media Thickness: 1 mm thick
- Take-up Reel: Fully automatic “wind in” or “wind out” with tension control
Printable Area and Accuracy
- Maximum Paper Width: 64"
- Minimum Paper Width: 11.8"
- Left/Right Margins: 0.20" (0.40" total)
- Maximum Printable Width: Up to 63.6"
General
- Weight and Dimensions (W x D x H): 116" x 41" x 70" (2,949 mm x 1,045 mm x 1,774 mm)
- Weight: 990 lbs (449kg)
- Acoustic Noise Level: Approx 66.1 dB
- Temperature Operating: 59 F to 86 F (15 C to 30 C)
- Relative Humidity Operating: 20 – 80% (no condensation)
- Operating (recommended): 40 – 60% (no condensation)
Printer Interfaces
- Hi-Speed USB 2.0 (1 port)
- 1000Base-T Ethernet (1 port)
- Operating Systems Supported: Windows® 10 and 8.1
- Epson Edge Print: Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
- Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection
General (Continued)
- Electrical Requirements:
- Printer: Requires two outlets
- Voltage: AC200-240V
- Frequency: 50/60 Hz
- Current: 16A x 2
- Power Consumption:
- Printing: Approx 4.6 kW
- Standby: Approx 220 W
- Sleep Mode: Approx 44 W
- Power Off: Approx 1.0 W
- Limited Warranty and Service: Standard 1-year limited warranty.
- Optional Epson Service programs available for a total of 3 years of coverage.
- Country of Origin: China
