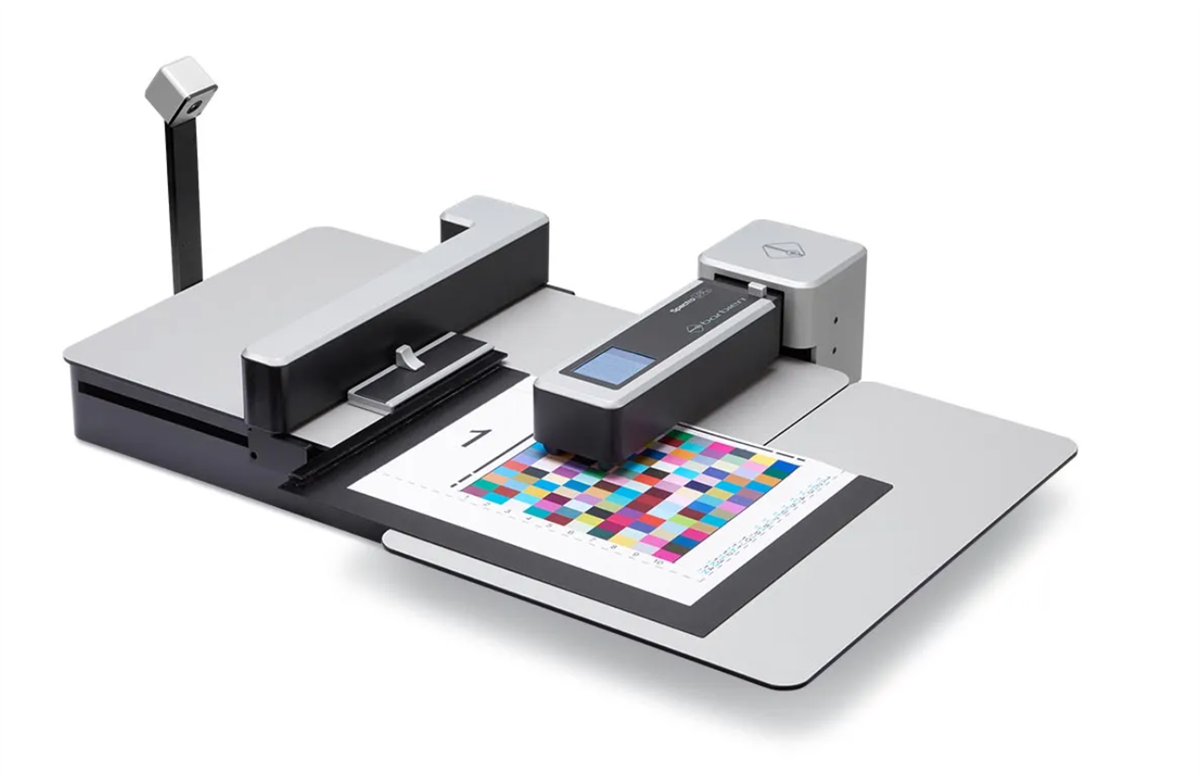

Barbieri Spectro LFP qb Automatic Reflection | Transmission Spectrophotometer
The Spectrophotometer Platform: build for flexibility!
The Spectro LFP qb combines incredible universality and precision with a range of new features and supports the M1 measurement mode, which is a must for many customers. It is a platform that satisfies the most stringent customer requirements – and an investment in the future that optimizes the workflow in the spirit of sustainability.
☑ Reflection and Transmission measuring modes
☑ Automated color chart measurement
☑ measuring aperture of 2, 6 and 8 mm diameter
☑ Detachable spectral unit for spot color measurements Display, battery, WiFi
Standard equipment:
- C5A10 Spectro LFP qb Spectral Unit
- C5A20 Spectro LFP qb Platform (with table extension)
- C5A30 Spectro LFP qb Sensing Unit
- C5H40 Standard reflection sample holder
- C5H50 Standard transmission sample holder
- C5H70 Spot Measurement Guide
- Power adapter
- USB cable Type C
- Dust cover
- Operating manual
- Measuring software: Barbieri Gateway for Microsoft Windows, Mac OS (free download)
Application fields
Linearization and profiling of professional digital output devices on a wide variety of materials (reflective and transparent)
Suited for Fogra 51 and G7: Conformance to new ISO 13655-2017 M1 part 1/ method a", M0, M2, M3 measurement condition ...reflection and transmission!
Features:
- Supported by most RIP-software
- Some examples of materials which can entirely be automatically measured: textiles, glass, backlit film, paper, vinyl, silk, fabrics, fine art paper, plexiglas, adhesives, banner, canvas, polyester, PVC, wrap film, cardboard, plastic plates, gypsum plates, wood, stone, ceramic plates.
- Includes free measurement software Barbieri Gateway for Mac and PC
- Calibration and Certification Service recommended every 18 months
- Real D50 illumination to guarantee conformance to new ISO 13655-2017 “M1 part 1/ method a”, M0, M2, M3 measurement condition …reflection and transmission!
- Camera-supported sensing unit for instant automatic positioning
- Ethernet and USB connection
- Geometry: reflection 45°/0° | transmission d/0°

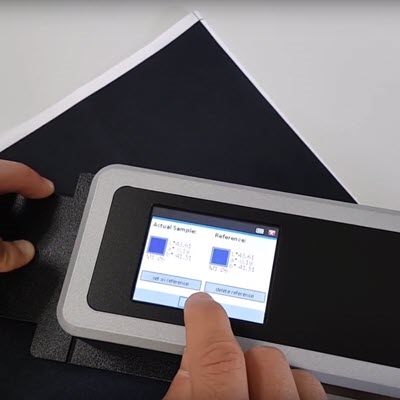

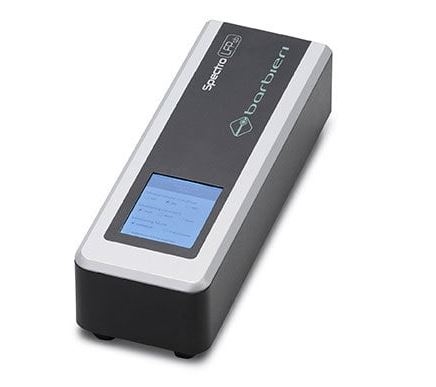

- Detachable Spectral Unit:
- Touch display
- Battery operated
- WiFi and USB connection
- Lab values shown on display, set reference color, show Delta E
- Sensing Unit:
- Camera and according software
- Quick auto-positioning: faster measurements, bigger measuring area
Markets and Applications:
- Digital Signage printing
- Industrial and Décor printing
- Labels and Packaging
Materials:
Glass, Plexiglas, Plastic plates, Backlit Film, Wrap film
Paper, Fine art paper, Cardboard, Canvas
Vinyl Banner, PVC
Wood, Stone, Ceramic
Adhesive, Polyester, Wallpaper, Soft Signage
