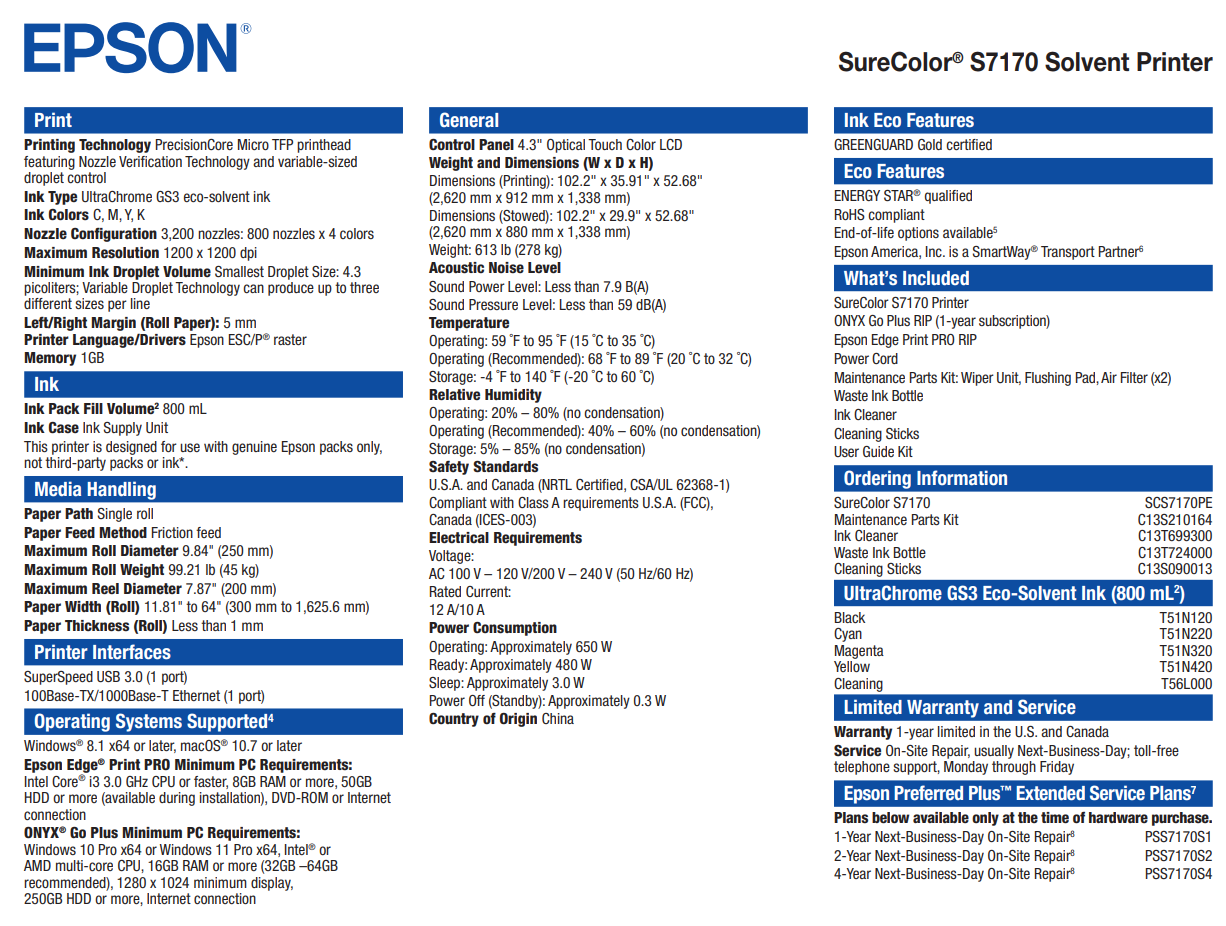

Print

Printing Technology	PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control
Ink Type	UltraChrome GS3 eco-solvent ink
Ink Colors	C, M, Y, K
Nozzle Configuration	3,200 nozzles: 800 nozzles x 4 colors
Maximum Resolution	1200 x 1200 dpi
Minimum Ink Droplet Volume	Smallest Droplet Size: 4.3 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Left/Right Margin (Roll Paper)	5 mm
Printer Language/Drivers	Epson ESC/P® raster
Memory	1GB

Ink

Ink Pack Fill Volume	800 mL
Ink Case	Ink Supply Unit
Note	This printer is designed for use with genuine Epson packs only, not third-party packs or ink*.

Media Handling

Paper Path	Single roll
Paper Feed Method	Friction feed
Maximum Roll Diameter	9.84" (250 mm)
Maximum Roll Weight	99.21 lb (45 kg)
Maximum Reel Diameter	7.87" (200 mm)
Maximum Width (Roll)	11.81" to 64" (300 mm to 1,625.6 mm)
Paper Thickness (Roll)	Less than 1 mm

Printer Interfaces

USB	SuperSpeed USB 3.0 (1 port)
Ethernet	100Base-TX/1000Base-T Ethernet (1 port)

Operating Systems Supported

Windows	Windows® 8.1 x64 or later
macOS	macOS® 10.7 or later
Epson Edge® Print PRO Minimum PC Requirements	Intel Core i3 3.0 GHz CPU or faster, 8GB RAM or more, 50GB HDD or more (available during installation), DVD-ROM or Internet connection
ONYX® Go Plus Minimum PC Requirements	Windows 10 Pro x64 or Windows 11 Pro x64, Intel® or AMD multi-core CPU, 16GB RAM or more (32GB–64GB recommended), 1280 x 1024 minimum display, 250GB HDD or more, Internet connection

General

Control Panel	4.3" Optical Touch Color LCD
Dimensions (W x D x H)	(Printing) 102.2" x 35.91" x 52.68" (2,620 mm x 912 mm x 1,338 mm) (Stowed) 102.2" x 29.9" x 52.68" (2,620 mm x 880 mm x 1,338 mm)
Weight	613 lb (278 kg)
Acoustic Noise Level	Sound Power Level: Less than 7.9 B(A) Sound Pressure Level: Less than 59 dB(A)
Temperature	Operating: 59 ºF to 95 ºF (15 ºC to 35 ºC) Recommended: 68 ºF to 89 ºF (20 ºC to 32 ºC)
Storage - Temperature	-4 ºF to 140 ºF (-20 ºC to 60 ºC)
Relative Humidity	Operating: 20% – 80% (no condensation) Recommended: 40% – 60% (no condensation)
Relative Humidity - Storage	5% – 85% (no condensation)
Safety Standards	U.S.A. and Canada (NRTL Certified, CSA/UL 62368-1)
EMI	Class A requirements U.S.A. (FCC), Canada (ICES-003)
Voltage	AC 100 V – 120 V / 200 V – 240 V (50 Hz / 60 Hz) Rated Current: 12 A / 10 A
Power Consumption - Operating	Approximately 650 W
Power Consumption - Ready	Approximately 480 W
Power Consumption - Sleep	Approximately 3.0 W
Power Consumption - Power Off (Standby)	Approximately 0.3 W
Country of Origin	China

Ink Eco Features

Certification

GREENGUARD Gold certified

Eco Features

Certifications	ENERGY STAR® qualified, RoHS compliant
Recycling	End-of-life options available
Transport	Epson America, Inc. is a SmartWay® Transport Partner

What's Included

Included Items

SureColor S7170 Printer, ONYX Go Plus RIP (1-year subscription), Epson Edge Print PRO RIP, Power Cord, Maintenance Parts Kit: Wiper Unit, Flushing Pad, Air Filter (x2), Waste Ink Bottle, Ink Cleaner, Cleaning Sticks, User Guide Kit

Ordering Information

SureColor S7170	SCS7170PE
Maintenance Parts Kit	C13S210164
Ink Cleaner	C13T699300
Waste Ink Bottle	C13T724000
Cleaning Sticks	C13S090013

UltraChrome GS3 Eco-Solvent Ink (800 mL)

Black	T51N120
Cyan	T51N220
Magenta	T51N320
Yellow	T51N420
Cleaning	T56L000

Limited Warranty and Service

Warranty	1-year limited in the U.S. and Canada
Service	On-Site Repair, usually Next-Business-Day; toll-free telephone support, Monday through Friday

Epson Preferred Plus™ Extended Service Plans

1-Year Next-Business-Day On-Site Repair	PSS7170S1
2-Year Next-Business-Day On-Site Repair	PSS7170S2
4-Year Next-Business-Day On-Site Repair	PSS7170S4
