Just Normlicht GL SPECTIS 1.0 VIS Spectroradiometer
Precise Light Measuring Technology
This high-quality and easy to operate device gives you all you need for reliable light measurement. Implementing this practical instrument in your development and production environments can help you improve the light quality of your product and accelerate development.
With its coded and interchangeable measurement head, the GL Spectis 1.0 can be combined with optical probes, integrating spheres or goniometers to measure any type of light sources, displays as well as LED lights. Thanks to its high sensitivity and accuracy, it is the perfect solution for light measurement.
Compact Yet Powerful
Don’t let the small size fool you. The Spectis 1.0 handheld spectroradiometer can measure any light source and provide the results you need. Evaluate products meet spec before you buy, develop better products faster, or ensure your products are manufactured properly. The Spectis 1.0 can be configured to do it all.
Versatile
Depending on your application you can use this handheld spectroradiometer as an illuminance / irradiance meter when you connect it to your PC, you can plug it to a small integrating sphere for single LEDs color and lumen measurements or combine it with a larger integrating sphere for the testing of luminous flux and efficacy of LEDs. Luminance testing is also possible with the use of dedicated GL Opti Probes.
Cost Effective
The GL Spectis 1.0 is a measuring device suitable for the final assessment of lamps as well as for testing of complete lighting installations. Combining high accuracy and low cost, it is an excellent instrument choice for common LED measurement applications.
More Than Just a Handheld
Accessories for a range of applications
Illumination and Irradiance
This handheld spectroradiometer is calibrated to provide absolute values of illuminance and color but also provides detailed Spectral Power Distribution and irradiance values [mW/m2]. Use this on optical bench or tripod to create a measurement setup connected to PC.
Luminous Flux of Single LEDs
Connect this handheld spectroradiometer with our GL OPTI SPHERE 48 to measure flux (lumen) and color of single LEDs. This is ideal for incoming QC and evaluation of LEDs, drivers and other components during development.
Luminance and Radiance
Available luminance optical probes can be connected and calibrated with this handheld spectroradiometer to measure flat emitting surfaces like displays, screens and back lights. The integrated coding system in all spectrometers automatically downloads the appropriate calibration file and measures cd/m2. Check available Opti Probes for Luminance and Illuminance.
Light Intensity Distribution
Pair this universal light measurement spectrometer with our small GLG 2-300 goniometer or the large GLG 20-1500 system for accurate LED lighting measurements and get photometric files and colorimetric data at once.
Spectis 1.0 Handheld Spectroradiometer Usage
The Spectis 1.0 handheld spectroradiometer was developed to allow consultants outside the laboratory to verify the quality of light, but providing a portable, dependable and repeatable light measurement device. Our design focus was simple – to provide lighting professionals with a practical device they could trust. No need to send everything to the main laboratory for testing when you need to measure and decide onsite.
This device is equipped with the Hamamatsu sensor to provide stability, low noise electronic to increase its dynamic range, temperature sensor to monitor and compensate for the dark current shift. We added the system of interchangeable accessories to support different types of measurements. Finally, it is equipped with a precisely designed measurement head to provide reliable lighting measurement. Initially used as a handheld device, despite its small size, it is a powerful instrument which becomes a part of many different light measurement systems we provide today.

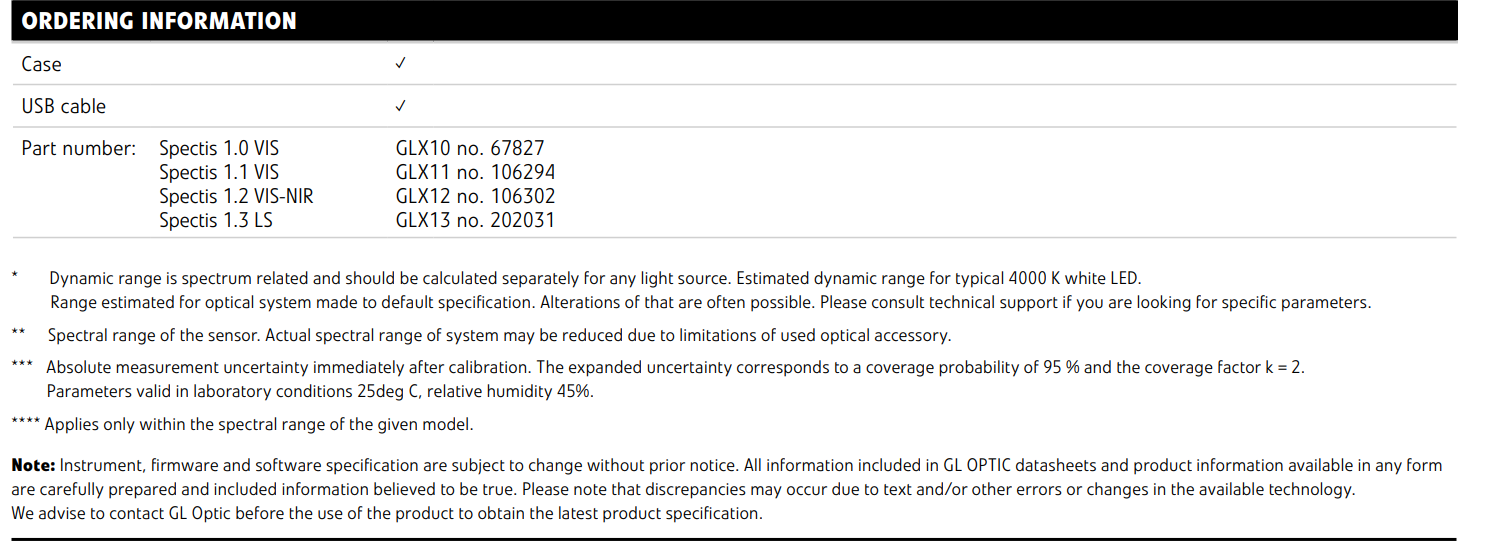

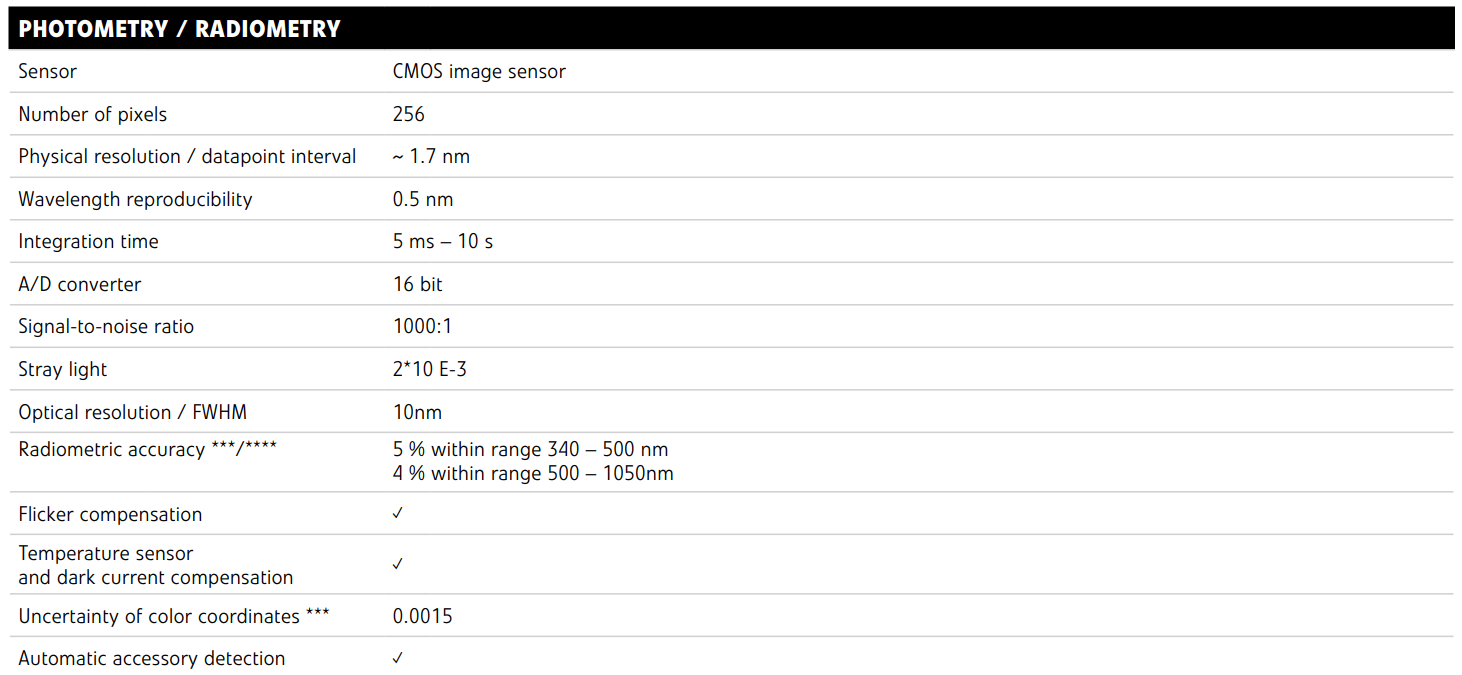

DATA SHEET
