HP Latex R2000 Plus Printer
Unprecedented quality and colors on rigid up to 98 inches
With the new HP Latex R series printer, you can transform any rigid or flexible substrate with amazing colors. And with no smell, your new colors, new substrates, and new possibilities create the perfect opportunity to set yourself apart from your competition.
Whites that fade to yellow are becoming a thing of the past with white HP Latex Ink, an industry breakthrough. With the new HP Latex R-series printer, you can transform your business all while adding value to new applications. That includes the glossiest of whites on new substrates like wood and acrylic. It's time you print white like you never have before.
Smarter printing designed for more productivity and more new business. With the new HP Latex R series, you can maximize uptime and meet production peaks—without compromising quality. Finally, a printer with proactive alerts and preventive services.
The Plus models include:
- Additional 6 month warranty (18 total months.)
- Ink
- Standard delivery to curb (no rigging)
- Maintenance kit
- Print heads
- ph cleaning kit
- R2R adapter
- White ink upgrade kit
- Extensiion tables all included.
* Not included:
- Rigging
- Uptime kits ($3000)

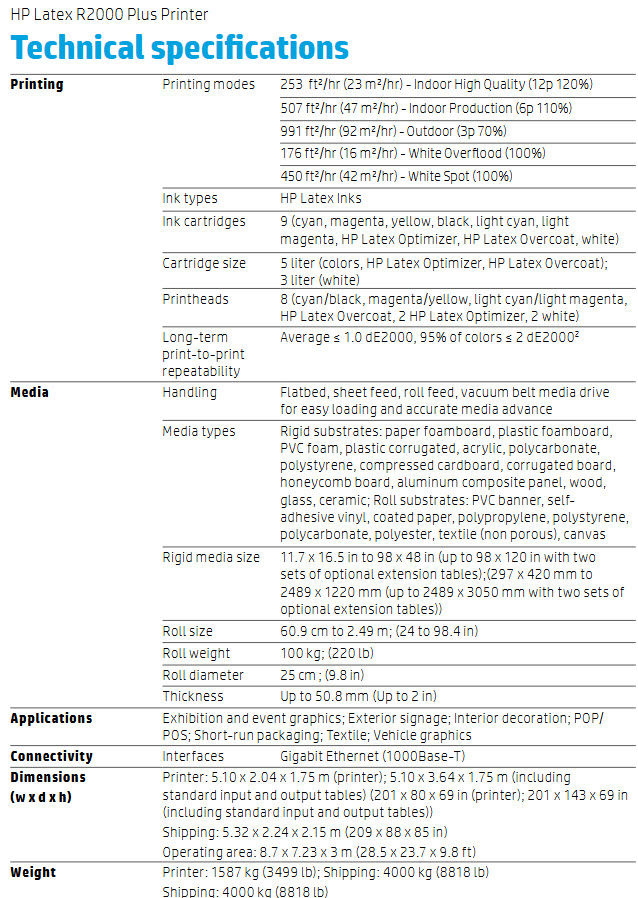

HP Latex R2000 Specifications
Printing
Print speed
270 ft²/hr - Indoor High Quality (12p 120%); 520 ft²/hr - Indoor Production (6p 110%); 1014 ft²/hr - Outdoor (3p 70%); 194 ft²/hr - White Overflood (100%); 431 ft²/hr - White Spot (100%)[1]
Print technology
HP Latex Printing Technologies
Ink types
HP Latex Inks
Number of print cartridges
9 (cyan, magenta, yellow, black, light cyan, light magenta, HP Latex Optimizer, HP Latex Overcoat, white)
Print heads
8 (cyan/black, magenta/yellow, light cyan/light magenta, HP Latex Overcoat, 2 HP Latex Optimizer, 2 white)
Print head nozzles
10560
Print repeatability
Average ≤ 1.0 dE2000, 95% of colors ≤ 2 dE2000[2]
(Reflective measurements on a 943 color target under CIE standard illuminant D50, and according to the standard CIEDE2000 as per CIE Draft Standard DS 014-6/E:2012. Backlit substrates measured in transmission mode may yield different results.)
Media
Finished output handling
Flatbed, sheet feed, roll feed, vacuum belt media drive for easy loading and accurate media advance
Media types
Rigid substrates: paper foamboard
plastic foamboard
PVC foam
plastic corrugated
acrylic
polycarbonate
polystyrene
compressed cardboard
corrugated board
honeycomb board
aluminum composite panel
wood
glass
ceramic; Roll substrates: PVC banner
self-adhesive vinyl
coated paper
polypropylene
polystyrene
polycarbonate
polyester
textile (non porous)
canvas
Non-printable area (roll media)
45.3 in (beginning of roll); 35.4 in (end of roll)
Roll maximum input
1
Roll maximum weight
220 lb
Roll external diameter
9.8 in
Dimensions and weight
Minimum dimensions (W x D x H)
201 x 80 x 69 in (printer); 201 x 143 x 69 in (including standard input and output tables)
Package dimensions (W x D x H)
209 x 88 x 85 in
Weight
3499 lb
Environmental ranges
Operating temperature range
59 to 86ºF
Operating humidity range
20 to 70% RH (non-condensing)
Acoustic
Power
Print speed
10 to 12 kW (typical)
Certifications
Environmental certification
WEEE
RoHS (EU, China, Korea, Singapore, Turkey, Ukraine)
India Waste Management Rules
REACH
CA 65 Prop
ErP Ecodesign Directive

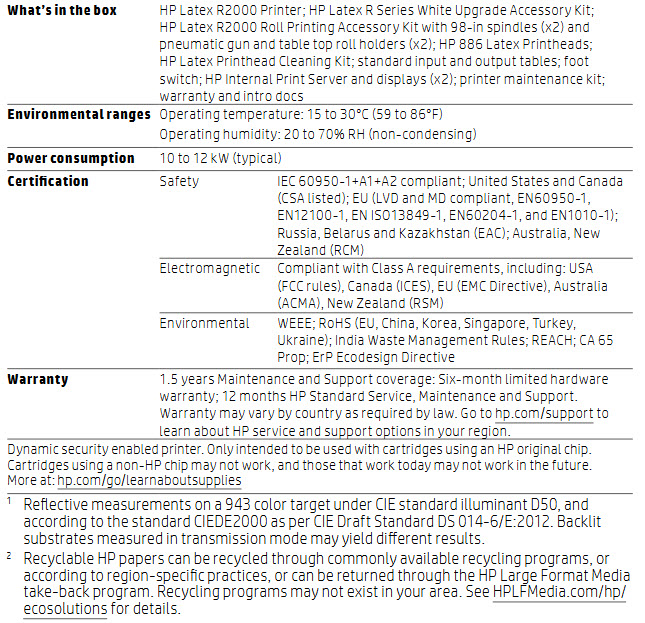

What's included
What's in the box
HP Latex R2000 Printer, HP Latex R Series White Upgrade Kit, HP Latex R2000 Roll Printing Kit with 98-in spindles (x2) and pneumatic gun adapter and table top roll holders (x2), HP 886 Latex Printheads, HP Latex Printhead Cleaning Kit, standard input and output tables, foot switch, HP Internal Print Server and displays (x2), printer maintenance kit, warranty and intro docs
Warranty
180-day limited hardware warranty. Warranty may vary by country as required by law. Go to
http://www.hp.com/support to learn about HP service and support options in your region.
