GRAPHTEC FC4550-50 Flatbed Cutter 23.2″ x 16.9″

GRAPHTEC FC4550-50 Flatbed Cutter 23.2″ x 16.9″



Alternative Views:


Our Price: $8,695.00

Stock Status:Please Call for Availability
Product Code: FC4500-50
Qty:

Description Technical Specs OTHER INFO


GRAPHTEC FC4550-50 Flatbed Cutter 23.2″ x 16.9″

FC4550-50 (23.2″ x 16.9″) - electrostatic and adhesive sheet

Includes: D-Cut Master software (Windows), Graphtec Pro Studio software & Cutting Master 4 plug-in for Illustrator & CorelDraw (Macintosh & Windows compatible).

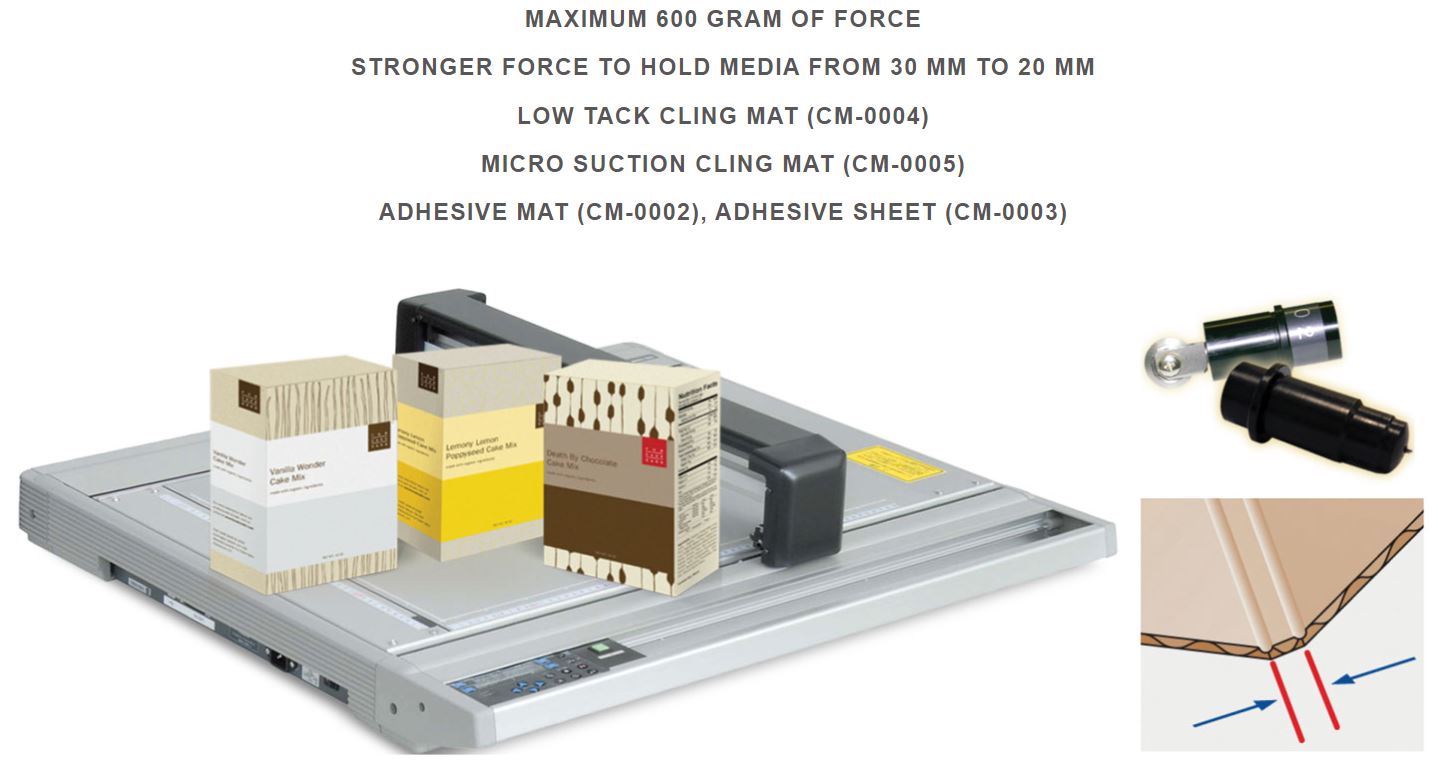

Professional flatbed cutting plotters (in a more compact size) capable of processing various materials with accuracy compliant to most industry requirements for pattern making. FC4500 Series are the ideal cutting plotter for high-precision and medium-heavy material crafting jobs and is suitable for cutting intricate designs on vinyl, photo-masking films, foam material, cardboard, oil board, and sandblast resist rubber. Suitable for PET (polyethylene terephthalate), Polyamide, Stiff paper, Cardboard, Microflute board or Industrial materials with precise adjustable cut pressure up to 600 gf. Flatbed FC4500 Series is the most economical solution for cutting thick, hard materials that cannot be fed through a roll-feed/friction-feed cutting plotter.

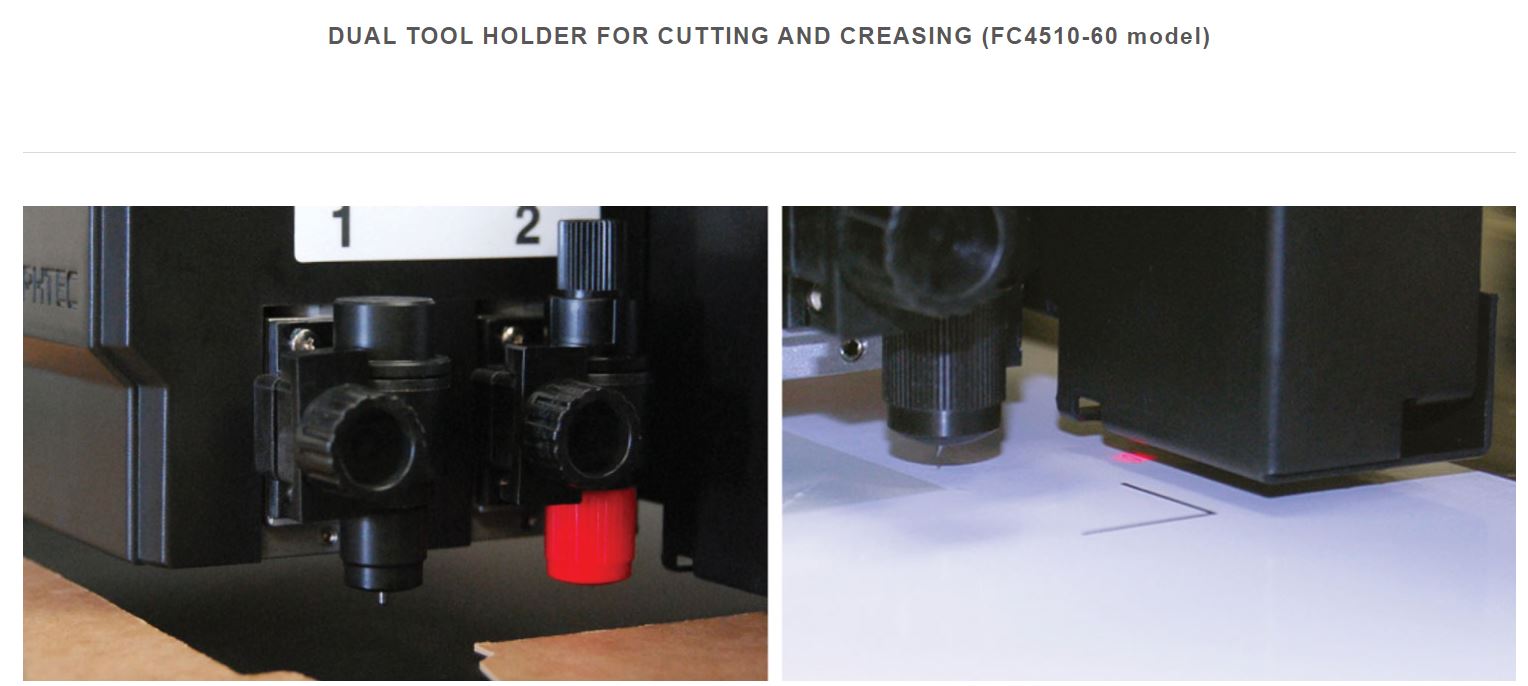

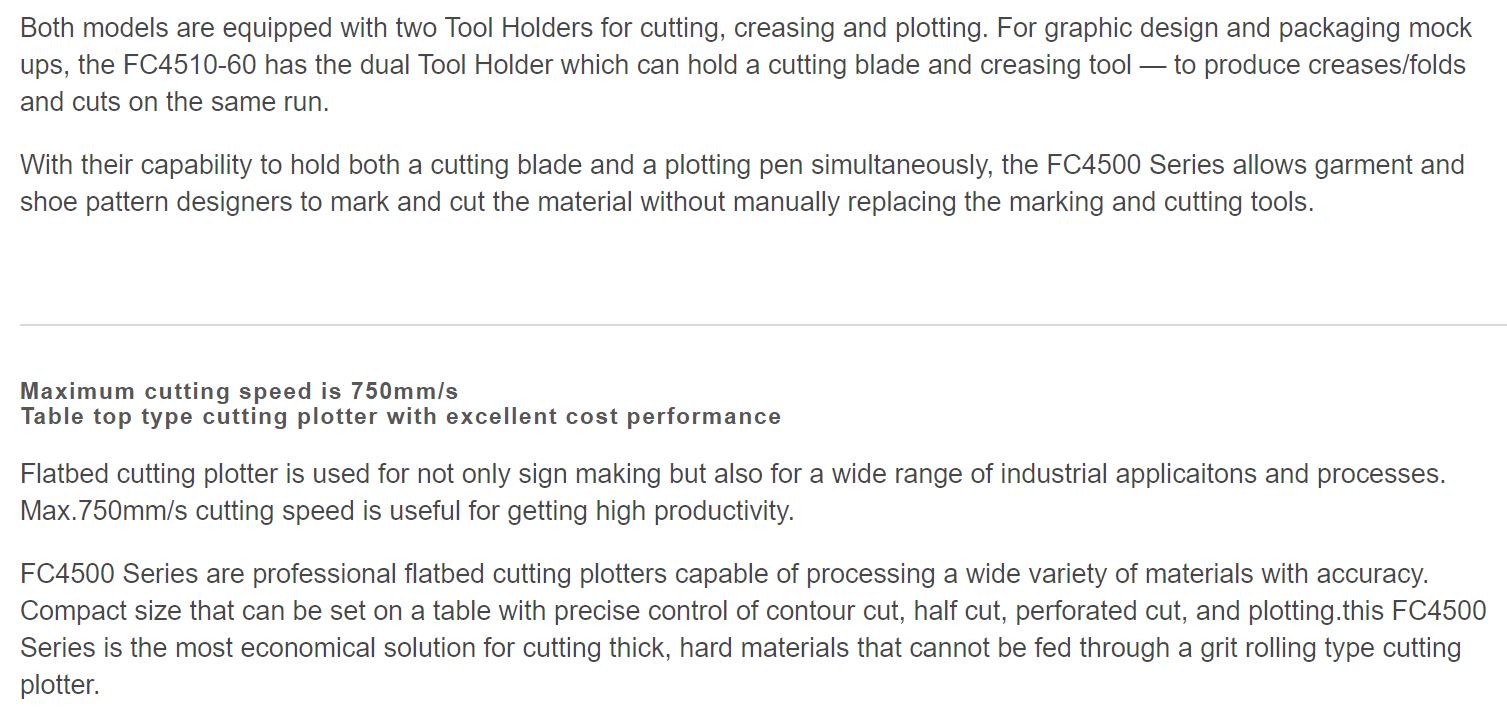

Graphtec FC4500 Series come standard with a dual head configuration allowing pens, cutting tools, and creasing tools to be loaded simultaneously. A new reverse creasing function allows alignment and creasing on the reverse side of the printed card stock to prevent traces of the creasing operation from appearing on the printed surface. A simple function to create fold lines for clean folding on micro-flute and cardboard has been enabled. Up to three fold lines can be selected. If two or three fold lines have been selected, the spacing between the lines can also be specified. Repeated creasing operations can also be specified for each of the lines.

Cutting and creasing can be carried out from reverse-side when using the registration marks. This prevents crease line from appearing on the printed surface. Graphtec FC4500 Series are perfect for designers and prototyping in the offset printing, digital printing, packaging industry, fashion industry, as well as road sign making, stone & glass sandblasting/etching, the electronic film industry, and architectural model building.

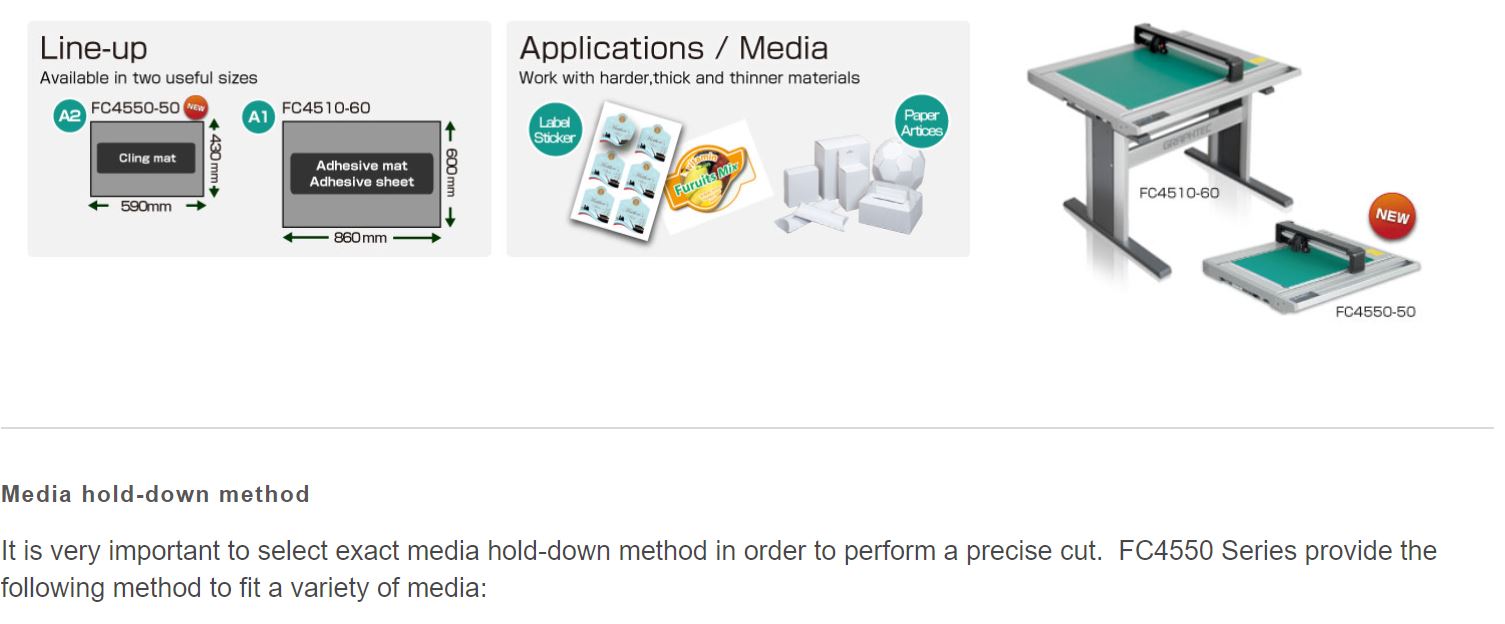

FC4500 Series are intermediate-format, professional flatbed cutting plotters capable of processing a wide variety of materials with accuracy — compliant to most industry requirements for pattern making. The series includes two table top models, the FC4550-50 and the FC4510-60. An optional stand is available for the FC4510-60.


Equipped with the ARMS (Automatic Registration Mark Sensing system). Enables higher productivity of POP, stickers and prototype cartons. Precise control of contour cut, half cut, perforated cut, and plotting. Ideal for creating samples or small production runs.


Interface—USB 2.0 / Serial RS-232C | Reverse side cutting & creasingServo Motor | Cut, contour cut & crease up to 1 mm pre-printed card stocks/boards


FC4500 Series comes with 2 Year Standard Warranty.
