Eizo FlexScan EV2760 27" LCD Monitor w/ FlexStand, White
High Resolution in a Space-Saving Design
The EV2760 uses a 27-inch IPS panel with WQHD (2560 x 1440) resolution, which offers 78% more pixels than conventional full HD (1920 x 1080) monitors. You can easily open multiple windows on the screen for efficient multi-tasking. Moreover, it incorporates a frameless design with width of just 611.7 mm, a new flexible stand featuring high adjustment range, and narrow depth for a neater desktop.
Smarter Usage, Higher Efficency
1. Space-Efficient Multi-Screen Environment
Easily place a laptop or a tablet under the monitor to realize a convenient multi-screen environment thanks to the flexible stand with 169 mm height adjustment range, which is 14 mm higher than a previous model. This gives you ample space to work freely and more efficiently when using multiple business applications, such as Excel and PowerPoint.

2. Comfortable Idea Sharing with Your Team
The monitor's space-saving body has a depth of 230 mm, which is 15 mm thinner than a previous model, all while housing a large 27-inch screen. This makes it comfortable to use in close-communication workspaces for easily sharing ideas. Furthermore, it uses an IPS (in-plane switching) panel with 178° viewing angles that minimizes color and contrast shift when viewed from the side for a clear view.




PANEL - Type: IPS
- Backlight: LED
- Size: 27" / 68.5 cm
- Native Resolution: 2560 x 1440 (16:9 aspect ratio)
- Viewable Image Size (H x V): 596.7 x 335.7 mm
- Pixel Pitch: 0.233 x 0.233 mm
- Pixel Density: 109 ppi
- Display Colors: 16.77 million
- Viewing Angles (H / V, typical): 178° / 178°
- Brightness (typical): 350 cd/m2
- Contrast Ratio (typical): 1000:1
- Response Time (typical): 5 ms (gray-to-gray)
- Color Gamut (typical): sRGB
Video Signals
- Input Terminals: DisplayPort (HDCP 1.3) x 2, HDMI (HDCP 1.4), DVI-D (HDCP 1.4)
- Digital Scanning Frequency (H / V):
- DisplayPort: 31 - 89 kHz / 59 - 61 Hz
- HDMI: 31 - 89 kHz / 29 - 31 Hz, 49 - 51 Hz, 59 - 61 Hz
- DVI: 31 - 89 kHz / 29 - 31 Hz, 59 - 61 Hz
USB
- Upstream: USB 3.1 Gen 1: Type-B
- Downstream: USB 3.1 Gen 1: Type-A x 4
Audio
- Speakers: 1.0 W + 1.0 W
- Input Terminals: Stereo mini jack, DisplayPort x 2, HDMI
- Output Terminals: Headphones (Stereo mini jack)
Power
- Power Requirements: AC 100 - 240 V, 50 / 60 Hz

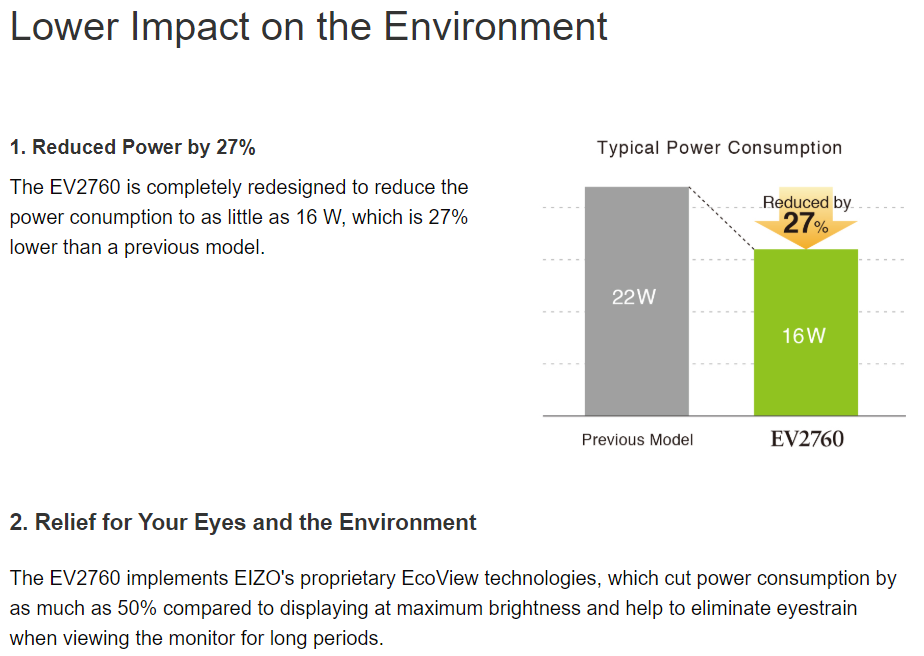

- Typical Power Consumption: 16 W
- Maximum Power Consumption: 67 W
- Power Save Mode: 0.5 W or less
Features & Functions
- Preset Modes: Color mode (User1, User2, sRGB, Paper, Movie, DICOM)
- Auto EcoView: Yes
- OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
- Dimensions (Landscape, W x H x D): 611.7 x 376.3 - 545.3 x 230 mm
- Dimensions (Portrait, W x H x D): 364.4 x 623.3 - 675.9 x 230 mm
- Dimensions (Without Stand, W x H x D): 611.7 x 364.4 x 53.7 mm
- Net Weight: 8.5 kg
- Net Weight (Without Stand): 5.7 kg
- Height Adjustment Range: 169 mm
- Tilt: 35° Up, 5° Down
- Swivel: 344°
- Pivot: 90°(both clockwise and counter clockwise)
- Hole Spacing (VESA Standard): 100 x 100 mm
Environmental Requirements
- Operating Temperature: 5 - 35 °C
- Operating Humidity (R.H., non condensing): 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.):TCO Certified Generation 8, EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, China Energy Label Grade2, EAC
Dedicated Software
Monitor Control Utility Screen InStyle: Supported Supplied Accessories (May vary by country. Please contact EIZO for details.)
- Signal Cables: DisplayPort (2 m)
- Others: AC power cord (2 m), USB cable (2 m), Screw for VESA mount x 4, setup guide
Warranty:Five Years
|
|
 |
 |
 |
 |

|
