EIZO ColorEdge CG2420 24.1" LCD Monitor
Hassle-free maintenance and optimal color reproduction for professionals to express their vision.
| Model Variations | CG2420-BK |
|---|
| Panel | |
|---|
| Type | IPS |
|---|
| Backlight | Wide-Gamut LED |
|---|
| Size | 24.1" (61.1 cm) |
|---|
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
|---|
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
|---|
| Pixel Pitch | 0.270 x 0.270 mm |
|---|
| Pixel Density | 94 ppi |
|---|
| Display Colors | DisplayPort, HDMI: 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)
DVI: 16.77 million colors, 8-bit display (from a palette of 278 trillion, 16-bit LUT) |
|---|
| Viewing Angles (H / V, typical) | 178°, 178° |
|---|
| Brightness (typical) | 400 cd/m2 |
|---|
| Recommended Brightness for Calibration | 120 cd/m2 or less |
|---|
| Contrast Ratio (typical) | 1500:1 |
|---|
| Response Time (typical) | 10 ms (gray-to-gray) |
|---|
| Color Gamut (typical) | Adobe RGB: 99%, DCI-P3: 98% |
|---|
| Video Signals | |
|---|
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (Deep Color, HDCP 1.4), DVI-D (HDCP 1.4) |
|---|
| Digital Scanning Frequency (H / V) | DisplayPort, DVI: 26 - 78 kHz, 24 - 61 Hz
HDMI: 15 - 78 kHz, 24 - 61 Hz |
|---|
| USB | |
|---|
| Upstream | USB 3.1 Gen 1: Type-B |
|---|
| Downstream | USB 3.1 Gen 1: Type-A x 3 (Battery Charging 10.5 W max. x 1) |
|---|
| Power | |
|---|
| Power Requirements | AC 100 - 240 V, 50 / 60 Hz |
|---|
| Typical Power Consumption | 20 W |
|---|
| Maximum Power Consumption | 79 W |
|---|
| Power Save Mode | 0.7 W or less |
|---|

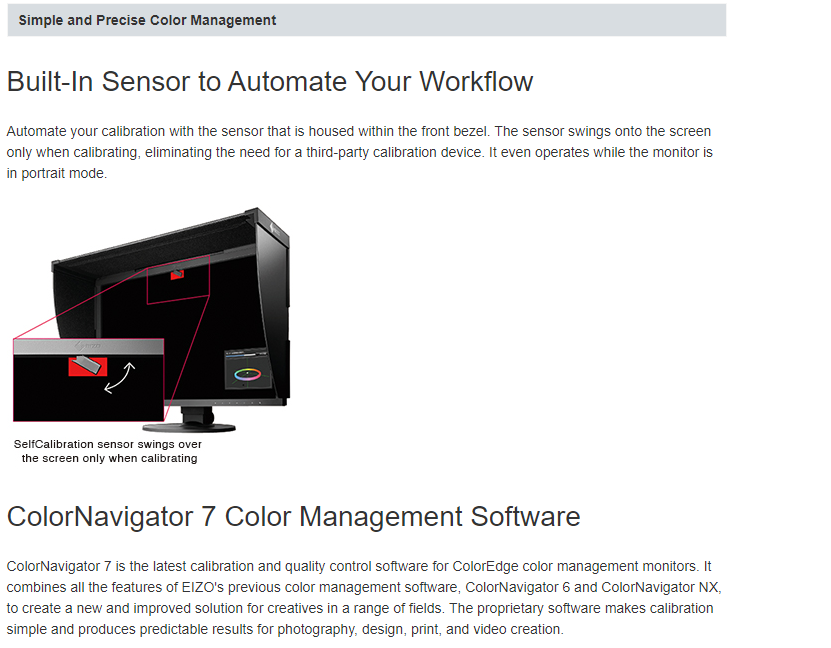

| Built-in Calibration Sensor | Yes |
|---|
| Features & Functions | |
|---|
| Brightness Stabilization | Yes |
|---|
| Digital Uniformity Equalizer | Yes |
|---|
| Preset Modes | Custom, Adobe RGB, sRGB, Calibration |
|---|
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
|---|
| Others | Color Adjustment, SelfCalibration, Input Color Format, Input Range, Noise Reduction, I/P Conversion, Picture Expansion, Menu Rotation, Power Save, Input Skip, Mode Skip, Key Lock, DUE Priority |
|---|
| Physical Specifications | |
|---|
| Dimensions (Landscape, W x H x D) | 554.4 x 396 - 551 x 245 mm |
|---|
| Dimensions (Without Stand, W x H x D) | 554.4 x 362 x 64 mm |
|---|
| Dimensions (Landscape with Hood, W x H x D) | 572.4 x 405 - 560 x 336 mm |
|---|
| Net Weight | 7.8 kg / 17.2 lbs |
|---|
| Net Weight (Without Stand) | 5.0 kg / 11.0 lbs |
|---|
| Net Weight (With Hood) | 8.5 kg / 18.7 lbs |
|---|
| Height Adjustment Range | 155 mm |
|---|
| Tilt | 35° Up, 5° Down |
|---|
| Swivel | 344° |
|---|
| Pivot | 90° |
|---|
| Hole Spacing (VESA Standard) | 100 x 100 mm |
|---|
| Environmental Requirements | |
|---|
| Operating Temperature | 0 - 35°C |
|---|
| Operating Humidity (R.H., non condensing) | 20 - 80% |
|---|
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A) |
|---|
| Dedicated Software | |
|---|
| Easy Screen-to-Print Color Matching Tool Quick Color Match | Supported |
|---|
| Proprietary Software | |
|---|
| Color Management Software ColorNavigator 7 | Supported |
|---|
| Color Management Software ColorNavigator 6 | Supported |
|---|
| Dedicated Software | |
|---|
| Monitor Management Software ColorNavigator NX | Supported |
|---|
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
|---|
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
|---|
| Others | AC power cord, USB Type-A - USB Type-B cable (2 m), Setup guide, Adjustment certificate, ScreenCleaner, Monitor hood, Quick reference, Warranty card, VESA mounting screw x 4 |
|---|
| Warranty | 5 Years 2 5
Zero bright sub-pixels for six months from date of purchase |
|---|
| Dimension Drawing | PDF |
|---|
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
|
|
|
 |
|
 |
|
