Techkon SpectroDens Basic Spectro-Densitometer

Techkon SpectroDens Basic Spectro-Densitometer
Manufacturer: Techkon
Availability: Call for Availability
SKU: SDN4-B
$5,450.00
decrease increase

Techkon SpectroDens Basic Spectro-Densitometer

The fastest & easiest way to control color and density throughout your print workflow

SpectroDens is your all-purpose, modern, color measurement device that combines the qualities of a highly accurate spectophotometer and also an easy-to-use densitometer. SpectroDens is exceptionally equipped and excels at every application from pre-press to print, including the verification of inks in the color lab, proofs in pre-press, and ongoing quality control in the pressroom. In addition, it’s the most ergonomic device on the market and that’s why operators consistently prefer the SpectroDens to the cumbersome, slower, clamshell-style devices they have used in the past.

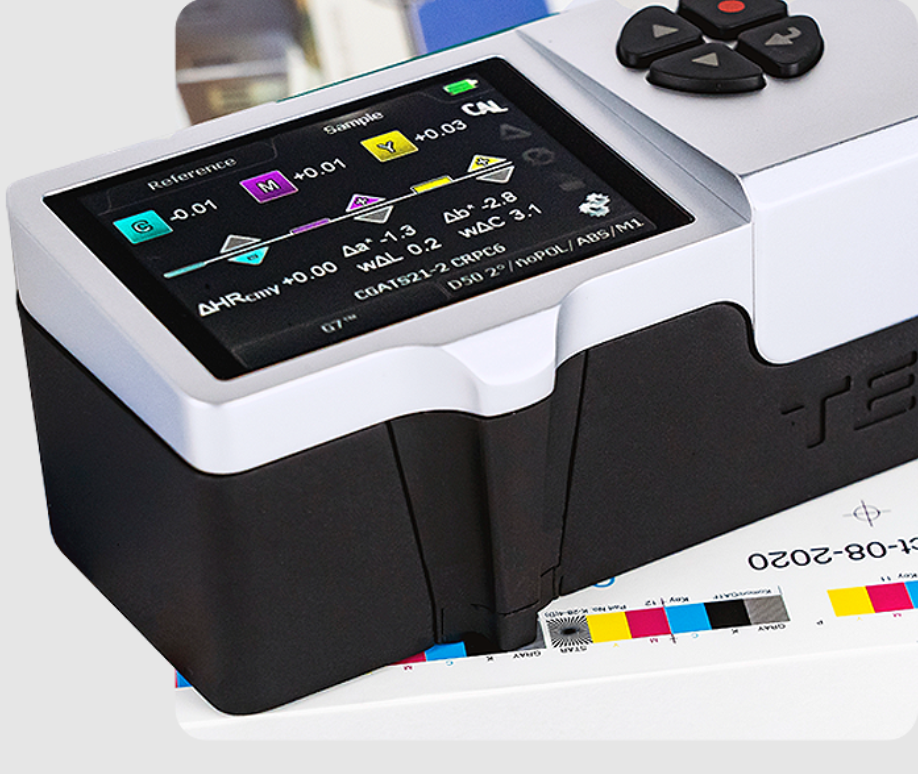

ACCURATE

An ultra-high definition, spectral sensor samples color in approximately 3nm increments (from 400-700nm) providing a higher resolution spectral characterization when compared to conventional instruments and allows for single spot measurements in approximately 1 second.

NIST (National Institute of Standards & Technology ) certified calibrations ensure the measurement accuracy and agreement with other instrument manufacturers.

SpectroDens fulfills M0, M1, M2, M3 measurement conditions in accordance to ISO 13655 and full support for ISO and G7® methodologies.

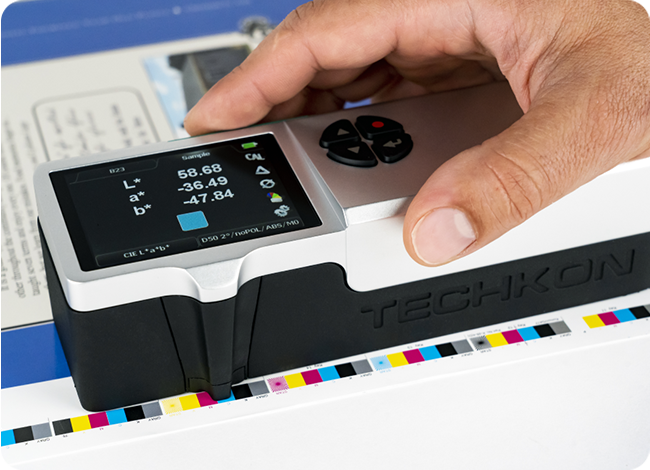

ERGONOMIC

A patented, side-mounted aperture, allows the operator to more easily position the optics over the desired measurement location while providing visual confirmation.

Four precisely aligned wheels on the underside of the device allow the operator to switch between spot measurement and color bar scanning with the click of a button.

Sleek design and small size fits comfortably in the operators hand and allows for easy one-handed operation.

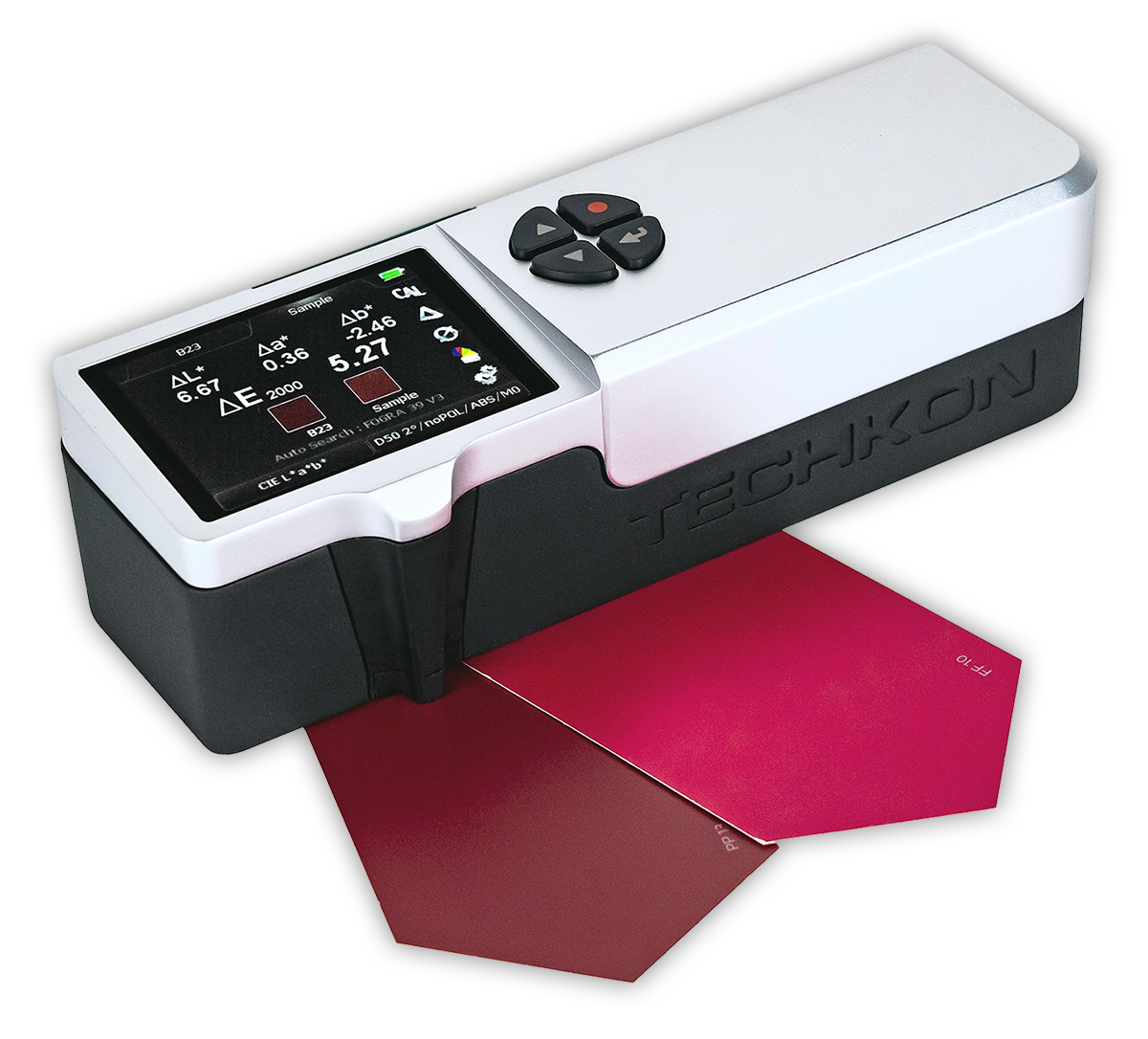

RELIABLE

With no moving part and a solid state spectral engine, SpectroDens delivers unbeatable and proven reliability backed by a 2 year warranty.

Physical buttons allow the operator to switch between instrument modes and withstand the harshest pressroom environments unlike delicate touch screen interfaces.

The unibody case is precisely machined from a single block of aluminum to maximize durability and reliability in unforgiving production environments.

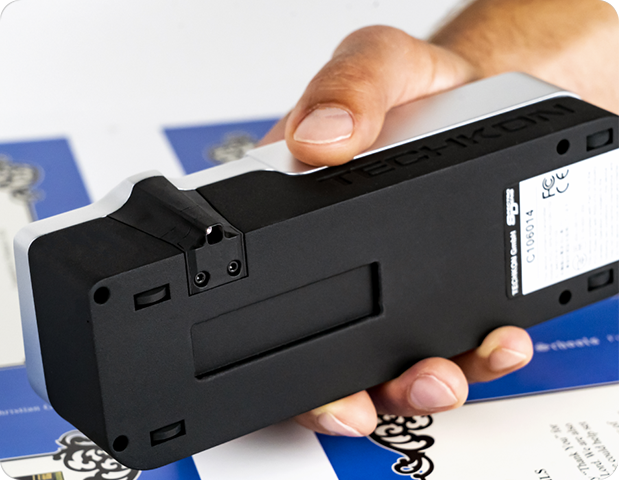

SPOT & SCAN

Four precisely aligned wheels on the underside of the device allow it to roll effortlessly between measurement locations for either spot measurements or color bar scanning.

Switch between spot measurements and color bar scanning with the click of a button.

No expensive accessories to buy or install for scanning.


KEY FEATURES:

QUICK MEASUREMENT OF PROCESS AND SPOT COLORS

Control your process, spot, Pantone® or other critical brand colors by measuring solid ink density, % dot area, CIE Lab, deltaE, and more.

BEST COLOR MATCH

InkCheck™ feature helps press operators minimize color differences (deltaE’s) by providing specific density adjustments to achieve best possible color match

ACHIEVE G7 COMPLIANCE

GrayGuideâ„¢ feature displays G7 pass/fail indication and specific C,M,Y density adjustments to obtain grayscale values according to G7 specification

TRACK DENSITIES ACROSS SHEET

Shows density variation across press sheet and provides specific ink key adjustments right on instrument display.

SCAN MEDIA WEDGE FOR QUICK PROOF VERIFICATION

Scan control wedge in seconds to confirm proofs against 12647-7 and known datasets like GRACol, SWOP3, SWOP5, IFRA, UGRA/FOGRA, G7â„¢, etc.

DESKTOP SOFTWARE INCLUDED

Create, edit, and manage color libraries, import/export color data, generate pass/fail QC reports, and manage instrument, all with SpectroConnect.

TAILORED TO MEET YOUR NEEDS

The SpectroDens is available in 3 different models to best meet your color measurement needs.

WIRELESS CONNECTIVITY

Uses true WiFi connectivity to computers which boast faster communication speeds, enhanced security, and a much greater connectivity range

FAST APERTURE SWITCHING

Designed so the customer can change the measurement aperture themselves (1.5mm or 3mm apertures depending on measurement requirements)

Techkon SpectroDens Basic Spectro-Densitometer

The fastest & easiest way to control color and density throughout your print workflow

SpectroDens is your all-purpose, modern, color measurement device that combines the qualities of a highly accurate spectophotometer and also an easy-to-use densitometer. SpectroDens is exceptionally equipped and excels at every application from pre-press to print, including the verification of inks in the color lab, proofs in pre-press, and ongoing quality control in the pressroom. In addition, it’s the most ergonomic device on the market and that’s why operators consistently prefer the SpectroDens to the cumbersome, slower, clamshell-style devices they have used in the past.

ACCURATE

An ultra-high definition, spectral sensor samples color in approximately 3nm increments (from 400-700nm) providing a higher resolution spectral characterization when compared to conventional instruments and allows for single spot measurements in approximately 1 second.

NIST (National Institute of Standards & Technology ) certified calibrations ensure the measurement accuracy and agreement with other instrument manufacturers.

SpectroDens fulfills M0, M1, M2, M3 measurement conditions in accordance to ISO 13655 and full support for ISO and G7® methodologies.


ERGONOMIC

A patented, side-mounted aperture, allows the operator to more easily position the optics over the desired measurement location while providing visual confirmation.

Four precisely aligned wheels on the underside of the device allow the operator to switch between spot measurement and color bar scanning with the click of a button.

Sleek design and small size fits comfortably in the operators hand and allows for easy one-handed operation.


RELIABLE

With no moving part and a solid state spectral engine, SpectroDens delivers unbeatable and proven reliability backed by a 2 year warranty.

Physical buttons allow the operator to switch between instrument modes and withstand the harshest pressroom environments unlike delicate touch screen interfaces.

The unibody case is precisely machined from a single block of aluminum to maximize durability and reliability in unforgiving production environments.


SPOT & SCAN

Four precisely aligned wheels on the underside of the device allow it to roll effortlessly between measurement locations for either spot measurements or color bar scanning.

Switch between spot measurements and color bar scanning with the click of a button.

No expensive accessories to buy or install for scanning.


KEY FEATURES:

QUICK MEASUREMENT OF PROCESS AND SPOT COLORS

Control your process, spot, Pantone® or other critical brand colors by measuring solid ink density, % dot area, CIE Lab, deltaE, and more.

BEST COLOR MATCH

InkCheck™ feature helps press operators minimize color differences (deltaE’s) by providing specific density adjustments to achieve best possible color match

ACHIEVE G7 COMPLIANCE

GrayGuideâ„¢ feature displays G7 pass/fail indication and specific C,M,Y density adjustments to obtain grayscale values according to G7 specification

TRACK DENSITIES ACROSS SHEET

Shows density variation across press sheet and provides specific ink key adjustments right on instrument display.

SCAN MEDIA WEDGE FOR QUICK PROOF VERIFICATION

Scan control wedge in seconds to confirm proofs against 12647-7 and known datasets like GRACol, SWOP3, SWOP5, IFRA, UGRA/FOGRA, G7â„¢, etc.

DESKTOP SOFTWARE INCLUDED

Create, edit, and manage color libraries, import/export color data, generate pass/fail QC reports, and manage instrument, all with SpectroConnect.

TAILORED TO MEET YOUR NEEDS

The SpectroDens is available in 3 different models to best meet your color measurement needs.

WIRELESS CONNECTIVITY

Uses true WiFi connectivity to computers which boast faster communication speeds, enhanced security, and a much greater connectivity range

FAST APERTURE SWITCHING

Designed so the customer can change the measurement aperture themselves (1.5mm or 3mm apertures depending on measurement requirements)
